#include <adalight_light_effect.h>

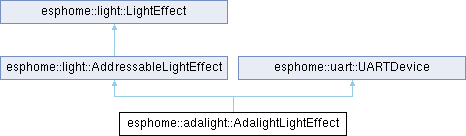

Inheritance diagram for esphome::adalight::AdalightLightEffect:

Public Member Functions
	AdalightLightEffect (const char *name)

void	start () override

void	stop () override

void	apply (light::AddressableLight &it, const Color &current_color) override

Public Member Functions inherited from esphome::light::AddressableLightEffect
	AddressableLightEffect (const char *name)

void	start_internal () override

void	stop () override

void	apply () override

uint32_t	get_effect_index () const
	Get effect index specifically for addressable effects.

bool	is_current_effect () const
	Check if this is the currently running addressable effect.

Public Member Functions inherited from esphome::light::LightEffect
	LightEffect (const char *name)

const char *	get_name () const
	Returns the name of this effect.

virtual void	init ()
	Internal method called by the LightState when this light effect is registered in it.

void	init_internal (LightState *state)

uint32_t	get_index () const
	Get the index of this effect in the parent light's effect list.

bool	is_active () const
	Check if this effect is currently active.

LightState *	get_light_state () const
	Get a reference to the parent light state.

Public Member Functions inherited from esphome::uart::UARTDevice
	UARTDevice ()=default

	UARTDevice (UARTComponent *parent)

void	set_uart_parent (UARTComponent *parent)

void	write_byte (uint8_t data)

void	set_rx_full_threshold (size_t rx_full_threshold)

void	set_rx_full_threshold_ms (size_t time)

size_t	get_rx_full_threshold ()

void	set_rx_timeout (size_t rx_timeout)

size_t	get_rx_timeout ()

void	write_array (const uint8_t *data, size_t len)

void	write_array (const std::vector< uint8_t > &data)

template<size_t N>
void	write_array (const std::array< uint8_t, N > &data)

void	write_str (const char *str)

bool	read_byte (uint8_t *data)

bool	peek_byte (uint8_t *data)

bool	read_array (uint8_t *data, size_t len)

template<size_t N>
optional< std::array< uint8_t, N > >	read_array ()

int	available ()

void	flush ()

int	read ()

size_t	write (uint8_t data)

int	peek ()

void	check_uart_settings (uint32_t baud_rate, uint8_t stop_bits=1, UARTParityOptions parity=UART_CONFIG_PARITY_NONE, uint8_t data_bits=8)
	Check that the configuration of the UART bus matches the provided values and otherwise print a warning.

Protected Types
enum	Frame { INVALID , PARTIAL , CONSUMED }

Protected Member Functions
unsigned int	get_frame_size_ (int led_count) const

void	reset_frame_ (light::AddressableLight &it)

void	blank_all_leds_ (light::AddressableLight &it)

Frame	parse_frame_ (light::AddressableLight &it)

Protected Member Functions inherited from esphome::light::AddressableLightEffect
AddressableLight *	get_addressable_ () const

Protected Member Functions inherited from esphome::light::LightEffect
uint32_t	get_index_in_parent_ () const
	Internal method to find this effect's index in the parent light's effect list.

Protected Attributes
uint32_t	last_ack_ {0}

uint32_t	last_byte_ {0}

uint32_t	last_reset_ {0}

std::vector< uint8_t >	frame_

Protected Attributes inherited from esphome::light::LightEffect
LightState *	state_ {nullptr}

const char *	name_

Protected Attributes inherited from esphome::uart::UARTDevice
UARTComponent *	parent_ {nullptr}

Detailed Description

Definition at line 12 of file adalight_light_effect.h.

Member Enumeration Documentation

◆ Frame

enum esphome::adalight::AdalightLightEffect::Frame

protected

Enumerator
INVALID
PARTIAL
CONSUMED

Definition at line 21 of file adalight_light_effect.h.

Constructor & Destructor Documentation

◆ AdalightLightEffect()

esphome::adalight::AdalightLightEffect::AdalightLightEffect ( const char * name )

Definition at line 12 of file adalight_light_effect.cpp.

Member Function Documentation

◆ apply()

void esphome::adalight::AdalightLightEffect::apply	(	light::AddressableLight &	it,
		const Color &	current_color )

overridevirtual

Implements esphome::light::AddressableLightEffect.

Definition at line 50 of file adalight_light_effect.cpp.

◆ blank_all_leds_()

void esphome::adalight::AdalightLightEffect::blank_all_leds_ ( light::AddressableLight & it )

protected

Definition at line 43 of file adalight_light_effect.cpp.

◆ get_frame_size_()

unsigned int esphome::adalight::AdalightLightEffect::get_frame_size_ ( int led_count ) const

protected

Definition at line 28 of file adalight_light_effect.cpp.

◆ parse_frame_()

AdalightLightEffect::Frame esphome::adalight::AdalightLightEffect::parse_frame_ ( light::AddressableLight & it )

protected

Definition at line 100 of file adalight_light_effect.cpp.

◆ reset_frame_()

void esphome::adalight::AdalightLightEffect::reset_frame_ ( light::AddressableLight & it )

protected

Definition at line 36 of file adalight_light_effect.cpp.

◆ start()

void esphome::adalight::AdalightLightEffect::start ( )

overridevirtual

Reimplemented from esphome::light::LightEffect.

Definition at line 14 of file adalight_light_effect.cpp.

◆ stop()

void esphome::adalight::AdalightLightEffect::stop ( )

overridevirtual

Reimplemented from esphome::light::LightEffect.

Definition at line 22 of file adalight_light_effect.cpp.

Field Documentation

◆ frame_

std::vector<uint8_t> esphome::adalight::AdalightLightEffect::frame_

protected

Definition at line 35 of file adalight_light_effect.h.

◆ last_ack_

uint32_t esphome::adalight::AdalightLightEffect::last_ack_ {0}

protected

Definition at line 32 of file adalight_light_effect.h.

◆ last_byte_

uint32_t esphome::adalight::AdalightLightEffect::last_byte_ {0}

protected

Definition at line 33 of file adalight_light_effect.h.

◆ last_reset_

uint32_t esphome::adalight::AdalightLightEffect::last_reset_ {0}

protected

Definition at line 34 of file adalight_light_effect.h.

The documentation for this class was generated from the following files:

esphome/components/adalight/adalight_light_effect.h
esphome/components/adalight/adalight_light_effect.cpp
