#include <uart_component.h>

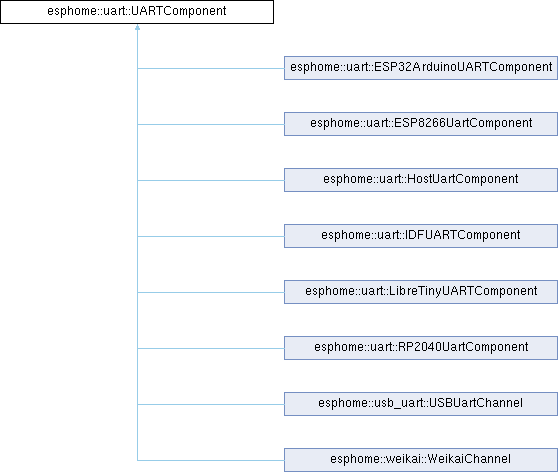

Inheritance diagram for esphome::uart::UARTComponent:

Public Member Functions
void	write_array (const std::vector< uint8_t > &data)

void	write_byte (uint8_t data)

void	write_str (const char *str)

virtual void	write_array (const uint8_t *data, size_t len)=0

bool	read_byte (uint8_t *data)

virtual bool	peek_byte (uint8_t *data)=0

virtual bool	read_array (uint8_t *data, size_t len)=0

virtual size_t	available ()=0

virtual UARTFlushResult	flush ()=0

virtual bool	is_connected ()

virtual void	set_flush_timeout (uint32_t flush_timeout_ms)

void	set_tx_pin (InternalGPIOPin *tx_pin)

void	set_rx_pin (InternalGPIOPin *rx_pin)

void	set_flow_control_pin (InternalGPIOPin *flow_control_pin)

void	set_rx_buffer_size (size_t rx_buffer_size)

size_t	get_rx_buffer_size ()

virtual void	set_rx_full_threshold (size_t rx_full_threshold)

void	set_rx_full_threshold_ms (uint8_t time)

size_t	get_rx_full_threshold ()

virtual void	set_rx_timeout (size_t rx_timeout)

size_t	get_rx_timeout ()

void	set_stop_bits (uint8_t stop_bits)

uint8_t	get_stop_bits () const

void	set_data_bits (uint8_t data_bits)

uint8_t	get_data_bits () const

void	set_parity (UARTParityOptions parity)

UARTParityOptions	get_parity () const

void	set_baud_rate (uint32_t baud_rate)

uint32_t	get_baud_rate () const

virtual void	load_settings (bool dump_config)
	Load the UART settings.

virtual void	load_settings ()
	Load the UART settings.

template<typename F >
void	add_debug_callback (F &&callback)

Static Public Attributes
static constexpr size_t	RX_FULL_THRESHOLD_UNSET = 0

Protected Member Functions
virtual void	check_logger_conflict ()=0

bool	check_read_timeout_ (size_t len=1)

Protected Attributes
InternalGPIOPin *	tx_pin_ {}

InternalGPIOPin *	rx_pin_ {}

InternalGPIOPin *	flow_control_pin_ {}

size_t	rx_buffer_size_ {}

size_t	rx_full_threshold_ {RX_FULL_THRESHOLD_UNSET}

size_t	rx_timeout_ {0}

uint32_t	baud_rate_ {0}

uint8_t	stop_bits_ {0}

uint8_t	data_bits_ {0}

UARTParityOptions	parity_ {UART_CONFIG_PARITY_NONE}

CallbackManager< void(UARTDirection, uint8_t)>	debug_callback_ {}

Detailed Description

Definition at line 40 of file uart_component.h.

Member Function Documentation

◆ add_debug_callback()

template<typename F >

void esphome::uart::UARTComponent::add_debug_callback ( F && callback )

inline

Definition at line 197 of file uart_component.h.

◆ available()

virtual size_t esphome::uart::UARTComponent::available ( )

pure virtual

Implemented in esphome::ble_nus::BLENUS, esphome::uart::ESP8266UartComponent, esphome::uart::HostUartComponent, esphome::uart::IDFUARTComponent, esphome::uart::LibreTinyUARTComponent, esphome::uart::RP2040UartComponent, esphome::usb_cdc_acm::USBCDCACMInstance, esphome::usb_uart::USBUartChannel, and esphome::weikai::WeikaiChannel.

◆ check_logger_conflict()

virtual void esphome::uart::UARTComponent::check_logger_conflict ( )

protectedpure virtual

Implemented in esphome::ble_nus::BLENUS, esphome::uart::ESP8266UartComponent, esphome::uart::HostUartComponent, esphome::uart::IDFUARTComponent, esphome::uart::LibreTinyUARTComponent, esphome::uart::RP2040UartComponent, esphome::usb_cdc_acm::USBCDCACMInstance, esphome::usb_uart::USBUartChannel, and esphome::weikai::WeikaiChannel.

◆ check_read_timeout_()

bool esphome::uart::UARTComponent::check_read_timeout_ ( size_t len = 1 )

protected

Definition at line 7 of file uart_component.cpp.

◆ flush()

virtual UARTFlushResult esphome::uart::UARTComponent::flush ( )

pure virtual

Implemented in esphome::ble_nus::BLENUS, esphome::uart::ESP8266UartComponent, esphome::uart::HostUartComponent, esphome::uart::IDFUARTComponent, esphome::uart::LibreTinyUARTComponent, esphome::uart::RP2040UartComponent, esphome::usb_cdc_acm::USBCDCACMInstance, esphome::usb_uart::USBUartChannel, and esphome::weikai::WeikaiChannel.

◆ get_baud_rate()

uint32_t esphome::uart::UARTComponent::get_baud_rate ( ) const

inline

Definition at line 167 of file uart_component.h.

◆ get_data_bits()

uint8_t esphome::uart::UARTComponent::get_data_bits ( ) const

inline

Definition at line 151 of file uart_component.h.

◆ get_parity()

UARTParityOptions esphome::uart::UARTComponent::get_parity ( ) const

inline

Definition at line 159 of file uart_component.h.

◆ get_rx_buffer_size()

size_t esphome::uart::UARTComponent::get_rx_buffer_size ( )

inline

Definition at line 115 of file uart_component.h.

◆ get_rx_full_threshold()

size_t esphome::uart::UARTComponent::get_rx_full_threshold ( )

inline

Definition at line 127 of file uart_component.h.

◆ get_rx_timeout()

size_t esphome::uart::UARTComponent::get_rx_timeout ( )

inline

Definition at line 135 of file uart_component.h.

◆ get_stop_bits()

uint8_t esphome::uart::UARTComponent::get_stop_bits ( ) const

inline

Definition at line 143 of file uart_component.h.

◆ is_connected()

virtual bool esphome::uart::UARTComponent::is_connected ( )

inlinevirtual

Reimplemented in esphome::usb_uart::USBUartChannel.

Definition at line 90 of file uart_component.h.

◆ load_settings() [1/2]

virtual void esphome::uart::UARTComponent::load_settings ( )

inlinevirtual

Load the UART settings.

Example:

id(uart1).load_settings();

id

uint16_t id

Definition dns_server_esp32_idf.cpp:0

This will load the current UART interface with the latest settings (baud_rate, parity, etc).

Reimplemented in esphome::uart::ESP8266UartComponent, and esphome::uart::IDFUARTComponent.

Definition at line 193 of file uart_component.h.

◆ load_settings() [2/2]

virtual void esphome::uart::UARTComponent::load_settings ( bool dump_config )

inlinevirtual

Load the UART settings.

Parameters

dump_config If true (default), output the new settings to logs; otherwise, change settings quietly.

Example:

id(uart1).load_settings(false);

This will load the current UART interface with the latest settings (baud_rate, parity, etc).

Reimplemented in esphome::uart::ESP8266UartComponent, and esphome::uart::IDFUARTComponent.

Definition at line 181 of file uart_component.h.

◆ peek_byte()

virtual bool esphome::uart::UARTComponent::peek_byte ( uint8_t * data )

pure virtual

Implemented in esphome::ble_nus::BLENUS, esphome::uart::ESP8266UartComponent, esphome::uart::HostUartComponent, esphome::uart::IDFUARTComponent, esphome::uart::LibreTinyUARTComponent, esphome::uart::RP2040UartComponent, esphome::usb_cdc_acm::USBCDCACMInstance, esphome::usb_uart::USBUartChannel, and esphome::weikai::WeikaiChannel.

◆ read_array()

virtual bool esphome::uart::UARTComponent::read_array	(	uint8_t *	data,
		size_t	len )

pure virtual

Implemented in esphome::ble_nus::BLENUS, esphome::uart::ESP8266UartComponent, esphome::uart::HostUartComponent, esphome::uart::IDFUARTComponent, esphome::uart::LibreTinyUARTComponent, esphome::uart::RP2040UartComponent, esphome::usb_cdc_acm::USBCDCACMInstance, esphome::usb_uart::USBUartChannel, and esphome::weikai::WeikaiChannel.

◆ read_byte()

bool esphome::uart::UARTComponent::read_byte ( uint8_t * data )

inline

Definition at line 67 of file uart_component.h.

◆ set_baud_rate()

void esphome::uart::UARTComponent::set_baud_rate ( uint32_t baud_rate )

inline

Definition at line 163 of file uart_component.h.

◆ set_data_bits()

void esphome::uart::UARTComponent::set_data_bits ( uint8_t data_bits )

inline

Definition at line 147 of file uart_component.h.

◆ set_flow_control_pin()

void esphome::uart::UARTComponent::set_flow_control_pin ( InternalGPIOPin * flow_control_pin )

inline

Definition at line 107 of file uart_component.h.

◆ set_flush_timeout()

virtual void esphome::uart::UARTComponent::set_flush_timeout ( uint32_t flush_timeout_ms )

inlinevirtual

Reimplemented in esphome::uart::IDFUARTComponent, and esphome::usb_uart::USBUartChannel.

Definition at line 95 of file uart_component.h.

◆ set_parity()

void esphome::uart::UARTComponent::set_parity ( UARTParityOptions parity )

inline

Definition at line 155 of file uart_component.h.

◆ set_rx_buffer_size()

void esphome::uart::UARTComponent::set_rx_buffer_size ( size_t rx_buffer_size )

inline

Definition at line 111 of file uart_component.h.

◆ set_rx_full_threshold()

virtual void esphome::uart::UARTComponent::set_rx_full_threshold ( size_t rx_full_threshold )

inlinevirtual

Reimplemented in esphome::uart::IDFUARTComponent.

Definition at line 119 of file uart_component.h.

◆ set_rx_full_threshold_ms()

void esphome::uart::UARTComponent::set_rx_full_threshold_ms ( uint8_t time )

Definition at line 22 of file uart_component.cpp.

◆ set_rx_pin()

void esphome::uart::UARTComponent::set_rx_pin ( InternalGPIOPin * rx_pin )

inline

Definition at line 103 of file uart_component.h.

◆ set_rx_timeout()

virtual void esphome::uart::UARTComponent::set_rx_timeout ( size_t rx_timeout )

inlinevirtual

Reimplemented in esphome::uart::IDFUARTComponent.

Definition at line 131 of file uart_component.h.

◆ set_stop_bits()

void esphome::uart::UARTComponent::set_stop_bits ( uint8_t stop_bits )

inline

Definition at line 139 of file uart_component.h.

◆ set_tx_pin()

void esphome::uart::UARTComponent::set_tx_pin ( InternalGPIOPin * tx_pin )

inline

Definition at line 99 of file uart_component.h.

◆ write_array() [1/2]

void esphome::uart::UARTComponent::write_array ( const std::vector< uint8_t > & data )

inline

Definition at line 46 of file uart_component.h.

◆ write_array() [2/2]

virtual void esphome::uart::UARTComponent::write_array	(	const uint8_t *	data,
		size_t	len )

pure virtual

Implemented in esphome::ble_nus::BLENUS, esphome::uart::ESP8266UartComponent, esphome::uart::HostUartComponent, esphome::uart::IDFUARTComponent, esphome::uart::LibreTinyUARTComponent, esphome::uart::RP2040UartComponent, esphome::usb_cdc_acm::USBCDCACMInstance, esphome::usb_uart::USBUartChannel, and esphome::weikai::WeikaiChannel.

◆ write_byte()

void esphome::uart::UARTComponent::write_byte ( uint8_t data )

inline

Definition at line 50 of file uart_component.h.

◆ write_str()

void esphome::uart::UARTComponent::write_str ( const char * str )

inline

Definition at line 54 of file uart_component.h.

Field Documentation

◆ baud_rate_

uint32_t esphome::uart::UARTComponent::baud_rate_ {0}

protected

Definition at line 212 of file uart_component.h.

◆ data_bits_

uint8_t esphome::uart::UARTComponent::data_bits_ {0}

protected

Definition at line 214 of file uart_component.h.

◆ debug_callback_

CallbackManager<void(UARTDirection, uint8_t)> esphome::uart::UARTComponent::debug_callback_ {}

protected

Definition at line 217 of file uart_component.h.

◆ flow_control_pin_

InternalGPIOPin* esphome::uart::UARTComponent::flow_control_pin_ {}

protected

Definition at line 206 of file uart_component.h.

◆ parity_

UARTParityOptions esphome::uart::UARTComponent::parity_ {UART_CONFIG_PARITY_NONE}

protected

Definition at line 215 of file uart_component.h.

◆ rx_buffer_size_

size_t esphome::uart::UARTComponent::rx_buffer_size_ {}

protected

Definition at line 207 of file uart_component.h.

◆ rx_full_threshold_

size_t esphome::uart::UARTComponent::rx_full_threshold_ {RX_FULL_THRESHOLD_UNSET}

protected

Definition at line 210 of file uart_component.h.

◆ RX_FULL_THRESHOLD_UNSET

size_t esphome::uart::UARTComponent::RX_FULL_THRESHOLD_UNSET = 0

staticconstexpr

Definition at line 42 of file uart_component.h.

◆ rx_pin_

InternalGPIOPin* esphome::uart::UARTComponent::rx_pin_ {}

protected

Definition at line 205 of file uart_component.h.

◆ rx_timeout_

size_t esphome::uart::UARTComponent::rx_timeout_ {0}

protected

Definition at line 211 of file uart_component.h.

◆ stop_bits_

uint8_t esphome::uart::UARTComponent::stop_bits_ {0}

protected

Definition at line 213 of file uart_component.h.

◆ tx_pin_

InternalGPIOPin* esphome::uart::UARTComponent::tx_pin_ {}

protected

Definition at line 204 of file uart_component.h.

The documentation for this class was generated from the following files:

esphome/components/uart/uart_component.h
esphome/components/uart/uart_component.cpp

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ add_debug_callback()

◆ available()

◆ check_logger_conflict()

◆ check_read_timeout_()

◆ flush()

◆ get_baud_rate()

◆ get_data_bits()

◆ get_parity()

◆ get_rx_buffer_size()

◆ get_rx_full_threshold()

◆ get_rx_timeout()

◆ get_stop_bits()

◆ is_connected()

◆ load_settings() [1/2]

◆ load_settings() [2/2]

◆ peek_byte()

◆ read_array()

◆ read_byte()

◆ set_baud_rate()

◆ set_data_bits()

◆ set_flow_control_pin()

◆ set_flush_timeout()

◆ set_parity()

◆ set_rx_buffer_size()

◆ set_rx_full_threshold()

◆ set_rx_full_threshold_ms()

◆ set_rx_pin()

◆ set_rx_timeout()

◆ set_stop_bits()

◆ set_tx_pin()

◆ write_array() [1/2]

◆ write_array() [2/2]

◆ write_byte()

◆ write_str()

Field Documentation

◆ baud_rate_

◆ data_bits_

◆ debug_callback_

◆ flow_control_pin_

◆ parity_

◆ rx_buffer_size_

◆ rx_full_threshold_

◆ RX_FULL_THRESHOLD_UNSET

◆ rx_pin_

◆ rx_timeout_

◆ stop_bits_

◆ tx_pin_
