esphome::light::LightEffect Class Reference

#include <light_effect.h>

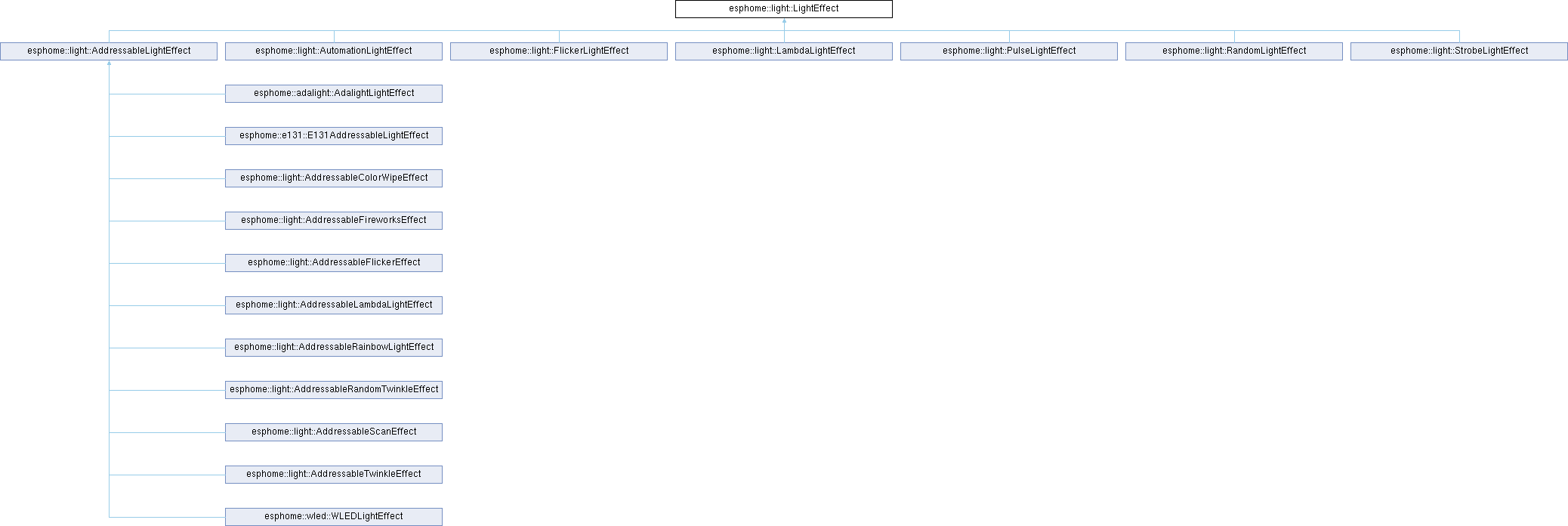

Inheritance diagram for esphome::light::LightEffect:

Public Member Functions
	LightEffect (const char *name)
virtual void	start ()
	Initialize this LightEffect. Will be called once after creation.
virtual void	start_internal ()
virtual void	stop ()
	Called when this effect is about to be removed.
virtual void	apply ()=0
	Apply this effect. Use the provided state for starting transitions, ...
const char *	get_name () const
	Returns the name of this effect.
virtual void	init ()
	Internal method called by the LightState when this light effect is registered in it.
void	init_internal (LightState *state)
uint32_t	get_index () const
	Get the index of this effect in the parent light's effect list.
bool	is_active () const
	Check if this effect is currently active.
LightState *	get_light_state () const
	Get a reference to the parent light state.

Protected Member Functions
uint32_t	get_index_in_parent_ () const
	Internal method to find this effect's index in the parent light's effect list.

Protected Attributes
LightState *	state_ {nullptr}
const char *	name_

Detailed Description

Definition at line 10 of file light_effect.h.

Constructor & Destructor Documentation

LightEffect()

esphome::light::LightEffect::LightEffect ( const char * name )

inlineexplicit

Definition at line 12 of file light_effect.h.

Member Function Documentation

apply()

virtual void esphome::light::LightEffect::apply ( )

pure virtual

Apply this effect. Use the provided state for starting transitions, ...

Implemented in esphome::light::AddressableLightEffect, esphome::light::AutomationLightEffect, esphome::light::FlickerLightEffect, esphome::light::LambdaLightEffect, esphome::light::PulseLightEffect, esphome::light::RandomLightEffect, and esphome::light::StrobeLightEffect.

get_index()

uint32_t esphome::light::LightEffect::get_index

(

)

const

Get the index of this effect in the parent light's effect list.

Returns 0 if not found or not initialized.

Definition at line 7 of file light_effect.cpp.

get_index_in_parent_()

uint32_t esphome::light::LightEffect::get_index_in_parent_ ( ) const

protected

Internal method to find this effect's index in the parent light's effect list.

Definition at line 21 of file light_effect.cpp.

get_light_state()

LightState * esphome::light::LightEffect::get_light_state ( ) const

inline

Get a reference to the parent light state.

Returns nullptr if not initialized.

Definition at line 48 of file light_effect.h.

get_name()

const char * esphome::light::LightEffect::get_name ( ) const

inline

Returns the name of this effect.

The returned pointer is valid for the lifetime of the program and must not be freed.

Definition at line 29 of file light_effect.h.

init()

virtual void esphome::light::LightEffect::init ( )

inlinevirtual

Internal method called by the LightState when this light effect is registered in it.

Definition at line 32 of file light_effect.h.

init_internal()

void esphome::light::LightEffect::init_internal ( LightState * state )

inline

Definition at line 34 of file light_effect.h.

is_active()

bool esphome::light::LightEffect::is_active

(

)

const

Check if this effect is currently active.

Definition at line 14 of file light_effect.cpp.

start()

virtual void esphome::light::LightEffect::start ( )

inlinevirtual

Initialize this LightEffect. Will be called once after creation.

Reimplemented in esphome::adalight::AdalightLightEffect, esphome::e131::E131AddressableLightEffect, esphome::light::AddressableFireworksEffect, esphome::light::AddressableLambdaLightEffect, esphome::light::LambdaLightEffect, and esphome::wled::WLEDLightEffect.

Definition at line 15 of file light_effect.h.

start_internal()

virtual void esphome::light::LightEffect::start_internal ( )

inlinevirtual

Reimplemented in esphome::light::AddressableLightEffect.

Definition at line 17 of file light_effect.h.

stop()

virtual void esphome::light::LightEffect::stop ( )

inlinevirtual

Called when this effect is about to be removed.

Reimplemented in esphome::adalight::AdalightLightEffect, esphome::e131::E131AddressableLightEffect, esphome::light::AddressableLightEffect, esphome::light::AutomationLightEffect, and esphome::wled::WLEDLightEffect.

Definition at line 20 of file light_effect.h.

Field Documentation

name_

const char* esphome::light::LightEffect::name_

protected

Definition at line 52 of file light_effect.h.

state_

LightState* esphome::light::LightEffect::state_ {nullptr}

protected

Definition at line 51 of file light_effect.h.

---

The documentation for this class was generated from the following files:

• esphome/components/light/light_effect.h
• esphome/components/light/light_effect.cpp
