esphome::light::AddressableLightEffect Class Reference

#include <addressable_light_effect.h>

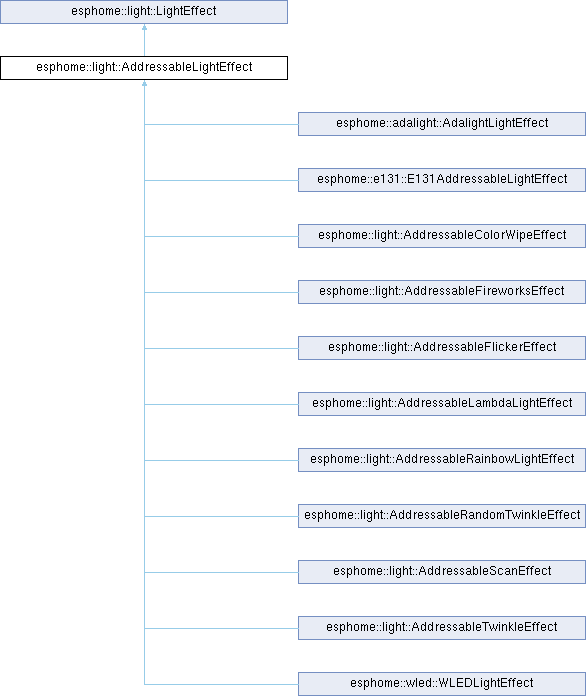

Inheritance diagram for esphome::light::AddressableLightEffect:

Public Member Functions
	AddressableLightEffect (const std::string &name)
void	start_internal () override
void	stop () override
virtual void	apply (AddressableLight &it, const Color &current_color)=0
void	apply () override
uint32_t	get_effect_index () const
	Get effect index specifically for addressable effects.
bool	is_current_effect () const
	Check if this is the currently running addressable effect.
Public Member Functions inherited from esphome::light::LightEffect
	LightEffect (std::string name)
virtual void	start ()
	Initialize this LightEffect. Will be called once after creation.
const std::string &	get_name ()
virtual void	init ()
	Internal method called by the LightState when this light effect is registered in it.
void	init_internal (LightState *state)
uint32_t	get_index () const
	Get the index of this effect in the parent light's effect list.
bool	is_active () const
	Check if this effect is currently active.
LightState *	get_light_state () const
	Get a reference to the parent light state.

Protected Member Functions
AddressableLight *	get_addressable_ () const
Protected Member Functions inherited from esphome::light::LightEffect
uint32_t	get_index_in_parent_ () const
	Internal method to find this effect's index in the parent light's effect list.

Additional Inherited Members
Protected Attributes inherited from esphome::light::LightEffect
LightState *	state_ {nullptr}
std::string	name_

Detailed Description

Definition at line 31 of file addressable_light_effect.h.

Constructor & Destructor Documentation

AddressableLightEffect()

esphome::light::AddressableLightEffect::AddressableLightEffect ( const std::string & name )

inlineexplicit

Definition at line 33 of file addressable_light_effect.h.

Member Function Documentation

apply() [1/2]

void esphome::light::AddressableLightEffect::apply ( )

inlineoverridevirtual

Implements esphome::light::LightEffect.

Definition at line 41 of file addressable_light_effect.h.

apply() [2/2]

virtual void esphome::light::AddressableLightEffect::apply ( AddressableLight & it, const Color & current_color )

pure virtual

Implemented in esphome::adalight::AdalightLightEffect, esphome::e131::E131AddressableLightEffect, esphome::light::AddressableColorWipeEffect, esphome::light::AddressableFireworksEffect, esphome::light::AddressableFlickerEffect, esphome::light::AddressableLambdaLightEffect, esphome::light::AddressableRainbowLightEffect, esphome::light::AddressableRandomTwinkleEffect, esphome::light::AddressableScanEffect, esphome::light::AddressableTwinkleEffect, and esphome::wled::WLEDLightEffect.

get_addressable_()

AddressableLight * esphome::light::AddressableLightEffect::get_addressable_ ( ) const

inlineprotected

Definition at line 55 of file addressable_light_effect.h.

get_effect_index()

uint32_t esphome::light::AddressableLightEffect::get_effect_index ( ) const

inline

Get effect index specifically for addressable effects.

Can be used by effects to modify behavior based on their position in the list.

Definition at line 49 of file addressable_light_effect.h.

is_current_effect()

bool esphome::light::AddressableLightEffect::is_current_effect ( ) const

inline

Check if this is the currently running addressable effect.

Definition at line 52 of file addressable_light_effect.h.

start_internal()

void esphome::light::AddressableLightEffect::start_internal ( )

inlineoverridevirtual

Reimplemented from esphome::light::LightEffect.

Definition at line 34 of file addressable_light_effect.h.

stop()

void esphome::light::AddressableLightEffect::stop ( )

inlineoverridevirtual

Reimplemented from esphome::light::LightEffect.

Reimplemented in esphome::e131::E131AddressableLightEffect, and esphome::wled::WLEDLightEffect.

Definition at line 39 of file addressable_light_effect.h.

---

The documentation for this class was generated from the following file:

• esphome/components/light/addressable_light_effect.h
