#include <fujitsu_general.h>

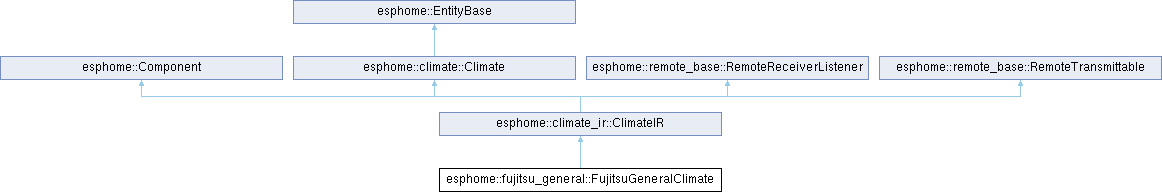

Inheritance diagram for esphome::fujitsu_general::FujitsuGeneralClimate:

Public Member Functions
	FujitsuGeneralClimate ()

Public Member Functions inherited from esphome::climate_ir::ClimateIR
	ClimateIR (float minimum_temperature, float maximum_temperature, float temperature_step=1.0f, bool supports_dry=false, bool supports_fan_only=false, std::set< climate::ClimateFanMode > fan_modes={}, std::set< climate::ClimateSwingMode > swing_modes={}, std::set< climate::ClimatePreset > presets={})

void	setup () override

void	dump_config () override

void	set_supports_cool (bool supports_cool)

void	set_supports_heat (bool supports_heat)

void	set_sensor (sensor::Sensor *sensor)

Public Member Functions inherited from esphome::Component
virtual void	loop ()
	This method will be called repeatedly.

virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message=nullptr)

void	status_set_error (const char *message=nullptr)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Public Member Functions inherited from esphome::climate::Climate
	Climate ()

void	add_on_state_callback (std::function< void(Climate &)> &&callback)
	Add a callback for the climate device state, each time the state of the climate device is updated (using publish_state), this callback will be called.

void	add_on_control_callback (std::function< void(ClimateCall &)> &&callback)
	Add a callback for the climate device configuration; each time the configuration parameters of a climate device is updated (using perform() of a ClimateCall), this callback will be called, before any on_state callback.

ClimateCall	make_call ()
	Make a climate device control call, this is used to control the climate device, see the ClimateCall description for more info.

void	publish_state ()
	Publish the state of the climate device, to be called from integrations.

ClimateTraits	get_traits ()
	Get the traits of this climate device with all overrides applied.

void	set_visual_min_temperature_override (float visual_min_temperature_override)

void	set_visual_max_temperature_override (float visual_max_temperature_override)

void	set_visual_temperature_step_override (float target, float current)

void	set_visual_min_humidity_override (float visual_min_humidity_override)

void	set_visual_max_humidity_override (float visual_max_humidity_override)

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

bool	has_own_name () const

std::string	get_object_id () const

void	set_object_id (const char *object_id)

uint32_t	get_object_id_hash ()

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

std::string	get_icon () const

void	set_icon (const char *icon)

StringRef	get_icon_ref () const

uint32_t	get_device_id () const

void	set_device (Device *device)

bool	has_state () const

void	set_has_state (bool state)

Public Member Functions inherited from esphome::remote_base::RemoteReceiverListener
Public Member Functions inherited from esphome::remote_base::RemoteTransmittable
	RemoteTransmittable ()

	RemoteTransmittable (RemoteTransmitterBase *transmitter)

void	set_transmitter (RemoteTransmitterBase *transmitter)

Protected Member Functions
void	transmit_state () override
	Transmit via IR the state of this climate controller.

void	transmit_off_ ()
	Transmit via IR power off command.

bool	on_receive (remote_base::RemoteReceiveData data) override
	Parse incoming message.

void	transmit_ (uint8_t const *message, uint8_t length)
	Transmit message as IR pulses.

uint8_t	checksum_state_ (uint8_t const *message)
	Calculate checksum for a state message.

uint8_t	checksum_util_ (uint8_t const *message)
	Calculate cecksum for a util message.

Protected Member Functions inherited from esphome::climate_ir::ClimateIR
void	control (const climate::ClimateCall &call) override
	Override control to change settings of the climate device.

climate::ClimateTraits	traits () override
	Return the traits of this controller.

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_setup ()

virtual void	call_dump_config ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Member Functions inherited from esphome::climate::Climate
bool	set_fan_mode_ (ClimateFanMode mode)
	Set fan mode. Reset custom fan mode. Return true if fan mode has been changed.

bool	set_custom_fan_mode_ (const std::string &mode)
	Set custom fan mode. Reset primary fan mode. Return true if fan mode has been changed.

bool	set_preset_ (ClimatePreset preset)
	Set preset. Reset custom preset. Return true if preset has been changed.

bool	set_custom_preset_ (const std::string &preset)
	Set custom preset. Reset primary preset. Return true if preset has been changed.

optional< ClimateDeviceRestoreState >	restore_state_ ()
	Restore the state of the climate device, call this from your setup() method.

void	save_state_ ()
	Internal method to save the state of the climate device to recover memory.

void	dump_traits_ (const char *tag)

Protected Member Functions inherited from esphome::EntityBase
virtual uint32_t	hash_base ()
	The hash_base() function has been deprecated.

void	calc_object_id_ ()

Protected Member Functions inherited from esphome::remote_base::RemoteTransmittable
template<typename Protocol >
void	transmit_ (const typename Protocol::ProtocolData &data, uint32_t send_times=1, uint32_t send_wait=0)

Protected Attributes
bool	power_ {false}

Protected Attributes inherited from esphome::climate_ir::ClimateIR
float	minimum_temperature_

float	maximum_temperature_

float	temperature_step_

bool	supports_cool_ {true}

bool	supports_heat_ {true}

bool	supports_dry_ {false}

bool	supports_fan_only_ {false}

std::set< climate::ClimateFanMode >	fan_modes_ = {}

std::set< climate::ClimateSwingMode >	swing_modes_ = {}

std::set< climate::ClimatePreset >	presets_ = {}

sensor::Sensor *	sensor_ {nullptr}

Protected Attributes inherited from esphome::Component
const char *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Protected Attributes inherited from esphome::climate::Climate
friend	ClimateCall

CallbackManager< void(Climate &)>	state_callback_ {}

CallbackManager< void(ClimateCall &)>	control_callback_ {}

ESPPreferenceObject	rtc_

optional< float >	visual_min_temperature_override_ {}

optional< float >	visual_max_temperature_override_ {}

optional< float >	visual_target_temperature_step_override_ {}

optional< float >	visual_current_temperature_step_override_ {}

optional< float >	visual_min_humidity_override_ {}

optional< float >	visual_max_humidity_override_ {}

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	object_id_c_str_ {nullptr}

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

Protected Attributes inherited from esphome::remote_base::RemoteTransmittable
RemoteTransmitterBase *	transmitter_

Additional Inherited Members
Data Fields inherited from esphome::climate::Climate
ClimateMode	mode {CLIMATE_MODE_OFF}
	The active mode of the climate device.

ClimateAction	action {CLIMATE_ACTION_OFF}
	The active state of the climate device.

float	current_temperature {NAN}
	The current temperature of the climate device, as reported from the integration.

float	current_humidity {NAN}
	The current humidity of the climate device, as reported from the integration.

union {

float target_temperature
	The target temperature of the climate device. More...

struct {

float target_temperature_low {NAN}
	The minimum target temperature of the climate device, for climate devices with split target temperature. More...

float target_temperature_high {NAN}
	The maximum target temperature of the climate device, for climate devices with split target temperature. More...

}

};

float	target_humidity
	The target humidity of the climate device.

optional< ClimateFanMode >	fan_mode
	The active fan mode of the climate device.

ClimateSwingMode	swing_mode
	The active swing mode of the climate device.

optional< std::string >	custom_fan_mode
	The active custom fan mode of the climate device.

optional< ClimatePreset >	preset
	The active preset of the climate device.

optional< std::string >	custom_preset
	The active custom preset mode of the climate device.

Detailed Description

                                                                                              turn
                                                                                              on  temp mode     fan swing
                                                                                              *   |  | | |      | | *

temperatures                                                                                  1   1248 124      124 1
auto auto 18        00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10000100 00000000 00000000 00000000  00000000 00000000 00000100 11110001
auto auto 19        00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10001100 00000000 00000000 00000000  00000000 00000000 00000100 11111110
auto auto 30        00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10000111 00000000 00000000 00000000  00000000 00000000 00000100 11110011

on flag:
on at 16            00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10000000 00100000 00000000 00000000  00000000 00000000 00000100 11010101
down to 16          00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  00000000 00100000 00000000 00000000  00000000 00000000 00000100 00110101

mode options:
auto auto 30        00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10000111 00000000 00000000 00000000  00000000 00000000 00000100 11110011
cool auto 30        00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10000111 10000000 00000000 00000000  00000000 00000000 00000100 01110011
dry auto 30         00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10000111 01000000 00000000 00000000  00000000 00000000 00000100 10110011
fan (auto) (30)     00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10000111 11000000 00000000 00000000  00000000 00000000 00000100 00110011
heat auto 30        00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10000111 00100000 00000000 00000000  00000000 00000000 00000100 11010011

fan options:
heat 30 high        00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  10000111 00100000 10000000 00000000  00000000 00000000 00000100 01010011
heat 30 med         00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  00000111 00100000 01000000 00000000  00000000 00000000 00000100 01010011
heat 30 low         00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  00000111 00100000 11000000 00000000  00000000 00000000 00000100 10010011
heat 30 quiet       00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  00000111 00100000 00100000 00000000  00000000 00000000 00000100 00010011

swing options:
heat 30 swing vert  00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  00000111 00100000 00101000 00000000  00000000 00000000 00000100 00011101
heat 30 noswing     00101000 11000110 00000000 00001000  00001000 01111111 10010000 00001100  00000111 00100000 00100000 00000000  00000000 00000000 00000100 00010011

Definition at line 50 of file fujitsu_general.h.

Constructor & Destructor Documentation

◆ FujitsuGeneralClimate()

esphome::fujitsu_general::FujitsuGeneralClimate::FujitsuGeneralClimate ( )

inline

Definition at line 52 of file fujitsu_general.h.

Member Function Documentation

◆ checksum_state_()

uint8_t esphome::fujitsu_general::FujitsuGeneralClimate::checksum_state_ ( uint8_t const * message )

protected

Calculate checksum for a state message.

Definition at line 237 of file fujitsu_general.cpp.

◆ checksum_util_()

uint8_t esphome::fujitsu_general::FujitsuGeneralClimate::checksum_util_ ( uint8_t const * message )

protected

Calculate cecksum for a util message.

Definition at line 245 of file fujitsu_general.cpp.

◆ on_receive()

bool esphome::fujitsu_general::FujitsuGeneralClimate::on_receive ( remote_base::RemoteReceiveData data )

overrideprotectedvirtual

Parse incoming message.

Reimplemented from esphome::climate_ir::ClimateIR.

Definition at line 247 of file fujitsu_general.cpp.

◆ transmit_()

void esphome::fujitsu_general::FujitsuGeneralClimate::transmit_	(	uint8_t const *	message,
		uint8_t	length )

protected

Transmit message as IR pulses.

Definition at line 208 of file fujitsu_general.cpp.

◆ transmit_off_()

void esphome::fujitsu_general::FujitsuGeneralClimate::transmit_off_ ( )

protected

Transmit via IR power off command.

Definition at line 190 of file fujitsu_general.cpp.

◆ transmit_state()

void esphome::fujitsu_general::FujitsuGeneralClimate::transmit_state ( )

overrideprotectedvirtual

Transmit via IR the state of this climate controller.

Implements esphome::climate_ir::ClimateIR.

Definition at line 88 of file fujitsu_general.cpp.

Field Documentation

◆ power_

bool esphome::fujitsu_general::FujitsuGeneralClimate::power_ {false}

protected

Definition at line 78 of file fujitsu_general.h.

The documentation for this class was generated from the following files:

esphome/components/fujitsu_general/fujitsu_general.h
esphome/components/fujitsu_general/fujitsu_general.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FujitsuGeneralClimate()

Member Function Documentation

◆ checksum_state_()

◆ checksum_util_()

◆ on_receive()

◆ transmit_()

◆ transmit_off_()

◆ transmit_state()

Field Documentation

◆ power_
