esphome::EntityBase Class Reference

#include <entity_base.h>

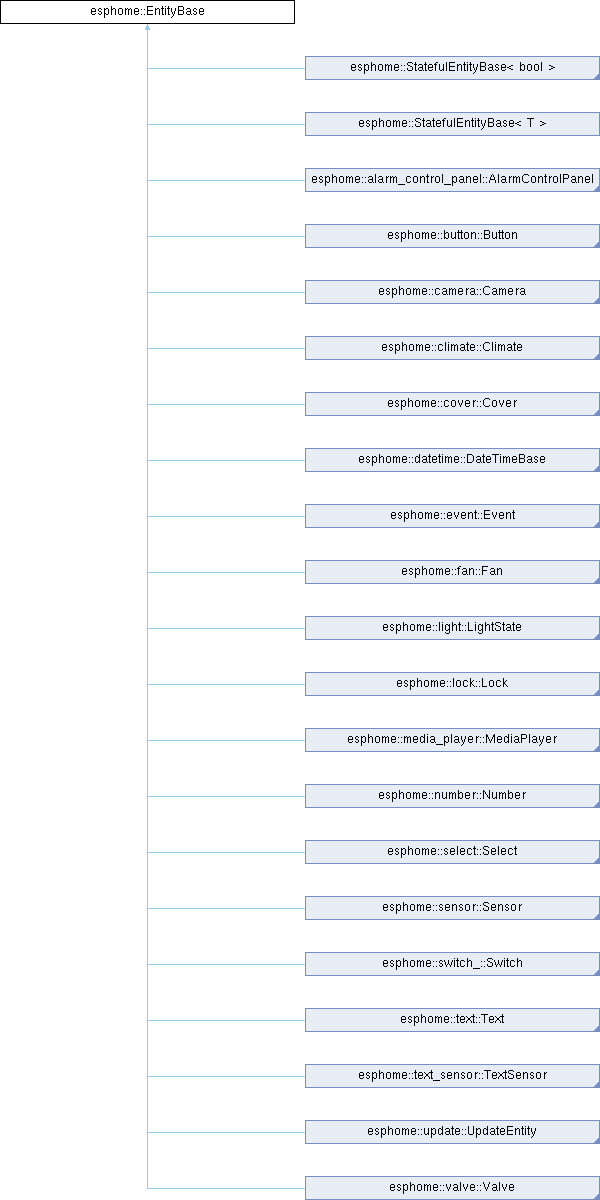

Inheritance diagram for esphome::EntityBase:

Data Structures
struct	EntityFlags

Public Member Functions
const StringRef &	get_name () const
void	set_name (const char *name)
bool	has_own_name () const
ESPDEPRECATED("object_id mangles names and all object_id methods are planned for removal " "(see https://github.com/esphome/backlog/issues/76). " "Now is the time to stop using object_id. If still needed, use get_object_id_to() " "which will remain available longer. get_object_id() will be removed in 2026.7.0", "2025.12.0") std void	set_object_id (const char *object_id)
void	set_name_and_object_id (const char *name, const char *object_id)
uint32_t	get_object_id_hash ()
StringRef	get_object_id_to (std::span< char, OBJECT_ID_MAX_LEN > buf) const
	Get object_id with zero heap allocation For static case: returns StringRef to internal storage (buffer unused) For dynamic case: formats into buffer and returns StringRef to buffer.
size_t	write_object_id_to (char *buf, size_t buf_size) const
	Write object_id directly to buffer, returns length written (excluding null) Useful for building compound strings without intermediate buffer.
bool	is_internal () const
void	set_internal (bool internal)
bool	is_disabled_by_default () const
void	set_disabled_by_default (bool disabled_by_default)
EntityCategory	get_entity_category () const
void	set_entity_category (EntityCategory entity_category)
ESPDEPRECATED("Use get_icon_ref() instead for better performance (avoids string copy). Will be removed in ESPHome 2026.5.0", "2025.11.0") std void	set_icon (const char *icon)
StringRef	get_icon_ref () const
uint32_t	get_device_id () const
void	set_device (Device *device)
bool	has_state () const
void	set_has_state (bool state)
uint32_t	get_preference_hash ()
	Get a unique hash for storing preferences/settings for this entity.

Protected Member Functions
void	calc_object_id_ ()
bool	is_object_id_dynamic_ () const
	Check if the object_id is dynamic (changes with MAC suffix)

Protected Attributes
StringRef	name_
const char *	object_id_c_str_ {nullptr}
const char *	icon_c_str_ {nullptr}
uint32_t	object_id_hash_ {}
Device *	device_ {}
struct esphome::EntityBase::EntityFlags	flags_

Detailed Description

Definition at line 26 of file entity_base.h.

Member Function Documentation

calc_object_id_()

void esphome::EntityBase::calc_object_id_ ( )

protected

Definition at line 75 of file entity_base.cpp.

get_device_id()

uint32_t esphome::EntityBase::get_device_id ( ) const

inline

Definition at line 96 of file entity_base.h.

get_entity_category()

EntityCategory esphome::EntityBase::get_entity_category ( ) const

inline

Definition at line 74 of file entity_base.h.

get_icon_ref()

StringRef esphome::EntityBase::get_icon_ref ( ) const

inline

Definition at line 85 of file entity_base.h.

get_name()

const StringRef & esphome::EntityBase::get_name

(

)

const

Definition at line 11 of file entity_base.cpp.

get_object_id_hash()

uint32_t esphome::EntityBase::get_object_id_hash

(

)

Definition at line 113 of file entity_base.cpp.

get_object_id_to()

StringRef esphome::EntityBase::get_object_id_to

(

std::span< char, OBJECT_ID_MAX_LEN >

buf

)

const

Get object_id with zero heap allocation For static case: returns StringRef to internal storage (buffer unused) For dynamic case: formats into buffer and returns StringRef to buffer.

Definition at line 105 of file entity_base.cpp.

get_preference_hash()

uint32_t esphome::EntityBase::get_preference_hash ( )

inline

Get a unique hash for storing preferences/settings for this entity.

This method returns a hash that uniquely identifies the entity for the purpose of storing preferences (such as calibration, state, etc.). Unlike get_object_id_hash(), this hash also incorporates the device_id (if devices are enabled), ensuring uniqueness across multiple devices that may have entities with the same object_id.

Use this method when storing or retrieving preferences/settings that should be unique per device-entity pair. Use get_object_id_hash() when you need a hash that identifies the entity regardless of the device it belongs to.

For backward compatibility, if device_id is 0 (the main device), the hash is unchanged from previous versions, so existing single-device configurations will continue to work.

Returns

uint32_t The unique hash for preferences, including device_id if available.

Definition at line 128 of file entity_base.h.

has_own_name()

bool esphome::EntityBase::has_own_name ( ) const

inline

Definition at line 33 of file entity_base.h.

has_state()

bool esphome::EntityBase::has_state ( ) const

inline

Definition at line 106 of file entity_base.h.

is_disabled_by_default()

bool esphome::EntityBase::is_disabled_by_default ( ) const

inline

Definition at line 70 of file entity_base.h.

is_internal()

bool esphome::EntityBase::is_internal ( ) const

inline

Definition at line 64 of file entity_base.h.

is_object_id_dynamic_()

bool esphome::EntityBase::is_object_id_dynamic_ ( ) const

protected

Check if the object_id is dynamic (changes with MAC suffix)

Definition at line 49 of file entity_base.cpp.

set_device()

void esphome::EntityBase::set_device ( Device * device )

inline

Definition at line 102 of file entity_base.h.

set_disabled_by_default()

void esphome::EntityBase::set_disabled_by_default ( bool disabled_by_default )

inline

Definition at line 71 of file entity_base.h.

set_entity_category()

void esphome::EntityBase::set_entity_category ( EntityCategory entity_category )

inline

Definition at line 75 of file entity_base.h.

set_has_state()

void esphome::EntityBase::set_has_state ( bool state )

inline

Definition at line 109 of file entity_base.h.

set_icon()

void esphome::EntityBase::set_icon

(

const char *

icon

)

Definition at line 40 of file entity_base.cpp.

set_internal()

void esphome::EntityBase::set_internal ( bool internal )

inline

Definition at line 65 of file entity_base.h.

set_name()

void esphome::EntityBase::set_name

(

const char *

name

)

Definition at line 12 of file entity_base.cpp.

set_name_and_object_id()

void esphome::EntityBase::set_name_and_object_id	(	const char *	name,
		const char *	object_id )

Definition at line 68 of file entity_base.cpp.

set_object_id()

void esphome::EntityBase::set_object_id

(

const char *

object_id

)

Definition at line 63 of file entity_base.cpp.

write_object_id_to()

size_t esphome::EntityBase::write_object_id_to	(	char *	buf,
		size_t	buf_size ) const

Write object_id directly to buffer, returns length written (excluding null) Useful for building compound strings without intermediate buffer.

Definition at line 92 of file entity_base.cpp.

Field Documentation

device_

Device* esphome::EntityBase::device_ {}

protected

Definition at line 153 of file entity_base.h.

flags_

struct esphome::EntityBase::EntityFlags esphome::EntityBase::flags_

protected

icon_c_str_

const char* esphome::EntityBase::icon_c_str_ {nullptr}

protected

Definition at line 149 of file entity_base.h.

name_

StringRef esphome::EntityBase::name_

protected

Definition at line 146 of file entity_base.h.

object_id_c_str_

const char* esphome::EntityBase::object_id_c_str_ {nullptr}

protected

Definition at line 147 of file entity_base.h.

object_id_hash_

uint32_t esphome::EntityBase::object_id_hash_ {}

protected

Definition at line 151 of file entity_base.h.

---

The documentation for this class was generated from the following files:

• esphome/core/entity_base.h
• esphome/core/entity_base.cpp
