esphome::remote_base::RemoteTransmitterBase Class Reference

#include <remote_base.h>

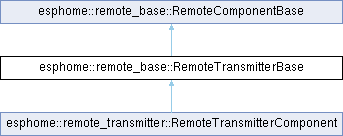

Inheritance diagram for esphome::remote_base::RemoteTransmitterBase:

Data Structures
class	EncodeCall
	A transmit call whose encode() runs one of Protocol's encoders on its data, for a payload the protocol encodes straight from a pointer and length; the call a generated action builds. More...
class	ProtocolCall
	Protocol data filled field by field, then sent by perform(); the call a generated transmit action builds. More...
class	TransmitCall

Public Member Functions
	RemoteTransmitterBase (InternalGPIOPin *pin)
TransmitCall	transmit ()
template<RemoteProtocolEncoder Protocol>
void	transmit (const typename Protocol::ProtocolData &data, uint32_t send_times=1, uint32_t send_wait=0)
template<RemoteProtocolEncoder Protocol>
ProtocolCall< Protocol >	protocol_call ()
template<RemoteProtocolEncoder Protocol>
EncodeCall< Protocol >	encode_call ()
Public Member Functions inherited from esphome::remote_base::RemoteComponentBase
	RemoteComponentBase (InternalGPIOPin *pin)

Protected Types
using	EncodeFn = void (*)(RemoteTransmitData *dst, const void *data)

Protected Member Functions
void	transmit_encoded_ (EncodeFn encode, const void *data, uint32_t send_times, uint32_t send_wait)
void	send_ (uint32_t send_times, uint32_t send_wait, uint16_t seq)
virtual void	send_internal (uint32_t send_times, uint32_t send_wait)=0
virtual void	flush_pending_completion ()
	Platforms that report completion later wait out the previous frame here, before send_() assigns the next seq, so that completion carries the seq it belongs to.
void	send_single_ ()
void	notify_complete_ (bool sent)
	Reports the frame handed to the platform last, after its final repeat and before the on_complete trigger; a seq only has to be unique within the 30 s reply window.
uint16_t	take_seq_ ()
void	notify_complete_ (bool)

Static Protected Member Functions
template<RemoteProtocolEncoder Protocol>
static void	encode_thunk (RemoteTransmitData *dst, const void *data)
static uint16_t	take_seq_ ()

Protected Attributes
uint16_t	next_seq_ {0}
uint16_t	current_seq_ {0}
RemoteTransmitData	temp_
	Use same vector for all transmits, avoids many allocations.
Protected Attributes inherited from esphome::remote_base::RemoteComponentBase
InternalGPIOPin *	pin_

Detailed Description

Definition at line 241 of file remote_base.h.

Member Typedef Documentation

EncodeFn

using esphome::remote_base::RemoteTransmitterBase::EncodeFn = void (*)(RemoteTransmitData *dst, const void *data)

protected

Definition at line 296 of file remote_base.h.

Constructor & Destructor Documentation

RemoteTransmitterBase()

esphome::remote_base::RemoteTransmitterBase::RemoteTransmitterBase ( InternalGPIOPin * pin )

inline

Definition at line 243 of file remote_base.h.

Member Function Documentation

encode_call()

template<RemoteProtocolEncoder Protocol>

EncodeCall< Protocol > esphome::remote_base::RemoteTransmitterBase::encode_call ( )

inline

Definition at line 291 of file remote_base.h.

encode_thunk()

template<RemoteProtocolEncoder Protocol>

static void esphome::remote_base::RemoteTransmitterBase::encode_thunk ( RemoteTransmitData * dst, const void * data )

inlinestaticprotected

Definition at line 299 of file remote_base.h.

flush_pending_completion()

virtual void esphome::remote_base::RemoteTransmitterBase::flush_pending_completion ( )

inlineprotectedvirtual

Platforms that report completion later wait out the previous frame here, before send_() assigns the next seq, so that completion carries the seq it belongs to.

Reimplemented in esphome::remote_transmitter::RemoteTransmitterComponent.

Definition at line 306 of file remote_base.h.

notify_complete_() [1/2]

void esphome::remote_base::RemoteTransmitterBase::notify_complete_ ( bool sent )

inlineprotected

Reports the frame handed to the platform last, after its final repeat and before the on_complete trigger; a seq only has to be unique within the 30 s reply window.

Definition at line 311 of file remote_base.h.

notify_complete_() [2/2]

void esphome::remote_base::RemoteTransmitterBase::notify_complete_ ( bool )

inlineprotected

Definition at line 318 of file remote_base.h.

protocol_call()

template<RemoteProtocolEncoder Protocol>

ProtocolCall< Protocol > esphome::remote_base::RemoteTransmitterBase::protocol_call ( )

inline

Definition at line 281 of file remote_base.h.

send_()

void esphome::remote_base::RemoteTransmitterBase::send_ ( uint32_t send_times, uint32_t send_wait, uint16_t seq )

protected

Definition at line 199 of file remote_base.cpp.

send_internal()

virtual void esphome::remote_base::RemoteTransmitterBase::send_internal ( uint32_t send_times, uint32_t send_wait )

protectedpure virtual

Implemented in esphome::remote_transmitter::RemoteTransmitterComponent.

send_single_()

void esphome::remote_base::RemoteTransmitterBase::send_single_ ( )

inlineprotected

Definition at line 307 of file remote_base.h.

take_seq_() [1/2]

uint16_t esphome::remote_base::RemoteTransmitterBase::take_seq_ ( )

inlineprotected

Definition at line 312 of file remote_base.h.

take_seq_() [2/2]

static uint16_t esphome::remote_base::RemoteTransmitterBase::take_seq_ ( )

inlinestaticprotected

Definition at line 319 of file remote_base.h.

transmit() [1/2]

RemoteTransmitterBase::TransmitCall esphome::remote_base::RemoteTransmitterBase::transmit

(

)

Definition at line 185 of file remote_base.cpp.

transmit() [2/2]

template<RemoteProtocolEncoder Protocol>

void esphome::remote_base::RemoteTransmitterBase::transmit ( const typename Protocol::ProtocolData & data, uint32_t send_times = 1, uint32_t send_wait = 0 )

inline

Definition at line 263 of file remote_base.h.

transmit_encoded_()

void esphome::remote_base::RemoteTransmitterBase::transmit_encoded_ ( EncodeFn encode, const void * data, uint32_t send_times, uint32_t send_wait )

protected

Definition at line 190 of file remote_base.cpp.

Field Documentation

current_seq_

uint16_t esphome::remote_base::RemoteTransmitterBase::current_seq_ {0}

protected

Definition at line 315 of file remote_base.h.

next_seq_

uint16_t esphome::remote_base::RemoteTransmitterBase::next_seq_ {0}

protected

Definition at line 314 of file remote_base.h.

temp_

RemoteTransmitData esphome::remote_base::RemoteTransmitterBase::temp_

protected

Use same vector for all transmits, avoids many allocations.

Definition at line 323 of file remote_base.h.

---

The documentation for this class was generated from the following files:

• esphome/components/remote_base/remote_base.h
• esphome/components/remote_base/remote_base.cpp
