#include <thermostat_climate.h>

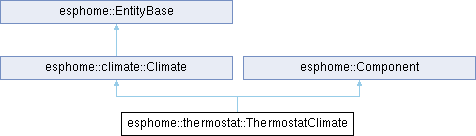

Inheritance diagram for esphome::thermostat::ThermostatClimate:

Public Types
using	PresetEntry = ThermostatPresetEntry

using	CustomPresetEntry = ThermostatCustomPresetEntry

Public Member Functions
	ThermostatClimate ()

void	setup () override

void	dump_config () override

void	loop () override

void	set_default_preset (const char *custom_preset)

void	set_default_preset (climate::ClimatePreset preset)

void	set_on_boot_restore_from (OnBootRestoreFrom on_boot_restore_from)

void	set_set_point_minimum_differential (float differential)

void	set_cool_deadband (float deadband)

void	set_cool_overrun (float overrun)

void	set_heat_deadband (float deadband)

void	set_heat_overrun (float overrun)

void	set_supplemental_cool_delta (float delta)

void	set_supplemental_heat_delta (float delta)

void	set_cooling_maximum_run_time_in_sec (uint32_t time)

void	set_heating_maximum_run_time_in_sec (uint32_t time)

void	set_cooling_minimum_off_time_in_sec (uint32_t time)

void	set_cooling_minimum_run_time_in_sec (uint32_t time)

void	set_fan_mode_minimum_switching_time_in_sec (uint32_t time)

void	set_fanning_minimum_off_time_in_sec (uint32_t time)

void	set_fanning_minimum_run_time_in_sec (uint32_t time)

void	set_heating_minimum_off_time_in_sec (uint32_t time)

void	set_heating_minimum_run_time_in_sec (uint32_t time)

void	set_idle_minimum_time_in_sec (uint32_t time)

void	set_sensor (sensor::Sensor *sensor)

void	set_humidity_sensor (sensor::Sensor *humidity_sensor)

void	set_humidity_hysteresis (float humidity_hysteresis)

void	set_use_startup_delay (bool use_startup_delay)

void	set_supports_auto (bool supports_auto)

void	set_supports_heat_cool (bool supports_heat_cool)

void	set_supports_cool (bool supports_cool)

void	set_supports_dry (bool supports_dry)

void	set_supports_fan_only (bool supports_fan_only)

void	set_supports_fan_only_action_uses_fan_mode_timer (bool fan_only_action_uses_fan_mode_timer)

void	set_supports_fan_only_cooling (bool supports_fan_only_cooling)

void	set_supports_fan_with_cooling (bool supports_fan_with_cooling)

void	set_supports_fan_with_heating (bool supports_fan_with_heating)

void	set_supports_heat (bool supports_heat)

void	set_supports_fan_mode_on (bool supports_fan_mode_on)

void	set_supports_fan_mode_off (bool supports_fan_mode_off)

void	set_supports_fan_mode_auto (bool supports_fan_mode_auto)

void	set_supports_fan_mode_low (bool supports_fan_mode_low)

void	set_supports_fan_mode_medium (bool supports_fan_mode_medium)

void	set_supports_fan_mode_high (bool supports_fan_mode_high)

void	set_supports_fan_mode_middle (bool supports_fan_mode_middle)

void	set_supports_fan_mode_focus (bool supports_fan_mode_focus)

void	set_supports_fan_mode_diffuse (bool supports_fan_mode_diffuse)

void	set_supports_fan_mode_quiet (bool supports_fan_mode_quiet)

void	set_supports_swing_mode_both (bool supports_swing_mode_both)

void	set_supports_swing_mode_horizontal (bool supports_swing_mode_horizontal)

void	set_supports_swing_mode_off (bool supports_swing_mode_off)

void	set_supports_swing_mode_vertical (bool supports_swing_mode_vertical)

void	set_supports_dehumidification (bool supports_dehumidification)

void	set_supports_humidification (bool supports_humidification)

void	set_supports_two_points (bool supports_two_points)

void	set_preset_config (std::initializer_list< PresetEntry > presets)

void	set_custom_preset_config (std::initializer_list< CustomPresetEntry > presets)

Trigger *	get_cool_action_trigger () const

Trigger *	get_supplemental_cool_action_trigger () const

Trigger *	get_dry_action_trigger () const

Trigger *	get_fan_only_action_trigger () const

Trigger *	get_heat_action_trigger () const

Trigger *	get_supplemental_heat_action_trigger () const

Trigger *	get_idle_action_trigger () const

Trigger *	get_auto_mode_trigger () const

Trigger *	get_cool_mode_trigger () const

Trigger *	get_dry_mode_trigger () const

Trigger *	get_fan_only_mode_trigger () const

Trigger *	get_heat_mode_trigger () const

Trigger *	get_heat_cool_mode_trigger () const

Trigger *	get_off_mode_trigger () const

Trigger *	get_fan_mode_on_trigger () const

Trigger *	get_fan_mode_off_trigger () const

Trigger *	get_fan_mode_auto_trigger () const

Trigger *	get_fan_mode_low_trigger () const

Trigger *	get_fan_mode_medium_trigger () const

Trigger *	get_fan_mode_high_trigger () const

Trigger *	get_fan_mode_middle_trigger () const

Trigger *	get_fan_mode_focus_trigger () const

Trigger *	get_fan_mode_diffuse_trigger () const

Trigger *	get_fan_mode_quiet_trigger () const

Trigger *	get_swing_mode_both_trigger () const

Trigger *	get_swing_mode_horizontal_trigger () const

Trigger *	get_swing_mode_off_trigger () const

Trigger *	get_swing_mode_vertical_trigger () const

Trigger *	get_humidity_change_trigger () const

Trigger *	get_temperature_change_trigger () const

Trigger *	get_preset_change_trigger () const

Trigger *	get_humidity_control_dehumidify_action_trigger () const

Trigger *	get_humidity_control_humidify_action_trigger () const

Trigger *	get_humidity_control_off_action_trigger () const

float	cool_deadband ()
	Get current hysteresis values.

float	cool_overrun ()

float	heat_deadband ()

float	heat_overrun ()

void	refresh ()
	Call triggers based on updated climate states (modes/actions)

bool	climate_action_change_delayed ()
	Returns true if a climate action/fan mode transition is being delayed.

bool	fan_mode_change_delayed ()

climate::ClimateAction	delayed_climate_action ()
	Returns the climate action that is being delayed (check climate_action_change_delayed(), first!)

climate::ClimateFanMode	locked_fan_mode ()
	Returns the fan mode that is locked in (check fan_mode_change_delayed(), first!)

bool	hysteresis_valid ()
	Set point and hysteresis validation.

bool	humidity_hysteresis_valid ()

bool	limit_setpoints_for_heat_cool ()

void	validate_target_temperature ()

void	validate_target_temperatures (bool pin_target_temperature_high)

void	validate_target_temperature_low ()

void	validate_target_temperature_high ()

void	validate_target_humidity ()

Public Member Functions inherited from esphome::climate::Climate
	Climate ()

void	add_on_state_callback (std::function< void(Climate &)> &&callback)
	Add a callback for the climate device state, each time the state of the climate device is updated (using publish_state), this callback will be called.

void	add_on_control_callback (std::function< void(ClimateCall &)> &&callback)
	Add a callback for the climate device configuration; each time the configuration parameters of a climate device is updated (using perform() of a ClimateCall), this callback will be called, before any on_state callback.

ClimateCall	make_call ()
	Make a climate device control call, this is used to control the climate device, see the ClimateCall description for more info.

void	publish_state ()
	Publish the state of the climate device, to be called from integrations.

ClimateTraits	get_traits ()
	Get the traits of this climate device with all overrides applied.

void	set_visual_min_temperature_override (float visual_min_temperature_override)

void	set_visual_max_temperature_override (float visual_max_temperature_override)

void	set_visual_temperature_step_override (float target, float current)

void	set_visual_min_humidity_override (float visual_min_humidity_override)

void	set_visual_max_humidity_override (float visual_max_humidity_override)

bool	has_custom_fan_mode () const
	Check if a custom fan mode is currently active.

bool	has_custom_preset () const
	Check if a custom preset is currently active.

const char *	get_custom_fan_mode () const
	Get the active custom fan mode (read-only access).

const char *	get_custom_preset () const
	Get the active custom preset (read-only access).

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

bool	has_own_name () const

ESPDEPRECATED("object_id mangles names and all object_id methods are planned for removal " "(see https://github.com/esphome/backlog/issues/76). " "Now is the time to stop using object_id. If still needed, use get_object_id_to() " "which will remain available longer. get_object_id() will be removed in 2026.7.0", "2025.12.0") std void	set_object_id (const char *object_id)

void	set_name_and_object_id (const char name, const char object_id)

uint32_t	get_object_id_hash ()

StringRef	get_object_id_to (std::span< char, OBJECT_ID_MAX_LEN > buf) const
	Get object_id with zero heap allocation For static case: returns StringRef to internal storage (buffer unused) For dynamic case: formats into buffer and returns StringRef to buffer.

size_t	write_object_id_to (char *buf, size_t buf_size) const
	Write object_id directly to buffer, returns length written (excluding null) Useful for building compound strings without intermediate buffer.

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

ESPDEPRECATED("Use get_icon_ref() instead for better performance (avoids string copy). Will be removed in ESPHome 2026.5.0", "2025.11.0") std void	set_icon (const char *icon)

StringRef	get_icon_ref () const

uint32_t	get_device_id () const

void	set_device (Device *device)

bool	has_state () const

void	set_has_state (bool state)

uint32_t	get_preference_hash ()
	Get a unique hash for storing preferences/settings for this entity.

Public Member Functions inherited from esphome::Component
virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

virtual void	mark_failed ()
	Mark this component as failed.

	ESPDEPRECATED ("Use mark_failed(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void mark_failed(const char *message)

void	mark_failed (const LogString *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message=nullptr)

void	status_set_warning (const LogString *message)

void	status_set_error ()

	ESPDEPRECATED ("Use status_set_error(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void status_set_error(const char *message)

void	status_set_error (const LogString *message)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const char *name, uint32_t length=5000)
	Set warning status flag and automatically clear it after a timeout.

void	status_momentary_error (const char *name, uint32_t length=5000)
	Set error status flag and automatically clear it after a timeout.

bool	has_overridden_loop () const

void	set_component_source (const LogString *source)
	Set where this component was loaded from for some debug messages.

const LogString *	get_component_log_str () const
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time)

Data Fields
HumidificationAction	humidification_action {THERMOSTAT_HUMIDITY_CONTROL_ACTION_NONE}
	The current humidification action.

Data Fields inherited from esphome::climate::Climate
float	current_temperature {NAN}
	The current temperature of the climate device, as reported from the integration.

float	current_humidity {NAN}
	The current humidity of the climate device, as reported from the integration.

union {

float target_temperature
	The target temperature of the climate device. More...

struct {

float target_temperature_low {NAN}
	The minimum target temperature of the climate device, for climate devices with split target temperature. More...

float target_temperature_high {NAN}
	The maximum target temperature of the climate device, for climate devices with split target temperature. More...

}

};

float	target_humidity
	The target humidity of the climate device.

optional< ClimateFanMode >	fan_mode
	The active fan mode of the climate device.

optional< ClimatePreset >	preset
	The active preset of the climate device.

ClimateMode	mode {CLIMATE_MODE_OFF}
	The active mode of the climate device.

ClimateAction	action {CLIMATE_ACTION_OFF}
	The active state of the climate device.

ClimateSwingMode	swing_mode {CLIMATE_SWING_OFF}
	The active swing mode of the climate device.

Protected Member Functions
void	control (const climate::ClimateCall &call) override
	Override control to change settings of the climate device.

void	change_preset_ (climate::ClimatePreset preset)
	Change to a provided preset setting; will reset temperature, mode, fan, and swing modes accordingly.

void	change_custom_preset_ (const char *custom_preset)
	Change to a provided custom preset setting; will reset temperature, mode, fan, and swing modes accordingly.

bool	change_preset_internal_ (const ThermostatClimateTargetTempConfig &config)
	Applies the temperature, mode, fan, and swing modes of the provided config.

climate::ClimateTraits	traits () override
	Return the traits of this controller.

climate::ClimateAction	compute_action_ (bool ignore_timers=false)
	Re-compute the required action of this climate controller.

climate::ClimateAction	compute_supplemental_action_ ()

HumidificationAction	compute_humidity_control_action_ ()

void	switch_to_action_ (climate::ClimateAction action, bool publish_state=true)
	Switch the climate device to the given climate action.

void	switch_to_supplemental_action_ (climate::ClimateAction action)

void	trigger_supplemental_action_ ()

void	switch_to_humidity_control_action_ (HumidificationAction action)

void	switch_to_fan_mode_ (climate::ClimateFanMode fan_mode, bool publish_state=true)
	Switch the climate device to the given climate fan mode.

void	switch_to_mode_ (climate::ClimateMode mode, bool publish_state=true)
	Switch the climate device to the given climate mode.

void	switch_to_swing_mode_ (climate::ClimateSwingMode swing_mode, bool publish_state=true)
	Switch the climate device to the given climate swing mode.

void	check_humidity_change_trigger_ ()
	Check if the humidity change trigger should be called.

void	check_temperature_change_trigger_ ()
	Check if the temperature change trigger should be called.

bool	idle_action_ready_ ()
	Is the action ready to be called? Returns true if so.

bool	cooling_action_ready_ ()

bool	drying_action_ready_ ()

bool	fan_mode_ready_ ()

bool	fanning_action_ready_ ()

bool	heating_action_ready_ ()

void	start_timer_ (ThermostatClimateTimerIndex timer_index)
	Start/cancel/get status of climate action timer.

bool	cancel_timer_ (ThermostatClimateTimerIndex timer_index)

bool	timer_active_ (ThermostatClimateTimerIndex timer_index)

uint32_t	timer_duration_ (ThermostatClimateTimerIndex timer_index)

void	call_timer_callback_ (ThermostatClimateTimerIndex timer_index)
	Call the appropriate timer callback based on timer index.

void	set_timer_duration_in_sec_ (ThermostatClimateTimerIndex timer_index, uint32_t time)
	Enhanced timer duration setter with running timer adjustment.

void	cooling_max_run_time_timer_callback_ ()
	set_timeout() callbacks for various actions (see above)

void	cooling_off_timer_callback_ ()

void	cooling_on_timer_callback_ ()

void	fan_mode_timer_callback_ ()

void	fanning_off_timer_callback_ ()

void	fanning_on_timer_callback_ ()

void	heating_max_run_time_timer_callback_ ()

void	heating_off_timer_callback_ ()

void	heating_on_timer_callback_ ()

void	idle_on_timer_callback_ ()

bool	cooling_required_ ()
	Check if cooling/fanning/heating actions are required; returns true if so.

bool	fanning_required_ ()

bool	heating_required_ ()

bool	supplemental_cooling_required_ ()

bool	supplemental_heating_required_ ()

bool	dehumidification_required_ ()

bool	humidification_required_ ()

void	dump_preset_config_ (const char *preset_name, const ThermostatClimateTargetTempConfig &config)

Protected Member Functions inherited from esphome::climate::Climate
bool	set_fan_mode_ (ClimateFanMode mode)
	Set fan mode. Reset custom fan mode. Return true if fan mode has been changed.

bool	set_custom_fan_mode_ (const char *mode)
	Set custom fan mode. Reset primary fan mode. Return true if fan mode has been changed.

void	clear_custom_fan_mode_ ()
	Clear custom fan mode.

bool	set_preset_ (ClimatePreset preset)
	Set preset. Reset custom preset. Return true if preset has been changed.

bool	set_custom_preset_ (const char *preset)
	Set custom preset. Reset primary preset. Return true if preset has been changed.

void	clear_custom_preset_ ()
	Clear custom preset.

const char *	find_custom_fan_mode_ (const char *custom_fan_mode)
	Find and return the matching custom fan mode pointer from traits, or nullptr if not found.

const char *	find_custom_fan_mode_ (const char *custom_fan_mode, size_t len)

const char *	find_custom_preset_ (const char *custom_preset)
	Find and return the matching custom preset pointer from traits, or nullptr if not found.

const char *	find_custom_preset_ (const char *custom_preset, size_t len)

optional< ClimateDeviceRestoreState >	restore_state_ ()
	Restore the state of the climate device, call this from your setup() method.

void	save_state_ ()
	Internal method to save the state of the climate device to recover memory.

void	dump_traits_ (const char *tag)

Protected Member Functions inherited from esphome::EntityBase
void	calc_object_id_ ()

bool	is_object_id_dynamic_ () const
	Check if the object_id is dynamic (changes with MAC suffix)

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_setup ()

virtual void	call_dump_config ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (const char *name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

bool	cancel_retry (const char *name)

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes
const uint8_t	min_timer_duration_ {1}
	Minimum allowable duration in seconds for action timers.

climate::ClimateFanMode	prev_fan_mode_ {climate::CLIMATE_FAN_ON}
	Store previously-known states.

climate::ClimateMode	prev_mode_ {climate::CLIMATE_MODE_OFF}

climate::ClimateSwingMode	prev_swing_mode_ {climate::CLIMATE_SWING_OFF}

climate::ClimateAction	supplemental_action_ {climate::CLIMATE_ACTION_OFF}
	The current supplemental action.

climate::ClimatePreset	default_preset_ {}
	Default standard preset to use on start up.

OnBootRestoreFrom	on_boot_restore_from_ {OnBootRestoreFrom::MEMORY}
	If set to DEFAULT_PRESET then the default preset is always used.

bool	supports_auto_ {false}
	Whether the controller supports auto/cooling/drying/fanning/heating.

bool	supports_heat_cool_ {false}

bool	supports_cool_ {false}

bool	supports_dry_ {false}

bool	supports_fan_only_ {false}

bool	supports_heat_ {false}

bool	supports_fan_only_action_uses_fan_mode_timer_ {false}
	Special flag – enables fan_modes to share timer with fan_only climate action.

bool	supports_fan_only_cooling_ {false}
	Special flag – enables fan to be switched based on target_temperature_high.

bool	supports_fan_with_cooling_ {false}
	Special flags – enables fan_only action to be called with cooling/heating actions.

bool	supports_fan_with_heating_ {false}

bool	supports_fan_mode_on_ {false}
	Whether the controller supports turning on or off just the fan.

bool	supports_fan_mode_off_ {false}

bool	supports_fan_mode_auto_ {false}
	Whether the controller supports fan auto mode.

bool	supports_fan_mode_low_ {false}
	Whether the controller supports various fan speeds and/or positions.

bool	supports_fan_mode_medium_ {false}

bool	supports_fan_mode_high_ {false}

bool	supports_fan_mode_middle_ {false}

bool	supports_fan_mode_focus_ {false}

bool	supports_fan_mode_diffuse_ {false}

bool	supports_fan_mode_quiet_ {false}

bool	supports_swing_mode_both_ {false}
	Whether the controller supports various swing modes.

bool	supports_swing_mode_off_ {false}

bool	supports_swing_mode_horizontal_ {false}

bool	supports_swing_mode_vertical_ {false}

bool	supports_two_points_ {false}
	Whether the controller supports two set points.

bool	supports_dehumidification_ {false}
	Whether the controller supports dehumidification and/or humidification.

bool	supports_humidification_ {false}

bool	cooling_max_runtime_exceeded_ {false}
	Flags indicating if maximum allowable run time was exceeded.

bool	heating_max_runtime_exceeded_ {false}

bool	use_startup_delay_ {false}
	Used to start "off" delay timers at boot.

bool	setup_complete_ {false}
	setup_complete_ blocks modifying/resetting the temps immediately after boot

float	prev_target_humidity_ {NAN}
	Store previously-known humidity and temperatures.

float	prev_target_temperature_ {NAN}

float	prev_target_temperature_low_ {NAN}

float	prev_target_temperature_high_ {NAN}

float	set_point_minimum_differential_ {0}
	Minimum differential required between set points.

float	cooling_deadband_ {0}
	Hysteresis values used for computing climate actions.

float	cooling_overrun_ {0}

float	heating_deadband_ {0}

float	heating_overrun_ {0}

float	humidity_hysteresis_ {0}
	Hysteresis values used for computing humidification action.

float	supplemental_cool_delta_ {0}
	Maximum allowable temperature deltas before engaging supplemental cooling/heating actions.

float	supplemental_heat_delta_ {0}

sensor::Sensor *	sensor_ {nullptr}
	The sensor used for getting the current temperature.

sensor::Sensor *	humidity_sensor_ {nullptr}
	The sensor used for getting the current humidity.

Trigger *	cool_action_trigger_ {nullptr}
	The trigger to call when the controller should switch to cooling action/mode.

Trigger *	supplemental_cool_action_trigger_ {nullptr}

Trigger *	cool_mode_trigger_ {nullptr}

Trigger *	dry_action_trigger_ {nullptr}
	The trigger to call when the controller should switch to dry (dehumidification) mode.

Trigger *	dry_mode_trigger_ {nullptr}

Trigger *	heat_action_trigger_ {nullptr}
	The trigger to call when the controller should switch to heating action/mode.

Trigger *	supplemental_heat_action_trigger_ {nullptr}

Trigger *	heat_mode_trigger_ {nullptr}

Trigger *	heat_cool_mode_trigger_ {nullptr}
	The trigger to call when the controller should switch to heat/cool mode.

Trigger *	auto_mode_trigger_ {nullptr}
	The trigger to call when the controller should switch to auto mode.

Trigger *	idle_action_trigger_ {nullptr}
	The trigger to call when the controller should switch to idle action/off mode.

Trigger *	off_mode_trigger_ {nullptr}

Trigger *	fan_only_action_trigger_ {nullptr}
	The trigger to call when the controller should switch to fan-only action/mode.

Trigger *	fan_only_mode_trigger_ {nullptr}

Trigger *	fan_mode_on_trigger_ {nullptr}
	The trigger to call when the controller should switch on the fan.

Trigger *	fan_mode_off_trigger_ {nullptr}
	The trigger to call when the controller should switch off the fan.

Trigger *	fan_mode_auto_trigger_ {nullptr}
	The trigger to call when the controller should switch the fan to "auto" mode.

Trigger *	fan_mode_low_trigger_ {nullptr}
	The trigger to call when the controller should switch the fan to "low" speed.

Trigger *	fan_mode_medium_trigger_ {nullptr}
	The trigger to call when the controller should switch the fan to "medium" speed.

Trigger *	fan_mode_high_trigger_ {nullptr}
	The trigger to call when the controller should switch the fan to "high" speed.

Trigger *	fan_mode_middle_trigger_ {nullptr}
	The trigger to call when the controller should switch the fan to "middle" position.

Trigger *	fan_mode_focus_trigger_ {nullptr}
	The trigger to call when the controller should switch the fan to "focus" position.

Trigger *	fan_mode_diffuse_trigger_ {nullptr}
	The trigger to call when the controller should switch the fan to "diffuse" position.

Trigger *	fan_mode_quiet_trigger_ {nullptr}
	The trigger to call when the controller should switch the fan to "quiet" position.

Trigger *	swing_mode_both_trigger_ {nullptr}
	The trigger to call when the controller should switch the swing mode to "both".

Trigger *	swing_mode_off_trigger_ {nullptr}
	The trigger to call when the controller should switch the swing mode to "off".

Trigger *	swing_mode_horizontal_trigger_ {nullptr}
	The trigger to call when the controller should switch the swing mode to "horizontal".

Trigger *	swing_mode_vertical_trigger_ {nullptr}
	The trigger to call when the controller should switch the swing mode to "vertical".

Trigger *	humidity_change_trigger_ {nullptr}
	The trigger to call when the target humidity changes.

Trigger *	temperature_change_trigger_ {nullptr}
	The trigger to call when the target temperature(s) change(es).

Trigger *	preset_change_trigger_ {nullptr}
	The trigger to call when the preset mode changes.

Trigger *	humidity_control_dehumidify_action_trigger_ {nullptr}
	The trigger to call when dehumidification is required.

Trigger *	humidity_control_humidify_action_trigger_ {nullptr}
	The trigger to call when humidification is required.

Trigger *	humidity_control_off_action_trigger_ {nullptr}
	The trigger to call when (de)humidification should stop.

Trigger *	prev_action_trigger_ {nullptr}
	A reference to the trigger that was previously active.

Trigger *	prev_fan_mode_trigger_ {nullptr}

Trigger *	prev_mode_trigger_ {nullptr}

Trigger *	prev_swing_mode_trigger_ {nullptr}

Trigger *	prev_humidity_control_trigger_ {nullptr}

std::array< ThermostatClimateTimer, THERMOSTAT_TIMER_COUNT >	timer_ {}
	Climate action timers.

FixedVector< PresetEntry >	preset_config_ {}
	The set of standard preset configurations this thermostat supports (Eg. AWAY, ECO, etc)

FixedVector< CustomPresetEntry >	custom_preset_config_ {}
	The set of custom preset configurations this thermostat supports (eg. "My Custom Preset")

Protected Attributes inherited from esphome::climate::Climate
friend	ClimateCall

LazyCallbackManager< void(Climate &)>	state_callback_ {}

LazyCallbackManager< void(ClimateCall &)>	control_callback_ {}

ESPPreferenceObject	rtc_

float	visual_min_temperature_override_ {NAN}

float	visual_max_temperature_override_ {NAN}

float	visual_target_temperature_step_override_ {NAN}

float	visual_current_temperature_step_override_ {NAN}

float	visual_min_humidity_override_ {NAN}

float	visual_max_humidity_override_ {NAN}

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	object_id_c_str_ {nullptr}

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

Protected Attributes inherited from esphome::Component
const LogString *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Detailed Description

Definition at line 84 of file thermostat_climate.h.

Member Typedef Documentation

◆ CustomPresetEntry

using esphome::thermostat::ThermostatClimate::CustomPresetEntry = ThermostatCustomPresetEntry

Definition at line 87 of file thermostat_climate.h.

◆ PresetEntry

using esphome::thermostat::ThermostatClimate::PresetEntry = ThermostatPresetEntry

Definition at line 86 of file thermostat_climate.h.

Constructor & Destructor Documentation

◆ ThermostatClimate()

esphome::thermostat::ThermostatClimate::ThermostatClimate ( )

Definition at line 1306 of file thermostat_climate.cpp.

Member Function Documentation

◆ call_timer_callback_()

void esphome::thermostat::ThermostatClimate::call_timer_callback_ ( ThermostatClimateTimerIndex timer_index )

protected

Call the appropriate timer callback based on timer index.

Definition at line 920 of file thermostat_climate.cpp.

◆ cancel_timer_()

bool esphome::thermostat::ThermostatClimate::cancel_timer_ ( ThermostatClimateTimerIndex timer_index )

protected

Definition at line 906 of file thermostat_climate.cpp.

◆ change_custom_preset_()

void esphome::thermostat::ThermostatClimate::change_custom_preset_ ( const char * custom_preset )

protected

Change to a provided custom preset setting; will reset temperature, mode, fan, and swing modes accordingly.

Definition at line 1221 of file thermostat_climate.cpp.

◆ change_preset_()

void esphome::thermostat::ThermostatClimate::change_preset_ ( climate::ClimatePreset preset )

protected

Change to a provided preset setting; will reset temperature, mode, fan, and swing modes accordingly.

Definition at line 1191 of file thermostat_climate.cpp.

◆ change_preset_internal_()

bool esphome::thermostat::ThermostatClimate::change_preset_internal_ ( const ThermostatClimateTargetTempConfig & config )

protected

Applies the temperature, mode, fan, and swing modes of the provided config.

This is agnostic of custom vs built in preset Returns true if something was changed

Definition at line 1256 of file thermostat_climate.cpp.

◆ check_humidity_change_trigger_()

void esphome::thermostat::ThermostatClimate::check_humidity_change_trigger_ ( )

protected

Check if the humidity change trigger should be called.

Definition at line 1019 of file thermostat_climate.cpp.

◆ check_temperature_change_trigger_()

void esphome::thermostat::ThermostatClimate::check_temperature_change_trigger_ ( )

protected

Check if the temperature change trigger should be called.

Definition at line 1033 of file thermostat_climate.cpp.

◆ climate_action_change_delayed()

bool esphome::thermostat::ThermostatClimate::climate_action_change_delayed ( )

Returns true if a climate action/fan mode transition is being delayed.

Definition at line 95 of file thermostat_climate.cpp.

◆ compute_action_()

climate::ClimateAction esphome::thermostat::ThermostatClimate::compute_action_ ( bool ignore_timers = false )

protected

Re-compute the required action of this climate controller.

Definition at line 340 of file thermostat_climate.cpp.

◆ compute_humidity_control_action_()

HumidificationAction esphome::thermostat::ThermostatClimate::compute_humidity_control_action_ ( )

protected

Definition at line 461 of file thermostat_climate.cpp.

◆ compute_supplemental_action_()

climate::ClimateAction esphome::thermostat::ThermostatClimate::compute_supplemental_action_ ( )

protected

Definition at line 419 of file thermostat_climate.cpp.

◆ control()

void esphome::thermostat::ThermostatClimate::control ( const climate::ClimateCall & call )

overrideprotectedvirtual

Override control to change settings of the climate device.

Implements esphome::climate::Climate.

Definition at line 211 of file thermostat_climate.cpp.

◆ cool_deadband()

float esphome::thermostat::ThermostatClimate::cool_deadband ( )

Get current hysteresis values.

Definition at line 78 of file thermostat_climate.cpp.

◆ cool_overrun()

float esphome::thermostat::ThermostatClimate::cool_overrun ( )

Definition at line 79 of file thermostat_climate.cpp.

◆ cooling_action_ready_()

bool esphome::thermostat::ThermostatClimate::cooling_action_ready_ ( )

protected

Definition at line 868 of file thermostat_climate.cpp.

◆ cooling_max_run_time_timer_callback_()

void esphome::thermostat::ThermostatClimate::cooling_max_run_time_timer_callback_ ( )

protected

set_timeout() callbacks for various actions (see above)

Definition at line 958 of file thermostat_climate.cpp.

◆ cooling_off_timer_callback_()

void esphome::thermostat::ThermostatClimate::cooling_off_timer_callback_ ( )

protected

Definition at line 965 of file thermostat_climate.cpp.

◆ cooling_on_timer_callback_()

void esphome::thermostat::ThermostatClimate::cooling_on_timer_callback_ ( )

protected

Definition at line 971 of file thermostat_climate.cpp.

◆ cooling_required_()

bool esphome::thermostat::ThermostatClimate::cooling_required_ ( )

protected

Check if cooling/fanning/heating actions are required; returns true if so.

Definition at line 1059 of file thermostat_climate.cpp.

◆ dehumidification_required_()

bool esphome::thermostat::ThermostatClimate::dehumidification_required_ ( )

protected

Definition at line 1142 of file thermostat_climate.cpp.

◆ delayed_climate_action()

climate::ClimateAction esphome::thermostat::ThermostatClimate::delayed_climate_action ( )

Returns the climate action that is being delayed (check climate_action_change_delayed(), first!)

Definition at line 121 of file thermostat_climate.cpp.

◆ drying_action_ready_()

bool esphome::thermostat::ThermostatClimate::drying_action_ready_ ( )

protected

Definition at line 875 of file thermostat_climate.cpp.

◆ dump_config()

void esphome::thermostat::ThermostatClimate::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 1559 of file thermostat_climate.cpp.

◆ dump_preset_config_()

void esphome::thermostat::ThermostatClimate::dump_preset_config_	(	const char *	preset_name,
		const ThermostatClimateTargetTempConfig &	config )

protected

Definition at line 1168 of file thermostat_climate.cpp.

◆ fan_mode_change_delayed()

bool esphome::thermostat::ThermostatClimate::fan_mode_change_delayed ( )

Definition at line 116 of file thermostat_climate.cpp.

◆ fan_mode_ready_()

bool esphome::thermostat::ThermostatClimate::fan_mode_ready_ ( )

protected

Definition at line 882 of file thermostat_climate.cpp.

◆ fan_mode_timer_callback_()

void esphome::thermostat::ThermostatClimate::fan_mode_timer_callback_ ( )

protected

Definition at line 977 of file thermostat_climate.cpp.

◆ fanning_action_ready_()

bool esphome::thermostat::ThermostatClimate::fanning_action_ready_ ( )

protected

Definition at line 884 of file thermostat_climate.cpp.

◆ fanning_off_timer_callback_()

void esphome::thermostat::ThermostatClimate::fanning_off_timer_callback_ ( )

protected

Definition at line 984 of file thermostat_climate.cpp.

◆ fanning_on_timer_callback_()

void esphome::thermostat::ThermostatClimate::fanning_on_timer_callback_ ( )

protected

Definition at line 989 of file thermostat_climate.cpp.

◆ fanning_required_()

bool esphome::thermostat::ThermostatClimate::fanning_required_ ( )

protected

Definition at line 1079 of file thermostat_climate.cpp.

◆ get_auto_mode_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_auto_mode_trigger ( ) const

Definition at line 1525 of file thermostat_climate.cpp.

◆ get_cool_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_cool_action_trigger ( ) const

Definition at line 1514 of file thermostat_climate.cpp.

◆ get_cool_mode_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_cool_mode_trigger ( ) const

Definition at line 1526 of file thermostat_climate.cpp.

◆ get_dry_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_dry_action_trigger ( ) const

Definition at line 1518 of file thermostat_climate.cpp.

◆ get_dry_mode_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_dry_mode_trigger ( ) const

Definition at line 1527 of file thermostat_climate.cpp.

◆ get_fan_mode_auto_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_auto_trigger ( ) const

Definition at line 1534 of file thermostat_climate.cpp.

◆ get_fan_mode_diffuse_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_diffuse_trigger ( ) const

Definition at line 1540 of file thermostat_climate.cpp.

◆ get_fan_mode_focus_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_focus_trigger ( ) const

Definition at line 1539 of file thermostat_climate.cpp.

◆ get_fan_mode_high_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_high_trigger ( ) const

Definition at line 1537 of file thermostat_climate.cpp.

◆ get_fan_mode_low_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_low_trigger ( ) const

Definition at line 1535 of file thermostat_climate.cpp.

◆ get_fan_mode_medium_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_medium_trigger ( ) const

Definition at line 1536 of file thermostat_climate.cpp.

◆ get_fan_mode_middle_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_middle_trigger ( ) const

Definition at line 1538 of file thermostat_climate.cpp.

◆ get_fan_mode_off_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_off_trigger ( ) const

Definition at line 1533 of file thermostat_climate.cpp.

◆ get_fan_mode_on_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_on_trigger ( ) const

Definition at line 1532 of file thermostat_climate.cpp.

◆ get_fan_mode_quiet_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_mode_quiet_trigger ( ) const

Definition at line 1541 of file thermostat_climate.cpp.

◆ get_fan_only_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_only_action_trigger ( ) const

Definition at line 1519 of file thermostat_climate.cpp.

◆ get_fan_only_mode_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_fan_only_mode_trigger ( ) const

Definition at line 1528 of file thermostat_climate.cpp.

◆ get_heat_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_heat_action_trigger ( ) const

Definition at line 1520 of file thermostat_climate.cpp.

◆ get_heat_cool_mode_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_heat_cool_mode_trigger ( ) const

Definition at line 1530 of file thermostat_climate.cpp.

◆ get_heat_mode_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_heat_mode_trigger ( ) const

Definition at line 1529 of file thermostat_climate.cpp.

◆ get_humidity_change_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_humidity_change_trigger ( ) const

Definition at line 1546 of file thermostat_climate.cpp.

◆ get_humidity_control_dehumidify_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_humidity_control_dehumidify_action_trigger ( ) const

Definition at line 1549 of file thermostat_climate.cpp.

◆ get_humidity_control_humidify_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_humidity_control_humidify_action_trigger ( ) const

Definition at line 1552 of file thermostat_climate.cpp.

◆ get_humidity_control_off_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_humidity_control_off_action_trigger ( ) const

Definition at line 1555 of file thermostat_climate.cpp.

◆ get_idle_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_idle_action_trigger ( ) const

Definition at line 1524 of file thermostat_climate.cpp.

◆ get_off_mode_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_off_mode_trigger ( ) const

Definition at line 1531 of file thermostat_climate.cpp.

◆ get_preset_change_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_preset_change_trigger ( ) const

Definition at line 1548 of file thermostat_climate.cpp.

◆ get_supplemental_cool_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_supplemental_cool_action_trigger ( ) const

Definition at line 1515 of file thermostat_climate.cpp.

◆ get_supplemental_heat_action_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_supplemental_heat_action_trigger ( ) const

Definition at line 1521 of file thermostat_climate.cpp.

◆ get_swing_mode_both_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_swing_mode_both_trigger ( ) const

Definition at line 1542 of file thermostat_climate.cpp.

◆ get_swing_mode_horizontal_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_swing_mode_horizontal_trigger ( ) const

Definition at line 1544 of file thermostat_climate.cpp.

◆ get_swing_mode_off_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_swing_mode_off_trigger ( ) const

Definition at line 1543 of file thermostat_climate.cpp.

◆ get_swing_mode_vertical_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_swing_mode_vertical_trigger ( ) const

Definition at line 1545 of file thermostat_climate.cpp.

◆ get_temperature_change_trigger()

Trigger * esphome::thermostat::ThermostatClimate::get_temperature_change_trigger ( ) const

Definition at line 1547 of file thermostat_climate.cpp.

◆ heat_deadband()

float esphome::thermostat::ThermostatClimate::heat_deadband ( )

Definition at line 80 of file thermostat_climate.cpp.

◆ heat_overrun()

float esphome::thermostat::ThermostatClimate::heat_overrun ( )

Definition at line 81 of file thermostat_climate.cpp.

◆ heating_action_ready_()

bool esphome::thermostat::ThermostatClimate::heating_action_ready_ ( )

protected

Definition at line 892 of file thermostat_climate.cpp.

◆ heating_max_run_time_timer_callback_()

void esphome::thermostat::ThermostatClimate::heating_max_run_time_timer_callback_ ( )

protected

Definition at line 994 of file thermostat_climate.cpp.

◆ heating_off_timer_callback_()

void esphome::thermostat::ThermostatClimate::heating_off_timer_callback_ ( )

protected

Definition at line 1001 of file thermostat_climate.cpp.

◆ heating_on_timer_callback_()

void esphome::thermostat::ThermostatClimate::heating_on_timer_callback_ ( )

protected

Definition at line 1007 of file thermostat_climate.cpp.

◆ heating_required_()

bool esphome::thermostat::ThermostatClimate::heating_required_ ( )

protected

Definition at line 1102 of file thermostat_climate.cpp.

◆ humidification_required_()

bool esphome::thermostat::ThermostatClimate::humidification_required_ ( )

protected

Definition at line 1155 of file thermostat_climate.cpp.

◆ humidity_hysteresis_valid()

bool esphome::thermostat::ThermostatClimate::humidity_hysteresis_valid ( )

Definition at line 136 of file thermostat_climate.cpp.

◆ hysteresis_valid()

bool esphome::thermostat::ThermostatClimate::hysteresis_valid ( )

Set point and hysteresis validation.

Definition at line 125 of file thermostat_climate.cpp.

◆ idle_action_ready_()

bool esphome::thermostat::ThermostatClimate::idle_action_ready_ ( )

protected

Is the action ready to be called? Returns true if so.

Definition at line 857 of file thermostat_climate.cpp.

◆ idle_on_timer_callback_()

void esphome::thermostat::ThermostatClimate::idle_on_timer_callback_ ( )

protected

Definition at line 1013 of file thermostat_climate.cpp.

◆ limit_setpoints_for_heat_cool()

bool esphome::thermostat::ThermostatClimate::limit_setpoints_for_heat_cool ( )

Definition at line 141 of file thermostat_climate.cpp.

◆ locked_fan_mode()

climate::ClimateFanMode esphome::thermostat::ThermostatClimate::locked_fan_mode ( )

Returns the fan mode that is locked in (check fan_mode_change_delayed(), first!)

Definition at line 123 of file thermostat_climate.cpp.

◆ loop()

void esphome::thermostat::ThermostatClimate::loop ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 67 of file thermostat_climate.cpp.

◆ refresh()

void esphome::thermostat::ThermostatClimate::refresh ( )

Call triggers based on updated climate states (modes/actions)

Definition at line 83 of file thermostat_climate.cpp.

◆ set_cool_deadband()

void esphome::thermostat::ThermostatClimate::set_cool_deadband ( float deadband )

Definition at line 1362 of file thermostat_climate.cpp.

◆ set_cool_overrun()

void esphome::thermostat::ThermostatClimate::set_cool_overrun ( float overrun )

Definition at line 1363 of file thermostat_climate.cpp.

◆ set_cooling_maximum_run_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_cooling_maximum_run_time_in_sec ( uint32_t time )

Definition at line 1397 of file thermostat_climate.cpp.

◆ set_cooling_minimum_off_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_cooling_minimum_off_time_in_sec ( uint32_t time )

Definition at line 1400 of file thermostat_climate.cpp.

◆ set_cooling_minimum_run_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_cooling_minimum_run_time_in_sec ( uint32_t time )

Definition at line 1403 of file thermostat_climate.cpp.

◆ set_custom_preset_config()

void esphome::thermostat::ThermostatClimate::set_custom_preset_config ( std::initializer_list< CustomPresetEntry > presets )

Definition at line 1302 of file thermostat_climate.cpp.

◆ set_default_preset() [1/2]

void esphome::thermostat::ThermostatClimate::set_default_preset ( climate::ClimatePreset preset )

Definition at line 1354 of file thermostat_climate.cpp.

◆ set_default_preset() [2/2]

void esphome::thermostat::ThermostatClimate::set_default_preset ( const char * custom_preset )

Definition at line 1342 of file thermostat_climate.cpp.

◆ set_fan_mode_minimum_switching_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_fan_mode_minimum_switching_time_in_sec ( uint32_t time )

Definition at line 1406 of file thermostat_climate.cpp.

◆ set_fanning_minimum_off_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_fanning_minimum_off_time_in_sec ( uint32_t time )

Definition at line 1409 of file thermostat_climate.cpp.

◆ set_fanning_minimum_run_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_fanning_minimum_run_time_in_sec ( uint32_t time )

Definition at line 1412 of file thermostat_climate.cpp.

◆ set_heat_deadband()

void esphome::thermostat::ThermostatClimate::set_heat_deadband ( float deadband )

Definition at line 1364 of file thermostat_climate.cpp.

◆ set_heat_overrun()

void esphome::thermostat::ThermostatClimate::set_heat_overrun ( float overrun )

Definition at line 1365 of file thermostat_climate.cpp.

◆ set_heating_maximum_run_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_heating_maximum_run_time_in_sec ( uint32_t time )

Definition at line 1415 of file thermostat_climate.cpp.

◆ set_heating_minimum_off_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_heating_minimum_off_time_in_sec ( uint32_t time )

Definition at line 1418 of file thermostat_climate.cpp.

◆ set_heating_minimum_run_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_heating_minimum_run_time_in_sec ( uint32_t time )

Definition at line 1421 of file thermostat_climate.cpp.

◆ set_humidity_hysteresis()

void esphome::thermostat::ThermostatClimate::set_humidity_hysteresis ( float humidity_hysteresis )

Definition at line 1431 of file thermostat_climate.cpp.

◆ set_humidity_sensor()

void esphome::thermostat::ThermostatClimate::set_humidity_sensor ( sensor::Sensor * humidity_sensor )

Definition at line 1428 of file thermostat_climate.cpp.

◆ set_idle_minimum_time_in_sec()

void esphome::thermostat::ThermostatClimate::set_idle_minimum_time_in_sec ( uint32_t time )

Definition at line 1424 of file thermostat_climate.cpp.

◆ set_on_boot_restore_from()

void esphome::thermostat::ThermostatClimate::set_on_boot_restore_from ( thermostat::OnBootRestoreFrom on_boot_restore_from )

Definition at line 1356 of file thermostat_climate.cpp.

◆ set_preset_config()

void esphome::thermostat::ThermostatClimate::set_preset_config ( std::initializer_list< PresetEntry > presets )

Definition at line 1298 of file thermostat_climate.cpp.

◆ set_sensor()

void esphome::thermostat::ThermostatClimate::set_sensor ( sensor::Sensor * sensor )

Definition at line 1427 of file thermostat_climate.cpp.

◆ set_set_point_minimum_differential()

void esphome::thermostat::ThermostatClimate::set_set_point_minimum_differential ( float differential )

Definition at line 1359 of file thermostat_climate.cpp.

◆ set_supplemental_cool_delta()

void esphome::thermostat::ThermostatClimate::set_supplemental_cool_delta ( float delta )

Definition at line 1366 of file thermostat_climate.cpp.

◆ set_supplemental_heat_delta()

void esphome::thermostat::ThermostatClimate::set_supplemental_heat_delta ( float delta )

Definition at line 1367 of file thermostat_climate.cpp.

◆ set_supports_auto()

void esphome::thermostat::ThermostatClimate::set_supports_auto ( bool supports_auto )

Definition at line 1438 of file thermostat_climate.cpp.

◆ set_supports_cool()

void esphome::thermostat::ThermostatClimate::set_supports_cool ( bool supports_cool )

Definition at line 1439 of file thermostat_climate.cpp.

◆ set_supports_dehumidification()

void esphome::thermostat::ThermostatClimate::set_supports_dehumidification ( bool supports_dehumidification )

Definition at line 1501 of file thermostat_climate.cpp.

◆ set_supports_dry()

void esphome::thermostat::ThermostatClimate::set_supports_dry ( bool supports_dry )

Definition at line 1440 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_auto()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_auto ( bool supports_fan_mode_auto )

Definition at line 1462 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_diffuse()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_diffuse ( bool supports_fan_mode_diffuse )

Definition at line 1480 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_focus()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_focus ( bool supports_fan_mode_focus )

Definition at line 1477 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_high()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_high ( bool supports_fan_mode_high )

Definition at line 1471 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_low()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_low ( bool supports_fan_mode_low )

Definition at line 1465 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_medium()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_medium ( bool supports_fan_mode_medium )

Definition at line 1468 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_middle()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_middle ( bool supports_fan_mode_middle )

Definition at line 1474 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_off()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_off ( bool supports_fan_mode_off )

Definition at line 1459 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_on()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_on ( bool supports_fan_mode_on )

Definition at line 1456 of file thermostat_climate.cpp.

◆ set_supports_fan_mode_quiet()

void esphome::thermostat::ThermostatClimate::set_supports_fan_mode_quiet ( bool supports_fan_mode_quiet )

Definition at line 1483 of file thermostat_climate.cpp.

◆ set_supports_fan_only()

void esphome::thermostat::ThermostatClimate::set_supports_fan_only ( bool supports_fan_only )

Definition at line 1441 of file thermostat_climate.cpp.

◆ set_supports_fan_only_action_uses_fan_mode_timer()

void esphome::thermostat::ThermostatClimate::set_supports_fan_only_action_uses_fan_mode_timer ( bool fan_only_action_uses_fan_mode_timer )

Definition at line 1442 of file thermostat_climate.cpp.

◆ set_supports_fan_only_cooling()

void esphome::thermostat::ThermostatClimate::set_supports_fan_only_cooling ( bool supports_fan_only_cooling )

Definition at line 1446 of file thermostat_climate.cpp.

◆ set_supports_fan_with_cooling()

void esphome::thermostat::ThermostatClimate::set_supports_fan_with_cooling ( bool supports_fan_with_cooling )

Definition at line 1449 of file thermostat_climate.cpp.

◆ set_supports_fan_with_heating()

void esphome::thermostat::ThermostatClimate::set_supports_fan_with_heating ( bool supports_fan_with_heating )

Definition at line 1452 of file thermostat_climate.cpp.

◆ set_supports_heat()

void esphome::thermostat::ThermostatClimate::set_supports_heat ( bool supports_heat )

Definition at line 1455 of file thermostat_climate.cpp.

◆ set_supports_heat_cool()

void esphome::thermostat::ThermostatClimate::set_supports_heat_cool ( bool supports_heat_cool )

Definition at line 1435 of file thermostat_climate.cpp.

◆ set_supports_humidification()

void esphome::thermostat::ThermostatClimate::set_supports_humidification ( bool supports_humidification )

Definition at line 1507 of file thermostat_climate.cpp.

◆ set_supports_swing_mode_both()

void esphome::thermostat::ThermostatClimate::set_supports_swing_mode_both ( bool supports_swing_mode_both )

Definition at line 1486 of file thermostat_climate.cpp.

◆ set_supports_swing_mode_horizontal()

void esphome::thermostat::ThermostatClimate::set_supports_swing_mode_horizontal ( bool supports_swing_mode_horizontal )

Definition at line 1492 of file thermostat_climate.cpp.

◆ set_supports_swing_mode_off()

void esphome::thermostat::ThermostatClimate::set_supports_swing_mode_off ( bool supports_swing_mode_off )

Definition at line 1489 of file thermostat_climate.cpp.

◆ set_supports_swing_mode_vertical()

void esphome::thermostat::ThermostatClimate::set_supports_swing_mode_vertical ( bool supports_swing_mode_vertical )

Definition at line 1495 of file thermostat_climate.cpp.

◆ set_supports_two_points()

void esphome::thermostat::ThermostatClimate::set_supports_two_points ( bool supports_two_points )

Definition at line 1498 of file thermostat_climate.cpp.

◆ set_timer_duration_in_sec_()

void esphome::thermostat::ThermostatClimate::set_timer_duration_in_sec_	(	ThermostatClimateTimerIndex	timer_index,
		uint32_t	time )

protected

Enhanced timer duration setter with running timer adjustment.

Definition at line 1369 of file thermostat_climate.cpp.

◆ set_use_startup_delay()

void esphome::thermostat::ThermostatClimate::set_use_startup_delay ( bool use_startup_delay )

Definition at line 1434 of file thermostat_climate.cpp.

◆ setup()

void esphome::thermostat::ThermostatClimate::setup ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 10 of file thermostat_climate.cpp.

◆ start_timer_()

void esphome::thermostat::ThermostatClimate::start_timer_ ( ThermostatClimateTimerIndex timer_index )

protected

Start/cancel/get status of climate action timer.

Definition at line 899 of file thermostat_climate.cpp.

◆ supplemental_cooling_required_()

bool esphome::thermostat::ThermostatClimate::supplemental_cooling_required_ ( )

protected

Definition at line 1122 of file thermostat_climate.cpp.

◆ supplemental_heating_required_()

bool esphome::thermostat::ThermostatClimate::supplemental_heating_required_ ( )

protected

Definition at line 1132 of file thermostat_climate.cpp.

◆ switch_to_action_()

void esphome::thermostat::ThermostatClimate::switch_to_action_	(	climate::ClimateAction	action,
		bool	publish_state = true )

protected

Switch the climate device to the given climate action.

Definition at line 483 of file thermostat_climate.cpp.

◆ switch_to_fan_mode_()

void esphome::thermostat::ThermostatClimate::switch_to_fan_mode_	(	climate::ClimateFanMode	fan_mode,
		bool	publish_state = true )

protected

Switch the climate device to the given climate fan mode.

Definition at line 694 of file thermostat_climate.cpp.

◆ switch_to_humidity_control_action_()

void esphome::thermostat::ThermostatClimate::switch_to_humidity_control_action_ ( HumidificationAction action )

protected

Definition at line 656 of file thermostat_climate.cpp.

◆ switch_to_mode_()

void esphome::thermostat::ThermostatClimate::switch_to_mode_	(	climate::ClimateMode	mode,
		bool	publish_state = true )

protected

Switch the climate device to the given climate mode.

Definition at line 767 of file thermostat_climate.cpp.

◆ switch_to_supplemental_action_()

void esphome::thermostat::ThermostatClimate::switch_to_supplemental_action_ ( climate::ClimateAction action )

protected

Definition at line 602 of file thermostat_climate.cpp.

◆ switch_to_swing_mode_()

void esphome::thermostat::ThermostatClimate::switch_to_swing_mode_	(	climate::ClimateSwingMode	swing_mode,
		bool	publish_state = true )

protected

Switch the climate device to the given climate swing mode.

Definition at line 816 of file thermostat_climate.cpp.

◆ timer_active_()

bool esphome::thermostat::ThermostatClimate::timer_active_ ( ThermostatClimateTimerIndex timer_index )

protected

Definition at line 912 of file thermostat_climate.cpp.

◆ timer_duration_()

uint32_t esphome::thermostat::ThermostatClimate::timer_duration_ ( ThermostatClimateTimerIndex timer_index )

protected

Definition at line 916 of file thermostat_climate.cpp.

◆ traits()

climate::ClimateTraits esphome::thermostat::ThermostatClimate::traits ( )

overrideprotectedvirtual

Return the traits of this controller.

Implements esphome::climate::Climate.

Definition at line 266 of file thermostat_climate.cpp.

◆ trigger_supplemental_action_()

void esphome::thermostat::ThermostatClimate::trigger_supplemental_action_ ( )

protected

Definition at line 629 of file thermostat_climate.cpp.

◆ validate_target_humidity()

void esphome::thermostat::ThermostatClimate::validate_target_humidity ( )

Definition at line 201 of file thermostat_climate.cpp.

◆ validate_target_temperature()

void esphome::thermostat::ThermostatClimate::validate_target_temperature ( )

Definition at line 146 of file thermostat_climate.cpp.

◆ validate_target_temperature_high()

void esphome::thermostat::ThermostatClimate::validate_target_temperature_high ( )

Definition at line 187 of file thermostat_climate.cpp.

◆ validate_target_temperature_low()

void esphome::thermostat::ThermostatClimate::validate_target_temperature_low ( )

Definition at line 173 of file thermostat_climate.cpp.

◆ validate_target_temperatures()

void esphome::thermostat::ThermostatClimate::validate_target_temperatures ( bool pin_target_temperature_high )

Definition at line 159 of file thermostat_climate.cpp.

Field Documentation

◆ auto_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::auto_mode_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to auto mode.

In auto mode, the controller will enable heating/cooling as supported/necessary and switch to idle when the temperature is within the thresholds/set points.

Definition at line 449 of file thermostat_climate.h.

◆ cool_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::cool_action_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to cooling action/mode.

A null value for this attribute means that the controller has no cooling action For example electric heat, where only heating (power on) and not-heating (power off) is possible.

Definition at line 419 of file thermostat_climate.h.

◆ cool_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::cool_mode_trigger_ {nullptr}

protected

Definition at line 421 of file thermostat_climate.h.

◆ cooling_deadband_

float esphome::thermostat::ThermostatClimate::cooling_deadband_ {0}

protected

Hysteresis values used for computing climate actions.

Definition at line 397 of file thermostat_climate.h.

◆ cooling_max_runtime_exceeded_

bool esphome::thermostat::ThermostatClimate::cooling_max_runtime_exceeded_ {false}

protected

Flags indicating if maximum allowable run time was exceeded.

Definition at line 376 of file thermostat_climate.h.

◆ cooling_overrun_

float esphome::thermostat::ThermostatClimate::cooling_overrun_ {0}

protected

Definition at line 398 of file thermostat_climate.h.

◆ custom_preset_config_

FixedVector<CustomPresetEntry> esphome::thermostat::ThermostatClimate::custom_preset_config_ {}

protected

The set of custom preset configurations this thermostat supports (eg. "My Custom Preset")

Definition at line 540 of file thermostat_climate.h.

◆ default_preset_

climate::ClimatePreset esphome::thermostat::ThermostatClimate::default_preset_ {}

protected

Default standard preset to use on start up.

Definition at line 308 of file thermostat_climate.h.

◆ dry_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::dry_action_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to dry (dehumidification) mode.

In dry mode, the controller is assumed to have both heating and cooling disabled, although the system may use its cooling mechanism to achieve drying.

Definition at line 427 of file thermostat_climate.h.

◆ dry_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::dry_mode_trigger_ {nullptr}

protected

Definition at line 428 of file thermostat_climate.h.

◆ fan_mode_auto_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_auto_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the fan to "auto" mode.

Definition at line 471 of file thermostat_climate.h.

◆ fan_mode_diffuse_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_diffuse_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the fan to "diffuse" position.

Definition at line 489 of file thermostat_climate.h.

◆ fan_mode_focus_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_focus_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the fan to "focus" position.

Definition at line 486 of file thermostat_climate.h.

◆ fan_mode_high_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_high_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the fan to "high" speed.

Definition at line 480 of file thermostat_climate.h.

◆ fan_mode_low_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_low_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the fan to "low" speed.

Definition at line 474 of file thermostat_climate.h.

◆ fan_mode_medium_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_medium_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the fan to "medium" speed.

Definition at line 477 of file thermostat_climate.h.

◆ fan_mode_middle_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_middle_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the fan to "middle" position.

Definition at line 483 of file thermostat_climate.h.

◆ fan_mode_off_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_off_trigger_ {nullptr}

protected

The trigger to call when the controller should switch off the fan.

Definition at line 468 of file thermostat_climate.h.

◆ fan_mode_on_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_on_trigger_ {nullptr}

protected

The trigger to call when the controller should switch on the fan.

Definition at line 465 of file thermostat_climate.h.

◆ fan_mode_quiet_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_mode_quiet_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the fan to "quiet" position.

Definition at line 492 of file thermostat_climate.h.

◆ fan_only_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_only_action_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to fan-only action/mode.

In fan-only mode, the controller is assumed to have both heating and cooling disabled. The system should activate the fan only.

Definition at line 461 of file thermostat_climate.h.

◆ fan_only_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::fan_only_mode_trigger_ {nullptr}

protected

Definition at line 462 of file thermostat_climate.h.

◆ heat_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::heat_action_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to heating action/mode.

A null value for this attribute means that the controller has no heating action For example window blinds, where only cooling (blinds closed) and not-cooling (blinds open) is possible.

Definition at line 435 of file thermostat_climate.h.

◆ heat_cool_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::heat_cool_mode_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to heat/cool mode.

In heat/cool mode, the controller will enable heating/cooling as necessary and switch to idle when the temperature is within the thresholds/set points.

Definition at line 443 of file thermostat_climate.h.

◆ heat_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::heat_mode_trigger_ {nullptr}

protected

Definition at line 437 of file thermostat_climate.h.

◆ heating_deadband_

float esphome::thermostat::ThermostatClimate::heating_deadband_ {0}

protected

Definition at line 399 of file thermostat_climate.h.

◆ heating_max_runtime_exceeded_

bool esphome::thermostat::ThermostatClimate::heating_max_runtime_exceeded_ {false}

protected

Definition at line 377 of file thermostat_climate.h.

◆ heating_overrun_

float esphome::thermostat::ThermostatClimate::heating_overrun_ {0}

protected

Definition at line 400 of file thermostat_climate.h.

◆ humidification_action

HumidificationAction esphome::thermostat::ThermostatClimate::humidification_action {THERMOSTAT_HUMIDITY_CONTROL_ACTION_NONE}

The current humidification action.

Definition at line 208 of file thermostat_climate.h.

◆ humidity_change_trigger_

Trigger* esphome::thermostat::ThermostatClimate::humidity_change_trigger_ {nullptr}

protected

The trigger to call when the target humidity changes.

Definition at line 507 of file thermostat_climate.h.

◆ humidity_control_dehumidify_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::humidity_control_dehumidify_action_trigger_ {nullptr}

protected

The trigger to call when dehumidification is required.

Definition at line 516 of file thermostat_climate.h.

◆ humidity_control_humidify_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::humidity_control_humidify_action_trigger_ {nullptr}

protected

The trigger to call when humidification is required.

Definition at line 519 of file thermostat_climate.h.

◆ humidity_control_off_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::humidity_control_off_action_trigger_ {nullptr}

protected

The trigger to call when (de)humidification should stop.

Definition at line 522 of file thermostat_climate.h.

◆ humidity_hysteresis_

float esphome::thermostat::ThermostatClimate::humidity_hysteresis_ {0}

protected

Hysteresis values used for computing humidification action.

Definition at line 403 of file thermostat_climate.h.

◆ humidity_sensor_

sensor::Sensor* esphome::thermostat::ThermostatClimate::humidity_sensor_ {nullptr}

protected

The sensor used for getting the current humidity.

Definition at line 412 of file thermostat_climate.h.

◆ idle_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::idle_action_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to idle action/off mode.

In these actions/modes, the controller is assumed to have both heating and cooling disabled.

Definition at line 454 of file thermostat_climate.h.

◆ min_timer_duration_

const uint8_t esphome::thermostat::ThermostatClimate::min_timer_duration_ {1}

protected

Minimum allowable duration in seconds for action timers.

Definition at line 295 of file thermostat_climate.h.

◆ off_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::off_mode_trigger_ {nullptr}

protected

Definition at line 455 of file thermostat_climate.h.

◆ on_boot_restore_from_

OnBootRestoreFrom esphome::thermostat::ThermostatClimate::on_boot_restore_from_ {OnBootRestoreFrom::MEMORY}

protected

If set to DEFAULT_PRESET then the default preset is always used.

When MEMORY prior state will attempt to be restored if possible

Definition at line 312 of file thermostat_climate.h.

◆ preset_change_trigger_

Trigger* esphome::thermostat::ThermostatClimate::preset_change_trigger_ {nullptr}

protected

The trigger to call when the preset mode changes.

Definition at line 513 of file thermostat_climate.h.

◆ preset_config_

FixedVector<PresetEntry> esphome::thermostat::ThermostatClimate::preset_config_ {}

protected

The set of standard preset configurations this thermostat supports (Eg. AWAY, ECO, etc)

Definition at line 538 of file thermostat_climate.h.

◆ prev_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::prev_action_trigger_ {nullptr}

protected

A reference to the trigger that was previously active.

This is so that the previous trigger can be stopped before enabling a new one for each climate category (mode, action, fan_mode, swing_mode).

Definition at line 528 of file thermostat_climate.h.

◆ prev_fan_mode_

climate::ClimateFanMode esphome::thermostat::ThermostatClimate::prev_fan_mode_ {climate::CLIMATE_FAN_ON}

protected

Store previously-known states.

These are used to determine when a trigger/action needs to be called

Definition at line 300 of file thermostat_climate.h.

◆ prev_fan_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::prev_fan_mode_trigger_ {nullptr}

protected

Definition at line 529 of file thermostat_climate.h.

◆ prev_humidity_control_trigger_

Trigger* esphome::thermostat::ThermostatClimate::prev_humidity_control_trigger_ {nullptr}

protected

Definition at line 532 of file thermostat_climate.h.

◆ prev_mode_

climate::ClimateMode esphome::thermostat::ThermostatClimate::prev_mode_ {climate::CLIMATE_MODE_OFF}

protected

Definition at line 301 of file thermostat_climate.h.

◆ prev_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::prev_mode_trigger_ {nullptr}

protected

Definition at line 530 of file thermostat_climate.h.

◆ prev_swing_mode_

climate::ClimateSwingMode esphome::thermostat::ThermostatClimate::prev_swing_mode_ {climate::CLIMATE_SWING_OFF}

protected

Definition at line 302 of file thermostat_climate.h.

◆ prev_swing_mode_trigger_

Trigger* esphome::thermostat::ThermostatClimate::prev_swing_mode_trigger_ {nullptr}

protected

Definition at line 531 of file thermostat_climate.h.

◆ prev_target_humidity_

float esphome::thermostat::ThermostatClimate::prev_target_humidity_ {NAN}

protected

Store previously-known humidity and temperatures.

These are used to determine when a temperature/humidity has changed

Definition at line 388 of file thermostat_climate.h.

◆ prev_target_temperature_

float esphome::thermostat::ThermostatClimate::prev_target_temperature_ {NAN}

protected

Definition at line 389 of file thermostat_climate.h.

◆ prev_target_temperature_high_

float esphome::thermostat::ThermostatClimate::prev_target_temperature_high_ {NAN}

protected

Definition at line 391 of file thermostat_climate.h.

◆ prev_target_temperature_low_

float esphome::thermostat::ThermostatClimate::prev_target_temperature_low_ {NAN}

protected

Definition at line 390 of file thermostat_climate.h.

◆ sensor_

sensor::Sensor* esphome::thermostat::ThermostatClimate::sensor_ {nullptr}

protected

The sensor used for getting the current temperature.

Definition at line 410 of file thermostat_climate.h.

◆ set_point_minimum_differential_

float esphome::thermostat::ThermostatClimate::set_point_minimum_differential_ {0}

protected

Minimum differential required between set points.

Definition at line 394 of file thermostat_climate.h.

◆ setup_complete_

bool esphome::thermostat::ThermostatClimate::setup_complete_ {false}

protected

setup_complete_ blocks modifying/resetting the temps immediately after boot

Definition at line 383 of file thermostat_climate.h.

◆ supplemental_action_

climate::ClimateAction esphome::thermostat::ThermostatClimate::supplemental_action_ {climate::CLIMATE_ACTION_OFF}

protected

The current supplemental action.

Definition at line 305 of file thermostat_climate.h.

◆ supplemental_cool_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::supplemental_cool_action_trigger_ {nullptr}

protected

Definition at line 420 of file thermostat_climate.h.

◆ supplemental_cool_delta_

float esphome::thermostat::ThermostatClimate::supplemental_cool_delta_ {0}

protected

Maximum allowable temperature deltas before engaging supplemental cooling/heating actions.

Definition at line 406 of file thermostat_climate.h.

◆ supplemental_heat_action_trigger_

Trigger* esphome::thermostat::ThermostatClimate::supplemental_heat_action_trigger_ {nullptr}

protected

Definition at line 436 of file thermostat_climate.h.

◆ supplemental_heat_delta_

float esphome::thermostat::ThermostatClimate::supplemental_heat_delta_ {0}

protected

Definition at line 407 of file thermostat_climate.h.

◆ supports_auto_

bool esphome::thermostat::ThermostatClimate::supports_auto_ {false}

protected

Whether the controller supports auto/cooling/drying/fanning/heating.

A false value for any given attribute means that the controller has no such action (for example a thermostat, where only heating and not-heating is possible).

Definition at line 318 of file thermostat_climate.h.

◆ supports_cool_

bool esphome::thermostat::ThermostatClimate::supports_cool_ {false}

protected

Definition at line 320 of file thermostat_climate.h.

◆ supports_dehumidification_

bool esphome::thermostat::ThermostatClimate::supports_dehumidification_ {false}

protected

Whether the controller supports dehumidification and/or humidification.

A false value means that the controller has no such support.

Definition at line 372 of file thermostat_climate.h.

◆ supports_dry_

bool esphome::thermostat::ThermostatClimate::supports_dry_ {false}

protected

Definition at line 321 of file thermostat_climate.h.

◆ supports_fan_mode_auto_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_auto_ {false}

protected

Whether the controller supports fan auto mode.

A false value for this attribute means that the controller has no fan-auto action (for example a thermostat, where independent control of the fan is not possible).

Definition at line 343 of file thermostat_climate.h.

◆ supports_fan_mode_diffuse_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_diffuse_ {false}

protected

Definition at line 353 of file thermostat_climate.h.

◆ supports_fan_mode_focus_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_focus_ {false}

protected

Definition at line 352 of file thermostat_climate.h.

◆ supports_fan_mode_high_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_high_ {false}

protected

Definition at line 350 of file thermostat_climate.h.

◆ supports_fan_mode_low_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_low_ {false}

protected

Whether the controller supports various fan speeds and/or positions.

A false value for any given attribute means that the controller has no such fan action.

Definition at line 348 of file thermostat_climate.h.

◆ supports_fan_mode_medium_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_medium_ {false}

protected

Definition at line 349 of file thermostat_climate.h.

◆ supports_fan_mode_middle_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_middle_ {false}

protected

Definition at line 351 of file thermostat_climate.h.

◆ supports_fan_mode_off_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_off_ {false}

protected

Definition at line 337 of file thermostat_climate.h.

◆ supports_fan_mode_on_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_on_ {false}

protected

Whether the controller supports turning on or off just the fan.

A false value for either attribute means that the controller has no fan on/off action (for example a thermostat, where independent control of the fan is not possible).

Definition at line 336 of file thermostat_climate.h.

◆ supports_fan_mode_quiet_

bool esphome::thermostat::ThermostatClimate::supports_fan_mode_quiet_ {false}

protected

Definition at line 354 of file thermostat_climate.h.

◆ supports_fan_only_

bool esphome::thermostat::ThermostatClimate::supports_fan_only_ {false}

protected

Definition at line 322 of file thermostat_climate.h.

◆ supports_fan_only_action_uses_fan_mode_timer_

bool esphome::thermostat::ThermostatClimate::supports_fan_only_action_uses_fan_mode_timer_ {false}

protected

Special flag – enables fan_modes to share timer with fan_only climate action.

Definition at line 325 of file thermostat_climate.h.

◆ supports_fan_only_cooling_

bool esphome::thermostat::ThermostatClimate::supports_fan_only_cooling_ {false}

protected

Special flag – enables fan to be switched based on target_temperature_high.

Definition at line 327 of file thermostat_climate.h.

◆ supports_fan_with_cooling_

bool esphome::thermostat::ThermostatClimate::supports_fan_with_cooling_ {false}

protected

Special flags – enables fan_only action to be called with cooling/heating actions.

Definition at line 329 of file thermostat_climate.h.

◆ supports_fan_with_heating_

bool esphome::thermostat::ThermostatClimate::supports_fan_with_heating_ {false}

protected

Definition at line 330 of file thermostat_climate.h.

◆ supports_heat_

bool esphome::thermostat::ThermostatClimate::supports_heat_ {false}

protected

Definition at line 323 of file thermostat_climate.h.

◆ supports_heat_cool_

bool esphome::thermostat::ThermostatClimate::supports_heat_cool_ {false}

protected

Definition at line 319 of file thermostat_climate.h.

◆ supports_humidification_

bool esphome::thermostat::ThermostatClimate::supports_humidification_ {false}

protected

Definition at line 373 of file thermostat_climate.h.

◆ supports_swing_mode_both_

bool esphome::thermostat::ThermostatClimate::supports_swing_mode_both_ {false}

protected

Whether the controller supports various swing modes.

A false value for any given attribute means that the controller has no such swing mode.

Definition at line 359 of file thermostat_climate.h.

◆ supports_swing_mode_horizontal_

bool esphome::thermostat::ThermostatClimate::supports_swing_mode_horizontal_ {false}

protected

Definition at line 361 of file thermostat_climate.h.

◆ supports_swing_mode_off_

bool esphome::thermostat::ThermostatClimate::supports_swing_mode_off_ {false}

protected

Definition at line 360 of file thermostat_climate.h.

◆ supports_swing_mode_vertical_

bool esphome::thermostat::ThermostatClimate::supports_swing_mode_vertical_ {false}

protected

Definition at line 362 of file thermostat_climate.h.

◆ supports_two_points_

bool esphome::thermostat::ThermostatClimate::supports_two_points_ {false}

protected

Whether the controller supports two set points.

A false value means that the controller has no such support.

Definition at line 367 of file thermostat_climate.h.

◆ swing_mode_both_trigger_

Trigger* esphome::thermostat::ThermostatClimate::swing_mode_both_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the swing mode to "both".

Definition at line 495 of file thermostat_climate.h.

◆ swing_mode_horizontal_trigger_

Trigger* esphome::thermostat::ThermostatClimate::swing_mode_horizontal_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the swing mode to "horizontal".

Definition at line 501 of file thermostat_climate.h.

◆ swing_mode_off_trigger_

Trigger* esphome::thermostat::ThermostatClimate::swing_mode_off_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the swing mode to "off".

Definition at line 498 of file thermostat_climate.h.

◆ swing_mode_vertical_trigger_

Trigger* esphome::thermostat::ThermostatClimate::swing_mode_vertical_trigger_ {nullptr}

protected

The trigger to call when the controller should switch the swing mode to "vertical".

Definition at line 504 of file thermostat_climate.h.

◆ temperature_change_trigger_

Trigger* esphome::thermostat::ThermostatClimate::temperature_change_trigger_ {nullptr}

protected

The trigger to call when the target temperature(s) change(es).

Definition at line 510 of file thermostat_climate.h.

◆ timer_

std::array<ThermostatClimateTimer, THERMOSTAT_TIMER_COUNT> esphome::thermostat::ThermostatClimate::timer_ {}

protected

Climate action timers.

Definition at line 535 of file thermostat_climate.h.

◆ use_startup_delay_

bool esphome::thermostat::ThermostatClimate::use_startup_delay_ {false}

protected

Used to start "off" delay timers at boot.

Definition at line 380 of file thermostat_climate.h.

The documentation for this class was generated from the following files:

esphome/components/thermostat/thermostat_climate.h
esphome/components/thermostat/thermostat_climate.cpp

Public Types

Public Member Functions

Data Fields

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ CustomPresetEntry

◆ PresetEntry

Constructor & Destructor Documentation

◆ ThermostatClimate()

Member Function Documentation

◆ call_timer_callback_()

◆ cancel_timer_()

◆ change_custom_preset_()

◆ change_preset_()

◆ change_preset_internal_()

◆ check_humidity_change_trigger_()

◆ check_temperature_change_trigger_()

◆ climate_action_change_delayed()

◆ compute_action_()

◆ compute_humidity_control_action_()

◆ compute_supplemental_action_()

◆ control()

◆ cool_deadband()

◆ cool_overrun()

◆ cooling_action_ready_()

◆ cooling_max_run_time_timer_callback_()

◆ cooling_off_timer_callback_()

◆ cooling_on_timer_callback_()

◆ cooling_required_()

◆ dehumidification_required_()

◆ delayed_climate_action()

◆ drying_action_ready_()

◆ dump_config()

◆ dump_preset_config_()

◆ fan_mode_change_delayed()

◆ fan_mode_ready_()

◆ fan_mode_timer_callback_()

◆ fanning_action_ready_()

◆ fanning_off_timer_callback_()

◆ fanning_on_timer_callback_()

◆ fanning_required_()

◆ get_auto_mode_trigger()

◆ get_cool_action_trigger()

◆ get_cool_mode_trigger()

◆ get_dry_action_trigger()

◆ get_dry_mode_trigger()

◆ get_fan_mode_auto_trigger()

◆ get_fan_mode_diffuse_trigger()

◆ get_fan_mode_focus_trigger()

◆ get_fan_mode_high_trigger()

◆ get_fan_mode_low_trigger()

◆ get_fan_mode_medium_trigger()

◆ get_fan_mode_middle_trigger()

◆ get_fan_mode_off_trigger()

◆ get_fan_mode_on_trigger()

◆ get_fan_mode_quiet_trigger()

◆ get_fan_only_action_trigger()

◆ get_fan_only_mode_trigger()

◆ get_heat_action_trigger()

◆ get_heat_cool_mode_trigger()

◆ get_heat_mode_trigger()

◆ get_humidity_change_trigger()

◆ get_humidity_control_dehumidify_action_trigger()

◆ get_humidity_control_humidify_action_trigger()

◆ get_humidity_control_off_action_trigger()

◆ get_idle_action_trigger()

◆ get_off_mode_trigger()

◆ get_preset_change_trigger()

◆ get_supplemental_cool_action_trigger()

◆ get_supplemental_heat_action_trigger()

◆ get_swing_mode_both_trigger()

◆ get_swing_mode_horizontal_trigger()

◆ get_swing_mode_off_trigger()

◆ get_swing_mode_vertical_trigger()

◆ get_temperature_change_trigger()

◆ heat_deadband()

◆ heat_overrun()

◆ heating_action_ready_()
