This class implements support for the Sensirion sgp4x i2c GAS (VOC) sensors. More...

#include <sgp4x.h>

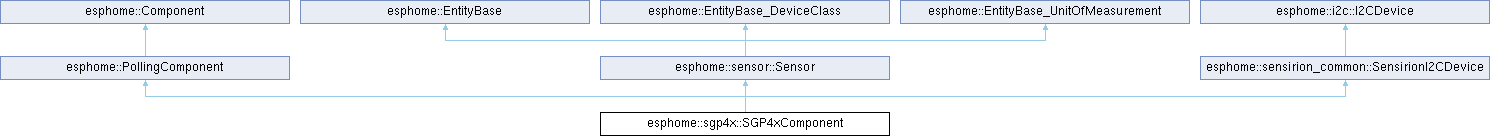

Inheritance diagram for esphome::sgp4x::SGP4xComponent:

Public Member Functions
void	set_humidity_sensor (sensor::Sensor *humidity)

void	set_temperature_sensor (sensor::Sensor *temperature)

void	setup () override

void	update () override

void	take_sample ()

void	dump_config () override

void	set_store_baseline (bool store_baseline)

void	set_voc_sensor (sensor::Sensor *voc_sensor)

void	set_nox_sensor (sensor::Sensor *nox_sensor)

void	set_voc_algorithm_tuning (uint16_t index_offset, uint16_t learning_time_offset_hours, uint16_t learning_time_gain_hours, uint16_t gating_max_duration_minutes, uint16_t std_initial, uint16_t gain_factor)

void	set_nox_algorithm_tuning (uint16_t index_offset, uint16_t learning_time_offset_hours, uint16_t learning_time_gain_hours, uint16_t gating_max_duration_minutes, uint16_t gain_factor)

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
virtual void	loop ()
	This method will be called repeatedly.

virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const LogString *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning ()

void	status_set_warning (const char *message)

void	status_set_warning (const LogString *message)

bool	status_comm_result (bool ok)
	Clears the warning when `ok`, else sets it with `message` (default "Communication failed"); returns `ok`.

bool	status_comm_result (bool ok, const LogString *message)

void	status_set_error ()

void	status_set_error (const LogString *message)

void	status_clear_warning ()

void	status_clear_error ()

	ESPDEPRECATED ("Use status_momentary_warning() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_warning(const char *name

void	status_momentary_warning (uint32_t length=5000)
	Set warning status flag and clear it after `length` ms.

void	status_momentary_warning (const LogString *message, uint32_t length=5000)

	ESPDEPRECATED ("Use status_momentary_error() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_error(const char *name

void	status_momentary_error (uint32_t length=5000)
	Set error status flag and clear it after `length` ms.

void	status_momentary_error (const LogString *message, uint32_t length=5000)

bool	has_overridden_loop () const

const LogString *	get_component_log_str () const ESPHOME_ALWAYS_INLINE
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out)

Public Member Functions inherited from esphome::sensor::Sensor
	Sensor ()

int8_t	get_accuracy_decimals ()
	Get the accuracy in decimals, using the manual override if set.

void	set_accuracy_decimals (int8_t accuracy_decimals)
	Manually set the accuracy in decimals.

bool	has_accuracy_decimals () const
	Check if the accuracy in decimals has been manually set.

StateClass	get_state_class ()
	Get the state class, using the manual override if set.

void	set_state_class (StateClass state_class)
	Manually set the state class.

bool	get_force_update () const
	Get whether force update mode is enabled.

void	set_force_update (bool force_update)
	Set force update mode.

void	add_filter (Filter *filter)
	Add a filter to the filter chain. Will be appended to the back.

void	add_filters (std::initializer_list< Filter * > filters)
	Add a list of vectors to the back of the filter chain.

void	set_filters (std::initializer_list< Filter * > filters)
	Clear the filters and replace them by filters.

void	clear_filters ()
	Clear the entire filter chain.

float	get_state () const
	Getter-syntax for .state.

float	get_raw_state () const
	Get the last state received by publish_state(), before any filters were applied.

void	publish_state (float state)
	Publish a new state to the front-end.

template<typename F >
void	add_on_state_callback (F &&callback)
	Add a callback that will be called every time a filtered value arrives.

template<typename F >
void	add_on_raw_state_callback (F &&callback)
	Add a callback that will be called every time the sensor sends a raw value.

void	internal_send_state_to_frontend (float state)

Public Member Functions inherited from esphome::EntityBase
	ESPDEPRECATED ("Use get_name_to() or get_log_name() instead. Will be removed in ESPHome 2027.5.0", "2026.11.0") const StringRef &get_name() const
	The name is in flash here; the first call makes a RAM copy that is kept for the life of the device.

StringRef	get_name_to (std::span< char, ENTITY_NAME_BUF_SIZE > buffer) const
	Get the name of this Entity, copied out of flash into buffer.

	ESPDEPRECATED ("Use get_name_to() or get_log_name() instead. Will be removed in ESPHome 2027.5.0", "2026.11.0") const StringRef &get_name() const

const StringRef &	get_name_to (std::span< char, ENTITY_NAME_BUF_SIZE >) const

bool	name_equals (const StringRef &other) const

const ProgmemStringRef &	get_name_progmem () const
	The name as stored, for consumers that read flash themselves (e.g. API progmem fields).

size_t	write_name_to (char *buf, size_t buf_size) const
	Copy the name into buf (null terminated), returns its length.

const LogString *	get_log_name () const
	Get the name for a "%s" log argument (LOG_STR_ARG).

bool	has_own_name () const

uint32_t	get_object_id_hash () const

StringRef	get_object_id_to (std::span< char, OBJECT_ID_MAX_LEN > buf) const
	Get object_id with zero heap allocation For static case: returns StringRef to internal storage (buffer unused) For dynamic case: formats into buffer and returns StringRef to buffer.

size_t	write_object_id_to (char *buf, size_t buf_size) const
	Write object_id directly to buffer, returns length written (excluding null) Useful for building compound strings without intermediate buffer.

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

EntityCategory	get_entity_category () const

const char *	get_device_class_to (std::span< char, MAX_DEVICE_CLASS_LENGTH > buffer) const

ProgmemStringRef	get_device_class_progmem () const
	The device class as stored (in flash on ESP8266), for consumers that read flash themselves.

StringRef	get_unit_of_measurement_ref () const

const char *	get_icon_to (std::span< char, MAX_ICON_LENGTH > buffer) const

ProgmemStringRef	get_icon_progmem () const
	The icon as stored (in flash on ESP8266), for consumers that read flash themselves.

uint32_t	get_device_id () const

Device *	get_device () const

bool	has_state () const

void	set_has_state (bool state)

	ESPDEPRECATED ("Use make_entity_preference<T>() instead, or preferences won't be migrated. " "See https://github.com/esphome/backlog/issues/85. Will be removed in 2027.1.0.", "2026.7.0") uint32_t get_preference_hash()
	Get a unique hash for storing preferences/settings for this entity.

template<typename T >
ESPPreferenceObject	make_entity_preference (uint32_t version=0)
	Create a preference object for storing this entity's state/settings.

template<typename T >
ESPPreferenceObject	make_entity_preference (uint32_t version, bool in_flash)
	As make_entity_preference(), stored in flash or RTC memory where the backend supports the choice.

Public Member Functions inherited from esphome::sensirion_common::SensirionI2CDevice
bool	read_data (uint16_t *data, uint8_t len)
	Read data words from I2C device.

bool	read_data (uint16_t &data)
	Read 1 data word from I2C device.

bool	get_register (uint16_t command, uint16_t *data, uint8_t len, uint8_t delay=0)
	get data words from I2C register.

bool	get_register (uint16_t i2c_register, uint16_t &data, uint8_t delay=0)
	Read 1 data word from 16 bit I2C register.

bool	get_8bit_register (uint8_t i2c_register, uint16_t *data, uint8_t len, uint8_t delay=0)
	get data words from I2C register.

bool	get_8bit_register (uint8_t i2c_register, uint16_t &data, uint8_t delay=0)
	Read 1 data word from 8 bit I2C register.

template<class T >
bool	write_command (T i2c_register)
	Write a command to the I2C device.

template<class T >
bool	write_command (T i2c_register, uint16_t data)
	Write a command and one data word to the I2C device .

template<class T >
bool	write_command (T i2c_register, const std::vector< uint16_t > &data)
	Write a command with arguments as words.

template<class T >
bool	write_command (T i2c_register, const uint16_t *data, uint8_t len)
	Write a command with arguments as words.

Public Member Functions inherited from esphome::i2c::I2CDevice
	I2CDevice ()=default
	we use the C++ default constructor

void	set_i2c_address (uint8_t address)
	We store the address of the device on the bus.

uint8_t	get_i2c_address () const
	Returns the I2C address of the object.

void	set_i2c_bus (I2CBus *bus)
	we store the pointer to the I2CBus to use

I2CRegister	reg (uint8_t a_register)
	calls the I2CRegister constructor

I2CRegister16	reg16 (uint16_t a_register)
	calls the I2CRegister16 constructor

ErrorCode	read (uint8_t *data, size_t len) const
	reads an array of bytes from the device using an I2CBus

ErrorCode	read_register (uint8_t a_register, uint8_t *data, size_t len)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	read_register16 (uint16_t a_register, uint8_t *data, size_t len)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	write (const uint8_t *data, size_t len) const
	writes an array of bytes to a device using an I2CBus

ErrorCode	write_read (const uint8_t write_data, size_t write_len, uint8_t read_data, size_t read_len) const
	writes an array of bytes to a device, then reads an array, as a single transaction

ErrorCode	write_register (uint8_t a_register, const uint8_t *data, size_t len) const
	writes an array of bytes to a specific register in the I²C device

ErrorCode	write_register16 (uint16_t a_register, const uint8_t *data, size_t len) const
	write an array of bytes to a specific register in the I²C device

bool	write_registers (const I2CRegValue *table, size_t count) const
	Write each register and value of `table` in order, stopping at the first failure.

template<size_t N>
bool	write_registers (const I2CRegValue(&table)[N]) const

bool	check_chip_id (Component *component, uint8_t a_register, uint8_t expected, uint8_t mask=0xFF)
	Read the 8-bit ID at `a_register` and accept it when it matches `expected` in the bits set in `mask`.

bool	read_bytes (uint8_t a_register, uint8_t *data, uint8_t len)
	Compat APIs All methods below have been added for compatibility reasons.

bool	read_bytes_raw (uint8_t *data, uint8_t len) const

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes (uint8_t a_register)

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes_raw ()

bool	read_bytes_16 (uint8_t a_register, uint16_t *data, uint8_t len)

bool	read_byte (uint8_t a_register, uint8_t *data)

optional< uint8_t >	read_byte (uint8_t a_register)

bool	read_byte_16 (uint8_t a_register, uint16_t *data)

bool	read_bytes_16_le (uint8_t a_register, uint16_t *data, uint8_t len)
	Read len 16-bit values stored least significant byte first; no conversion is compiled on little-endian hosts.

bool	read_bytes_16_le (uint8_t a_register, int16_t *data, uint8_t len)

bool	read_byte_16_le (uint8_t a_register, uint16_t *data)
	Read a 16-bit value stored least significant byte first.

bool	write_bytes (uint8_t a_register, const uint8_t *data, uint8_t len) const

bool	write_bytes (uint8_t a_register, const std::vector< uint8_t > &data) const

template<size_t N>
bool	write_bytes (uint8_t a_register, const std::array< uint8_t, N > &data)

bool	write_bytes_16 (uint8_t a_register, const uint16_t *data, uint8_t len) const

bool	write_byte (uint8_t a_register, uint8_t data) const

bool	write_byte_16 (uint8_t a_register, uint16_t data) const

bool	write_byte_16_le (uint8_t a_register, uint16_t data) const
	Write a 16-bit value least significant byte first.

bool	update_register (uint8_t a_register, uint8_t mask, uint8_t value)
	Read a register, replace the bits in `mask` with those of `value` and write it back.

Protected Member Functions
void	self_test_ ()

int16_t	sensirion_init_sensors_ ()

void	update_gas_indices_ ()

void	measure_raw_ ()

Protected Member Functions inherited from esphome::Component
friend	void::setup ()

friend	void::original_setup ()

void	set_component_source_ (uint8_t index)
	Set where this component was loaded from for some debug messages.

void	call_dump_config_ ()

void	enable_loop_slow_path_ ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

bool	set_status_flag_ (uint8_t flag)
	Helper to set a status LED flag on both this component and the app.

bool	set_error_flag_ (const LogString *message)
	Set the error flag and log it; true when it was not set before.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a numeric ID (zero heap allocation).

void	set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const char *name)
	Cancel an interval function.

bool	cancel_interval (uint32_t id)

bool	cancel_interval (InternalSchedulerID id)

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a numeric ID (zero heap allocation).

void	set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const char *name)
	Cancel a timeout function.

bool	cancel_timeout (uint32_t id)

bool	cancel_timeout (InternalSchedulerID id)

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (uint32_t id, std::function< void()> &&f)
	Defer a callback with a numeric ID (zero heap allocation)

bool	cancel_defer (const char *name)
	Cancel a defer callback using the specified name, name must not be empty.

bool	cancel_defer (uint32_t id)

void	status_clear_warning_slow_path_ ()

void	status_clear_error_slow_path_ ()

Protected Member Functions inherited from esphome::EntityBase
friend	void::setup ()

friend	void::original_setup ()

void	configure_entity_ (const char *name, uint32_t object_id_hash, uint32_t entity_fields)
	Combined entity setup from codegen: set name, object_id hash, entity string indices, and flags.

void	set_device_ (Device *device)

ESPPreferenceObject	make_entity_preference_ (size_t size, uint32_t version)
	Non-template helpers for make_entity_preference() to avoid code bloat.

ESPPreferenceObject	make_entity_preference_ (size_t size, uint32_t version, bool in_flash)

uint32_t	entity_preference_key_ (uint32_t version)
	Key for both helpers; preference hash migration goes here.

Protected Member Functions inherited from esphome::sensirion_common::SensirionI2CDevice
bool	write_command_ (uint16_t command, CommandLen command_len, const uint16_t *data, uint8_t data_len)
	Write a command with arguments as words.

bool	get_register_ (uint16_t reg, CommandLen command_len, uint16_t *data, uint8_t len, uint8_t delay, uint8_t sensirion_options=0)
	get data words from I2C register.

Protected Attributes
sensor::Sensor *	humidity_sensor_ {nullptr}
	Input sensor for humidity and temperature compensation.

sensor::Sensor *	temperature_sensor_ {nullptr}

uint16_t	voc_sraw_

uint16_t	nox_sraw_

SgpType	sgp_type_ {SGP40}

uint64_t	serial_number_

bool	self_test_complete_

sensor::Sensor *	voc_sensor_ {nullptr}

VOCGasIndexAlgorithm	voc_algorithm_

optional< GasTuning >	voc_tuning_params_

float	voc_state0_

float	voc_state1_

int32_t	voc_index_ = 0

sensor::Sensor *	nox_sensor_ {nullptr}

int32_t	nox_index_ = 0

NOxGasIndexAlgorithm	nox_algorithm_

optional< GasTuning >	nox_tuning_params_

uint16_t	measure_time_

uint8_t	samples_read_ = 0

uint8_t	samples_to_stabilize_ = static_cast<int8_t>(GasIndexAlgorithm_INITIAL_BLACKOUT) * 2

bool	store_baseline_

optional< uint32_t >	nox_conditioning_start_ {}

ESPPreferenceObject	pref_

uint32_t	seconds_since_last_store_

SGP4xBaselines	voc_baselines_storage_

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
uint8_t	component_source_index_ {0}
	Index into component source PROGMEM lookup table (0 = not set)

uint8_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_CS}
	Warn threshold in centiseconds (max 2550ms)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bit 5: Has overridden loop() (set at registration time) Bits 6-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

ComponentRuntimeStats	runtime_stats_

Protected Attributes inherited from esphome::sensor::Sensor
float	raw_state_ {NAN}
	The last state passed to publish_state(), before filters.

LazyCallbackManager< void(float)>	raw_callback_
	Storage for raw state callbacks.

LazyCallbackManager< void(float)>	callback_
	Storage for filtered state callbacks.

Filter *	filter_list_ {nullptr}
	Store all active filters.

int8_t	accuracy_decimals_ {-1}
	Accuracy in decimals (-1 = not set)

StateClass	state_class_ {STATE_CLASS_NONE}
	State class (STATE_CLASS_NONE = not set)

struct esphome::sensor::Sensor::SensorFlags	sensor_flags_

Protected Attributes inherited from esphome::EntityBase
ProgmemStringRef	name_

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

uint8_t	device_class_idx_ {}

uint8_t	uom_idx_ {}

uint8_t	icon_idx_ {}

Protected Attributes inherited from esphome::sensirion_common::SensirionI2CDevice
i2c::ErrorCode	last_error_
	last error code from I2C operation

Protected Attributes inherited from esphome::i2c::I2CDevice
I2CBus *	bus_ {nullptr}
	pointer to I2CBus instance

uint8_t	address_ {0x00}
	store the address of the device on the bus

Additional Inherited Members
Public Types inherited from esphome::sensirion_common::SensirionI2CDevice
enum	CommandLen : uint8_t { ADDR_8_BIT = 1 , ADDR_16_BIT = 2 }

Static Public Member Functions inherited from esphome::sensirion_common::SensirionI2CDevice
static const char *	sensirion_convert_to_string_in_place (uint16_t *array, size_t length)
	This function performs an in-place conversion of the provided buffer from uint16_t values to big endianness.

Data Fields inherited from esphome::Component
uint32_t	length = 5000)

Data Fields inherited from esphome::sensor::Sensor
float	state
	This member variable stores the last state that has passed through all filters.

Detailed Description

This class implements support for the Sensirion sgp4x i2c GAS (VOC) sensors.

Definition at line 59 of file sgp4x.h.

Member Function Documentation

◆ dump_config()

void esphome::sgp4x::SGP4xComponent::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 257 of file sgp4x.cpp.

◆ measure_raw_()

void esphome::sgp4x::SGP4xComponent::measure_raw_ ( )

protected

Definition at line 164 of file sgp4x.cpp.

◆ self_test_()

void esphome::sgp4x::SGP4xComponent::self_test_ ( )

protected

Definition at line 109 of file sgp4x.cpp.

◆ sensirion_init_sensors_()

int16_t esphome::sgp4x::SGP4xComponent::sensirion_init_sensors_ ( )

protected

◆ set_humidity_sensor()

void esphome::sgp4x::SGP4xComponent::set_humidity_sensor ( sensor::Sensor * humidity )

inline

Definition at line 64 of file sgp4x.h.

◆ set_nox_algorithm_tuning()

void esphome::sgp4x::SGP4xComponent::set_nox_algorithm_tuning	(	uint16_t	index_offset,
		uint16_t	learning_time_offset_hours,
		uint16_t	learning_time_gain_hours,
		uint16_t	gating_max_duration_minutes,
		uint16_t	gain_factor )

inline

Definition at line 81 of file sgp4x.h.

◆ set_nox_sensor()

void esphome::sgp4x::SGP4xComponent::set_nox_sensor ( sensor::Sensor * nox_sensor )

inline

Definition at line 73 of file sgp4x.h.

◆ set_store_baseline()

void esphome::sgp4x::SGP4xComponent::set_store_baseline ( bool store_baseline )

inline

Definition at line 71 of file sgp4x.h.

◆ set_temperature_sensor()

void esphome::sgp4x::SGP4xComponent::set_temperature_sensor ( sensor::Sensor * temperature )

inline

Definition at line 65 of file sgp4x.h.

◆ set_voc_algorithm_tuning()

void esphome::sgp4x::SGP4xComponent::set_voc_algorithm_tuning	(	uint16_t	index_offset,
		uint16_t	learning_time_offset_hours,
		uint16_t	learning_time_gain_hours,
		uint16_t	gating_max_duration_minutes,
		uint16_t	std_initial,
		uint16_t	gain_factor )

inline

Definition at line 74 of file sgp4x.h.

◆ set_voc_sensor()

void esphome::sgp4x::SGP4xComponent::set_voc_sensor ( sensor::Sensor * voc_sensor )

inline

Definition at line 72 of file sgp4x.h.

◆ setup()

void esphome::sgp4x::SGP4xComponent::setup ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 12 of file sgp4x.cpp.

◆ take_sample()

void esphome::sgp4x::SGP4xComponent::take_sample ( )

Definition at line 234 of file sgp4x.cpp.

◆ update()

void esphome::sgp4x::SGP4xComponent::update ( )

overridevirtual

Implements esphome::PollingComponent.

Definition at line 243 of file sgp4x.cpp.

◆ update_gas_indices_()

void esphome::sgp4x::SGP4xComponent::update_gas_indices_ ( )

protected

Definition at line 133 of file sgp4x.cpp.

Field Documentation

◆ humidity_sensor_

sensor::Sensor* esphome::sgp4x::SGP4xComponent::humidity_sensor_ {nullptr}

protected

Input sensor for humidity and temperature compensation.

Definition at line 93 of file sgp4x.h.

◆ measure_time_

uint16_t esphome::sgp4x::SGP4xComponent::measure_time_

protected

Definition at line 119 of file sgp4x.h.

◆ nox_algorithm_

NOxGasIndexAlgorithm esphome::sgp4x::SGP4xComponent::nox_algorithm_

protected

Definition at line 116 of file sgp4x.h.

◆ nox_conditioning_start_

optional<uint32_t> esphome::sgp4x::SGP4xComponent::nox_conditioning_start_ {}

protected

Definition at line 124 of file sgp4x.h.

◆ nox_index_

int32_t esphome::sgp4x::SGP4xComponent::nox_index_ = 0

protected

Definition at line 115 of file sgp4x.h.

◆ nox_sensor_

sensor::Sensor* esphome::sgp4x::SGP4xComponent::nox_sensor_ {nullptr}

protected

Definition at line 114 of file sgp4x.h.

◆ nox_sraw_

uint16_t esphome::sgp4x::SGP4xComponent::nox_sraw_

protected

Definition at line 100 of file sgp4x.h.

◆ nox_tuning_params_

optional<GasTuning> esphome::sgp4x::SGP4xComponent::nox_tuning_params_

protected

Definition at line 117 of file sgp4x.h.

◆ pref_

ESPPreferenceObject esphome::sgp4x::SGP4xComponent::pref_

protected

Definition at line 125 of file sgp4x.h.

◆ samples_read_

uint8_t esphome::sgp4x::SGP4xComponent::samples_read_ = 0

protected

Definition at line 120 of file sgp4x.h.

◆ samples_to_stabilize_

uint8_t esphome::sgp4x::SGP4xComponent::samples_to_stabilize_ = static_cast<int8_t>(GasIndexAlgorithm_INITIAL_BLACKOUT) * 2

protected

Definition at line 121 of file sgp4x.h.

◆ seconds_since_last_store_

uint32_t esphome::sgp4x::SGP4xComponent::seconds_since_last_store_

protected

Definition at line 126 of file sgp4x.h.

◆ self_test_complete_

bool esphome::sgp4x::SGP4xComponent::self_test_complete_

protected

Definition at line 105 of file sgp4x.h.

◆ serial_number_

uint64_t esphome::sgp4x::SGP4xComponent::serial_number_

protected

Definition at line 103 of file sgp4x.h.

◆ sgp_type_

SgpType esphome::sgp4x::SGP4xComponent::sgp_type_ {SGP40}

protected

Definition at line 102 of file sgp4x.h.

◆ store_baseline_

bool esphome::sgp4x::SGP4xComponent::store_baseline_

protected

Definition at line 122 of file sgp4x.h.

◆ temperature_sensor_

sensor::Sensor* esphome::sgp4x::SGP4xComponent::temperature_sensor_ {nullptr}

protected

Definition at line 94 of file sgp4x.h.

◆ voc_algorithm_

VOCGasIndexAlgorithm esphome::sgp4x::SGP4xComponent::voc_algorithm_

protected

Definition at line 108 of file sgp4x.h.

◆ voc_baselines_storage_

SGP4xBaselines esphome::sgp4x::SGP4xComponent::voc_baselines_storage_

protected

Definition at line 127 of file sgp4x.h.

◆ voc_index_

int32_t esphome::sgp4x::SGP4xComponent::voc_index_ = 0

protected

Definition at line 112 of file sgp4x.h.

◆ voc_sensor_

sensor::Sensor* esphome::sgp4x::SGP4xComponent::voc_sensor_ {nullptr}

protected

Definition at line 107 of file sgp4x.h.

◆ voc_sraw_

uint16_t esphome::sgp4x::SGP4xComponent::voc_sraw_

protected

Definition at line 99 of file sgp4x.h.

◆ voc_state0_

float esphome::sgp4x::SGP4xComponent::voc_state0_

protected

Definition at line 110 of file sgp4x.h.

◆ voc_state1_

float esphome::sgp4x::SGP4xComponent::voc_state1_

protected

Definition at line 111 of file sgp4x.h.

◆ voc_tuning_params_

optional<GasTuning> esphome::sgp4x::SGP4xComponent::voc_tuning_params_

protected

Definition at line 109 of file sgp4x.h.

The documentation for this class was generated from the following files:

esphome/components/sgp4x/sgp4x.h
esphome/components/sgp4x/sgp4x.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ dump_config()

◆ measure_raw_()

◆ self_test_()

◆ sensirion_init_sensors_()

◆ set_humidity_sensor()

◆ set_nox_algorithm_tuning()

◆ set_nox_sensor()

◆ set_store_baseline()

◆ set_temperature_sensor()

◆ set_voc_algorithm_tuning()

◆ set_voc_sensor()

◆ setup()

◆ take_sample()

◆ update()

◆ update_gas_indices_()

Field Documentation

◆ humidity_sensor_

◆ measure_time_

◆ nox_algorithm_

◆ nox_conditioning_start_

◆ nox_index_

◆ nox_sensor_

◆ nox_sraw_

◆ nox_tuning_params_

◆ pref_

◆ samples_read_

◆ samples_to_stabilize_

◆ seconds_since_last_store_

◆ self_test_complete_

◆ serial_number_

◆ sgp_type_

◆ store_baseline_

◆ temperature_sensor_

◆ voc_algorithm_

◆ voc_baselines_storage_

◆ voc_index_

◆ voc_sensor_

◆ voc_sraw_

◆ voc_state0_

◆ voc_state1_

◆ voc_tuning_params_
