#include <i2c_sensirion.h>

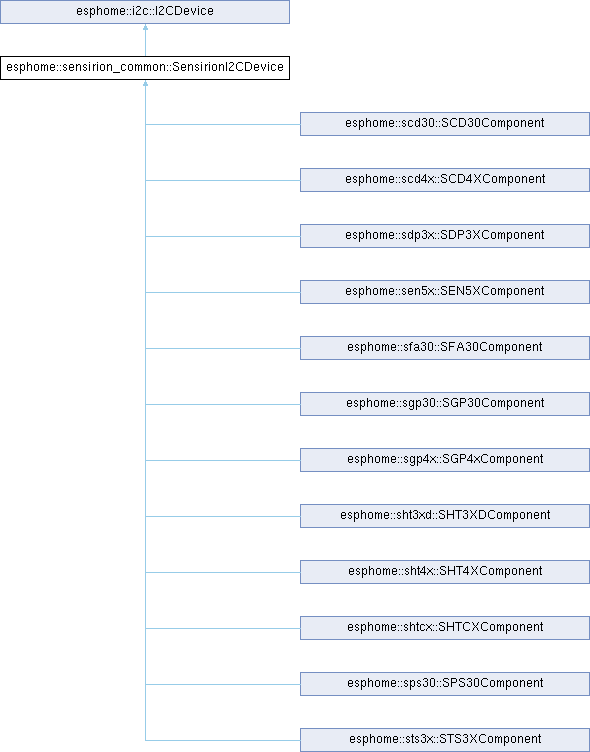

Inheritance diagram for esphome::sensirion_common::SensirionI2CDevice:

Public Types
enum	CommandLen : uint8_t { ADDR_8_BIT = 1 , ADDR_16_BIT = 2 }

Public Member Functions
bool	read_data (uint16_t *data, uint8_t len)
	Read data words from I2C device.

bool	read_data (uint16_t &data)
	Read 1 data word from I2C device.

bool	get_register (uint16_t command, uint16_t *data, uint8_t len, uint8_t delay=0)
	get data words from I2C register.

bool	get_register (uint16_t i2c_register, uint16_t &data, uint8_t delay=0)
	Read 1 data word from 16 bit I2C register.

bool	get_8bit_register (uint8_t i2c_register, uint16_t *data, uint8_t len, uint8_t delay=0)
	get data words from I2C register.

bool	get_8bit_register (uint8_t i2c_register, uint16_t &data, uint8_t delay=0)
	Read 1 data word from 8 bit I2C register.

template<class T >
bool	write_command (T i2c_register)
	Write a command to the I2C device.

template<class T >
bool	write_command (T i2c_register, uint16_t data)
	Write a command and one data word to the I2C device .

template<class T >
bool	write_command (T i2c_register, const std::vector< uint16_t > &data)
	Write a command with arguments as words.

template<class T >
bool	write_command (T i2c_register, const uint16_t *data, uint8_t len)
	Write a command with arguments as words.

Public Member Functions inherited from esphome::i2c::I2CDevice
	I2CDevice ()=default
	we use the C++ default constructor

void	set_i2c_address (uint8_t address)
	We store the address of the device on the bus.

uint8_t	get_i2c_address () const
	Returns the I2C address of the object.

void	set_i2c_bus (I2CBus *bus)
	we store the pointer to the I2CBus to use

I2CRegister	reg (uint8_t a_register)
	calls the I2CRegister constructor

I2CRegister16	reg16 (uint16_t a_register)
	calls the I2CRegister16 constructor

ErrorCode	read (uint8_t *data, size_t len) const
	reads an array of bytes from the device using an I2CBus

ErrorCode	read_register (uint8_t a_register, uint8_t *data, size_t len)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	read_register16 (uint16_t a_register, uint8_t *data, size_t len)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	write (const uint8_t *data, size_t len) const
	writes an array of bytes to a device using an I2CBus

ErrorCode	write_read (const uint8_t write_data, size_t write_len, uint8_t read_data, size_t read_len) const
	writes an array of bytes to a device, then reads an array, as a single transaction

ErrorCode	write_register (uint8_t a_register, const uint8_t *data, size_t len) const
	writes an array of bytes to a specific register in the I²C device

ErrorCode	write_register16 (uint16_t a_register, const uint8_t *data, size_t len) const
	write an array of bytes to a specific register in the I²C device

bool	read_bytes (uint8_t a_register, uint8_t *data, uint8_t len)
	Compat APIs All methods below have been added for compatibility reasons.

bool	read_bytes_raw (uint8_t *data, uint8_t len) const

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes (uint8_t a_register)

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes_raw ()

bool	read_bytes_16 (uint8_t a_register, uint16_t *data, uint8_t len)

bool	read_byte (uint8_t a_register, uint8_t *data)

optional< uint8_t >	read_byte (uint8_t a_register)

bool	read_byte_16 (uint8_t a_register, uint16_t *data)

bool	write_bytes (uint8_t a_register, const uint8_t *data, uint8_t len) const

bool	write_bytes (uint8_t a_register, const std::vector< uint8_t > &data) const

template<size_t N>
bool	write_bytes (uint8_t a_register, const std::array< uint8_t, N > &data)

bool	write_bytes_16 (uint8_t a_register, const uint16_t *data, uint8_t len) const

bool	write_byte (uint8_t a_register, uint8_t data) const

bool	write_byte_16 (uint8_t a_register, uint16_t data) const

Static Public Member Functions
static const char *	sensirion_convert_to_string_in_place (uint16_t *array, size_t length)
	This function performs an in-place conversion of the provided buffer from uint16_t values to big endianness.

Protected Member Functions
bool	write_command_ (uint16_t command, CommandLen command_len, const uint16_t *data, uint8_t data_len)
	Write a command with arguments as words.

bool	get_register_ (uint16_t reg, CommandLen command_len, uint16_t *data, uint8_t len, uint8_t delay)
	get data words from I2C register.

Protected Attributes
i2c::ErrorCode	last_error_
	last error code from I2C operation

Protected Attributes inherited from esphome::i2c::I2CDevice
uint8_t	address_ {0x00}
	store the address of the device on the bus

I2CBus *	bus_ {nullptr}
	pointer to I2CBus instance

Detailed Description

Definition at line 20 of file i2c_sensirion.h.

Member Enumeration Documentation

◆ CommandLen

enum esphome::sensirion_common::SensirionI2CDevice::CommandLen : uint8_t

Enumerator
ADDR_8_BIT
ADDR_16_BIT

Definition at line 22 of file i2c_sensirion.h.

Member Function Documentation

◆ get_8bit_register() [1/2]

bool esphome::sensirion_common::SensirionI2CDevice::get_8bit_register	(	uint8_t	i2c_register,
		uint16_t &	data,
		uint8_t	delay = 0 )

inline

Read 1 data word from 8 bit I2C register.

Parameters

I2C	register
data	reference to raw result
delay	milliseconds to to wait between sending the I2C command and reading the result

Returns: true if reading succeeded

Definition at line 88 of file i2c_sensirion.h.

◆ get_8bit_register() [2/2]

bool esphome::sensirion_common::SensirionI2CDevice::get_8bit_register	(	uint8_t	i2c_register,
		uint16_t *	data,
		uint8_t	len,
		uint8_t	delay = 0 )

inline

get data words from I2C register.

handles CRC check used by Sensirion sensors

Parameters

I2C	register
data	pointer to raw result
len	number of words to read
delay	milliseconds to to wait between sending the I2C command and reading the result

Returns: true if reading succeeded

Definition at line 78 of file i2c_sensirion.h.

◆ get_register() [1/2]

bool esphome::sensirion_common::SensirionI2CDevice::get_register	(	uint16_t	command,
		uint16_t *	data,
		uint8_t	len,
		uint8_t	delay = 0 )

inline

get data words from I2C register.

handles CRC check used by Sensirion sensors

Parameters

I2C	register
data	pointer to raw result
len	number of words to read
delay	milliseconds to to wait between sending the I2C command and reading the result

Returns: true if reading succeeded

Definition at line 57 of file i2c_sensirion.h.

◆ get_register() [2/2]

bool esphome::sensirion_common::SensirionI2CDevice::get_register	(	uint16_t	i2c_register,
		uint16_t &	data,
		uint8_t	delay = 0 )

inline

Read 1 data word from 16 bit I2C register.

Parameters

I2C	register
data	reference to raw result
delay	milliseconds to to wait between sending the I2C command and reading the result

Returns: true if reading succeeded

Definition at line 66 of file i2c_sensirion.h.

◆ get_register_()

bool esphome::sensirion_common::SensirionI2CDevice::get_register_	(	uint16_t	reg,
		CommandLen	command_len,
		uint16_t *	data,
		uint8_t	len,
		uint8_t	delay )

protected

get data words from I2C register.

handles CRC check used by Sensirion sensors

Parameters

I2C	register
command_len	either 1 for short 8 bit command or 2 for 16 bit command codes
data	pointer to raw result
len	number of words to read
delay	milliseconds to to wait between sending the I2C command and reading the result

Returns: true if reading succeeded

Definition at line 67 of file i2c_sensirion.cpp.

◆ read_data() [1/2]

bool esphome::sensirion_common::SensirionI2CDevice::read_data ( uint16_t & data )

inline

Read 1 data word from I2C device.

Parameters

data	reference to raw result

Returns: true if reading succeeded

Definition at line 47 of file i2c_sensirion.h.

◆ read_data() [2/2]

bool esphome::sensirion_common::SensirionI2CDevice::read_data	(	uint16_t *	data,
		uint8_t	len )

Read data words from I2C device.

handles CRC check used by Sensirion sensors

Parameters

data	pointer to raw result
len	number of words to read

Returns: true if reading succeeded

Definition at line 14 of file i2c_sensirion.cpp.

◆ sensirion_convert_to_string_in_place()

static const char * esphome::sensirion_common::SensirionI2CDevice::sensirion_convert_to_string_in_place	(	uint16_t *	array,
		size_t	length )

inlinestatic

This function performs an in-place conversion of the provided buffer from uint16_t values to big endianness.

Useful for Sensirion strings in SEN5X and SEN6X

Definition at line 28 of file i2c_sensirion.h.

◆ write_command() [1/4]

template<class T >

bool esphome::sensirion_common::SensirionI2CDevice::write_command ( T i2c_register )

inline

Write a command to the I2C device.

Parameters

command I2C command to send

Returns: true if reading succeeded

Definition at line 96 of file i2c_sensirion.h.

◆ write_command() [2/4]

template<class T >

bool esphome::sensirion_common::SensirionI2CDevice::write_command	(	T	i2c_register,
		const std::vector< uint16_t > &	data )

inline

Write a command with arguments as words.

Parameters

i2c_register	I2C command to send - an be uint8_t or uint16_t
data	vector<uint16> arguments for the I2C command

Returns: true if reading succeeded

Definition at line 110 of file i2c_sensirion.h.

◆ write_command() [3/4]

template<class T >

bool esphome::sensirion_common::SensirionI2CDevice::write_command	(	T	i2c_register,
		const uint16_t *	data,
		uint8_t	len )

inline

Write a command with arguments as words.

Parameters

i2c_register	I2C command to send - an be uint8_t or uint16_t
data	arguments for the I2C command
len	number of arguments (words)

Returns: true if reading succeeded

Definition at line 120 of file i2c_sensirion.h.

◆ write_command() [4/4]

template<class T >

bool esphome::sensirion_common::SensirionI2CDevice::write_command	(	T	i2c_register,
		uint16_t	data )

inline

Write a command and one data word to the I2C device .

Parameters

command	I2C command to send
data	argument for the I2C command

Returns: true if reading succeeded

Definition at line 103 of file i2c_sensirion.h.

◆ write_command_()

bool esphome::sensirion_common::SensirionI2CDevice::write_command_	(	uint16_t	command,
		CommandLen	command_len,
		const uint16_t *	data,
		uint8_t	data_len )

protected

Write a command with arguments as words.

Parameters

command	I2C command to send can be uint8_t or uint16_t
command_len	either 1 for short 8 bit command or 2 for 16 bit command codes
data	arguments for the I2C command
data_len	number of arguments (words)

Returns: true if reading succeeded

Definition at line 40 of file i2c_sensirion.cpp.

Field Documentation

◆ last_error_

i2c::ErrorCode esphome::sensirion_common::SensirionI2CDevice::last_error_

protected

last error code from I2C operation

Definition at line 149 of file i2c_sensirion.h.

The documentation for this class was generated from the following files:

esphome/components/sensirion_common/i2c_sensirion.h
esphome/components/sensirion_common/i2c_sensirion.cpp
