Four-level grayscale for SSD1677 panels. More...

#include <epaper_spi_ssd1677_gray4.h>

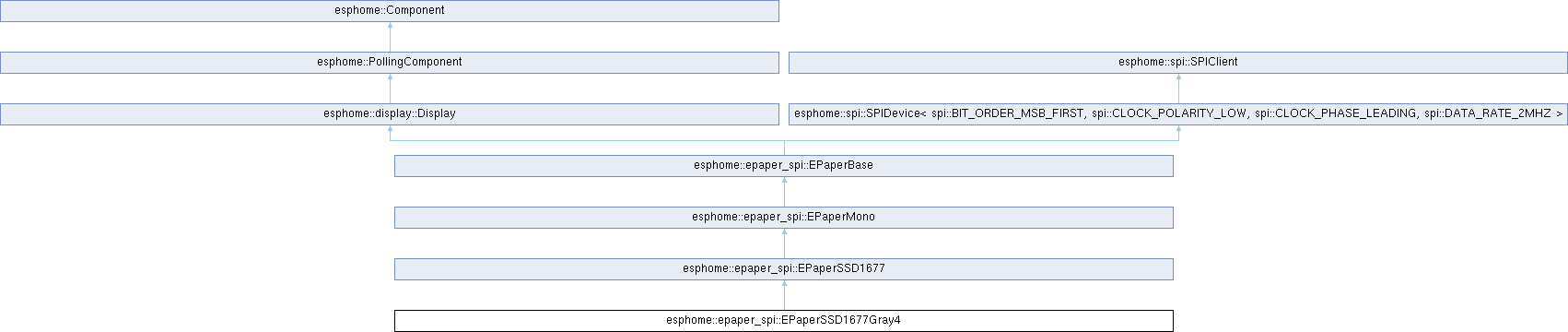

Inheritance diagram for esphome::epaper_spi::EPaperSSD1677Gray4:

Public Member Functions
	EPaperSSD1677Gray4 (const char name, uint16_t width, uint16_t height, const uint8_t init_sequence, size_t init_sequence_length)

void	fill (Color color) override

void	draw_pixel_at (int x, int y, Color color) override

Public Member Functions inherited from esphome::epaper_spi::EPaperSSD1677
	EPaperSSD1677 (const char name, uint16_t width, uint16_t height, const uint8_t init_sequence, size_t init_sequence_length, DisplayType display_type=DISPLAY_TYPE_BINARY, uint8_t bits_per_pixel=1)

void	setup () override

Public Member Functions inherited from esphome::epaper_spi::EPaperMono
	EPaperMono (const char name, uint16_t width, uint16_t height, const uint8_t init_sequence, size_t init_sequence_length, DisplayType display_type=DISPLAY_TYPE_BINARY, uint8_t bits_per_pixel=1)

Public Member Functions inherited from esphome::epaper_spi::EPaperBase
	EPaperBase (const char name, uint16_t width, uint16_t height, const uint8_t init_sequence=nullptr, size_t init_sequence_length=0, DisplayType display_type=DISPLAY_TYPE_BINARY, uint8_t bits_per_pixel=1, uint8_t planes=1)

void	set_dc_pin (GPIOPin *dc_pin)

float	get_setup_priority () const override

void	set_reset_pin (GPIOPin *reset)

void	set_busy_pin (GPIOPin *busy)

void	set_enable_pins (std::vector< GPIOPin * > enable_pins)

void	set_reset_duration (uint32_t reset_duration)

void	set_transform (uint8_t transform)

void	set_rotation (DisplayRotation rotation) override

void	set_full_update_every (uint8_t full_update_every)

void	dump_config () override

void	command (uint8_t value)

void	cmd_data (uint8_t command, const uint8_t *ptr, size_t length)

void	cmd_data (uint8_t command, std::initializer_list< uint8_t > data)

void	update () override

void	loop () override
	Called during the loop task.

void	on_safe_shutdown () override

DisplayType	get_display_type () override

void	clear () override

int	get_width () override

int	get_height () override

bool	pixel_axes_swapped () const override

void	request_full_update ()

bool	is_updating () const

Public Member Functions inherited from esphome::display::Display
int	get_native_width ()
	Get the native (original) width of the display in pixels.

int	get_native_height ()
	Get the native (original) height of the display in pixels.

void	draw_pixel_at (int x, int y)
	Set a single pixel at the specified coordinates to default color.

void	draw_pixels_at (int x_start, int y_start, int w, int h, const uint8_t *ptr, ColorBitness bitness, bool big_endian, int x_offset, int y_offset, int x_pad)
	Given an array of pixels encoded in the nominated format, draw these into the display's buffer.

void	draw_pixels_at (int x_start, int y_start, int w, int h, const uint8_t *ptr, ColorBitness bitness, bool big_endian)
	Convenience overload for base case where the pixels are packed into the buffer with no gaps (e.g. suits LVGL.)

	ESPDEPRECATED ("Pixels are always RGB: call draw_pixels_at() without the ColorOrder, and override draw_pixels_internal() " "to copy blocks. Removed in 2027.5.0", "2026.11.0") virtual void draw_pixels_at(int x_start
	The block form above with a color order.

	ESPDEPRECATED ("Pixels are always RGB, drop the ColorOrder argument. Removed in 2027.5.0", "2026.11.0") void draw_pixels_at(int x_start

void	line (int x1, int y1, int x2, int y2, Color color=COLOR_ON)
	Draw a straight line from the point [x1,y1] to [x2,y2] with the given color.

void	line_at_angle (int x, int y, int angle, int length, Color color=COLOR_ON)
	Draw a straight line at the given angle based on the origin [x, y] for a specified length with the given color.

void	line_at_angle (int x, int y, int angle, int start_radius, int stop_radius, Color color=COLOR_ON)
	Draw a straight line at the given angle based on the origin [x, y] from a specified start and stop radius with the given color.

void	horizontal_line (int x, int y, int width, Color color=COLOR_ON)
	Draw a horizontal line from the point [x,y] to [x+width,y] with the given color.

void	vertical_line (int x, int y, int height, Color color=COLOR_ON)
	Draw a vertical line from the point [x,y] to [x,y+width] with the given color.

void	rectangle (int x1, int y1, int width, int height, Color color=COLOR_ON)
	Draw the outline of a rectangle with the top left point at [x1,y1] and the bottom right point at [x1+width,y1+height].

void	filled_rectangle (int x1, int y1, int width, int height, Color color=COLOR_ON)
	Fill a rectangle with the top left point at [x1,y1] and the bottom right point at [x1+width,y1+height].

void	circle (int center_x, int center_xy, int radius, Color color=COLOR_ON)
	Draw the outline of a circle centered around [center_x,center_y] with the radius radius with the given color.

void	filled_circle (int center_x, int center_y, int radius, Color color=COLOR_ON)
	Fill a circle centered around [center_x,center_y] with the radius radius with the given color.

void	filled_ring (int center_x, int center_y, int radius1, int radius2, Color color=COLOR_ON)
	Fill a ring centered around [center_x,center_y] between two circles with the radius1 and radius2 with the given color.

void	filled_gauge (int center_x, int center_y, int radius1, int radius2, int progress, Color color=COLOR_ON)
	Fill a half-ring "gauge" centered around [center_x,center_y] between two circles with the radius1 and radius2 with he given color and filled up to 'progress' percent.

void	triangle (int x1, int y1, int x2, int y2, int x3, int y3, Color color=COLOR_ON)
	Draw the outline of a triangle contained between the points [x1,y1], [x2,y2] and [x3,y3] with the given color.

void	filled_triangle (int x1, int y1, int x2, int y2, int x3, int y3, Color color=COLOR_ON)
	Fill a triangle contained between the points [x1,y1], [x2,y2] and [x3,y3] with the given color.

void	get_regular_polygon_vertex (int vertex_id, int vertex_x, int vertex_y, int center_x, int center_y, int radius, int edges, RegularPolygonVariation variation=VARIATION_POINTY_TOP, float rotation_degrees=ROTATION_0_DEGREES)
	Get the specified vertex (x,y) coordinates for the regular polygon inscribed in the circle centered on [center_x,center_y] with the given radius.

void	regular_polygon (int x, int y, int radius, int edges, RegularPolygonVariation variation=VARIATION_POINTY_TOP, float rotation_degrees=ROTATION_0_DEGREES, Color color=COLOR_ON, RegularPolygonDrawing drawing=DRAWING_OUTLINE)
	Draw the outline of a regular polygon inscribed in the circle centered on [x,y] with the given radius and color.

void	regular_polygon (int x, int y, int radius, int edges, RegularPolygonVariation variation, Color color, RegularPolygonDrawing drawing=DRAWING_OUTLINE)

void	regular_polygon (int x, int y, int radius, int edges, Color color, RegularPolygonDrawing drawing=DRAWING_OUTLINE)

void	filled_regular_polygon (int x, int y, int radius, int edges, RegularPolygonVariation variation=VARIATION_POINTY_TOP, float rotation_degrees=ROTATION_0_DEGREES, Color color=COLOR_ON)
	Fill a regular polygon inscribed in the circle centered on [x,y] with the given radius and color.

void	filled_regular_polygon (int x, int y, int radius, int edges, RegularPolygonVariation variation, Color color)

void	filled_regular_polygon (int x, int y, int radius, int edges, Color color)

void	print (int x, int y, BaseFont font, Color color, TextAlign align, const char text, Color background=COLOR_OFF)
	Print `text` with the anchor point at [x,y] with `font`.

void	print (int x, int y, BaseFont font, Color color, const char text, Color background=COLOR_OFF)
	Print `text` with the top left at [x,y] with `font`.

void	print (int x, int y, BaseFont font, TextAlign align, const char text)
	Print `text` with the anchor point at [x,y] with `font`.

void	print (int x, int y, BaseFont font, const char text)
	Print `text` with the top left at [x,y] with `font`.

void	printf (int x, int y, BaseFont font, Color color, Color background, TextAlign align, const char format,...) __attribute__((format(printf
	Evaluate the printf-format `format` and print the result with the anchor point at [x,y] with `font`.

void void	printf (int x, int y, BaseFont font, Color color, TextAlign align, const char format,...) __attribute__((format(printf
	Evaluate the printf-format `format` and print the result with the anchor point at [x,y] with `font`.

void void void	printf (int x, int y, BaseFont font, Color color, const char format,...) __attribute__((format(printf
	Evaluate the printf-format `format` and print the result with the top left at [x,y] with `font`.

void void void void	printf (int x, int y, BaseFont font, TextAlign align, const char format,...) __attribute__((format(printf
	Evaluate the printf-format `format` and print the result with the anchor point at [x,y] with `font`.

void void void void void	printf (int x, int y, BaseFont font, const char format,...) __attribute__((format(printf
	Evaluate the printf-format `format` and print the result with the top left at [x,y] with `font`.

void void void void void void	strftime (int x, int y, BaseFont font, Color color, Color background, TextAlign align, const char format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format `format` and print the result with the anchor point at [x,y] with `font`.

void void void void void void void	strftime (int x, int y, BaseFont font, Color color, TextAlign align, const char format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format `format` and print the result with the anchor point at [x,y] with `font`.

void void void void void void void void	strftime (int x, int y, BaseFont font, Color color, const char format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format `format` and print the result with the top left at [x,y] with `font`.

void void void void void void void void void	strftime (int x, int y, BaseFont font, TextAlign align, const char format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format `format` and print the result with the anchor point at [x,y] with `font`.

void void void void void void void void void void	strftime (int x, int y, BaseFont font, const char format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format `format` and print the result with the top left at [x,y] with `font`.

void void void void void void void void void void void	image (int x, int y, BaseImage *image, Color color_on=COLOR_ON, Color color_off=COLOR_OFF)
	Draw the `image` with the top-left corner at [x,y] to the screen.

void	image (int x, int y, BaseImage *image, ImageAlign align, Color color_on=COLOR_ON, Color color_off=COLOR_OFF)
	Draw the `image` at [x,y] to the screen.

void	graph (int x, int y, graph::Graph *graph, Color color_on=COLOR_ON)
	Draw the `graph` with the top-left corner at [x,y] to the screen.

void	legend (int x, int y, graph::Graph *graph, Color color_on=COLOR_ON)
	Draw the `legend` for graph with the top-left corner at [x,y] to the screen.

void	qr_code (int x, int y, qr_code::QrCode *qr_code, Color color_on=COLOR_ON, int scale=1)
	Draw the `qr_code` with the top-left corner at [x,y] to the screen.

void	menu (int x, int y, graphical_display_menu::GraphicalDisplayMenu *menu, int width, int height)

void	get_text_bounds (int x, int y, const char text, BaseFont font, TextAlign align, int x1, int y1, int width, int height)
	Get the text bounds of the given string.

void	set_writer (display_writer_t &&writer)
	Internal method to set the display writer lambda.

void	show_page (DisplayPage *page)

void	show_next_page ()

void	show_prev_page ()

void	set_pages (std::vector< DisplayPage * > pages)

const DisplayPage *	get_active_page () const

template<typename F >
void	add_on_page_change_callback (F &&callback)

void	set_auto_clear (bool auto_clear_enabled)

virtual DisplayRotation	get_rotation () const

void	start_clipping (Rect rect)
	Set the clipping rectangle for further drawing.

void	start_clipping (int16_t left, int16_t top, int16_t right, int16_t bottom)

void	extend_clipping (Rect rect)
	Add a rectangular region to the invalidation region.

void	extend_clipping (int16_t left, int16_t top, int16_t right, int16_t bottom)

void	shrink_clipping (Rect rect)
	substract a rectangular region to the invalidation region

void	shrink_clipping (uint16_t left, uint16_t top, uint16_t right, uint16_t bottom)

void	end_clipping ()
	Reset the invalidation region.

Rect	get_clipping () const
	Get the current the clipping rectangle.

bool	is_clipping () const

bool ESPHOME_ALWAYS_INLINE	is_point_clipped (int x, int y) const
	Whether (x, y) falls outside the active clipping rectangle.

bool	clip (int x, int y)
	Check if pixel is within region of display.

void	test_card ()

void	show_test_card ()

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

void	call ()

virtual void	on_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const LogString *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning ()

void	status_set_warning (const char *message)

void	status_set_warning (const LogString *message)

void	status_set_error ()

void	status_set_error (const LogString *message)

void	status_clear_warning ()

void	status_clear_error ()

	ESPDEPRECATED ("Use status_momentary_warning() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_warning(const char *name

void	status_momentary_warning (uint32_t length=5000)
	Set warning status flag and clear it after `length` ms.

void	status_momentary_warning (const LogString *message, uint32_t length=5000)

	ESPDEPRECATED ("Use status_momentary_error() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_error(const char *name

void	status_momentary_error (uint32_t length=5000)
	Set error status flag and clear it after `length` ms.

void	status_momentary_error (const LogString *message, uint32_t length=5000)

bool	has_overridden_loop () const

const LogString *	get_component_log_str () const ESPHOME_ALWAYS_INLINE
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out)

Public Member Functions inherited from esphome::spi::SPIDevice< spi::BIT_ORDER_MSB_FIRST, spi::CLOCK_POLARITY_LOW, spi::CLOCK_PHASE_LEADING, spi::DATA_RATE_2MHZ >
	SPIDevice ()

	SPIDevice (SPIComponent parent, GPIOPin cs_pin)

void	spi_setup () override

void	spi_teardown () override

void	set_spi_parent (SPIComponent *parent)

void	set_cs_pin (GPIOPin *cs)

void	set_data_rate (uint32_t data_rate)

void	set_bit_order (SPIBitOrder order)

void	set_mode (SPIMode mode)

uint8_t	read_byte ()

void	read_array (uint8_t *data, size_t length)

void	write (uint16_t data, size_t num_bits)
	Write a single data item, up to 32 bits.

void	write_cmd_addr_data (size_t cmd_bits, uint32_t cmd, size_t addr_bits, uint32_t address, const uint8_t *data, size_t length, uint8_t bus_width=1)

void	write_byte (uint8_t data)

void	transfer_array (uint8_t *data, size_t length)
	Write the array data, replace with received data.

void	transfer_array (std::array< uint8_t, N > &data)

uint8_t	transfer_byte (uint8_t data)

void	write_byte16 (uint16_t data)
	Write 16 bit data.

void	write_array16 (const uint16_t *data, size_t length)
	Write an array of data as 16 bit values, byte-swapping if required.

void	enable ()

void	disable ()

void	write_array (const uint8_t *data, size_t length)

void	write_array (const std::array< uint8_t, N > &data)

void	write_array (const std::vector< uint8_t > &data)

Public Member Functions inherited from esphome::spi::SPIClient
	SPIClient (SPIBitOrder bit_order, SPIMode mode, uint32_t data_rate)

bool	spi_is_ready ()

void	set_release_device (bool release)

void	set_write_only (bool write_only)

void	set_psram_dma (bool enable)

Protected Member Functions
bool	is_partial_push_ () const

void	plane_row (size_t y, uint8_t *out) override

void	refresh_screen (bool partial) override

bool	transfer_data () override

Protected Member Functions inherited from esphome::epaper_spi::EPaperSSD1677
void	init_comparison_frame_ ()

size_t	plane_row_length_ () const

bool	reset () override

Protected Member Functions inherited from esphome::epaper_spi::EPaperMono
void	power_on () override

void	power_off () override

void	deep_sleep () override

virtual void	set_window ()

Protected Member Functions inherited from esphome::epaper_spi::EPaperBase
void	draw_pixels_internal (int x_start, int y_start, int w, int h, const uint8_t *ptr, ColorBitness bitness, bool big_endian, int x_offset, int y_offset, int x_pad) override

int	get_height_internal () override

int	get_width_internal () override

bool	is_using_partial_update_ () const

void	process_state_ ()
	Process the state machine.

const char *	epaper_state_to_string_ ()

bool	is_idle_ () const

void	setup_pins_ () const

virtual bool	initialise (bool partial)

void	send_init_sequence_ (const uint8_t *sequence, size_t length)

void	wait_for_idle_ (bool should_wait)

void	abandon_update_ ()

bool	init_buffer_ (size_t buffer_length)

void	update_effective_transform_ ()

bool	rotate_coordinates_ (int &x, int &y)
	Check and rotate coordinates based on the transform flags.

void	draw_rgb565_block_ (uint8_t buffer, int x_start, int y_start, int w, int h, const uint8_t ptr, bool big_endian, int x_offset, int y_offset, int x_pad)

bool	buffer_is_mono_ () const

virtual void	abort_transfer ()

void	set_state_ (EPaperState state, uint16_t delay=0)

void	start_data_ ()

Protected Member Functions inherited from esphome::display::Display
bool	clamp_x_ (int x, int w, int &min_x, int &max_x)

bool	clamp_y_ (int y, int h, int &min_y, int &max_y)

void	vprintf_ (int x, int y, BaseFont font, Color color, Color background, TextAlign align, const char format, va_list arg)

void	do_update_ ()

void	clear_clipping_ ()

void ESPHOME_ALWAYS_INLINE	feed_wdt_per_pixel_ ()
	Watchdog feed for per pixel loops.

void	feed_wdt_pixel_slow_ ()

void	filled_flat_side_triangle_ (int x1, int y1, int x2, int y2, int x3, int y3, Color color)
	This method fills a triangle using only integer variables by using a modified bresenham algorithm.

void	sort_triangle_points_by_y_ (int x1, int y1, int x2, int y2, int x3, int y3)

Protected Member Functions inherited from esphome::Component
friend	void::setup ()

friend	void::original_setup ()

void	set_component_source_ (uint8_t index)
	Set where this component was loaded from for some debug messages.

void	call_dump_config_ ()

void	enable_loop_slow_path_ ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

bool	set_status_flag_ (uint8_t flag)
	Helper to set a status LED flag on both this component and the app.

bool	set_error_flag_ (const LogString *message)
	Set the error flag and log it; true when it was not set before.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a numeric ID (zero heap allocation).

void	set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const char *name)
	Cancel an interval function.

bool	cancel_interval (uint32_t id)

bool	cancel_interval (InternalSchedulerID id)

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a numeric ID (zero heap allocation).

void	set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const char *name)
	Cancel a timeout function.

bool	cancel_timeout (uint32_t id)

bool	cancel_timeout (InternalSchedulerID id)

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (uint32_t id, std::function< void()> &&f)
	Defer a callback with a numeric ID (zero heap allocation)

bool	cancel_defer (const char *name)
	Cancel a defer callback using the specified name, name must not be empty.

bool	cancel_defer (uint32_t id)

void	status_clear_warning_slow_path_ ()

void	status_clear_error_slow_path_ ()

Additional Inherited Members
Data Fields inherited from esphome::display::Display
int	y_start

int int	w

int int int	h

int int int const uint8_t *	ptr

int int int const uint8_t ColorOrder	order

int int int const uint8_t ColorOrder ColorBitness	bitness

int int int const uint8_t ColorOrder ColorBitness bool	big_endian

int int int const uint8_t ColorOrder ColorBitness bool int	x_offset

int int int const uint8_t ColorOrder ColorBitness bool int int	y_offset

int int int const uint8_t ColorOrder ColorBitness bool int int int	x_pad

Data Fields inherited from esphome::Component
uint32_t	length = 5000)

Protected Attributes inherited from esphome::epaper_spi::EPaperSSD1677
split_buffer::SplitBuffer	sent_ {}

uint8_t	plane_ {0}

Protected Attributes inherited from esphome::epaper_spi::EPaperMono
bool	send_red_ {true}

Protected Attributes inherited from esphome::epaper_spi::EPaperBase
const char *	name_

uint16_t	width_

uint16_t	row_width_

uint16_t	height_

uint8_t	bits_per_pixel_

uint8_t	planes_

const uint8_t *	init_sequence_

size_t	init_sequence_length_

DisplayType	display_type_

size_t	buffer_length_

size_t	current_data_index_ {}

split_buffer::SplitBuffer	buffer_ {}

GPIOPin *	dc_pin_ {}

GPIOPin *	busy_pin_ {}

GPIOPin *	reset_pin_ {}

std::vector< GPIOPin * >	enable_pins_ {}

bool	waiting_for_idle_ {}

uint32_t	delay_until_ {}

uint16_t	next_delay_ {}

uint8_t	transform_ {}

uint8_t	effective_transform_ {}

uint8_t	update_count_ {}

bool	full_update_requested_ {}

uint16_t	x_low_ {}

uint16_t	y_low_ {}

uint16_t	x_high_ {}

uint16_t	y_high_ {}

uint32_t	waiting_for_idle_start_ {}

uint32_t	waiting_for_idle_last_print_ {}

uint32_t	update_start_time_ {}

uint32_t	reset_duration_ {10}

uint16_t	busy_timeout_seconds_ {120}

uint8_t	full_update_every_ {1}

EPaperState	state_ {EPaperState::IDLE}

Protected Attributes inherited from esphome::display::Display
DisplayRotation	rotation_ {DISPLAY_ROTATION_0_DEGREES}

display_writer_t	writer_ {}

DisplayPage *	page_ {nullptr}

StaticCallbackManager< DISPLAY_PAGE_CHANGE_CALLBACK_COUNT, void(DisplayPage , DisplayPage )>	page_change_callback_

bool	auto_clear_enabled_ {true}

std::vector< Rect >	clipping_rectangle_

uint8_t	wdt_pixel_counter_ {0}

bool	show_test_card_ {false}

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
uint8_t	component_source_index_ {0}
	Index into component source PROGMEM lookup table (0 = not set)

uint8_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_CS}
	Warn threshold in centiseconds (max 2550ms)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bit 5: Has overridden loop() (set at registration time) Bits 6-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

ComponentRuntimeStats	runtime_stats_

Protected Attributes inherited from esphome::spi::SPIClient
SPIBitOrder	bit_order_ {BIT_ORDER_MSB_FIRST}

SPIMode	mode_ {MODE0}

uint32_t	data_rate_ {1000000}

SPIComponent *	parent_ {nullptr}

GPIOPin *	cs_ {nullptr}

bool	release_device_ {false}

bool	write_only_ {false}

bool	psram_dma_ {false}

SPIDelegate *	delegate_ {SPIDelegate::NULL_DELEGATE}

Detailed Description

Four-level grayscale for SSD1677 panels.

The SSD1677 has two independent 1-bit RAM planes, normally used for a black/white and a red plane. This class writes image data to both, splitting each pixel's 2-bit gray level across them, and triggers the panel's own OTP grayscale waveform instead of the normal monochrome update sequence. No custom LUT upload needed for any currently supported panel, the OTP waveform is used instead.

The framebuffer therefore packs 2 bits per pixel (4 per byte, most significant pixel first) instead of EPaperMono's 1 bit.

The grayscale waveform has no partial form: master activation redraws the whole panel regardless of the RAM window. So a full update is a four-level refresh, and when partial updates are enabled (full_update_every > 1, which the model only allows on explicit request) a partial update is EPaperSSD1677's black-and-white one, each pixel reduced to light or dark. The partial waveform also drives unchanged pixels towards black or white, so from the first partial update the whole panel loses its gray levels until the next full update.

Definition at line 28 of file epaper_spi_ssd1677_gray4.h.

Constructor & Destructor Documentation

◆ EPaperSSD1677Gray4()

esphome::epaper_spi::EPaperSSD1677Gray4::EPaperSSD1677Gray4	(	const char *	name,
		uint16_t	width,
		uint16_t	height,
		const uint8_t *	init_sequence,
		size_t	init_sequence_length )
