esphome::GPIOPin Class Reference

#include <gpio_pin.h>

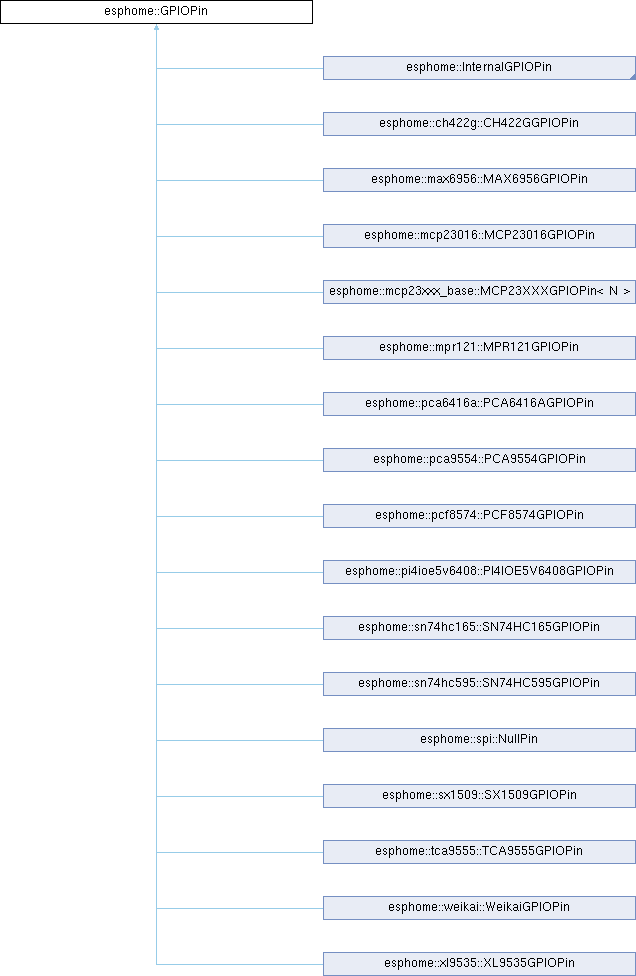

Inheritance diagram for esphome::GPIOPin:

Public Member Functions
virtual void	setup ()=0
virtual void	pin_mode (gpio::Flags flags)=0
virtual gpio::Flags	get_flags () const =0
	Retrieve GPIO pin flags.
virtual bool	digital_read ()=0
virtual void	digital_write (bool value)=0
virtual size_t	dump_summary (char *buffer, size_t len) const
	Write a summary of this pin to the provided buffer.
virtual bool	is_internal ()
	Only the platform pin class behind the InternalGPIOPin alias may return true: callers static_cast to InternalGPIOPin on it.
bool	get_hold () const
virtual bool	is_held () const
bool	get_hold () const
bool	is_held () const

Detailed Description

Definition at line 61 of file gpio_pin.h.

Member Function Documentation

digital_read()

virtual bool esphome::GPIOPin::digital_read ( )

pure virtual

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::gpio_expander::ExpanderGPIOPin< Parent >, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::mcp23xxx_base::MCP23XXXGPIOPin< N >, esphome::pcm5122::PCM5122GPIOPin, esphome::rp2::RP2GPIOPin, esphome::sn74hc165::SN74HC165GPIOPin, esphome::sn74hc595::SN74HC595GPIOPin, esphome::spi::NullPin, esphome::weikai::WeikaiGPIOPin, and esphome::zephyr::ZephyrGPIOPin.

digital_write()

virtual void esphome::GPIOPin::digital_write ( bool value )

pure virtual

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::gpio_expander::ExpanderGPIOPin< Parent >, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::mcp23xxx_base::MCP23XXXGPIOPin< N >, esphome::pcm5122::PCM5122GPIOPin, esphome::rp2::RP2GPIOPin, esphome::sn74hc165::SN74HC165GPIOPin, esphome::sn74hc595::SN74HC595GPIOPin, esphome::spi::NullPin, esphome::weikai::WeikaiGPIOPin, and esphome::zephyr::ZephyrGPIOPin.

dump_summary()

size_t esphome::GPIOPin::dump_summary ( char * buffer, size_t len ) const

inlinevirtual

Write a summary of this pin to the provided buffer.

Parameters

buffer	The buffer to write to
len	The size of the buffer (must be > 0)

Returns

The number of characters that would be written (excluding null terminator), which may exceed len-1 if truncation occurred (snprintf semantics)

Reimplemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::gpio_expander::ExpanderGPIOPin< Parent >, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::mcp23xxx_base::MCP23XXXGPIOPin< N >, esphome::pcm5122::PCM5122GPIOPin, esphome::rp2::RP2GPIOPin, esphome::sn74hc165::SN74HC165GPIOPin, esphome::sn74hc595::SN74HC595GPIOPin, esphome::spi::NullPin, esphome::weikai::WeikaiGPIOPin, and esphome::zephyr::ZephyrGPIOPin.

Definition at line 126 of file gpio_pin.h.

get_flags()

virtual gpio::Flags esphome::GPIOPin::get_flags ( ) const

pure virtual

Retrieve GPIO pin flags.

Returns

The GPIO flags describing the pin mode and properties.

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::gpio_expander::ExpanderGPIOPin< Parent >, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::mcp23xxx_base::MCP23XXXGPIOPin< N >, esphome::pcm5122::PCM5122GPIOPin, esphome::rp2::RP2GPIOPin, esphome::sn74hc165::SN74HC165GPIOPin, esphome::sn74hc595::SN74HC595GPIOPin, esphome::spi::NullPin, esphome::weikai::WeikaiGPIOPin, and esphome::zephyr::ZephyrGPIOPin.

get_hold() [1/2]

bool esphome::GPIOPin::get_hold ( ) const

inline

Definition at line 89 of file gpio_pin.h.

get_hold() [2/2]

bool esphome::GPIOPin::get_hold ( ) const

inline

Definition at line 92 of file gpio_pin.h.

is_held() [1/2]

virtual bool esphome::GPIOPin::is_held ( ) const

inlinevirtual

Reimplemented in esphome::esp32::ESP32InternalGPIOPin.

Definition at line 90 of file gpio_pin.h.

is_held() [2/2]

bool esphome::GPIOPin::is_held ( ) const

inline

Definition at line 93 of file gpio_pin.h.

is_internal()

virtual bool esphome::GPIOPin::is_internal ( )

inlinevirtual

Only the platform pin class behind the InternalGPIOPin alias may return true: callers static_cast to InternalGPIOPin on it.

Reimplemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::rp2::RP2GPIOPin, and esphome::zephyr::ZephyrGPIOPin.

Definition at line 87 of file gpio_pin.h.

pin_mode()

virtual void esphome::GPIOPin::pin_mode ( gpio::Flags flags )

pure virtual

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::gpio_expander::ExpanderGPIOPin< Parent >, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::mcp23xxx_base::MCP23XXXGPIOPin< N >, esphome::pcm5122::PCM5122GPIOPin, esphome::rp2::RP2GPIOPin, esphome::sn74hc165::SN74HC165GPIOPin, esphome::sn74hc595::SN74HC595GPIOPin, esphome::spi::NullPin, esphome::weikai::WeikaiGPIOPin, and esphome::zephyr::ZephyrGPIOPin.

setup()

virtual void esphome::GPIOPin::setup ( )

pure virtual

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::gpio_expander::ExpanderGPIOPin< Parent >, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::mcp23xxx_base::MCP23XXXGPIOPin< N >, esphome::pcm5122::PCM5122GPIOPin, esphome::rp2::RP2GPIOPin, esphome::sn74hc165::SN74HC165GPIOPin, esphome::sn74hc595::SN74HC595GPIOPin, esphome::spi::NullPin, esphome::weikai::WeikaiGPIOPin, and esphome::zephyr::ZephyrGPIOPin.

---

The documentation for this class was generated from the following file:

• esphome/core/gpio_pin.h
