#include <sy6970_binary_sensor.h>

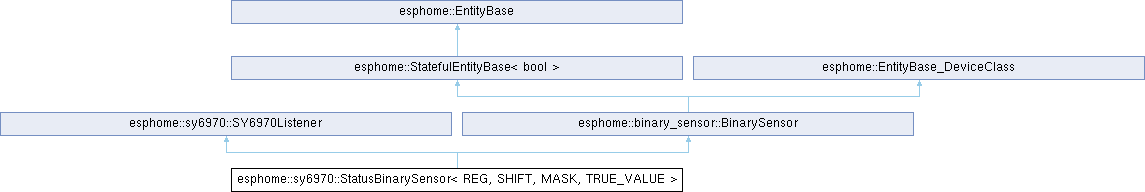

Inheritance diagram for esphome::sy6970::StatusBinarySensor< REG, SHIFT, MASK, TRUE_VALUE >:

Public Member Functions
void	on_data (const SY6970Data &data) override

Public Member Functions inherited from esphome::sy6970::SY6970Listener
Public Member Functions inherited from esphome::binary_sensor::BinarySensor
	BinarySensor ()

void	publish_state (bool new_state)
	Publish a new state to the front-end.

void	publish_initial_state (bool new_state)
	Publish the initial state, this will not make the callback manager send callbacks and is meant only for the initial state on boot.

void	add_filter (Filter *filter)

void	add_filters (std::initializer_list< Filter * > filters)

void	send_state_internal (bool new_state)

virtual bool	is_status_binary_sensor () const
	Return whether this binary sensor has outputted a state.

Public Member Functions inherited from esphome::StatefulEntityBase< bool >
virtual bool	has_state () const

virtual const bool &	get_state () const

virtual bool	get_state_default (bool default_value) const

void	invalidate_state ()

void	add_full_state_callback (std::function< void(optional< bool > previous, optional< bool > current)> &&callback)

void	add_on_state_callback (std::function< void(bool)> &&callback)

void	set_trigger_on_initial_state (bool trigger_on_initial_state)

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

void	set_name (const char *name, uint32_t object_id_hash)
	Set name with pre-computed object_id hash (avoids runtime hash calculation) Use hash=0 for dynamic names that need runtime calculation.

bool	has_own_name () const

ESPDEPRECATED("object_id mangles names and all object_id methods are planned for removal " "(see https://github.com/esphome/backlog/issues/76). " "Now is the time to stop using object_id. If still needed, use get_object_id_to() " "which will remain available longer. get_object_id() will be removed in 2026.7.0", "2025.12.0") std uint32_t	get_object_id_hash ()

StringRef	get_object_id_to (std::span< char, OBJECT_ID_MAX_LEN > buf) const
	Get object_id with zero heap allocation For static case: returns StringRef to internal storage (buffer unused) For dynamic case: formats into buffer and returns StringRef to buffer.

size_t	write_object_id_to (char *buf, size_t buf_size) const
	Write object_id directly to buffer, returns length written (excluding null) Useful for building compound strings without intermediate buffer.

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

ESPDEPRECATED("Use get_icon_ref() instead for better performance (avoids string copy). Will be removed in ESPHome 2026.5.0", "2025.11.0") std void	set_icon (const char *icon)

StringRef	get_icon_ref () const

uint32_t	get_device_id () const

void	set_device (Device *device)

Device *	get_device () const

bool	has_state () const

void	set_has_state (bool state)

	ESPDEPRECATED ("Use make_entity_preference<T>() instead, or preferences won't be migrated. " "See https://github.com/esphome/backlog/issues/85. Will be removed in 2027.1.0.", "2026.7.0") uint32_t get_preference_hash()
	Get a unique hash for storing preferences/settings for this entity.

template<typename T >
ESPPreferenceObject	make_entity_preference (uint32_t version=0)
	Create a preference object for storing this entity's state/settings.

Public Member Functions inherited from esphome::EntityBase_DeviceClass
ESPDEPRECATED("Use get_device_class_ref() instead for better performance (avoids string copy). Will be removed in " "ESPHome 2026.5.0", "2025.11.0") std void	set_device_class (const char *device_class)
	Get the device class, using the manual override if set.

StringRef	get_device_class_ref () const
	Get the device class as StringRef.

Additional Inherited Members
Data Fields inherited from esphome::binary_sensor::BinarySensor
bool	state {}

Protected Member Functions inherited from esphome::binary_sensor::BinarySensor
bool	set_new_state (const optional< bool > &new_state) override

Protected Member Functions inherited from esphome::StatefulEntityBase< bool >
Protected Member Functions inherited from esphome::EntityBase
ESPPreferenceObject	make_entity_preference_ (size_t size, uint32_t version)
	Non-template helper for make_entity_preference() to avoid code bloat.

void	calc_object_id_ ()

Protected Attributes inherited from esphome::binary_sensor::BinarySensor
Filter *	filter_list_ {nullptr}

Protected Attributes inherited from esphome::StatefulEntityBase< bool >
optional< bool >	state_

bool	trigger_on_initial_state_

CallbackManager< void(optional< bool > previous, optional< bool > current)> *	full_state_callbacks_

CallbackManager< void(bool)> *	state_callbacks_

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

Protected Attributes inherited from esphome::EntityBase_DeviceClass
const char *	device_class_ {nullptr}
	Device class override.

Detailed Description

template<uint8_t REG, uint8_t SHIFT, uint8_t MASK, uint8_t TRUE_VALUE>
class esphome::sy6970::StatusBinarySensor< REG, SHIFT, MASK, TRUE_VALUE >

Definition at line 9 of file sy6970_binary_sensor.h.

Member Function Documentation

◆ on_data()

template<uint8_t REG, uint8_t SHIFT, uint8_t MASK, uint8_t TRUE_VALUE>

void esphome::sy6970::StatusBinarySensor< REG, SHIFT, MASK, TRUE_VALUE >::on_data ( const SY6970Data & data )

inlineoverridevirtual

Implements esphome::sy6970::SY6970Listener.

Definition at line 11 of file sy6970_binary_sensor.h.

The documentation for this class was generated from the following file:

esphome/components/sy6970/binary_sensor/sy6970_binary_sensor.h
