#include <sy6970_binary_sensor.h>

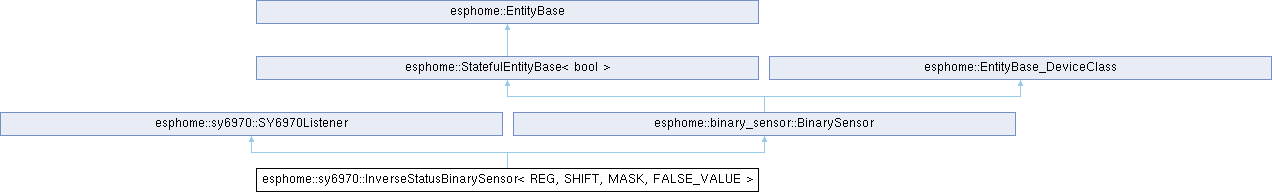

Inheritance diagram for esphome::sy6970::InverseStatusBinarySensor< REG, SHIFT, MASK, FALSE_VALUE >:

Public Member Functions
void	on_data (const SY6970Data &data) override

Public Member Functions inherited from esphome::sy6970::SY6970Listener
Public Member Functions inherited from esphome::binary_sensor::BinarySensor
	BinarySensor ()=default

const bool &	get_state () const override

void	set_trigger_on_initial_state (bool value)

void	publish_state (bool new_state)
	Publish a new state to the front-end.

void	publish_initial_state (bool new_state)
	Publish the initial state, this will not make the callback manager send callbacks and is meant only for the initial state on boot.

void	add_filter (Filter *filter)

void	add_filters (std::initializer_list< Filter * > filters)

void	send_state_internal (bool new_state)

virtual bool	is_status_binary_sensor () const
	Return whether this binary sensor has outputted a state.

Public Member Functions inherited from esphome::StatefulEntityBase< bool >
bool	get_state_default (bool default_value) const
	Return the current state if available, otherwise return the provided default.

void	invalidate_state ()
	Clear the state — sets has_state() to false and fires callbacks with nullopt.

void	add_full_state_callback (F &&callback)

void	add_on_state_callback (F &&callback)

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

bool	has_own_name () const

ESPDEPRECATED("object_id mangles names and all object_id methods are planned for removal " "(see https://github.com/esphome/backlog/issues/76). " "Now is the time to stop using object_id. If still needed, use get_object_id_to() " "which will remain available longer. get_object_id() will be removed in 2026.7.0", "2025.12.0") std uint32_t	get_object_id_hash () const

StringRef	get_object_id_to (std::span< char, OBJECT_ID_MAX_LEN > buf) const
	Get object_id with zero heap allocation For static case: returns StringRef to internal storage (buffer unused) For dynamic case: formats into buffer and returns StringRef to buffer.

size_t	write_object_id_to (char *buf, size_t buf_size) const
	Write object_id directly to buffer, returns length written (excluding null) Useful for building compound strings without intermediate buffer.

bool	is_internal () const

	ESPDEPRECATED ("set_internal() is undefined behavior at runtime — components and Home Assistant are NOT " "notified. Use the 'internal:' YAML key instead. Will be removed in 2027.3.0.", "2026.3.0") void set_internal(bool internal)

bool	is_disabled_by_default () const

EntityCategory	get_entity_category () const

const char *	get_device_class_to (std::span< char, MAX_DEVICE_CLASS_LENGTH > buffer) const

template<typename T = int>
StringRef	get_device_class_ref () const

template<typename T = int>
std::string	get_device_class () const

	ESPDEPRECATED ("Use get_device_class_to() instead. Will be removed in ESPHome 2026.9.0", "2026.3.0") StringRef get_device_class_ref() const

ESPDEPRECATED("Use get_device_class_to() instead. Will be removed in ESPHome 2026.9.0", "2026.3.0") std StringRef	get_unit_of_measurement_ref () const

ESPDEPRECATED("Use get_unit_of_measurement_ref() instead for better performance (avoids string copy). Will be " "removed in ESPHome 2026.9.0", "2026.3.0") std const char *	get_icon_to (std::span< char, MAX_ICON_LENGTH > buffer) const
	Get the unit of measurement as std::string (deprecated, prefer get_unit_of_measurement_ref())

template<typename T = int>
StringRef	get_icon_ref () const

template<typename T = int>
std::string	get_icon () const

	ESPDEPRECATED ("Use get_icon_to() instead. Will be removed in ESPHome 2026.9.0", "2026.3.0") StringRef get_icon_ref() const

ESPDEPRECATED("Use get_icon_to() instead. Will be removed in ESPHome 2026.9.0", "2026.3.0") std uint32_t	get_device_id () const

Device *	get_device () const

bool	has_state () const

void	set_has_state (bool state)

	ESPDEPRECATED ("Use make_entity_preference<T>() instead, or preferences won't be migrated. " "See https://github.com/esphome/backlog/issues/85. Will be removed in 2027.1.0.", "2026.7.0") uint32_t get_preference_hash()
	Get a unique hash for storing preferences/settings for this entity.

template<typename T >
ESPPreferenceObject	make_entity_preference (uint32_t version=0)
	Create a preference object for storing this entity's state/settings.

Additional Inherited Members
Data Fields inherited from esphome::binary_sensor::BinarySensor
bool	state {}
	The current state of this binary sensor. Also used as the backing storage for StatefulEntityBase.

Protected Member Functions inherited from esphome::binary_sensor::BinarySensor
bool	get_trigger_on_initial_state () const override

void	set_state_value (const bool &value) override

bool	set_new_state (const optional< bool > &new_state) override

Protected Member Functions inherited from esphome::StatefulEntityBase< bool >
Protected Member Functions inherited from esphome::EntityBase
friend	void::setup ()

friend	void::original_setup ()

void	configure_entity_ (const char *name, uint32_t object_id_hash, uint32_t entity_fields)
	Combined entity setup from codegen: set name, object_id hash, entity string indices, and flags.

void	set_device_ (Device *device)

ESPPreferenceObject	make_entity_preference_ (size_t size, uint32_t version)
	Non-template helper for make_entity_preference() to avoid code bloat.

void	calc_object_id_ ()

Protected Attributes inherited from esphome::binary_sensor::BinarySensor
bool	trigger_on_initial_state_ {true}

Filter *	filter_list_ {nullptr}

Protected Attributes inherited from esphome::StatefulEntityBase< bool >
LazyCallbackManager< void(optional< bool > previous, optional< bool > current)>	full_state_callbacks_

LazyCallbackManager< void(bool)>	state_callbacks_

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

uint8_t	device_class_idx_ {}

uint8_t	uom_idx_ {}

uint8_t	icon_idx_ {}

Detailed Description

template<uint8_t REG, uint8_t SHIFT, uint8_t MASK, uint8_t FALSE_VALUE>
class esphome::sy6970::InverseStatusBinarySensor< REG, SHIFT, MASK, FALSE_VALUE >

Definition at line 18 of file sy6970_binary_sensor.h.

Member Function Documentation

◆ on_data()

template<uint8_t REG, uint8_t SHIFT, uint8_t MASK, uint8_t FALSE_VALUE>

void esphome::sy6970::InverseStatusBinarySensor< REG, SHIFT, MASK, FALSE_VALUE >::on_data ( const SY6970Data & data )

inlineoverridevirtual

Implements esphome::sy6970::SY6970Listener.

Definition at line 20 of file sy6970_binary_sensor.h.

The documentation for this class was generated from the following file:

esphome/components/sy6970/binary_sensor/sy6970_binary_sensor.h
