esphome::remote_base::RawAction< Ts > Class Template Reference

#include <raw_protocol.h>

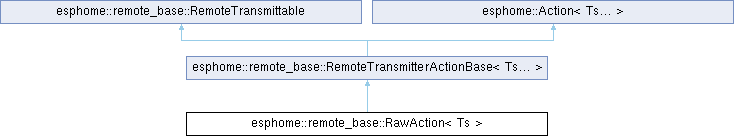

Inheritance diagram for esphome::remote_base::RawAction< Ts >:

Data Structures
union	Code

Public Member Functions
void	set_code_template (RawTimings(*func)(Ts...))
void	set_code_static (const int32_t *code, size_t len)
	TEMPLATABLE_VALUE (uint32_t, carrier_frequency)
void	encode (RemoteTransmitData *dst, Ts... x) override
Public Member Functions inherited from esphome::remote_base::RemoteTransmittable
	RemoteTransmittable ()
	RemoteTransmittable (RemoteTransmitterBase *transmitter)
void	set_transmitter (RemoteTransmitterBase *transmitter)
Public Member Functions inherited from esphome::Action< Ts... >
virtual void	play_complex (const Ts &...x)
virtual void	stop_complex ()
virtual bool	is_running ()
	Check if this or any of the following actions are currently running.
int	num_running_total ()
	The total number of actions that are currently running in this plus any of the following actions in the chain.

Protected Attributes
ssize_t	len_ {-1}
union esphome::remote_base::RawAction::Code	code_
Protected Attributes inherited from esphome::remote_base::RemoteTransmittable
RemoteTransmitterBase *	transmitter_
Protected Attributes inherited from esphome::Action< Ts... >
friend	ActionList< Ts... >
Action< Ts... > *	next_
int	num_running_
	The number of instances of this sequence in the list of actions that is currently being executed.

Additional Inherited Members
Protected Member Functions inherited from esphome::remote_base::RemoteTransmitterActionBase< Ts... >
void	play (const Ts &...x) override
Protected Member Functions inherited from esphome::remote_base::RemoteTransmittable
template<typename Protocol >
void	transmit_ (const typename Protocol::ProtocolData &data, uint32_t send_times=1, uint32_t send_wait=0)
Protected Member Functions inherited from esphome::Action< Ts... >
void	play_next_ (const Ts &...x)
void	play_next_tuple_ (const std::tuple< Ts... > &tuple, seq< S... >)
void	play_next_tuple_ (const std::tuple< Ts... > &tuple)
virtual void	stop ()
void	stop_next_ ()
bool	is_running_next_ ()

Detailed Description

template<typename... Ts>
class esphome::remote_base::RawAction< Ts >

Definition at line 43 of file raw_protocol.h.

Member Function Documentation

encode()

template<typename... Ts>

void esphome::remote_base::RawAction< Ts >::encode ( RemoteTransmitData * dst, Ts... x )

inlineoverridevirtual

Implements esphome::remote_base::RemoteTransmitterActionBase< Ts... >.

Definition at line 55 of file raw_protocol.h.

set_code_static()

template<typename... Ts>

void esphome::remote_base::RawAction< Ts >::set_code_static ( const int32_t * code, size_t len )

inline

Definition at line 49 of file raw_protocol.h.

set_code_template()

template<typename... Ts>

void esphome::remote_base::RawAction< Ts >::set_code_template ( RawTimings(* func )(Ts...) )

inline

Definition at line 45 of file raw_protocol.h.

TEMPLATABLE_VALUE()

template<typename... Ts>

esphome::remote_base::RawAction< Ts >::TEMPLATABLE_VALUE	(	uint32_t	,
		carrier_frequency	)

Field Documentation

code_

template<typename... Ts>

union esphome::remote_base::RawAction::Code esphome::remote_base::RawAction< Ts >::code_

protected

len_

template<typename... Ts>

ssize_t esphome::remote_base::RawAction< Ts >::len_ {-1}

protected

Definition at line 72 of file raw_protocol.h.

---

The documentation for this class was generated from the following file:

• esphome/components/remote_base/raw_protocol.h
