| | PylontechComponent () |
| |
| void | update () override |
| | Schedule data readings.
|
| |
| void | loop () override |
| | Read data once available.
|
| |
| void | setup () override |
| | Setup the sensor and test for a connection.
|
| |
| void | dump_config () override |
| |
| void | set_cell_polling_enabled (bool enabled) |
| | Turn the "bat N" cell readings after each "pwr" reply off or on; nothing to turn off without cell sensors.
|
| |
| void | register_listener (PylontechListener *listener) |
| |
| void | add_cell_battery (uint8_t bat_num) |
| | Read the cells of this battery with "bat N" after every "pwr" reply.
|
| |
| | PollingComponent () |
| |
| | PollingComponent (uint32_t update_interval) |
| | Initialize this polling component with the given update interval in ms.
|
| |
| void | set_update_interval (uint32_t update_interval) |
| | Manually set the update interval in ms for this polling object.
|
| |
| void | call_setup () override |
| |
| virtual uint32_t | get_update_interval () const |
| | Get the update interval in ms of this sensor.
|
| |
| void | start_poller () |
| |
| void | stop_poller () |
| |
| virtual float | get_setup_priority () const |
| | priority of setup().
|
| |
| float | get_actual_setup_priority () const |
| |
| void | set_setup_priority (float priority) |
| |
| void | call () |
| |
| virtual void | on_shutdown () |
| |
| virtual void | on_safe_shutdown () |
| |
| virtual bool | teardown () |
| | Called during teardown to allow component to gracefully finish operations.
|
| |
| virtual void | on_powerdown () |
| | Called after teardown is complete to power down hardware.
|
| |
| uint8_t | get_component_state () const |
| |
| void | reset_to_construction_state () |
| | Reset this component back to the construction state to allow setup to run again.
|
| |
| bool | is_in_loop_state () const |
| | Check if this component has completed setup and is in the loop state.
|
| |
| bool | is_idle () const |
| | Check if this component is idle.
|
| |
| void | mark_failed () |
| | Mark this component as failed.
|
| |
| void | mark_failed (const LogString *message) |
| |
| void | disable_loop () |
| | Disable this component's loop.
|
| |
| void | enable_loop () |
| | Enable this component's loop.
|
| |
| void | enable_loop_soon_any_context () |
| | Thread and ISR-safe version of enable_loop() that can be called from any context.
|
| |
| bool | is_failed () const |
| |
| bool | is_ready () const |
| |
| virtual bool | can_proceed () |
| |
| bool | status_has_warning () const |
| |
| bool | status_has_error () const |
| |
| void | status_set_warning () |
| |
| void | status_set_warning (const char *message) |
| |
| void | status_set_warning (const LogString *message) |
| |
| bool | status_comm_result (bool ok) |
| | Clears the warning when ok, else sets it with message (default "Communication failed"); returns ok.
|
| |
| bool | status_comm_result (bool ok, const LogString *message) |
| |
| void | status_set_error () |
| |
| void | status_set_error (const LogString *message) |
| |
| void | status_clear_warning () |
| |
| void | status_clear_error () |
| |
| | ESPDEPRECATED ("Use status_momentary_warning() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_warning(const char *name |
| |
| void | status_momentary_warning (uint32_t length=5000) |
| | Set warning status flag and clear it after length ms.
|
| |
| void | status_momentary_warning (const LogString *message, uint32_t length=5000) |
| |
| | ESPDEPRECATED ("Use status_momentary_error() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_error(const char *name |
| |
| void | status_momentary_error (uint32_t length=5000) |
| | Set error status flag and clear it after length ms.
|
| |
| void | status_momentary_error (const LogString *message, uint32_t length=5000) |
| |
| bool | has_overridden_loop () const |
| |
| const LogString * | get_component_log_str () const ESPHOME_ALWAYS_INLINE |
| | Get the integration where this component was declared as a LogString for logging.
|
| |
| bool | should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out) |
| |
| | UARTDevice ()=default |
| |
| | UARTDevice (UARTComponent *parent) |
| |
| void | set_uart_parent (UARTComponent *parent) |
| |
| void | write_byte (uint8_t data) |
| |
| void | set_rx_full_threshold (size_t rx_full_threshold) |
| |
| void | set_rx_full_threshold_ms (size_t time) |
| |
| size_t | get_rx_full_threshold () |
| |
| void | set_rx_timeout (size_t rx_timeout) |
| |
| size_t | get_rx_timeout () |
| |
| void | write_array (const uint8_t *data, size_t len) |
| |
| void | write_array_progmem (const uint8_t *data, size_t len) |
| |
| void | write_array (const std::vector< uint8_t > &data) |
| |
| template<size_t N> |
| void | write_array (const std::array< uint8_t, N > &data) |
| |
| void | write_str (const char *str) |
| |
| bool | read_byte (uint8_t *data) |
| |
| bool | peek_byte (uint8_t *data) |
| |
| bool | read_array (uint8_t *data, size_t len) |
| |
| template<size_t N> |
| optional< std::array< uint8_t, N > > | read_array () |
| |
| size_t | available () |
| |
| template<size_t N = 64, typename F > |
| bool | read_available_chunks (F &&on_chunk) |
| | Pass the bytes available now to on_chunk(data, len) in N byte chunks; returning false stops.
|
| |
| template<size_t N = 64, typename F > |
| bool | read_available_chunks (F &&on_chunk, size_t count) |
| | Same, reading exactly count bytes; count must not exceed available().
|
| |
| template<size_t N = 64, typename F > |
| bool | read_available (F &&on_byte) |
| | Same as read_available_chunks(), calling on_byte(uint8_t) once per byte.
|
| |
| template<size_t N = 64, typename F > |
| bool | read_available (F &&on_byte, size_t count) |
| |
| void | discard_available () |
| | Read and drop every byte waiting in the receive buffer.
|
| |
| UARTFlushResult | flush () |
| |
| int | read () |
| |
| size_t | write (uint8_t data) |
| |
| int | peek () |
| |
| | ESPDEPRECATED ("Use uart.final_validate_device_schema() in Python instead. Removed in 2027.3.0", "2026.9.0") void check_uart_settings(uint32_t baud_rate |
| | Check that the configuration of the UART bus matches the provided values and otherwise print a warning.
|
| |
|
| void | process_line_ (const char *buffer) |
| |
| void | parse_header_ (const char *buffer) |
| |
| void | dispatch_one_ () |
| |
| void | reject_line_ () |
| |
| void | parse_cell_line_ (const char *buffer) |
| |
| void | send_next_bat_ () |
| |
| friend | void::setup () |
| |
| friend | void::original_setup () |
| |
| void | set_component_source_ (uint8_t index) |
| | Set where this component was loaded from for some debug messages.
|
| |
| void | call_dump_config_ () |
| |
| void | enable_loop_slow_path_ () |
| |
| void | set_component_state_ (uint8_t state) |
| | Helper to set component state (clears state bits and sets new state)
|
| |
| bool | set_status_flag_ (uint8_t flag) |
| | Helper to set a status LED flag on both this component and the app.
|
| |
| bool | set_error_flag_ (const LogString *message) |
| | Set the error flag and log it; true when it was not set before.
|
| |
| void | set_interval (const char *name, uint32_t interval, std::function< void()> &&f) |
| | Set an interval function with a const char* name.
|
| |
| void | set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f) |
| | Set an interval function with a numeric ID (zero heap allocation).
|
| |
| void | set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f) |
| |
| void | set_interval (uint32_t interval, std::function< void()> &&f) |
| |
| bool | cancel_interval (const char *name) |
| | Cancel an interval function.
|
| |
| bool | cancel_interval (uint32_t id) |
| |
| bool | cancel_interval (InternalSchedulerID id) |
| |
| void | set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f) |
| | Set a timeout function with a const char* name.
|
| |
| void | set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f) |
| | Set a timeout function with a numeric ID (zero heap allocation).
|
| |
| void | set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f) |
| |
| void | set_timeout (uint32_t timeout, std::function< void()> &&f) |
| |
| bool | cancel_timeout (const char *name) |
| | Cancel a timeout function.
|
| |
| bool | cancel_timeout (uint32_t id) |
| |
| bool | cancel_timeout (InternalSchedulerID id) |
| |
| void | defer (const char *name, std::function< void()> &&f) |
| | Defer a callback to the next loop() call with a const char* name.
|
| |
| void | defer (std::function< void()> &&f) |
| | Defer a callback to the next loop() call.
|
| |
| void | defer (uint32_t id, std::function< void()> &&f) |
| | Defer a callback with a numeric ID (zero heap allocation)
|
| |
| bool | cancel_defer (const char *name) |
| | Cancel a defer callback using the specified name, name must not be empty.
|
| |
| bool | cancel_defer (uint32_t id) |
| |
| void | status_clear_warning_slow_path_ () |
| |
| void | status_clear_error_slow_path_ () |
| |
Definition at line 56 of file pylontech.h.

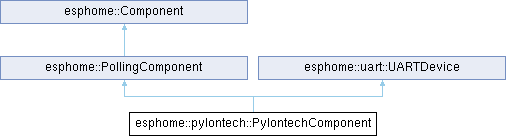

Public Member Functions inherited from esphome::PollingComponent
