Common driver for the NXP PN71xx family of NCI NFC controllers. More...

#include <pn71xx.h>

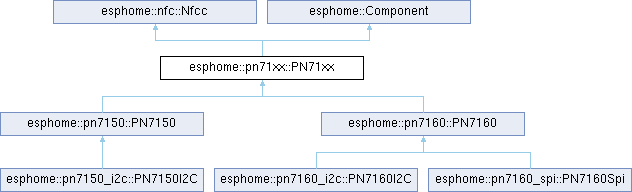

Inheritance diagram for esphome::pn71xx::PN71xx:

Public Member Functions
void	setup () override

void	dump_config () override

void	loop () override

void	set_irq_pin (GPIOPin *irq_pin)

void	set_ven_pin (GPIOPin *ven_pin)

void	set_tag_ttl (uint32_t ttl)

void	set_tag_emulation_message (const std::shared_ptr< nfc::NdefMessage > &message)

void	set_tag_emulation_message (const std::string &message, bool include_android_app_record=true)

void	set_tag_emulation_message (const char *message, bool include_android_app_record=true)

void	set_tag_emulation_off ()

void	set_tag_emulation_on ()

bool	tag_emulation_enabled ()

void	set_polling_off ()

void	set_polling_on ()

bool	polling_enabled ()

void	register_ontag_trigger (nfc::NfcOnTagTrigger *trig)

void	register_ontagremoved_trigger (nfc::NfcOnTagTrigger *trig)

template<typename F >
void	add_on_emulated_tag_scan_callback (F &&callback)

template<typename F >
void	add_on_finished_write_callback (F &&callback)

bool	is_writing ()

void	read_mode ()

void	clean_mode ()

void	format_mode ()

void	write_mode ()

void	set_tag_write_message (std::shared_ptr< nfc::NdefMessage > message)

void	set_tag_write_message (const std::string &message, bool include_android_app_record=true)

uint8_t	set_test_mode (TestMode test_mode, const std::vector< uint8_t > &data, std::vector< uint8_t > &result)

Public Member Functions inherited from esphome::nfc::Nfcc
void	register_listener (NfcTagListener *listener)

Public Member Functions inherited from esphome::Component
virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const LogString *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning ()

void	status_set_warning (const char *message)

void	status_set_warning (const LogString *message)

void	status_set_error ()

void	status_set_error (const LogString *message)

void	status_clear_warning ()

void	status_clear_error ()

	ESPDEPRECATED ("Use status_momentary_warning() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_warning(const char *name

void	status_momentary_warning (uint32_t length=5000)
	Set warning status flag and clear it after `length` ms.

void	status_momentary_warning (const LogString *message, uint32_t length=5000)

	ESPDEPRECATED ("Use status_momentary_error() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_error(const char *name

void	status_momentary_error (uint32_t length=5000)
	Set error status flag and clear it after `length` ms.

void	status_momentary_error (const LogString *message, uint32_t length=5000)

bool	has_overridden_loop () const

const LogString *	get_component_log_str () const ESPHOME_ALWAYS_INLINE
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out)

Protected Types
enum	NfcTask : uint8_t { EP_READ = 0 , EP_CLEAN , EP_FORMAT , EP_WRITE }

Protected Member Functions
uint8_t	reset_core_ (bool reset_config, bool power)

uint8_t	init_core_ ()

virtual void	prepare_reset ()
	Chip hooks Called before the NFCC is reset, e.g.

virtual uint8_t	verify_reset (nfc::NciMessage &rx, bool reset_config)=0
	Validates what follows a successful CORE_RESET_RSP (in `rx`); may read more messages from the NFCC.

virtual uint8_t	process_init_response (nfc::NciMessage &rx)=0
	Logs chip information from a successful CORE_INIT_RSP.

virtual std::span< const uint8_t >	pmu_config () const =0
	Parameters for the CORE_SET_CONFIG_CMD that configures the power management unit.

virtual std::span< const uint8_t >	listen_mode_routing_config () const =0
	Payload of the RF_SET_LISTEN_MODE_ROUTING_CMD.

uint8_t	send_init_config_ ()

uint8_t	send_core_config_ ()

uint8_t	refresh_core_config_ ()

uint8_t	set_discover_map_ ()

uint8_t	set_listen_mode_routing_ ()

uint8_t	start_discovery_ ()

uint8_t	stop_discovery_ ()

uint8_t	deactivate_ (uint8_t type, uint16_t timeout=NFCC_DEFAULT_TIMEOUT)

void	select_endpoint_ ()

uint8_t	read_endpoint_data_ (uint8_t protocol, nfc::NfcTag &tag)

uint8_t	clean_endpoint_ (uint8_t protocol)

uint8_t	format_endpoint_ (uint8_t protocol)

uint8_t	write_endpoint_ (uint8_t protocol, nfc::NfcTagUid &uid, std::shared_ptr< nfc::NdefMessage > &message)

bool	parse_uid_ (uint8_t mode_tech, std::span< const uint8_t > rf_tech_params, nfc::NfcTagUid &uid)
	Reads the UID from the RF technology parameters of a discovery or activation notification.

std::unique_ptr< nfc::NfcTag >	build_tag_ (uint8_t protocol, const nfc::NfcTagUid &uid)

size_t	find_or_add_tag_ (uint8_t protocol, const nfc::NfcTagUid &uid)
	Finds a cached endpoint by UID, or caches a new one, evicting the entry seen longest ago if the cache is full.

optional< size_t >	find_tag_uid_ (const nfc::NfcTagUid &uid)

void	purge_old_tags_ ()

void	erase_tag_ (uint8_t tag_index)

void	nci_fsm_transition_ ()
	advance controller state as required

void	nci_fsm_set_state_ (NCIState new_state)
	set new controller state

bool	nci_fsm_set_error_state_ (NCIState new_state)
	setting controller to this state caused an error; returns true if too many errors/failures

void	process_message_ ()
	parse & process incoming messages from the NFCC

void	process_rf_intf_activated_oid_ (nfc::NciMessage &rx)

void	process_rf_discover_oid_ (nfc::NciMessage &rx)

void	process_rf_deactivate_oid_ (nfc::NciMessage &rx)

void	process_data_message_ (nfc::NciMessage &rx)

void	card_emu_t4t_get_response_ (std::span< const uint8_t > response, CardEmuResponse &ndef_response)

bool	card_emu_t4t_read_ndef_ (uint16_t offset, uint8_t length, CardEmuResponse &ndef_response)

uint8_t	transceive_ (nfc::NciMessage &tx, nfc::NciMessage &rx, uint16_t timeout=NFCC_DEFAULT_TIMEOUT, bool expect_notification=true)

virtual uint8_t	read_nfcc (nfc::NciMessage &rx, uint16_t timeout)=0

virtual uint8_t	write_nfcc (nfc::NciMessage &tx)=0

uint8_t	wait_for_irq_ (uint16_t timeout=NFCC_DEFAULT_TIMEOUT, bool pin_state=true)

uint8_t	read_mifare_classic_tag_ (nfc::NfcTag &tag)

uint8_t	read_mifare_classic_block_ (uint8_t block_num, std::array< uint8_t, nfc::MIFARE_CLASSIC_BLOCK_SIZE > &data)

uint8_t	write_mifare_classic_block_ (uint8_t block_num, const uint8_t *data, size_t len)

uint8_t	auth_mifare_classic_block_ (uint8_t block_num, uint8_t key_num, const uint8_t *key)

uint8_t	sect_to_auth_ (uint8_t block_num)

uint8_t	format_mifare_classic_mifare_ ()

uint8_t	format_mifare_classic_ndef_ ()

uint8_t	write_mifare_classic_tag_ (const std::shared_ptr< nfc::NdefMessage > &message)

uint8_t	halt_mifare_classic_tag_ ()

uint8_t	read_mifare_ultralight_tag_ (nfc::NfcTag &tag)

uint8_t	read_mifare_ultralight_bytes_ (uint8_t start_page, uint16_t num_bytes, UltralightReadBuffer &data)

bool	is_mifare_ultralight_formatted_ (std::span< const uint8_t > page_3_to_6)

uint16_t	read_mifare_ultralight_capacity_ ()

uint8_t	find_mifare_ultralight_ndef_ (std::span< const uint8_t > page_3_to_6, uint8_t &message_length, uint8_t &message_start_index)

uint8_t	write_mifare_ultralight_page_ (uint8_t page_num, const uint8_t *write_data, size_t len)

uint8_t	write_mifare_ultralight_tag_ (nfc::NfcTagUid &uid, const std::shared_ptr< nfc::NdefMessage > &message)

uint8_t	clean_mifare_ultralight_ ()

Protected Member Functions inherited from esphome::Component
friend	void::setup ()

friend	void::original_setup ()

void	set_component_source_ (uint8_t index)
	Set where this component was loaded from for some debug messages.

virtual void	call_setup ()

void	call_dump_config_ ()

void	enable_loop_slow_path_ ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

bool	set_status_flag_ (uint8_t flag)
	Helper to set a status LED flag on both this component and the app.

bool	set_error_flag_ (const LogString *message)
	Set the error flag and log it; true when it was not set before.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a numeric ID (zero heap allocation).

void	set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const char *name)
	Cancel an interval function.

bool	cancel_interval (uint32_t id)

bool	cancel_interval (InternalSchedulerID id)

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a numeric ID (zero heap allocation).

void	set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const char *name)
	Cancel a timeout function.

bool	cancel_timeout (uint32_t id)

bool	cancel_timeout (InternalSchedulerID id)

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (uint32_t id, std::function< void()> &&f)
	Defer a callback with a numeric ID (zero heap allocation)

bool	cancel_defer (const char *name)
	Cancel a defer callback using the specified name, name must not be empty.

bool	cancel_defer (uint32_t id)

void	status_clear_warning_slow_path_ ()

void	status_clear_error_slow_path_ ()

Protected Attributes
LazyCallbackManager< void()>	on_emulated_tag_scan_callback_

LazyCallbackManager< void()>	on_finished_write_callback_

StaticVector< DiscoveredEndpoint, MAX_DISCOVERED_ENDPOINTS >	discovered_endpoint_

FixedVector< uint8_t >	card_emulation_ndef_

StaticVector< nfc::NfcOnTagTrigger *, PN71XX_ON_TAG_TRIGGER_COUNT >	triggers_ontag_

StaticVector< nfc::NfcOnTagTrigger *, PN71XX_ON_TAG_REMOVED_TRIGGER_COUNT >	triggers_ontagremoved_

std::shared_ptr< nfc::NdefMessage >	next_task_message_to_write_

GPIOPin *	irq_pin_ {nullptr}

GPIOPin *	ven_pin_ {nullptr}

uint32_t	last_nci_state_change_ {0}

uint32_t	tag_ttl_ {250}

NfcTask	next_task_ {EP_READ}

CardEmulationState	ce_state_ {CardEmulationState::CARD_EMU_IDLE}

NCIState	nci_state_ {NCIState::NFCC_RESET}

NCIState	nci_state_error_ {NCIState::NONE}

uint8_t	error_count_ {0}

uint8_t	selecting_endpoint_ {0}

bool	config_refresh_pending_ {false}

bool	core_config_is_solo_ {false}

bool	listening_enabled_ {false}

bool	polling_enabled_ {true}

Protected Attributes inherited from esphome::nfc::Nfcc
StaticVector< NfcTagListener *, NFC_TAG_LISTENER_COUNT >	tag_listeners_

Protected Attributes inherited from esphome::Component
uint8_t	component_source_index_ {0}
	Index into component source PROGMEM lookup table (0 = not set)

uint8_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_CS}
	Warn threshold in centiseconds (max 2550ms)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bit 5: Has overridden loop() (set at registration time) Bits 6-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

ComponentRuntimeStats	runtime_stats_

Additional Inherited Members
Data Fields inherited from esphome::Component
uint32_t	length = 5000)

Detailed Description

Common driver for the NXP PN71xx family of NCI NFC controllers.

The chip classes (PN7150, PN7160) supply the parts that differ between chips; the bus classes supply read_nfcc() and write_nfcc().

Definition at line 156 of file pn71xx.h.

Member Enumeration Documentation

◆ NfcTask

enum esphome::pn71xx::PN71xx::NfcTask : uint8_t

protected

Enumerator
EP_READ
EP_CLEAN
EP_FORMAT
EP_WRITE

Definition at line 290 of file pn71xx.h.

Member Function Documentation

◆ add_on_emulated_tag_scan_callback()

template<typename F >

void esphome::pn71xx::PN71xx::add_on_emulated_tag_scan_callback ( F && callback )

inline

Definition at line 184 of file pn71xx.h.

◆ add_on_finished_write_callback()

template<typename F >

void esphome::pn71xx::PN71xx::add_on_finished_write_callback ( F && callback )

inline

Definition at line 188 of file pn71xx.h.

◆ auth_mifare_classic_block_()

uint8_t esphome::pn71xx::PN71xx::auth_mifare_classic_block_	(	uint8_t	block_num,
		uint8_t	key_num,
		const uint8_t *	key )

protected

Definition at line 99 of file pn71xx_mifare_classic.cpp.

◆ build_tag_()

std::unique_ptr< nfc::NfcTag > esphome::pn71xx::PN71xx::build_tag_	(	uint8_t	protocol,
		const nfc::NfcTagUid &	uid )

protected

Definition at line 501 of file pn71xx.cpp.

◆ card_emu_t4t_get_response_()

void esphome::pn71xx::PN71xx::card_emu_t4t_get_response_	(	std::span< const uint8_t >	response,
		CardEmuResponse &	ndef_response )

protected

Definition at line 1032 of file pn71xx.cpp.

◆ card_emu_t4t_read_ndef_()

bool esphome::pn71xx::PN71xx::card_emu_t4t_read_ndef_	(	uint16_t	offset,
		uint8_t	length,
		CardEmuResponse &	ndef_response )

protected

Definition at line 1006 of file pn71xx.cpp.

◆ clean_endpoint_()

uint8_t esphome::pn71xx::PN71xx::clean_endpoint_ ( uint8_t protocol )

protected

Definition at line 437 of file pn71xx.cpp.

◆ clean_mifare_ultralight_()

uint8_t esphome::pn71xx::PN71xx::clean_mifare_ultralight_ ( )

protected

Definition at line 155 of file pn71xx_mifare_ultralight.cpp.

◆ clean_mode()

void esphome::pn71xx::PN71xx::clean_mode ( )

Definition at line 115 of file pn71xx.cpp.

◆ deactivate_()

uint8_t esphome::pn71xx::PN71xx::deactivate_	(	uint8_t	type,
		uint16_t	timeout = NFCC_DEFAULT_TIMEOUT )

protected

Definition at line 375 of file pn71xx.cpp.

◆ dump_config()

void esphome::pn71xx::PN71xx::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 39 of file pn71xx.cpp.

◆ erase_tag_()

void esphome::pn71xx::PN71xx::erase_tag_ ( uint8_t tag_index )

protected

Definition at line 565 of file pn71xx.cpp.

◆ find_mifare_ultralight_ndef_()

uint8_t esphome::pn71xx::PN71xx::find_mifare_ultralight_ndef_	(	std::span< const uint8_t >	page_3_to_6,
		uint8_t &	message_length,
		uint8_t &	message_start_index )

protected

Definition at line 107 of file pn71xx_mifare_ultralight.cpp.

◆ find_or_add_tag_()

size_t esphome::pn71xx::PN71xx::find_or_add_tag_	(	uint8_t	protocol,
		const nfc::NfcTagUid &	uid )

protected

Finds a cached endpoint by UID, or caches a new one, evicting the entry seen longest ago if the cache is full.

Definition at line 511 of file pn71xx.cpp.

◆ find_tag_uid_()

optional< size_t > esphome::pn71xx::PN71xx::find_tag_uid_ ( const nfc::NfcTagUid & uid )

protected

Definition at line 536 of file pn71xx.cpp.

◆ format_endpoint_()

uint8_t esphome::pn71xx::PN71xx::format_endpoint_ ( uint8_t protocol )

protected

Definition at line 452 of file pn71xx.cpp.

◆ format_mifare_classic_mifare_()

uint8_t esphome::pn71xx::PN71xx::format_mifare_classic_mifare_ ( )

protected

Definition at line 149 of file pn71xx_mifare_classic.cpp.

◆ format_mifare_classic_ndef_()

uint8_t esphome::pn71xx::PN71xx::format_mifare_classic_ndef_ ( )

protected

Definition at line 184 of file pn71xx_mifare_classic.cpp.

◆ format_mode()

void esphome::pn71xx::PN71xx::format_mode ( )

Definition at line 120 of file pn71xx.cpp.

◆ halt_mifare_classic_tag_()

uint8_t esphome::pn71xx::PN71xx::halt_mifare_classic_tag_ ( )

protected

Definition at line 309 of file pn71xx_mifare_classic.cpp.

◆ init_core_()

uint8_t esphome::pn71xx::PN71xx::init_core_ ( )

protected

Definition at line 236 of file pn71xx.cpp.

◆ is_mifare_ultralight_formatted_()

bool esphome::pn71xx::PN71xx::is_mifare_ultralight_formatted_ ( std::span< const uint8_t > page_3_to_6 )

protected

Definition at line 90 of file pn71xx_mifare_ultralight.cpp.

◆ is_writing()

bool esphome::pn71xx::PN71xx::is_writing ( )

inline

Definition at line 192 of file pn71xx.h.

◆ listen_mode_routing_config()

virtual std::span< const uint8_t > esphome::pn71xx::PN71xx::listen_mode_routing_config ( ) const

protectedpure virtual

Payload of the RF_SET_LISTEN_MODE_ROUTING_CMD.

Implemented in esphome::pn7150::PN7150, and esphome::pn7160::PN7160.

◆ loop()

void esphome::pn71xx::PN71xx::loop ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 44 of file pn71xx.cpp.

◆ nci_fsm_set_error_state_()

bool esphome::pn71xx::PN71xx::nci_fsm_set_error_state_ ( NCIState new_state )

protected

setting controller to this state caused an error; returns true if too many errors/failures

Definition at line 708 of file pn71xx.cpp.

◆ nci_fsm_set_state_()

void esphome::pn71xx::PN71xx::nci_fsm_set_state_ ( NCIState new_state )

protected

set new controller state

Definition at line 700 of file pn71xx.cpp.

◆ nci_fsm_transition_()

void esphome::pn71xx::PN71xx::nci_fsm_transition_ ( )

protected

advance controller state as required

Definition at line 589 of file pn71xx.cpp.

◆ parse_uid_()

bool esphome::pn71xx::PN71xx::parse_uid_	(	uint8_t	mode_tech,
		std::span< const uint8_t >	rf_tech_params,
		nfc::NfcTagUid &	uid )

protected

Reads the UID from the RF technology parameters of a discovery or activation notification.

Definition at line 483 of file pn71xx.cpp.

◆ pmu_config()

virtual std::span< const uint8_t > esphome::pn71xx::PN71xx::pmu_config ( ) const

protectedpure virtual

Parameters for the CORE_SET_CONFIG_CMD that configures the power management unit.

Implemented in esphome::pn7150::PN7150, and esphome::pn7160::PN7160.

◆ polling_enabled()

bool esphome::pn71xx::PN71xx::polling_enabled ( )

inline

Definition at line 175 of file pn71xx.h.

◆ prepare_reset()

virtual void esphome::pn71xx::PN71xx::prepare_reset ( )

inlineprotectedvirtual

Chip hooks Called before the NFCC is reset, e.g.

to make sure it will not start in firmware download mode

Reimplemented in esphome::pn7160::PN7160.

Definition at line 209 of file pn71xx.h.

◆ process_data_message_()

void esphome::pn71xx::PN71xx::process_data_message_ ( nfc::NciMessage & rx )

protected

Definition at line 988 of file pn71xx.cpp.

◆ process_init_response()

virtual uint8_t esphome::pn71xx::PN71xx::process_init_response ( nfc::NciMessage & rx )

protectedpure virtual

Logs chip information from a successful CORE_INIT_RSP.

Implemented in esphome::pn7150::PN7150, and esphome::pn7160::PN7160.

◆ process_message_()

void esphome::pn71xx::PN71xx::process_message_ ( )

protected

parse & process incoming messages from the NFCC

Definition at line 725 of file pn71xx.cpp.

◆ process_rf_deactivate_oid_()

void esphome::pn71xx::PN71xx::process_rf_deactivate_oid_ ( nfc::NciMessage & rx )

protected

Definition at line 960 of file pn71xx.cpp.

◆ process_rf_discover_oid_()

void esphome::pn71xx::PN71xx::process_rf_discover_oid_ ( nfc::NciMessage & rx )

protected

Definition at line 936 of file pn71xx.cpp.

◆ process_rf_intf_activated_oid_()

void esphome::pn71xx::PN71xx::process_rf_intf_activated_oid_ ( nfc::NciMessage & rx )

protected

Definition at line 820 of file pn71xx.cpp.

◆ purge_old_tags_()

void esphome::pn71xx::PN71xx::purge_old_tags_ ( )

protected

Definition at line 555 of file pn71xx.cpp.

◆ read_endpoint_data_()

uint8_t esphome::pn71xx::PN71xx::read_endpoint_data_	(	uint8_t	protocol,
		nfc::NfcTag &	tag )

protected

Definition at line 420 of file pn71xx.cpp.

◆ read_mifare_classic_block_()

uint8_t esphome::pn71xx::PN71xx::read_mifare_classic_block_	(	uint8_t	block_num,
		std::array< uint8_t, nfc::MIFARE_CLASSIC_BLOCK_SIZE > &	data )

protected

Definition at line 73 of file pn71xx_mifare_classic.cpp.

◆ read_mifare_classic_tag_()

uint8_t esphome::pn71xx::PN71xx::read_mifare_classic_tag_ ( nfc::NfcTag & tag )

protected

Definition at line 13 of file pn71xx_mifare_classic.cpp.

◆ read_mifare_ultralight_bytes_()

uint8_t esphome::pn71xx::PN71xx::read_mifare_ultralight_bytes_	(	uint8_t	start_page,
		uint16_t	num_bytes,
		UltralightReadBuffer &	data )

protected

Definition at line 56 of file pn71xx_mifare_ultralight.cpp.

◆ read_mifare_ultralight_capacity_()

uint16_t esphome::pn71xx::PN71xx::read_mifare_ultralight_capacity_ ( )

protected

Definition at line 98 of file pn71xx_mifare_ultralight.cpp.

◆ read_mifare_ultralight_tag_()

uint8_t esphome::pn71xx::PN71xx::read_mifare_ultralight_tag_ ( nfc::NfcTag & tag )

protected

Definition at line 13 of file pn71xx_mifare_ultralight.cpp.

◆ read_mode()

void esphome::pn71xx::PN71xx::read_mode ( )

Definition at line 110 of file pn71xx.cpp.

◆ read_nfcc()

virtual uint8_t esphome::pn71xx::PN71xx::read_nfcc	(	nfc::NciMessage &	rx,
		uint16_t	timeout )

protectedpure virtual

Implemented in esphome::pn7150_i2c::PN7150I2C, esphome::pn7160_i2c::PN7160I2C, and esphome::pn7160_spi::PN7160Spi.

◆ refresh_core_config_()

uint8_t esphome::pn71xx::PN71xx::refresh_core_config_ ( )

protected

Definition at line 293 of file pn71xx.cpp.

◆ register_ontag_trigger()

void esphome::pn71xx::PN71xx::register_ontag_trigger ( nfc::NfcOnTagTrigger * trig )

inline

Definition at line 178 of file pn71xx.h.

◆ register_ontagremoved_trigger()

void esphome::pn71xx::PN71xx::register_ontagremoved_trigger ( nfc::NfcOnTagTrigger * trig )

inline

Definition at line 181 of file pn71xx.h.

◆ reset_core_()

uint8_t esphome::pn71xx::PN71xx::reset_core_	(	bool	reset_config,
		bool	power )

protected

Definition at line 207 of file pn71xx.cpp.

◆ sect_to_auth_()

uint8_t esphome::pn71xx::PN71xx::sect_to_auth_ ( uint8_t block_num )

protected

Definition at line 140 of file pn71xx_mifare_classic.cpp.

◆ select_endpoint_()

void esphome::pn71xx::PN71xx::select_endpoint_ ( )

protected

Definition at line 387 of file pn71xx.cpp.

◆ send_core_config_()

uint8_t esphome::pn71xx::PN71xx::send_core_config_ ( )

protected

Definition at line 273 of file pn71xx.cpp.

◆ send_init_config_()

uint8_t esphome::pn71xx::PN71xx::send_init_config_ ( )

protected

Definition at line 254 of file pn71xx.cpp.

◆ set_discover_map_()

uint8_t esphome::pn71xx::PN71xx::set_discover_map_ ( )

protected

Definition at line 314 of file pn71xx.cpp.

◆ set_irq_pin()

void esphome::pn71xx::PN71xx::set_irq_pin ( GPIOPin * irq_pin )

inline

Definition at line 162 of file pn71xx.h.

◆ set_listen_mode_routing_()

uint8_t esphome::pn71xx::PN71xx::set_listen_mode_routing_ ( )

protected

Definition at line 327 of file pn71xx.cpp.

◆ set_polling_off()

void esphome::pn71xx::PN71xx::set_polling_off ( )

Definition at line 94 of file pn71xx.cpp.

◆ set_polling_on()

void esphome::pn71xx::PN71xx::set_polling_on ( )

Definition at line 102 of file pn71xx.cpp.

◆ set_tag_emulation_message() [1/3]

void esphome::pn71xx::PN71xx::set_tag_emulation_message	(	const char *	message,
		bool	include_android_app_record = true )

Definition at line 70 of file pn71xx.cpp.

◆ set_tag_emulation_message() [2/3]

void esphome::pn71xx::PN71xx::set_tag_emulation_message ( const std::shared_ptr< nfc::NdefMessage > & message )

Definition at line 49 of file pn71xx.cpp.

◆ set_tag_emulation_message() [3/3]

void esphome::pn71xx::PN71xx::set_tag_emulation_message	(	const std::string &	message,
		bool	include_android_app_record = true )

Definition at line 66 of file pn71xx.cpp.

◆ set_tag_emulation_off()

void esphome::pn71xx::PN71xx::set_tag_emulation_off ( )

Definition at line 74 of file pn71xx.cpp.

◆ set_tag_emulation_on()

void esphome::pn71xx::PN71xx::set_tag_emulation_on ( )

Definition at line 82 of file pn71xx.cpp.

◆ set_tag_ttl()

void esphome::pn71xx::PN71xx::set_tag_ttl ( uint32_t ttl )

inline

Definition at line 165 of file pn71xx.h.

◆ set_tag_write_message() [1/2]

void esphome::pn71xx::PN71xx::set_tag_write_message	(	const std::string &	message,
		bool	include_android_app_record = true )

Definition at line 140 of file pn71xx.cpp.

◆ set_tag_write_message() [2/2]

void esphome::pn71xx::PN71xx::set_tag_write_message ( std::shared_ptr< nfc::NdefMessage > message )

Definition at line 135 of file pn71xx.cpp.

◆ set_test_mode()

uint8_t esphome::pn71xx::PN71xx::set_test_mode	(	TestMode	test_mode,
		const std::vector< uint8_t > &	data,
		std::vector< uint8_t > &	result )

Definition at line 144 of file pn71xx.cpp.

◆ set_ven_pin()

void esphome::pn71xx::PN71xx::set_ven_pin ( GPIOPin * ven_pin )

inline

Definition at line 163 of file pn71xx.h.

◆ setup()

void esphome::pn71xx::PN71xx::setup ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 32 of file pn71xx.cpp.

◆ start_discovery_()

uint8_t esphome::pn71xx::PN71xx::start_discovery_ ( )

protected

Definition at line 339 of file pn71xx.cpp.

◆ stop_discovery_()

uint8_t esphome::pn71xx::PN71xx::stop_discovery_ ( )

protected

Definition at line 373 of file pn71xx.cpp.

◆ tag_emulation_enabled()

bool esphome::pn71xx::PN71xx::tag_emulation_enabled ( )

inline

Definition at line 171 of file pn71xx.h.

◆ transceive_()

uint8_t esphome::pn71xx::PN71xx::transceive_	(	nfc::NciMessage &	tx,
		nfc::NciMessage &	rx,
		uint16_t	timeout = NFCC_DEFAULT_TIMEOUT,
		bool	expect_notification = true )

protected

Definition at line 1107 of file pn71xx.cpp.

◆ verify_reset()

virtual uint8_t esphome::pn71xx::PN71xx::verify_reset	(	nfc::NciMessage &	rx,
		bool	reset_config )

protectedpure virtual

Validates what follows a successful CORE_RESET_RSP (in rx); may read more messages from the NFCC.

Implemented in esphome::pn7150::PN7150, and esphome::pn7160::PN7160.

◆ wait_for_irq_()

uint8_t esphome::pn71xx::PN71xx::wait_for_irq_	(	uint16_t	timeout = NFCC_DEFAULT_TIMEOUT,
		bool	pin_state = true )

protected

Definition at line 1177 of file pn71xx.cpp.

◆ write_endpoint_()

uint8_t esphome::pn71xx::PN71xx::write_endpoint_	(	uint8_t	protocol,
		nfc::NfcTagUid &	uid,
		std::shared_ptr< nfc::NdefMessage > &	message )

protected

Definition at line 467 of file pn71xx.cpp.

◆ write_mifare_classic_block_()

uint8_t esphome::pn71xx::PN71xx::write_mifare_classic_block_	(	uint8_t	block_num,
		const uint8_t *	data,
		size_t	len )

protected

Definition at line 248 of file pn71xx_mifare_classic.cpp.

◆ write_mifare_classic_tag_()

uint8_t esphome::pn71xx::PN71xx::write_mifare_classic_tag_ ( const std::shared_ptr< nfc::NdefMessage > & message )

protected

Definition at line 278 of file pn71xx_mifare_classic.cpp.

◆ write_mifare_ultralight_page_()

uint8_t esphome::pn71xx::PN71xx::write_mifare_ultralight_page_	(	uint8_t	page_num,
		const uint8_t *	write_data,
		size_t	len )

protected

Definition at line 169 of file pn71xx_mifare_ultralight.cpp.

◆ write_mifare_ultralight_tag_()

uint8_t esphome::pn71xx::PN71xx::write_mifare_ultralight_tag_	(	nfc::NfcTagUid &	uid,
		const std::shared_ptr< nfc::NdefMessage > &	message )

protected

Definition at line 127 of file pn71xx_mifare_ultralight.cpp.

◆ write_mode()

void esphome::pn71xx::PN71xx::write_mode ( )

Definition at line 125 of file pn71xx.cpp.

◆ write_nfcc()

virtual uint8_t esphome::pn71xx::PN71xx::write_nfcc ( nfc::NciMessage & tx )

protectedpure virtual

Implemented in esphome::pn7150_i2c::PN7150I2C, esphome::pn7160_i2c::PN7160I2C, and esphome::pn7160_spi::PN7160Spi.

Field Documentation

◆ card_emulation_ndef_

FixedVector<uint8_t> esphome::pn71xx::PN71xx::card_emulation_ndef_

protected

Definition at line 302 of file pn71xx.h.

◆ ce_state_

CardEmulationState esphome::pn71xx::PN71xx::ce_state_ {CardEmulationState::CARD_EMU_IDLE}

protected

Definition at line 318 of file pn71xx.h.

◆ config_refresh_pending_

bool esphome::pn71xx::PN71xx::config_refresh_pending_ {false}

protected

Definition at line 324 of file pn71xx.h.

◆ core_config_is_solo_

bool esphome::pn71xx::PN71xx::core_config_is_solo_ {false}

protected

Definition at line 325 of file pn71xx.h.

◆ discovered_endpoint_

StaticVector<DiscoveredEndpoint, MAX_DISCOVERED_ENDPOINTS> esphome::pn71xx::PN71xx::discovered_endpoint_

protected

Definition at line 301 of file pn71xx.h.

◆ error_count_

uint8_t esphome::pn71xx::PN71xx::error_count_ {0}

protected

Definition at line 321 of file pn71xx.h.

◆ irq_pin_

GPIOPin* esphome::pn71xx::PN71xx::irq_pin_ {nullptr}

protected

Definition at line 311 of file pn71xx.h.

◆ last_nci_state_change_

uint32_t esphome::pn71xx::PN71xx::last_nci_state_change_ {0}

protected

Definition at line 314 of file pn71xx.h.

◆ listening_enabled_

bool esphome::pn71xx::PN71xx::listening_enabled_ {false}

protected

Definition at line 326 of file pn71xx.h.

◆ nci_state_

NCIState esphome::pn71xx::PN71xx::nci_state_ {NCIState::NFCC_RESET}

protected

Definition at line 319 of file pn71xx.h.

◆ nci_state_error_

NCIState esphome::pn71xx::PN71xx::nci_state_error_ {NCIState::NONE}

protected

Definition at line 320 of file pn71xx.h.

◆ next_task_

NfcTask esphome::pn71xx::PN71xx::next_task_ {EP_READ}

protected

Definition at line 317 of file pn71xx.h.

◆ next_task_message_to_write_

std::shared_ptr<nfc::NdefMessage> esphome::pn71xx::PN71xx::next_task_message_to_write_

protected

Definition at line 309 of file pn71xx.h.

◆ on_emulated_tag_scan_callback_

LazyCallbackManager<void()> esphome::pn71xx::PN71xx::on_emulated_tag_scan_callback_

protected

Definition at line 298 of file pn71xx.h.

◆ on_finished_write_callback_

LazyCallbackManager<void()> esphome::pn71xx::PN71xx::on_finished_write_callback_

protected

Definition at line 299 of file pn71xx.h.

◆ polling_enabled_

bool esphome::pn71xx::PN71xx::polling_enabled_ {true}

protected

Definition at line 327 of file pn71xx.h.

◆ selecting_endpoint_

uint8_t esphome::pn71xx::PN71xx::selecting_endpoint_ {0}

protected

Definition at line 322 of file pn71xx.h.

◆ tag_ttl_

uint32_t esphome::pn71xx::PN71xx::tag_ttl_ {250}

protected

Definition at line 315 of file pn71xx.h.

◆ triggers_ontag_

StaticVector<nfc::NfcOnTagTrigger *, PN71XX_ON_TAG_TRIGGER_COUNT> esphome::pn71xx::PN71xx::triggers_ontag_

protected

Definition at line 304 of file pn71xx.h.

◆ triggers_ontagremoved_

StaticVector<nfc::NfcOnTagTrigger *, PN71XX_ON_TAG_REMOVED_TRIGGER_COUNT> esphome::pn71xx::PN71xx::triggers_ontagremoved_

protected

Definition at line 307 of file pn71xx.h.

◆ ven_pin_

GPIOPin* esphome::pn71xx::PN71xx::ven_pin_ {nullptr}

protected

Definition at line 312 of file pn71xx.h.

The documentation for this class was generated from the following files:

esphome/components/pn71xx/pn71xx.h
esphome/components/pn71xx/pn71xx.cpp
esphome/components/pn71xx/pn71xx_mifare_classic.cpp
esphome/components/pn71xx/pn71xx_mifare_ultralight.cpp

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ NfcTask

Member Function Documentation

◆ add_on_emulated_tag_scan_callback()

◆ add_on_finished_write_callback()

◆ auth_mifare_classic_block_()

◆ build_tag_()

◆ card_emu_t4t_get_response_()

◆ card_emu_t4t_read_ndef_()

◆ clean_endpoint_()

◆ clean_mifare_ultralight_()

◆ clean_mode()

◆ deactivate_()

◆ dump_config()

◆ erase_tag_()

◆ find_mifare_ultralight_ndef_()

◆ find_or_add_tag_()

◆ find_tag_uid_()

◆ format_endpoint_()

◆ format_mifare_classic_mifare_()

◆ format_mifare_classic_ndef_()

◆ format_mode()

◆ halt_mifare_classic_tag_()

◆ init_core_()

◆ is_mifare_ultralight_formatted_()

◆ is_writing()

◆ listen_mode_routing_config()

◆ loop()

◆ nci_fsm_set_error_state_()

◆ nci_fsm_set_state_()

◆ nci_fsm_transition_()

◆ parse_uid_()

◆ pmu_config()

◆ polling_enabled()

◆ prepare_reset()

◆ process_data_message_()

◆ process_init_response()

◆ process_message_()

◆ process_rf_deactivate_oid_()

◆ process_rf_discover_oid_()

◆ process_rf_intf_activated_oid_()

◆ purge_old_tags_()

◆ read_endpoint_data_()

◆ read_mifare_classic_block_()

◆ read_mifare_classic_tag_()

◆ read_mifare_ultralight_bytes_()

◆ read_mifare_ultralight_capacity_()

◆ read_mifare_ultralight_tag_()

◆ read_mode()

◆ read_nfcc()

◆ refresh_core_config_()

◆ register_ontag_trigger()

◆ register_ontagremoved_trigger()

◆ reset_core_()

◆ sect_to_auth_()

◆ select_endpoint_()

◆ send_core_config_()

◆ send_init_config_()

◆ set_discover_map_()

◆ set_irq_pin()

◆ set_listen_mode_routing_()

◆ set_polling_off()

◆ set_polling_on()

◆ set_tag_emulation_message() [1/3]

◆ set_tag_emulation_message() [2/3]

◆ set_tag_emulation_message() [3/3]

◆ set_tag_emulation_off()

◆ set_tag_emulation_on()

◆ set_tag_ttl()

◆ set_tag_write_message() [1/2]

◆ set_tag_write_message() [2/2]

◆ set_test_mode()

◆ set_ven_pin()

◆ setup()
