#include <demo_valve.h>

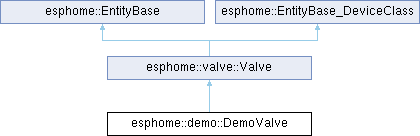

Inheritance diagram for esphome::demo::DemoValve:

Public Member Functions
valve::ValveTraits	get_traits () override

void	set_type (DemoValveType type)

Public Member Functions inherited from esphome::valve::Valve
	Valve ()

ValveCall	make_call ()
	Construct a new valve call used to control the valve.

template<typename F >
void	add_on_state_callback (F &&f)

void	publish_state (bool save=true)
	Publish the current state of the valve.

bool	is_fully_open () const
	Helper method to check if the valve is fully open. Equivalent to comparing .position against 1.0.

bool	is_fully_closed () const
	Helper method to check if the valve is fully closed. Equivalent to comparing .position against 0.0.

Public Member Functions inherited from esphome::EntityBase
	ESPDEPRECATED ("Use get_name_to() or get_log_name() instead. Will be removed in ESPHome 2027.5.0", "2026.11.0") const StringRef &get_name() const
	The name is in flash here; the first call makes a RAM copy that is kept for the life of the device.

StringRef	get_name_to (std::span< char, ENTITY_NAME_BUF_SIZE > buffer) const
	Get the name of this Entity, copied out of flash into buffer.

	ESPDEPRECATED ("Use get_name_to() or get_log_name() instead. Will be removed in ESPHome 2027.5.0", "2026.11.0") const StringRef &get_name() const

const StringRef &	get_name_to (std::span< char, ENTITY_NAME_BUF_SIZE >) const

bool	name_equals (const StringRef &other) const

const ProgmemStringRef &	get_name_progmem () const
	The name as stored, for consumers that read flash themselves (e.g. API progmem fields).

size_t	write_name_to (char *buf, size_t buf_size) const
	Copy the name into buf (null terminated), returns its length.

const LogString *	get_log_name () const
	Get the name for a "%s" log argument (LOG_STR_ARG).

bool	has_own_name () const

uint32_t	get_object_id_hash () const

StringRef	get_object_id_to (std::span< char, OBJECT_ID_MAX_LEN > buf) const
	Get object_id with zero heap allocation For static case: returns StringRef to internal storage (buffer unused) For dynamic case: formats into buffer and returns StringRef to buffer.

size_t	write_object_id_to (char *buf, size_t buf_size) const
	Write object_id directly to buffer, returns length written (excluding null) Useful for building compound strings without intermediate buffer.

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

EntityCategory	get_entity_category () const

const char *	get_device_class_to (std::span< char, MAX_DEVICE_CLASS_LENGTH > buffer) const

ProgmemStringRef	get_device_class_progmem () const
	The device class as stored (in flash on ESP8266), for consumers that read flash themselves.

StringRef	get_unit_of_measurement_ref () const

const char *	get_icon_to (std::span< char, MAX_ICON_LENGTH > buffer) const

ProgmemStringRef	get_icon_progmem () const
	The icon as stored (in flash on ESP8266), for consumers that read flash themselves.

uint32_t	get_device_id () const

Device *	get_device () const

bool	has_state () const

void	set_has_state (bool state)

	ESPDEPRECATED ("Use make_entity_preference<T>() instead, or preferences won't be migrated. " "See https://github.com/esphome/backlog/issues/85. Will be removed in 2027.1.0.", "2026.7.0") uint32_t get_preference_hash()
	Get a unique hash for storing preferences/settings for this entity.

template<typename T >
ESPPreferenceObject	make_entity_preference (uint32_t version=0)
	Create a preference object for storing this entity's state/settings.

template<typename T >
ESPPreferenceObject	make_entity_preference (uint32_t version, bool in_flash)
	As make_entity_preference(), stored in flash or RTC memory where the backend supports the choice.

Protected Member Functions
void	control (const valve::ValveCall &call) override

Protected Member Functions inherited from esphome::valve::Valve
optional< ValveRestoreState >	restore_state_ ()

Protected Member Functions inherited from esphome::EntityBase
friend	void::setup ()

friend	void::original_setup ()

void	configure_entity_ (const char *name, uint32_t object_id_hash, uint32_t entity_fields)
	Combined entity setup from codegen: set name, object_id hash, entity string indices, and flags.

void	set_device_ (Device *device)

ESPPreferenceObject	make_entity_preference_ (size_t size, uint32_t version)
	Non-template helpers for make_entity_preference() to avoid code bloat.

ESPPreferenceObject	make_entity_preference_ (size_t size, uint32_t version, bool in_flash)

uint32_t	entity_preference_key_ (uint32_t version)
	Key for both helpers; preference hash migration goes here.

Protected Attributes
DemoValveType	type_ {}

Protected Attributes inherited from esphome::valve::Valve
friend	ValveCall

LazyCallbackManager< void()>	state_callback_ {}

ESPPreferenceObject	rtc_

Protected Attributes inherited from esphome::EntityBase
ProgmemStringRef	name_

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

uint8_t	device_class_idx_ {}

uint8_t	uom_idx_ {}

uint8_t	icon_idx_ {}

Additional Inherited Members
Data Fields inherited from esphome::valve::Valve
ValveOperation	current_operation {VALVE_OPERATION_IDLE}
	The current operation of the valve (idle, opening, closing).

float	position
	The position of the valve from 0.0 (fully closed) to 1.0 (fully open).

Detailed Description

Definition at line 12 of file demo_valve.h.

Member Function Documentation

◆ control()

void esphome::demo::DemoValve::control ( const valve::ValveCall & call )

inlineoverrideprotectedvirtual

Implements esphome::valve::Valve.

Definition at line 27 of file demo_valve.h.

◆ get_traits()

valve::ValveTraits esphome::demo::DemoValve::get_traits ( )

inlineoverridevirtual

Implements esphome::valve::Valve.

Definition at line 14 of file demo_valve.h.

◆ set_type()

void esphome::demo::DemoValve::set_type ( DemoValveType type )

inline

Definition at line 24 of file demo_valve.h.

Field Documentation

◆ type_

DemoValveType esphome::demo::DemoValve::type_ {}

protected

Definition at line 52 of file demo_valve.h.

The documentation for this class was generated from the following file:

esphome/components/demo/demo_valve.h
