#include <datetime_entity.h>

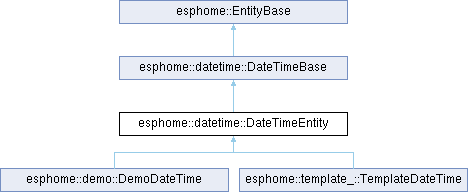

Inheritance diagram for esphome::datetime::DateTimeEntity:

Public Member Functions
void	publish_state ()

DateTimeCall	make_call ()

ESPTime	state_as_esptime () const override

Public Member Functions inherited from esphome::datetime::DateTimeBase
template<typename F >
void	add_on_state_callback (F &&callback)

void	set_rtc (time::RealTimeClock *rtc)

time::RealTimeClock *	get_rtc () const

Public Member Functions inherited from esphome::EntityBase
	ESPDEPRECATED ("Use get_name_to() or get_log_name() instead. Will be removed in ESPHome 2027.5.0", "2026.11.0") const StringRef &get_name() const
	The name is in flash here; the first call makes a RAM copy that is kept for the life of the device.

StringRef	get_name_to (std::span< char, ENTITY_NAME_BUF_SIZE > buffer) const
	Get the name of this Entity, copied out of flash into buffer.

	ESPDEPRECATED ("Use get_name_to() or get_log_name() instead. Will be removed in ESPHome 2027.5.0", "2026.11.0") const StringRef &get_name() const

const StringRef &	get_name_to (std::span< char, ENTITY_NAME_BUF_SIZE >) const

bool	name_equals (const StringRef &other) const

const ProgmemStringRef &	get_name_progmem () const
	The name as stored, for consumers that read flash themselves (e.g. API progmem fields).

size_t	write_name_to (char *buf, size_t buf_size) const
	Copy the name into buf (null terminated), returns its length.

const LogString *	get_log_name () const
	Get the name for a "%s" log argument (LOG_STR_ARG).

bool	has_own_name () const

uint32_t	get_object_id_hash () const

StringRef	get_object_id_to (std::span< char, OBJECT_ID_MAX_LEN > buf) const
	Get object_id with zero heap allocation For static case: returns StringRef to internal storage (buffer unused) For dynamic case: formats into buffer and returns StringRef to buffer.

size_t	write_object_id_to (char *buf, size_t buf_size) const
	Write object_id directly to buffer, returns length written (excluding null) Useful for building compound strings without intermediate buffer.

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

EntityCategory	get_entity_category () const

const char *	get_device_class_to (std::span< char, MAX_DEVICE_CLASS_LENGTH > buffer) const

ProgmemStringRef	get_device_class_progmem () const
	The device class as stored (in flash on ESP8266), for consumers that read flash themselves.

StringRef	get_unit_of_measurement_ref () const

const char *	get_icon_to (std::span< char, MAX_ICON_LENGTH > buffer) const

ProgmemStringRef	get_icon_progmem () const
	The icon as stored (in flash on ESP8266), for consumers that read flash themselves.

uint32_t	get_device_id () const

Device *	get_device () const

bool	has_state () const

void	set_has_state (bool state)

	ESPDEPRECATED ("Use make_entity_preference<T>() instead, or preferences won't be migrated. " "See https://github.com/esphome/backlog/issues/85. Will be removed in 2027.1.0.", "2026.7.0") uint32_t get_preference_hash()
	Get a unique hash for storing preferences/settings for this entity.

template<typename T >
ESPPreferenceObject	make_entity_preference (uint32_t version=0)
	Create a preference object for storing this entity's state/settings.

template<typename T >
ESPPreferenceObject	make_entity_preference (uint32_t version, bool in_flash)
	As make_entity_preference(), stored in flash or RTC memory where the backend supports the choice.

Data Fields
const uint16_t &	year = year_

const uint8_t &	month = month_

const uint8_t &	day = day_

const uint8_t &	hour = hour_

const uint8_t &	minute = minute_

const uint8_t &	second = second_

Protected Member Functions
virtual void	control (const DateTimeCall &call)=0

Protected Member Functions inherited from esphome::EntityBase
friend	void::setup ()

friend	void::original_setup ()

void	configure_entity_ (const char *name, uint32_t object_id_hash, uint32_t entity_fields)
	Combined entity setup from codegen: set name, object_id hash, entity string indices, and flags.

void	set_device_ (Device *device)

ESPPreferenceObject	make_entity_preference_ (size_t size, uint32_t version)
	Non-template helpers for make_entity_preference() to avoid code bloat.

ESPPreferenceObject	make_entity_preference_ (size_t size, uint32_t version, bool in_flash)

uint32_t	entity_preference_key_ (uint32_t version)
	Key for both helpers; preference hash migration goes here.

Protected Attributes
uint16_t	year_

uint8_t	month_

uint8_t	day_

uint8_t	hour_

uint8_t	minute_

uint8_t	second_

Protected Attributes inherited from esphome::datetime::DateTimeBase
LazyCallbackManager< void()>	state_callback_

time::RealTimeClock *	rtc_

Protected Attributes inherited from esphome::EntityBase
ProgmemStringRef	name_

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

uint8_t	device_class_idx_ {}

uint8_t	uom_idx_ {}

uint8_t	icon_idx_ {}

Detailed Description

Definition at line 35 of file datetime_entity.h.

Member Function Documentation

◆ control()

virtual void esphome::datetime::DateTimeEntity::control ( const DateTimeCall & call )

protectedpure virtual

Implemented in esphome::demo::DemoDateTime, and esphome::template_::TemplateDateTime.

◆ make_call()

DateTimeCall esphome::datetime::DateTimeEntity::make_call ( )

inline

Definition at line 123 of file datetime_entity.h.

◆ publish_state()

void esphome::datetime::DateTimeEntity::publish_state ( )

Definition at line 12 of file datetime_entity.cpp.

◆ state_as_esptime()

ESPTime esphome::datetime::DateTimeEntity::state_as_esptime ( ) const

overridevirtual

Implements esphome::datetime::DateTimeBase.

Definition at line 56 of file datetime_entity.cpp.

Field Documentation

◆ day

const uint8_t& esphome::datetime::DateTimeEntity::day = day_

Definition at line 52 of file datetime_entity.h.

◆ day_

uint8_t esphome::datetime::DateTimeEntity::day_

protected

Definition at line 39 of file datetime_entity.h.

◆ hour

const uint8_t& esphome::datetime::DateTimeEntity::hour = hour_

Definition at line 53 of file datetime_entity.h.

◆ hour_

uint8_t esphome::datetime::DateTimeEntity::hour_

protected

Definition at line 40 of file datetime_entity.h.

◆ minute

const uint8_t& esphome::datetime::DateTimeEntity::minute = minute_

Definition at line 54 of file datetime_entity.h.

◆ minute_

uint8_t esphome::datetime::DateTimeEntity::minute_

protected

Definition at line 41 of file datetime_entity.h.

◆ month

const uint8_t& esphome::datetime::DateTimeEntity::month = month_

Definition at line 51 of file datetime_entity.h.

◆ month_

uint8_t esphome::datetime::DateTimeEntity::month_

protected

Definition at line 38 of file datetime_entity.h.

◆ second

const uint8_t& esphome::datetime::DateTimeEntity::second = second_

Definition at line 55 of file datetime_entity.h.

◆ second_

uint8_t esphome::datetime::DateTimeEntity::second_

protected

Definition at line 42 of file datetime_entity.h.

◆ year

const uint16_t& esphome::datetime::DateTimeEntity::year = year_

Definition at line 50 of file datetime_entity.h.

◆ year_

uint16_t esphome::datetime::DateTimeEntity::year_

protected

Definition at line 37 of file datetime_entity.h.

The documentation for this class was generated from the following files:

esphome/components/datetime/datetime_entity.h
esphome/components/datetime/datetime_entity.cpp
