Base class for all cover devices. More...

#include <cover.h>

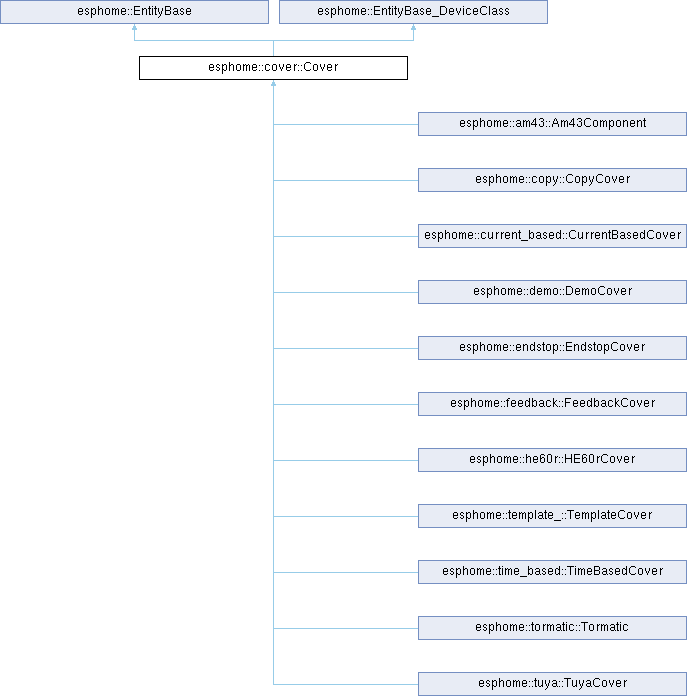

Inheritance diagram for esphome::cover::Cover:

Public Member Functions
	Cover ()

CoverCall	make_call ()
	Construct a new cover call used to control the cover.

void	add_on_state_callback (std::function< void()> &&f)

void	publish_state (bool save=true)
	Publish the current state of the cover.

virtual CoverTraits	get_traits ()=0

bool	is_fully_open () const
	Helper method to check if the cover is fully open. Equivalent to comparing .position against 1.0.

bool	is_fully_closed () const
	Helper method to check if the cover is fully closed. Equivalent to comparing .position against 0.0.

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

bool	has_own_name () const

std::string	get_object_id () const

void	set_object_id (const char *object_id)

uint32_t	get_object_id_hash ()

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

ESPDEPRECATED("Use get_icon_ref() instead for better performance (avoids string copy). Will be removed in ESPHome 2026.5.0", "2025.11.0") std void	set_icon (const char *icon)

StringRef	get_icon_ref () const

uint32_t	get_device_id () const

void	set_device (Device *device)

bool	has_state () const

void	set_has_state (bool state)

uint32_t	get_preference_hash ()
	Get a unique hash for storing preferences/settings for this entity.

Public Member Functions inherited from esphome::EntityBase_DeviceClass
ESPDEPRECATED("Use get_device_class_ref() instead for better performance (avoids string copy). Will be removed in " "ESPHome 2026.5.0", "2025.11.0") std void	set_device_class (const char *device_class)
	Get the device class, using the manual override if set.

StringRef	get_device_class_ref () const
	Get the device class as StringRef.

Data Fields
CoverOperation	current_operation {COVER_OPERATION_IDLE}
	The current operation of the cover (idle, opening, closing).

float	position
	The position of the cover from 0.0 (fully closed) to 1.0 (fully open).

float	tilt {COVER_OPEN}
	The current tilt value of the cover from 0.0 to 1.0.

Protected Member Functions
virtual void	control (const CoverCall &call)=0

optional< CoverRestoreState >	restore_state_ ()

Protected Member Functions inherited from esphome::EntityBase
StringRef	get_object_id_ref_for_api_ () const

void	calc_object_id_ ()

bool	is_object_id_dynamic_ () const
	Check if the object_id is dynamic (changes with MAC suffix)

Protected Attributes
friend	CoverCall

CallbackManager< void()>	state_callback_ {}

ESPPreferenceObject	rtc_

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	object_id_c_str_ {nullptr}

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

Protected Attributes inherited from esphome::EntityBase_DeviceClass
const char *	device_class_ {nullptr}
	Device class override.

Detailed Description

Base class for all cover devices.

Covers currently have three properties:

position - The current position of the cover from 0.0 (fully closed) to 1.0 (fully open). For covers with only binary OPEN/CLOSED position this will always be either 0.0 or 1.0
tilt - The tilt value of the cover from 0.0 (closed) to 1.0 (closed)
current_operation - The operation the cover is currently performing, this can be one of IDLE, OPENING and CLOSING.

For users: All cover operations must be performed over the .make_call() interface. To command a cover, use .make_call() to create a call object, set all properties you wish to set, and activate the command with .perform(). For reading out the current values of the cover, use the public .position, .tilt etc properties (these are read-only for users)

For integrations: Integrations must implement two methods: control() and get_traits(). Control will be called with the arguments supplied by the user and should be used to control all values of the cover. Also implement get_traits() to return what operations the cover supports.

Definition at line 112 of file cover.h.

Constructor & Destructor Documentation

◆ Cover()

esphome::cover::Cover::Cover ( )

explicit

Definition at line 39 of file cover.cpp.

Member Function Documentation

◆ add_on_state_callback()

void esphome::cover::Cover::add_on_state_callback ( std::function< void()> && f )

Definition at line 152 of file cover.cpp.

◆ control()

virtual void esphome::cover::Cover::control ( const CoverCall & call )

protectedpure virtual

Implemented in esphome::am43::Am43Component, esphome::copy::CopyCover, esphome::current_based::CurrentBasedCover, esphome::demo::DemoCover, esphome::endstop::EndstopCover, esphome::feedback::FeedbackCover, esphome::he60r::HE60rCover, esphome::template_::TemplateCover, esphome::time_based::TimeBasedCover, esphome::tormatic::Tormatic, and esphome::tuya::TuyaCover.

◆ get_traits()

virtual CoverTraits esphome::cover::Cover::get_traits ( )

pure virtual

Implemented in esphome::am43::Am43Component, esphome::copy::CopyCover, esphome::current_based::CurrentBasedCover, esphome::demo::DemoCover, esphome::endstop::EndstopCover, esphome::feedback::FeedbackCover, esphome::he60r::HE60rCover, esphome::template_::TemplateCover, esphome::time_based::TimeBasedCover, esphome::tormatic::Tormatic, and esphome::tuya::TuyaCover.

◆ is_fully_closed()

bool esphome::cover::Cover::is_fully_closed ( ) const

Helper method to check if the cover is fully closed. Equivalent to comparing .position against 0.0.

Definition at line 199 of file cover.cpp.

◆ is_fully_open()

bool esphome::cover::Cover::is_fully_open ( ) const

Helper method to check if the cover is fully open. Equivalent to comparing .position against 1.0.

Definition at line 198 of file cover.cpp.

◆ make_call()

CoverCall esphome::cover::Cover::make_call ( )

Construct a new cover call used to control the cover.

Definition at line 150 of file cover.cpp.

◆ publish_state()

void esphome::cover::Cover::publish_state ( bool save = true )

Publish the current state of the cover.

First set the .position, .tilt, etc values and then call this method to publish the state of the cover.

Parameters

save	Whether to save the updated values in RTC area.

Definition at line 153 of file cover.cpp.

◆ restore_state_()

optional< CoverRestoreState > esphome::cover::Cover::restore_state_ ( )

protected

Definition at line 190 of file cover.cpp.

Field Documentation

◆ CoverCall

friend esphome::cover::Cover::CoverCall

protected

Definition at line 149 of file cover.h.

◆ current_operation

CoverOperation esphome::cover::Cover::current_operation {COVER_OPERATION_IDLE}

The current operation of the cover (idle, opening, closing).

Definition at line 117 of file cover.h.

◆ position

float esphome::cover::Cover::position

The position of the cover from 0.0 (fully closed) to 1.0 (fully open).

For binary covers this is always equals to 0.0 or 1.0 (see also COVER_OPEN and COVER_CLOSED constants).

Definition at line 123 of file cover.h.

◆ rtc_

ESPPreferenceObject esphome::cover::Cover::rtc_

protected

Definition at line 157 of file cover.h.

◆ state_callback_

CallbackManager<void()> esphome::cover::Cover::state_callback_ {}

protected

Definition at line 155 of file cover.h.

◆ tilt

float esphome::cover::Cover::tilt {COVER_OPEN}

The current tilt value of the cover from 0.0 to 1.0.

Definition at line 125 of file cover.h.

The documentation for this class was generated from the following files:

esphome/components/cover/cover.h
esphome/components/cover/cover.cpp
