#include <bang_bang_climate.h>

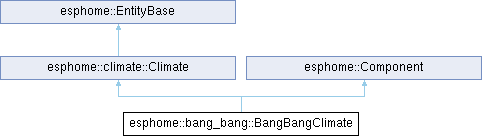

Inheritance diagram for esphome::bang_bang::BangBangClimate:

Public Member Functions
	BangBangClimate ()

void	setup () override

void	dump_config () override

void	set_sensor (sensor::Sensor *sensor)

void	set_humidity_sensor (sensor::Sensor *humidity_sensor)

void	set_supports_cool (bool supports_cool)

void	set_supports_heat (bool supports_heat)

void	set_normal_config (const BangBangClimateTargetTempConfig &normal_config)

void	set_away_config (const BangBangClimateTargetTempConfig &away_config)

Trigger *	get_idle_trigger () const

Trigger *	get_cool_trigger () const

Trigger *	get_heat_trigger () const

Public Member Functions inherited from esphome::climate::Climate
	Climate ()

void	add_on_state_callback (std::function< void(Climate &)> &&callback)
	Add a callback for the climate device state, each time the state of the climate device is updated (using publish_state), this callback will be called.

void	add_on_control_callback (std::function< void(ClimateCall &)> &&callback)
	Add a callback for the climate device configuration; each time the configuration parameters of a climate device is updated (using perform() of a ClimateCall), this callback will be called, before any on_state callback.

ClimateCall	make_call ()
	Make a climate device control call, this is used to control the climate device, see the ClimateCall description for more info.

void	publish_state ()
	Publish the state of the climate device, to be called from integrations.

ClimateTraits	get_traits ()
	Get the traits of this climate device with all overrides applied.

void	set_visual_min_temperature_override (float visual_min_temperature_override)

void	set_visual_max_temperature_override (float visual_max_temperature_override)

void	set_visual_temperature_step_override (float target, float current)

void	set_visual_min_humidity_override (float visual_min_humidity_override)

void	set_visual_max_humidity_override (float visual_max_humidity_override)

bool	has_custom_fan_mode () const
	Check if a custom fan mode is currently active.

bool	has_custom_preset () const
	Check if a custom preset is currently active.

const char *	get_custom_fan_mode () const
	Get the active custom fan mode (read-only access).

const char *	get_custom_preset () const
	Get the active custom preset (read-only access).

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

bool	has_own_name () const

std::string	get_object_id () const

void	set_object_id (const char *object_id)

uint32_t	get_object_id_hash ()

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

ESPDEPRECATED("Use get_icon_ref() instead for better performance (avoids string copy). Will be removed in ESPHome 2026.5.0", "2025.11.0") std void	set_icon (const char *icon)

StringRef	get_icon_ref () const

uint32_t	get_device_id () const

void	set_device (Device *device)

bool	has_state () const

void	set_has_state (bool state)

uint32_t	get_preference_hash ()
	Get a unique hash for storing preferences/settings for this entity.

Public Member Functions inherited from esphome::Component
virtual void	loop ()
	This method will be called repeatedly.

virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message=nullptr)

void	status_set_warning (const LogString *message)

void	status_set_error (const char *message=nullptr)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const LogString *source)
	Set where this component was loaded from for some debug messages.

const LogString *	get_component_log_str () const
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time)

Protected Member Functions
void	control (const climate::ClimateCall &call) override
	Override control to change settings of the climate device.

void	change_away_ (bool away)
	Change the away setting, will reset target temperatures to defaults.

climate::ClimateTraits	traits () override
	Return the traits of this controller.

void	compute_state_ ()
	Re-compute the state of this climate controller.

void	switch_to_action_ (climate::ClimateAction action)
	Switch the climate device to the given climate mode.

Protected Member Functions inherited from esphome::climate::Climate
bool	set_fan_mode_ (ClimateFanMode mode)
	Set fan mode. Reset custom fan mode. Return true if fan mode has been changed.

bool	set_custom_fan_mode_ (const char *mode)
	Set custom fan mode. Reset primary fan mode. Return true if fan mode has been changed.

void	clear_custom_fan_mode_ ()
	Clear custom fan mode.

bool	set_preset_ (ClimatePreset preset)
	Set preset. Reset custom preset. Return true if preset has been changed.

bool	set_custom_preset_ (const char *preset)
	Set custom preset. Reset primary preset. Return true if preset has been changed.

void	clear_custom_preset_ ()
	Clear custom preset.

const char *	find_custom_fan_mode_ (const char *custom_fan_mode)
	Find and return the matching custom fan mode pointer from traits, or nullptr if not found.

const char *	find_custom_preset_ (const char *custom_preset)
	Find and return the matching custom preset pointer from traits, or nullptr if not found.

optional< ClimateDeviceRestoreState >	restore_state_ ()
	Restore the state of the climate device, call this from your setup() method.

void	save_state_ ()
	Internal method to save the state of the climate device to recover memory.

void	dump_traits_ (const char *tag)

Protected Member Functions inherited from esphome::EntityBase
StringRef	get_object_id_ref_for_api_ () const

void	calc_object_id_ ()

bool	is_object_id_dynamic_ () const
	Check if the object_id is dynamic (changes with MAC suffix)

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_setup ()

virtual void	call_dump_config ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes
sensor::Sensor *	sensor_ {nullptr}
	The sensor used for getting the current temperature.

sensor::Sensor *	humidity_sensor_ {nullptr}
	The sensor used for getting the current humidity.

Trigger *	idle_trigger_ {nullptr}
	The trigger to call when the controller should switch to idle mode.

Trigger *	cool_trigger_ {nullptr}
	The trigger to call when the controller should switch to cooling mode.

Trigger *	heat_trigger_ {nullptr}
	The trigger to call when the controller should switch to heating mode.

Trigger *	prev_trigger_ {nullptr}
	A reference to the trigger that was previously active.

bool	supports_cool_ {false}
	Whether the controller supports cooling/heating.

bool	supports_heat_ {false}

bool	supports_away_ {false}

BangBangClimateTargetTempConfig	normal_config_ {}

BangBangClimateTargetTempConfig	away_config_ {}

Protected Attributes inherited from esphome::climate::Climate
friend	ClimateCall

CallbackManager< void(Climate &)>	state_callback_ {}

CallbackManager< void(ClimateCall &)>	control_callback_ {}

ESPPreferenceObject	rtc_

optional< float >	visual_min_temperature_override_ {}

optional< float >	visual_max_temperature_override_ {}

optional< float >	visual_target_temperature_step_override_ {}

optional< float >	visual_current_temperature_step_override_ {}

optional< float >	visual_min_humidity_override_ {}

optional< float >	visual_max_humidity_override_ {}

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	object_id_c_str_ {nullptr}

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

Protected Attributes inherited from esphome::Component
const LogString *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Additional Inherited Members
Data Fields inherited from esphome::climate::Climate
float	current_temperature {NAN}
	The current temperature of the climate device, as reported from the integration.

float	current_humidity {NAN}
	The current humidity of the climate device, as reported from the integration.

union {

float target_temperature
	The target temperature of the climate device. More...

struct {

float target_temperature_low {NAN}
	The minimum target temperature of the climate device, for climate devices with split target temperature. More...

float target_temperature_high {NAN}
	The maximum target temperature of the climate device, for climate devices with split target temperature. More...

}

};

float	target_humidity
	The target humidity of the climate device.

optional< ClimateFanMode >	fan_mode
	The active fan mode of the climate device.

optional< ClimatePreset >	preset
	The active preset of the climate device.

ClimateMode	mode {CLIMATE_MODE_OFF}
	The active mode of the climate device.

ClimateAction	action {CLIMATE_ACTION_OFF}
	The active state of the climate device.

ClimateSwingMode	swing_mode {CLIMATE_SWING_OFF}
	The active swing mode of the climate device.

Detailed Description

Definition at line 20 of file bang_bang_climate.h.

Constructor & Destructor Documentation

◆ BangBangClimate()

esphome::bang_bang::BangBangClimate::BangBangClimate ( )

Definition at line 9 of file bang_bang_climate.cpp.

Member Function Documentation

◆ change_away_()

void esphome::bang_bang::BangBangClimate::change_away_ ( bool away )

protected

Change the away setting, will reset target temperatures to defaults.

Definition at line 184 of file bang_bang_climate.cpp.

◆ compute_state_()

void esphome::bang_bang::BangBangClimate::compute_state_ ( )

protected

Re-compute the state of this climate controller.

Definition at line 94 of file bang_bang_climate.cpp.

◆ control()

void esphome::bang_bang::BangBangClimate::control ( const climate::ClimateCall & call )

overrideprotectedvirtual

Override control to change settings of the climate device.

Implements esphome::climate::Climate.

Definition at line 48 of file bang_bang_climate.cpp.

◆ dump_config()

void esphome::bang_bang::BangBangClimate::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 214 of file bang_bang_climate.cpp.

◆ get_cool_trigger()

Trigger * esphome::bang_bang::BangBangClimate::get_cool_trigger ( ) const

Definition at line 208 of file bang_bang_climate.cpp.

◆ get_heat_trigger()

Trigger * esphome::bang_bang::BangBangClimate::get_heat_trigger ( ) const

Definition at line 209 of file bang_bang_climate.cpp.

◆ get_idle_trigger()

Trigger * esphome::bang_bang::BangBangClimate::get_idle_trigger ( ) const

Definition at line 207 of file bang_bang_climate.cpp.

◆ set_away_config()

void esphome::bang_bang::BangBangClimate::set_away_config ( const BangBangClimateTargetTempConfig & away_config )

Definition at line 199 of file bang_bang_climate.cpp.

◆ set_humidity_sensor()

void esphome::bang_bang::BangBangClimate::set_humidity_sensor ( sensor::Sensor * humidity_sensor )

Definition at line 205 of file bang_bang_climate.cpp.

◆ set_normal_config()

void esphome::bang_bang::BangBangClimate::set_normal_config ( const BangBangClimateTargetTempConfig & normal_config )

Definition at line 195 of file bang_bang_climate.cpp.

◆ set_sensor()

void esphome::bang_bang::BangBangClimate::set_sensor ( sensor::Sensor * sensor )

Definition at line 204 of file bang_bang_climate.cpp.

◆ set_supports_cool()

void esphome::bang_bang::BangBangClimate::set_supports_cool ( bool supports_cool )

Definition at line 211 of file bang_bang_climate.cpp.

◆ set_supports_heat()

void esphome::bang_bang::BangBangClimate::set_supports_heat ( bool supports_heat )

Definition at line 212 of file bang_bang_climate.cpp.

◆ setup()

void esphome::bang_bang::BangBangClimate::setup ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 12 of file bang_bang_climate.cpp.

◆ switch_to_action_()

void esphome::bang_bang::BangBangClimate::switch_to_action_ ( climate::ClimateAction action )

protected

Switch the climate device to the given climate mode.

Definition at line 139 of file bang_bang_climate.cpp.

◆ traits()

climate::ClimateTraits esphome::bang_bang::BangBangClimate::traits ( )

overrideprotectedvirtual

Return the traits of this controller.

Implements esphome::climate::Climate.

Definition at line 66 of file bang_bang_climate.cpp.

Field Documentation

◆ away_config_

BangBangClimateTargetTempConfig esphome::bang_bang::BangBangClimate::away_config_ {}

protected

Definition at line 88 of file bang_bang_climate.h.

◆ cool_trigger_

Trigger* esphome::bang_bang::BangBangClimate::cool_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to cooling mode.

Definition at line 63 of file bang_bang_climate.h.

◆ heat_trigger_

Trigger* esphome::bang_bang::BangBangClimate::heat_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to heating mode.

A null value for this attribute means that the controller has no heating action For example window blinds, where only cooling (blinds closed) and not-cooling (blinds open) is possible.

Definition at line 70 of file bang_bang_climate.h.

◆ humidity_sensor_

sensor::Sensor* esphome::bang_bang::BangBangClimate::humidity_sensor_ {nullptr}

protected

The sensor used for getting the current humidity.

Definition at line 54 of file bang_bang_climate.h.

◆ idle_trigger_

Trigger* esphome::bang_bang::BangBangClimate::idle_trigger_ {nullptr}

protected

The trigger to call when the controller should switch to idle mode.

In idle mode, the controller is assumed to have both heating and cooling disabled.

Definition at line 60 of file bang_bang_climate.h.

◆ normal_config_

BangBangClimateTargetTempConfig esphome::bang_bang::BangBangClimate::normal_config_ {}

protected

Definition at line 87 of file bang_bang_climate.h.

◆ prev_trigger_

Trigger* esphome::bang_bang::BangBangClimate::prev_trigger_ {nullptr}

protected

A reference to the trigger that was previously active.

This is so that the previous trigger can be stopped before enabling a new one.

Definition at line 75 of file bang_bang_climate.h.

◆ sensor_

sensor::Sensor* esphome::bang_bang::BangBangClimate::sensor_ {nullptr}

protected

The sensor used for getting the current temperature.

Definition at line 52 of file bang_bang_climate.h.

◆ supports_away_

bool esphome::bang_bang::BangBangClimate::supports_away_ {false}

protected

Definition at line 85 of file bang_bang_climate.h.

◆ supports_cool_

bool esphome::bang_bang::BangBangClimate::supports_cool_ {false}

protected

Whether the controller supports cooling/heating.

A false value for this attribute means that the controller has no respective action (for example a thermostat, where only heating and not-heating is possible).

Definition at line 82 of file bang_bang_climate.h.

◆ supports_heat_

bool esphome::bang_bang::BangBangClimate::supports_heat_ {false}

protected

Definition at line 83 of file bang_bang_climate.h.

The documentation for this class was generated from the following files:

esphome/components/bang_bang/bang_bang_climate.h
esphome/components/bang_bang/bang_bang_climate.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BangBangClimate()

Member Function Documentation

◆ change_away_()

◆ compute_state_()

◆ control()

◆ dump_config()

◆ get_cool_trigger()

◆ get_heat_trigger()

◆ get_idle_trigger()

◆ set_away_config()

◆ set_humidity_sensor()

◆ set_normal_config()

◆ set_sensor()

◆ set_supports_cool()

◆ set_supports_heat()

◆ setup()

◆ switch_to_action_()

◆ traits()

Field Documentation

◆ away_config_

◆ cool_trigger_

◆ heat_trigger_

◆ humidity_sensor_

◆ idle_trigger_

◆ normal_config_

◆ prev_trigger_

◆ sensor_

◆ supports_away_

◆ supports_cool_

◆ supports_heat_
