The WeikaiComponentI2C class stores the information to the WeiKai component connected through an I2C bus. More...

#include <weikai_i2c.h>

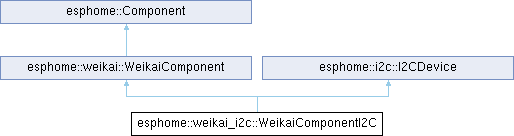

Inheritance diagram for esphome::weikai_i2c::WeikaiComponentI2C:

Public Member Functions
weikai::WeikaiRegister &	reg (uint8_t reg, uint8_t channel) override

void	setup () override

void	dump_config () override

Public Member Functions inherited from esphome::weikai::WeikaiComponent
virtual	~WeikaiComponent ()
	virtual destructor

void	set_crystal (uint32_t crystal)
	store crystal frequency

void	set_test_mode (int test_mode)
	store if the component is in test mode

void	set_name (std::string &&name)
	store the name for the component

const char *	get_name ()
	Get the name of the component.

void	loop () override
	override the Component loop()

bool	page1 ()

Public Member Functions inherited from esphome::Component
float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const LogString *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning ()

void	status_set_warning (const char *message)

void	status_set_warning (const LogString *message)

bool	status_comm_result (bool ok)
	Clears the warning when `ok`, else sets it with `message` (default "Communication failed"); returns `ok`.

bool	status_comm_result (bool ok, const LogString *message)

void	status_set_error ()

void	status_set_error (const LogString *message)

void	status_clear_warning ()

void	status_clear_error ()

	ESPDEPRECATED ("Use status_momentary_warning() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_warning(const char *name

void	status_momentary_warning (uint32_t length=5000)
	Set warning status flag and clear it after `length` ms.

void	status_momentary_warning (const LogString *message, uint32_t length=5000)

	ESPDEPRECATED ("Use status_momentary_error() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_error(const char *name

void	status_momentary_error (uint32_t length=5000)
	Set error status flag and clear it after `length` ms.

void	status_momentary_error (const LogString *message, uint32_t length=5000)

bool	has_overridden_loop () const

const LogString *	get_component_log_str () const ESPHOME_ALWAYS_INLINE
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out)

Public Member Functions inherited from esphome::i2c::I2CDevice
	I2CDevice ()=default
	we use the C++ default constructor

void	set_i2c_address (uint8_t address)
	We store the address of the device on the bus.

uint8_t	get_i2c_address () const
	Returns the I2C address of the object.

void	set_i2c_bus (I2CBus *bus)
	we store the pointer to the I2CBus to use

I2CRegister	reg (uint8_t a_register)
	calls the I2CRegister constructor

I2CRegister16	reg16 (uint16_t a_register)
	calls the I2CRegister16 constructor

ErrorCode	read (uint8_t *data, size_t len) const
	reads an array of bytes from the device using an I2CBus

ErrorCode	read_register (uint8_t a_register, uint8_t *data, size_t len)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	read_register16 (uint16_t a_register, uint8_t *data, size_t len)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	write (const uint8_t *data, size_t len) const
	writes an array of bytes to a device using an I2CBus

ErrorCode	write_read (const uint8_t write_data, size_t write_len, uint8_t read_data, size_t read_len) const
	writes an array of bytes to a device, then reads an array, as a single transaction

ErrorCode	write_register (uint8_t a_register, const uint8_t *data, size_t len) const
	writes an array of bytes to a specific register in the I²C device

ErrorCode	write_register16 (uint16_t a_register, const uint8_t *data, size_t len) const
	write an array of bytes to a specific register in the I²C device

bool	write_registers (const I2CRegValue *table, size_t count) const
	Write each register and value of `table` in order, stopping at the first failure.

template<size_t N>
bool	write_registers (const I2CRegValue(&table)[N]) const

bool	check_chip_id (Component *component, uint8_t a_register, uint8_t expected, uint8_t mask=0xFF)
	Read the 8-bit ID at `a_register` and accept it when it matches `expected` in the bits set in `mask`.

bool	read_bytes (uint8_t a_register, uint8_t *data, uint8_t len)
	Compat APIs All methods below have been added for compatibility reasons.

bool	read_bytes_raw (uint8_t *data, uint8_t len) const

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes (uint8_t a_register)

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes_raw ()

bool	read_bytes_16 (uint8_t a_register, uint16_t *data, uint8_t len)

bool	read_byte (uint8_t a_register, uint8_t *data)

optional< uint8_t >	read_byte (uint8_t a_register)

bool	read_byte_16 (uint8_t a_register, uint16_t *data)

bool	read_bytes_16_le (uint8_t a_register, uint16_t *data, uint8_t len)
	Read len 16-bit values stored least significant byte first; no conversion is compiled on little-endian hosts.

bool	read_bytes_16_le (uint8_t a_register, int16_t *data, uint8_t len)

bool	read_byte_16_le (uint8_t a_register, uint16_t *data)
	Read a 16-bit value stored least significant byte first.

bool	write_bytes (uint8_t a_register, const uint8_t *data, uint8_t len) const

bool	write_bytes (uint8_t a_register, const std::vector< uint8_t > &data) const

template<size_t N>
bool	write_bytes (uint8_t a_register, const std::array< uint8_t, N > &data)

bool	write_bytes_16 (uint8_t a_register, const uint16_t *data, uint8_t len) const

bool	write_byte (uint8_t a_register, uint8_t data) const

bool	write_byte_16 (uint8_t a_register, uint16_t data) const

bool	write_byte_16_le (uint8_t a_register, uint16_t data) const
	Write a 16-bit value least significant byte first.

bool	update_register (uint8_t a_register, uint8_t mask, uint8_t value)
	Read a register, replace the bits in `mask` with those of `value` and write it back.

Data Fields
uint8_t	base_address_
	base address of I2C device

WeikaiRegisterI2C	reg_i2c_ {this, 0, 0}
	init to this component

Data Fields inherited from esphome::Component
uint32_t	length = 5000)

Additional Inherited Members
Protected Member Functions inherited from esphome::weikai::WeikaiComponent
float	get_setup_priority () const override
	Get the priority of the component.

bool	read_pin_val_ (uint8_t pin)
	Helper method to read the value of a pin.

void	write_pin_val_ (uint8_t pin, bool value)
	Helper method to write the value of a pin.

void	set_pin_direction_ (uint8_t pin, gpio::Flags flags)
	Helper method to set the pin mode of a pin.

void	test_gpio_input_ ()

void	test_gpio_output_ ()

Protected Member Functions inherited from esphome::Component
friend	void::setup ()

friend	void::original_setup ()

void	set_component_source_ (uint8_t index)
	Set where this component was loaded from for some debug messages.

virtual void	call_setup ()

void	call_dump_config_ ()

void	enable_loop_slow_path_ ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

bool	set_status_flag_ (uint8_t flag)
	Helper to set a status LED flag on both this component and the app.

bool	set_error_flag_ (const LogString *message)
	Set the error flag and log it; true when it was not set before.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a numeric ID (zero heap allocation).

void	set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const char *name)
	Cancel an interval function.

bool	cancel_interval (uint32_t id)

bool	cancel_interval (InternalSchedulerID id)

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a numeric ID (zero heap allocation).

void	set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const char *name)
	Cancel a timeout function.

bool	cancel_timeout (uint32_t id)

bool	cancel_timeout (InternalSchedulerID id)

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (uint32_t id, std::function< void()> &&f)
	Defer a callback with a numeric ID (zero heap allocation)

bool	cancel_defer (const char *name)
	Cancel a defer callback using the specified name, name must not be empty.

bool	cancel_defer (uint32_t id)

void	status_clear_warning_slow_path_ ()

void	status_clear_error_slow_path_ ()

Protected Attributes inherited from esphome::weikai::WeikaiComponent
uint8_t	pin_config_ {0x00}
	pin config mask: 1 means OUTPUT, 0 means INPUT

uint8_t	output_state_ {0x00}
	output state: 1 means HIGH, 0 means LOW

uint8_t	input_state_ {0x00}
	input pin states: 1 means HIGH, 0 means LOW

uint32_t	crystal_
	crystal value;

int	test_mode_
	test mode value (0 -> no tests)

bool	page1_ {false}
	set to true when in "page1 mode"

std::vector< WeikaiChannel * >	children_ {}
	the list of WeikaiChannel UART children

std::string	name_
	name of entity

Protected Attributes inherited from esphome::Component
uint8_t	component_source_index_ {0}
	Index into component source PROGMEM lookup table (0 = not set)

uint8_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_CS}
	Warn threshold in centiseconds (max 2550ms)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bit 5: Has overridden loop() (set at registration time) Bits 6-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

ComponentRuntimeStats	runtime_stats_

Protected Attributes inherited from esphome::i2c::I2CDevice
I2CBus *	bus_ {nullptr}
	pointer to I2CBus instance

uint8_t	address_ {0x00}
	store the address of the device on the bus

Detailed Description

The WeikaiComponentI2C class stores the information to the WeiKai component connected through an I2C bus.

Definition at line 41 of file weikai_i2c.h.

Member Function Documentation

◆ dump_config()

void esphome::weikai_i2c::WeikaiComponentI2C::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 129 of file weikai_i2c.cpp.

◆ reg()

weikai::WeikaiRegister & esphome::weikai_i2c::WeikaiComponentI2C::reg	(	uint8_t	reg,
		uint8_t	channel )

inlineoverridevirtual

Implements esphome::weikai::WeikaiComponent.

Definition at line 43 of file weikai_i2c.h.

◆ setup()

void esphome::weikai_i2c::WeikaiComponentI2C::setup ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 110 of file weikai_i2c.cpp.

Field Documentation

◆ base_address_

uint8_t esphome::weikai_i2c::WeikaiComponentI2C::base_address_

base address of I2C device

Definition at line 55 of file weikai_i2c.h.

◆ reg_i2c_

WeikaiRegisterI2C esphome::weikai_i2c::WeikaiComponentI2C::reg_i2c_ {this, 0, 0}

init to this component

Definition at line 56 of file weikai_i2c.h.

The documentation for this class was generated from the following files:

esphome/components/weikai_i2c/weikai_i2c.h
esphome/components/weikai_i2c/weikai_i2c.cpp

Public Member Functions

Data Fields

Additional Inherited Members
