| void | set_voltage_sensor (sensor::Sensor *voltage_sensor) |
| |
| void | set_current_sensor (sensor::Sensor *current_sensor) |
| |
| void | set_power_sensor (sensor::Sensor *power_sensor) |
| |
| void | set_energy_sensor (sensor::Sensor *energy_sensor) |
| |
| void | update () override |
| |
| void | on_response (std::span< const uint8_t > request_pdu, std::span< const uint8_t > response_pdu) override |
| |
| void | dump_config () override |
| |
| void | reset_energy () |
| |
| | PollingComponent () |
| |
| | PollingComponent (uint32_t update_interval) |
| | Initialize this polling component with the given update interval in ms.
|
| |
| void | set_update_interval (uint32_t update_interval) |
| | Manually set the update interval in ms for this polling object.
|
| |
| void | call_setup () override |
| |
| virtual uint32_t | get_update_interval () const |
| | Get the update interval in ms of this sensor.
|
| |
| void | start_poller () |
| |
| void | stop_poller () |
| |
| virtual void | setup () |
| | Where the component's initialization should happen.
|
| |
| virtual void | loop () |
| | This method will be called repeatedly.
|
| |
| virtual float | get_setup_priority () const |
| | priority of setup().
|
| |
| float | get_actual_setup_priority () const |
| |
| void | set_setup_priority (float priority) |
| |
| void | call () |
| |
| virtual void | on_shutdown () |
| |
| virtual void | on_safe_shutdown () |
| |
| virtual bool | teardown () |
| | Called during teardown to allow component to gracefully finish operations.
|
| |
| virtual void | on_powerdown () |
| | Called after teardown is complete to power down hardware.
|
| |
| uint8_t | get_component_state () const |
| |
| void | reset_to_construction_state () |
| | Reset this component back to the construction state to allow setup to run again.
|
| |
| bool | is_in_loop_state () const |
| | Check if this component has completed setup and is in the loop state.
|
| |
| bool | is_idle () const |
| | Check if this component is idle.
|
| |
| void | mark_failed () |
| | Mark this component as failed.
|
| |
| void | mark_failed (const LogString *message) |
| |
| void | disable_loop () |
| | Disable this component's loop.
|
| |
| void | enable_loop () |
| | Enable this component's loop.
|
| |
| void | enable_loop_soon_any_context () |
| | Thread and ISR-safe version of enable_loop() that can be called from any context.
|
| |
| bool | is_failed () const |
| |
| bool | is_ready () const |
| |
| virtual bool | can_proceed () |
| |
| bool | status_has_warning () const |
| |
| bool | status_has_error () const |
| |
| void | status_set_warning () |
| |
| void | status_set_warning (const char *message) |
| |
| void | status_set_warning (const LogString *message) |
| |
| void | status_set_error () |
| |
| void | status_set_error (const LogString *message) |
| |
| void | status_clear_warning () |
| |
| void | status_clear_error () |
| |
| void | status_momentary_warning (const char *name, uint32_t length=5000) |
| | Set warning status flag and automatically clear it after a timeout.
|
| |
| void | status_momentary_error (const char *name, uint32_t length=5000) |
| | Set error status flag and automatically clear it after a timeout.
|
| |
| bool | has_overridden_loop () const |
| |
| const LogString * | get_component_log_str () const ESPHOME_ALWAYS_INLINE |
| | Get the integration where this component was declared as a LogString for logging.
|
| |
| bool | should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out) |
| |
| | ModbusClientDevice ()=default |
| |
| | ModbusClientDevice (ModbusClientHub *parent, uint8_t address) |
| |
| virtual | ~ModbusClientDevice () |
| |
| | ModbusClientDevice (const ModbusClientDevice &)=delete |
| |
| ModbusClientDevice & | operator= (const ModbusClientDevice &)=delete |
| |
| | ModbusClientDevice (ModbusClientDevice &&)=delete |
| |
| ModbusClientDevice & | operator= (ModbusClientDevice &&)=delete |
| |
| void | set_parent (ModbusClientHub *parent) |
| |
| void | set_address (uint8_t address) |
| |
| virtual void | on_error (std::span< const uint8_t > request_pdu, ExceptionCode exception_code) |
| | Low-level error hook: called with the request PDU and the modbus exception code from the error response.
|
| |
| virtual void | on_not_sent (std::span< const uint8_t > request_pdu) |
| | Called when an accepted request was dropped before transmission by clear_tx_queue_for_address().
|
| |
| virtual void | on_sent (std::span< const uint8_t > request_pdu) |
| | Called when this device's frame is actually written to the wire.
|
| |
| virtual bool | on_no_response (std::span< const uint8_t > request_pdu) |
| | Called when no matching, uninterrupted response arrived; return true to have the hub re-queue the frame for a retry.
|
| |
| | ESPDEPRECATED ("Override on_not_sent() instead. Removed in 2027.2.0", "2026.8.0") virtual void on_modbus_not_sent() |
| |
| | ESPDEPRECATED ("Override on_no_response() instead. Removed in 2027.2.0", "2026.8.0") virtual bool on_modbus_no_response() |
| |
| virtual void | on_read_registers (EntityType entity_type, uint16_t start_address, std::span< const uint16_t > registers, ResponseStatus status) |
| | High-level typed response callbacks, fired by the default on_response()/on_error() with arguments parsed from the request and response PDUs.
|
| |
| virtual void | on_read_holding_registers (uint16_t start_address, std::span< const uint16_t > registers, ResponseStatus status) |
| |
| virtual void | on_read_input_registers (uint16_t start_address, std::span< const uint16_t > registers, ResponseStatus status) |
| |
| virtual void | on_read_bits (EntityType entity_type, uint16_t start_address, PackedBits bits, ResponseStatus status) |
| | Coil/discrete-input reads are delivered as a PackedBits view (bit 0 = the bit at start_address, bits.size() = the count requested).
|
| |
| virtual void | on_read_coils (uint16_t start_address, PackedBits bits, ResponseStatus status) |
| |
| virtual void | on_read_discrete_inputs (uint16_t start_address, PackedBits bits, ResponseStatus status) |
| |
| virtual void | on_write_single_register (uint16_t address, uint16_t value, ResponseStatus status) |
| | Write acknowledgements.
|
| |
| virtual void | on_write_single_coil (uint16_t address, bool value, ResponseStatus status) |
| |
| virtual void | on_write_multiple_registers (uint16_t start_address, std::span< const uint16_t > registers, ResponseStatus status) |
| |
| virtual void | on_write_multiple_coils (uint16_t start_address, PackedBits bits, ResponseStatus status) |
| |
| virtual void | on_custom_response (std::span< const uint8_t > request_pdu, std::span< const uint8_t > response_pdu, ResponseStatus status) |
| | Catch-all for custom function codes and anything that is not a standard-conformant transaction (see dispatch_response_()); on failure the response is empty and the exception code is in status.
|
| |
| | ESPDEPRECATED ("Use the typed read_*/write_* helpers or send_pdu() instead. Removed in 2027.2.0", "2026.8.0") void send(uint8_t function |
| |
|
| uint16_t | start_address |
| |
| uint16_t uint16_t | number_of_entities |
| |
| uint16_t uint16_t uint8_t | payload_len = 0 |
| |
| uint16_t uint16_t uint8_t const uint8_t * | payload |
| |
| ModbusClientHub * | parent_ {nullptr} |
| |
| uint8_t | address_ {0} |
| |
| bool | custom_response_warned_ {false} |
| |
| friend | void::setup () |
| |
| friend | void::original_setup () |
| |
| void | set_component_source_ (uint8_t index) |
| | Set where this component was loaded from for some debug messages.
|
| |
| void | call_dump_config_ () |
| |
| void | enable_loop_slow_path_ () |
| |
| void | set_component_state_ (uint8_t state) |
| | Helper to set component state (clears state bits and sets new state)
|
| |
| bool | set_status_flag_ (uint8_t flag) |
| | Helper to set a status LED flag on both this component and the app.
|
| |
| void | set_interval (const char *name, uint32_t interval, std::function< void()> &&f) |
| | Set an interval function with a const char* name.
|
| |
| void | set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f) |
| | Set an interval function with a numeric ID (zero heap allocation).
|
| |
| void | set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f) |
| |
| void | set_interval (uint32_t interval, std::function< void()> &&f) |
| |
| bool | cancel_interval (const char *name) |
| | Cancel an interval function.
|
| |
| bool | cancel_interval (uint32_t id) |
| |
| bool | cancel_interval (InternalSchedulerID id) |
| |
| void | set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f) |
| | Set a timeout function with a const char* name.
|
| |
| void | set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f) |
| | Set a timeout function with a numeric ID (zero heap allocation).
|
| |
| void | set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f) |
| |
| void | set_timeout (uint32_t timeout, std::function< void()> &&f) |
| |
| bool | cancel_timeout (const char *name) |
| | Cancel a timeout function.
|
| |
| bool | cancel_timeout (uint32_t id) |
| |
| bool | cancel_timeout (InternalSchedulerID id) |
| |
| void | defer (const char *name, std::function< void()> &&f) |
| | Defer a callback to the next loop() call with a const char* name.
|
| |
| void | defer (std::function< void()> &&f) |
| | Defer a callback to the next loop() call.
|
| |
| void | defer (uint32_t id, std::function< void()> &&f) |
| | Defer a callback with a numeric ID (zero heap allocation)
|
| |
| bool | cancel_defer (const char *name) |
| | Cancel a defer callback using the specified name, name must not be empty.
|
| |
| bool | cancel_defer (uint32_t id) |
| |
| void | status_clear_warning_slow_path_ () |
| |
| void | status_clear_error_slow_path_ () |
| |
Definition at line 12 of file pzemdc.h.

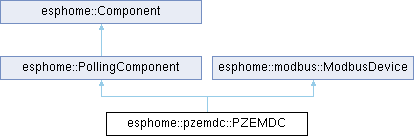

Public Member Functions inherited from esphome::PollingComponent
1.12.0
