#include <pvvx_display.h>

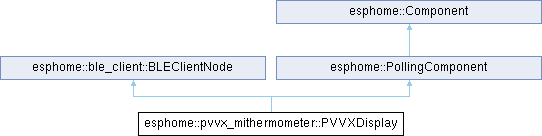

Inheritance diagram for esphome::pvvx_mithermometer::PVVXDisplay:

Public Member Functions
void	set_writer (pvvx_writer_t &&writer)

void	set_auto_clear (bool auto_clear_enabled)

void	set_disconnect_delay (uint32_t ms)

void	dump_config () override

void	update () override

void	gattc_event_handler (esp_gattc_cb_event_t event, esp_gatt_if_t gattc_if, esp_ble_gattc_cb_param_t *param) override

void	gap_event_handler (esp_gap_ble_cb_event_t event, esp_ble_gap_cb_param_t *param) override

void	set_validity_period (uint16_t validity_period)
	Set validity period of the display information in seconds (1..65535)

void	clear ()
	Clear the screen.

void	print_bignum (float bignum)
	Print the big number.

void	print_smallnum (float smallnum)
	Print the small number.

void	print_happy (bool happy=true)
	Print a happy face.

void	print_sad (bool sad=true)
	Print a sad face.

void	print_bracket (bool bracket=true)
	Print round brackets around the face.

void	print_percent (bool percent=true)
	Print percent sign at small number.

void	print_battery (bool battery=true)
	Print battery sign.

void	print_unit (UNIT unit)
	Print unit of big number.

void	display ()

void	set_time (time::RealTimeClock *time)

Public Member Functions inherited from esphome::ble_client::BLEClientNode
virtual void	loop ()

void	set_address (uint64_t address)

BLEClient *	parent ()

void	set_ble_client_parent (BLEClient *parent)

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

virtual void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
virtual void	setup ()
	Where the component's initialization should happen.

virtual void	loop ()
	This method will be called repeatedly.

virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message=nullptr)

void	status_set_warning (const LogString *message)

void	status_set_error (const char *message=nullptr)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const LogString *source)
	Set where this component was loaded from for some debug messages.

const LogString *	get_component_log_str () const
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time)

Protected Member Functions
void	setcfgbit_ (uint8_t bit, bool value)

void	send_to_setup_char_ (uint8_t *blk, size_t size)

void	delayed_disconnect_ ()

void	sync_time_and_display_ ()

void	sync_time_ ()

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_dump_config ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes
bool	auto_clear_enabled_ {true}

uint32_t	disconnect_delay_ms_ = 5000

uint16_t	validity_period_ = 300

uint16_t	bignum_ = 0

uint16_t	smallnum_ = 0

uint8_t	cfg_ = 0

time::RealTimeClock *	time_ {nullptr}

uint16_t	char_handle_ = 0

bool	connection_established_ = false

esp32_ble_tracker::ESPBTUUID	service_uuid_

esp32_ble_tracker::ESPBTUUID	char_uuid_

pvvx_writer_t	writer_ {}

Protected Attributes inherited from esphome::ble_client::BLEClientNode
BLEClient *	parent_

uint64_t	address_

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
const LogString *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Additional Inherited Members
Data Fields inherited from esphome::ble_client::BLEClientNode
espbt::ESPBTClient *	client

espbt::ClientState	node_state

Detailed Description

Definition at line 35 of file pvvx_display.h.

Member Function Documentation

◆ clear()

void esphome::pvvx_mithermometer::PVVXDisplay::clear ( )

inline

Clear the screen.

Definition at line 52 of file pvvx_display.h.

◆ delayed_disconnect_()

void esphome::pvvx_mithermometer::PVVXDisplay::delayed_disconnect_ ( )

protected

Definition at line 145 of file pvvx_display.cpp.

◆ display()

void esphome::pvvx_mithermometer::PVVXDisplay::display ( )

Definition at line 90 of file pvvx_display.cpp.

◆ dump_config()

void esphome::pvvx_mithermometer::PVVXDisplay::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 10 of file pvvx_display.cpp.

◆ gap_event_handler()

void esphome::pvvx_mithermometer::PVVXDisplay::gap_event_handler	(	esp_gap_ble_cb_event_t	event,
		esp_ble_gap_cb_param_t *	param )

overridevirtual

Reimplemented from esphome::ble_client::BLEClientNode.

Definition at line 62 of file pvvx_display.cpp.

◆ gattc_event_handler()

void esphome::pvvx_mithermometer::PVVXDisplay::gattc_event_handler	(	esp_gattc_cb_event_t	event,
		esp_gatt_if_t	gattc_if,
		esp_ble_gattc_cb_param_t *	param )

overridevirtual

Reimplemented from esphome::ble_client::BLEClientNode.

Definition at line 26 of file pvvx_display.cpp.

◆ print_battery()

void esphome::pvvx_mithermometer::PVVXDisplay::print_battery ( bool battery = true )

inline

Print battery sign.

Definition at line 96 of file pvvx_display.h.

◆ print_bignum()

void esphome::pvvx_mithermometer::PVVXDisplay::print_bignum ( float bignum )

inline

Print the big number.

Valid values are from -99.5 to 1999.5. Smaller values are displayed as Lo, higher as Hi. It will printed as it fits in the screen.

Definition at line 63 of file pvvx_display.h.

◆ print_bracket()

void esphome::pvvx_mithermometer::PVVXDisplay::print_bracket ( bool bracket = true )

inline

Print round brackets around the face.

Definition at line 92 of file pvvx_display.h.

◆ print_happy()

void esphome::pvvx_mithermometer::PVVXDisplay::print_happy ( bool happy = true )

inline

Print a happy face.

Can be combined with print_sad() print_bracket(). Possible ouputs are:

* bracket sad happy
*       0   0     0     "     "
*       0   0     1     " ^_^ "
*       0   1     0     " -∧- "
*       0   1     1     " Δ△Δ "
*       1   0     0     "(   )"
*       1   0     1     "(^_^)"
*       1   1     0     "(-∧-)"
*       1   1     1     "(Δ△Δ)"
*

Definition at line 88 of file pvvx_display.h.

◆ print_percent()

void esphome::pvvx_mithermometer::PVVXDisplay::print_percent ( bool percent = true )

inline

Print percent sign at small number.

Definition at line 94 of file pvvx_display.h.

◆ print_sad()

void esphome::pvvx_mithermometer::PVVXDisplay::print_sad ( bool sad = true )

inline

Print a sad face.

Definition at line 90 of file pvvx_display.h.

◆ print_smallnum()

void esphome::pvvx_mithermometer::PVVXDisplay::print_smallnum ( float smallnum )

inline

Print the small number.

Valid values are from -9 to 99. Smaller values are displayed as Lo, higher as Hi.

Definition at line 69 of file pvvx_display.h.

◆ print_unit()

void esphome::pvvx_mithermometer::PVVXDisplay::print_unit ( UNIT unit )

inline

Print unit of big number.

Definition at line 98 of file pvvx_display.h.

◆ send_to_setup_char_()

void esphome::pvvx_mithermometer::PVVXDisplay::send_to_setup_char_	(	uint8_t *	blk,
		size_t	size )

protected

Definition at line 129 of file pvvx_display.cpp.

◆ set_auto_clear()

void esphome::pvvx_mithermometer::PVVXDisplay::set_auto_clear ( bool auto_clear_enabled )

inline

Definition at line 38 of file pvvx_display.h.

◆ set_disconnect_delay()

void esphome::pvvx_mithermometer::PVVXDisplay::set_disconnect_delay ( uint32_t ms )

inline

Definition at line 39 of file pvvx_display.h.

◆ set_time()

void esphome::pvvx_mithermometer::PVVXDisplay::set_time ( time::RealTimeClock * time )

inline

Definition at line 103 of file pvvx_display.h.

◆ set_validity_period()

void esphome::pvvx_mithermometer::PVVXDisplay::set_validity_period ( uint16_t validity_period )

inline

Set validity period of the display information in seconds (1..65535)

Definition at line 50 of file pvvx_display.h.

◆ set_writer()

void esphome::pvvx_mithermometer::PVVXDisplay::set_writer ( pvvx_writer_t && writer )

inline

Definition at line 37 of file pvvx_display.h.

◆ setcfgbit_()

void esphome::pvvx_mithermometer::PVVXDisplay::setcfgbit_	(	uint8_t	bit,
		bool	value )

protected

Definition at line 120 of file pvvx_display.cpp.

◆ sync_time_()

void esphome::pvvx_mithermometer::PVVXDisplay::sync_time_ ( )

protected

Definition at line 160 of file pvvx_display.cpp.

◆ sync_time_and_display_()

void esphome::pvvx_mithermometer::PVVXDisplay::sync_time_and_display_ ( )

protected

Definition at line 152 of file pvvx_display.cpp.

◆ update()

void esphome::pvvx_mithermometer::PVVXDisplay::update ( )

overridevirtual

Implements esphome::PollingComponent.

Definition at line 82 of file pvvx_display.cpp.

Field Documentation

◆ auto_clear_enabled_

bool esphome::pvvx_mithermometer::PVVXDisplay::auto_clear_enabled_ {true}

protected

Definition at line 107 of file pvvx_display.h.

◆ bignum_

uint16_t esphome::pvvx_mithermometer::PVVXDisplay::bignum_ = 0

protected

Definition at line 110 of file pvvx_display.h.

◆ cfg_

uint8_t esphome::pvvx_mithermometer::PVVXDisplay::cfg_ = 0

protected

Definition at line 112 of file pvvx_display.h.

◆ char_handle_

uint16_t esphome::pvvx_mithermometer::PVVXDisplay::char_handle_ = 0

protected

Definition at line 122 of file pvvx_display.h.

◆ char_uuid_

esp32_ble_tracker::ESPBTUUID esphome::pvvx_mithermometer::PVVXDisplay::char_uuid_

protected

Initial value:

=

esp32_ble_tracker::ESPBTUUID::from_raw("00001f1f-0000-1000-8000-00805f9b34fb")

Definition at line 127 of file pvvx_display.h.

◆ connection_established_

bool esphome::pvvx_mithermometer::PVVXDisplay::connection_established_ = false

protected

Definition at line 123 of file pvvx_display.h.

◆ disconnect_delay_ms_

uint32_t esphome::pvvx_mithermometer::PVVXDisplay::disconnect_delay_ms_ = 5000

protected

Definition at line 108 of file pvvx_display.h.

◆ service_uuid_

esp32_ble_tracker::ESPBTUUID esphome::pvvx_mithermometer::PVVXDisplay::service_uuid_

protected

Initial value:

=

esp32_ble_tracker::ESPBTUUID::from_raw("00001f10-0000-1000-8000-00805f9b34fb")

Definition at line 125 of file pvvx_display.h.

◆ smallnum_

uint16_t esphome::pvvx_mithermometer::PVVXDisplay::smallnum_ = 0

protected

Definition at line 111 of file pvvx_display.h.

◆ time_

time::RealTimeClock* esphome::pvvx_mithermometer::PVVXDisplay::time_ {nullptr}

protected

Definition at line 120 of file pvvx_display.h.

◆ validity_period_

uint16_t esphome::pvvx_mithermometer::PVVXDisplay::validity_period_ = 300

protected

Definition at line 109 of file pvvx_display.h.

◆ writer_

pvvx_writer_t esphome::pvvx_mithermometer::PVVXDisplay::writer_ {}

protected

Definition at line 130 of file pvvx_display.h.

The documentation for this class was generated from the following files:

esphome/components/pvvx_mithermometer/display/pvvx_display.h
esphome/components/pvvx_mithermometer/display/pvvx_display.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ clear()

◆ delayed_disconnect_()

◆ display()

◆ dump_config()

◆ gap_event_handler()

◆ gattc_event_handler()

◆ print_battery()

◆ print_bignum()

◆ print_bracket()

◆ print_happy()

◆ print_percent()

◆ print_sad()

◆ print_smallnum()

◆ print_unit()

◆ send_to_setup_char_()

◆ set_auto_clear()

◆ set_disconnect_delay()

◆ set_time()

◆ set_validity_period()

◆ set_writer()

◆ setcfgbit_()

◆ sync_time_()

◆ sync_time_and_display_()

◆ update()

Field Documentation

◆ auto_clear_enabled_

◆ bignum_

◆ cfg_

◆ char_handle_

◆ char_uuid_

◆ connection_established_

◆ disconnect_delay_ms_

◆ service_uuid_

◆ smallnum_

◆ time_

◆ validity_period_

◆ writer_
