esphome::nextion::NextionComponent Class Reference

#include <nextion_component.h>

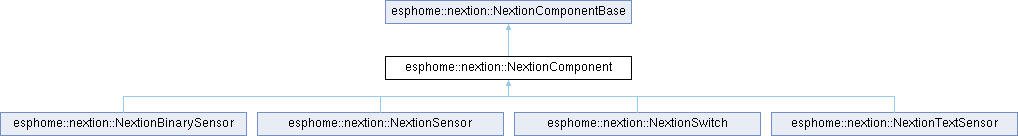

Inheritance diagram for esphome::nextion::NextionComponent:

Data Structures
struct	ComponentState
	Component state management using compact bitfield structure. More...

Public Member Functions
void	update_component_settings () override
void	update_component_settings (bool force_update) override
void	set_background_color (Color bco)
void	set_background_pressed_color (Color bco2)
void	set_foreground_color (Color pco)
void	set_foreground_pressed_color (Color pco2)
void	set_font_id (uint8_t font_id)
void	set_visible (bool visible)
Public Member Functions inherited from esphome::nextion::NextionComponentBase
virtual	~NextionComponentBase ()=default
void	set_variable_name (const std::string &variable_name, const std::string &variable_name_to_send="")
virtual void	update_component ()
virtual void	process_sensor (const std::string &variable_name, int state)
virtual void	process_touch (uint8_t page_id, uint8_t component_id, bool on)
virtual void	process_text (const std::string &variable_name, const std::string &text_value)
virtual void	process_bool (const std::string &variable_name, bool on)
virtual void	set_state (float state)
virtual void	set_state (float state, bool publish)
virtual void	set_state (float state, bool publish, bool send_to_nextion)
virtual void	set_state (bool state)
virtual void	set_state (bool state, bool publish)
virtual void	set_state (bool state, bool publish, bool send_to_nextion)
virtual void	set_state (const std::string &state)
virtual void	set_state (const std::string &state, bool publish)
virtual void	set_state (const std::string &state, bool publish, bool send_to_nextion)
uint8_t	get_component_id ()
void	set_component_id (uint8_t component_id)
uint8_t	get_wave_channel_id ()
void	set_wave_channel_id (uint8_t wave_chan_id)
std::vector< uint8_t >	get_wave_buffer ()
size_t	get_wave_buffer_size ()
void	clear_wave_buffer (size_t buffer_sent)
std::string	get_variable_name ()
std::string	get_variable_name_to_send ()
virtual NextionQueueType	get_queue_type ()
virtual std::string	get_queue_type_string ()
virtual void	set_state_from_int (int state_value, bool publish, bool send_to_nextion)
virtual void	set_state_from_string (const std::string &state_value, bool publish, bool send_to_nextion)
virtual void	send_state_to_nextion ()
bool	get_needs_to_send_update ()
uint8_t	get_wave_chan_id ()
void	set_wave_max_length (int wave_max_length)

Protected Member Functions
	NextionComponent ()
	Constructor initializes component state with visible=true (default state)

Protected Attributes
NextionBase *	nextion_
Color	bco_
Color	bco2_
Color	pco_
Color	pco2_
uint8_t	font_id_ = 0
struct esphome::nextion::NextionComponent::ComponentState	component_flags_
Protected Attributes inherited from esphome::nextion::NextionComponentBase
std::string	variable_name_
std::string	variable_name_to_send_
uint8_t	component_id_ = 0
uint8_t	wave_chan_id_ = UINT8_MAX
std::vector< uint8_t >	wave_buffer_
int	wave_max_length_ = 255
bool	needs_to_send_update_

Detailed Description

Definition at line 10 of file nextion_component.h.

Constructor & Destructor Documentation

NextionComponent()

esphome::nextion::NextionComponent::NextionComponent ( )

inlineprotected

Constructor initializes component state with visible=true (default state)

Definition at line 27 of file nextion_component.h.

Member Function Documentation

set_background_color()

void esphome::nextion::NextionComponent::set_background_color

(

Color

bco

)

Definition at line 6 of file nextion_component.cpp.

set_background_pressed_color()

void esphome::nextion::NextionComponent::set_background_pressed_color

(

Color

bco2

)

Definition at line 16 of file nextion_component.cpp.

set_font_id()

void esphome::nextion::NextionComponent::set_font_id

(

uint8_t

font_id

)

Definition at line 47 of file nextion_component.cpp.

set_foreground_color()

void esphome::nextion::NextionComponent::set_foreground_color

(

Color

pco

)

Definition at line 27 of file nextion_component.cpp.

set_foreground_pressed_color()

void esphome::nextion::NextionComponent::set_foreground_pressed_color

(

Color

pco2

)

Definition at line 37 of file nextion_component.cpp.

set_visible()

void esphome::nextion::NextionComponent::set_visible

(

bool

visible

)

Definition at line 57 of file nextion_component.cpp.

update_component_settings() [1/2]

void esphome::nextion::NextionComponent::update_component_settings ( )

inlineoverridevirtual

Reimplemented from esphome::nextion::NextionComponentBase.

Definition at line 12 of file nextion_component.h.

update_component_settings() [2/2]

void esphome::nextion::NextionComponent::update_component_settings ( bool force_update )

overridevirtual

Reimplemented from esphome::nextion::NextionComponentBase.

Definition at line 67 of file nextion_component.cpp.

Field Documentation

bco2_

Color esphome::nextion::NextionComponent::bco2_

protected

Definition at line 36 of file nextion_component.h.

bco_

Color esphome::nextion::NextionComponent::bco_

protected

Definition at line 35 of file nextion_component.h.

component_flags_

struct esphome::nextion::NextionComponent::ComponentState esphome::nextion::NextionComponent::component_flags_

protected

font_id_

uint8_t esphome::nextion::NextionComponent::font_id_ = 0

protected

Definition at line 39 of file nextion_component.h.

nextion_

NextionBase* esphome::nextion::NextionComponent::nextion_

protected

Definition at line 32 of file nextion_component.h.

pco2_

Color esphome::nextion::NextionComponent::pco2_

protected

Definition at line 38 of file nextion_component.h.

pco_

Color esphome::nextion::NextionComponent::pco_

protected

Definition at line 37 of file nextion_component.h.

---

The documentation for this class was generated from the following files:

• esphome/components/nextion/nextion_component.h
• esphome/components/nextion/nextion_component.cpp
