esphome::mcp4461::Mcp4461Wiper Class Reference

#include <mcp4461_output.h>

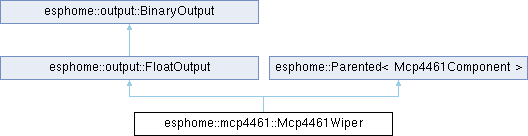

Inheritance diagram for esphome::mcp4461::Mcp4461Wiper:

Public Member Functions
	Mcp4461Wiper (Mcp4461Component *parent, Mcp4461WiperIdx wiper)
void	set_level (float state)
	Set level of wiper.
void	set_state (bool state) override
	Enables/Disables current output using bool parameter.
void	turn_on () override
	Enables current output.
void	turn_off () override
	Disables current output.
float	read_state ()
	Read current device wiper state without updating internal output state.
float	update_state ()
	Update current output state using device wiper state.
void	increase_wiper ()
	Increase wiper by 1 tap.
void	decrease_wiper ()
	Decrease wiper by 1 tap.
void	enable_terminal (char terminal)
	Enable given terminal.
void	disable_terminal (char terminal)
	Disable given terminal.
Public Member Functions inherited from esphome::output::FloatOutput
void	set_max_power (float max_power)
	Set the maximum power output of this component.
void	set_min_power (float min_power)
	Set the minimum power output of this component.
void	set_zero_means_zero (bool zero_means_zero)
	Sets this output to ignore min_power for a 0 state.
void	set_level (float state)
	Set the level of this float output, this is called from the front-end.
virtual void	update_frequency (float frequency)
	Set the frequency of the output for PWM outputs.
float	get_max_power () const
	Get the maximum power output.
float	get_min_power () const
	Get the minimum power output.
Public Member Functions inherited from esphome::output::BinaryOutput
void	set_inverted (bool inverted)
	Set the inversion state of this binary output.
void	set_power_supply (power_supply::PowerSupply *power_supply)
	Use this to connect up a power supply to this output.
bool	is_inverted () const
	Return whether this binary output is inverted.
Public Member Functions inherited from esphome::Parented< Mcp4461Component >
	Parented ()
	Parented (Mcp4461Component *parent)
Mcp4461Component *	get_parent () const
	Get the parent of this object.
void	set_parent (Mcp4461Component *parent)
	Set the parent of this object.

Protected Member Functions
void	write_state (float state) override
Protected Member Functions inherited from esphome::output::FloatOutput
void	write_state (bool state) override
	Implement BinarySensor's write_enabled; this should never be called.
Protected Member Functions inherited from esphome::output::BinaryOutput

Protected Attributes
Mcp4461Component *	parent_
Mcp4461WiperIdx	wiper_
float	state_
Protected Attributes inherited from esphome::output::FloatOutput
float	max_power_ {1.0f}
float	min_power_ {0.0f}
bool	zero_means_zero_
Protected Attributes inherited from esphome::output::BinaryOutput
bool	inverted_ {false}
power_supply::PowerSupplyRequester	power_ {}
Protected Attributes inherited from esphome::Parented< Mcp4461Component >
Mcp4461Component *	parent_

Detailed Description

Definition at line 11 of file mcp4461_output.h.

Constructor & Destructor Documentation

Mcp4461Wiper()

esphome::mcp4461::Mcp4461Wiper::Mcp4461Wiper ( Mcp4461Component * parent, Mcp4461WiperIdx wiper )

inline

Definition at line 13 of file mcp4461_output.h.

Member Function Documentation

decrease_wiper()

void esphome::mcp4461::Mcp4461Wiper::decrease_wiper

(

)

Decrease wiper by 1 tap.

Definition at line 60 of file mcp4461_output.cpp.

disable_terminal()

void esphome::mcp4461::Mcp4461Wiper::disable_terminal

(

char

terminal

)

Disable given terminal.

Parameters

[in]

terminal

single char parameter defining desired terminal to disable, one of { 'a', 'b', 'w', 'h' }

Definition at line 70 of file mcp4461_output.cpp.

enable_terminal()

void esphome::mcp4461::Mcp4461Wiper::enable_terminal

(

char

terminal

)

Enable given terminal.

Parameters

[in]

terminal

single char parameter defining desired terminal to enable, one of { 'a', 'b', 'w', 'h' }

Definition at line 68 of file mcp4461_output.cpp.

increase_wiper()

void esphome::mcp4461::Mcp4461Wiper::increase_wiper

(

)

Increase wiper by 1 tap.

Definition at line 52 of file mcp4461_output.cpp.

read_state()

float esphome::mcp4461::Mcp4461Wiper::read_state

(

)

Read current device wiper state without updating internal output state.

Returns

float - current device state as float in range 0 - 1.0

Definition at line 33 of file mcp4461_output.cpp.

set_level()

void esphome::mcp4461::Mcp4461Wiper::set_level

(

float

state

)

Set level of wiper.

Parameters

[in]

state

- The desired float level in range 0-1.0

Definition at line 13 of file mcp4461_output.cpp.

set_state()

void esphome::mcp4461::Mcp4461Wiper::set_state ( bool state )

overridevirtual

Enables/Disables current output using bool parameter.

Parameters

[in]

state

boolean var representing desired state (true=ON, false=OFF)

Reimplemented from esphome::output::BinaryOutput.

Definition at line 40 of file mcp4461_output.cpp.

turn_off()

void esphome::mcp4461::Mcp4461Wiper::turn_off ( )

overridevirtual

Disables current output.

Reimplemented from esphome::output::BinaryOutput.

Definition at line 50 of file mcp4461_output.cpp.

turn_on()

void esphome::mcp4461::Mcp4461Wiper::turn_on ( )

overridevirtual

Enables current output.

Reimplemented from esphome::output::BinaryOutput.

Definition at line 48 of file mcp4461_output.cpp.

update_state()

float esphome::mcp4461::Mcp4461Wiper::update_state

(

)

Update current output state using device wiper state.

Returns

float - current updated output state as float in range 0 - 1.0

Definition at line 35 of file mcp4461_output.cpp.

write_state()

void esphome::mcp4461::Mcp4461Wiper::write_state ( float state )

overrideprotectedvirtual

Implements esphome::output::FloatOutput.

Definition at line 27 of file mcp4461_output.cpp.

Field Documentation

parent_

Mcp4461Component* esphome::mcp4461::Mcp4461Wiper::parent_

protected

Definition at line 43 of file mcp4461_output.h.

state_

float esphome::mcp4461::Mcp4461Wiper::state_

protected

Definition at line 45 of file mcp4461_output.h.

wiper_

Mcp4461WiperIdx esphome::mcp4461::Mcp4461Wiper::wiper_

protected

Definition at line 44 of file mcp4461_output.h.

---

The documentation for this class was generated from the following files:

• esphome/components/mcp4461/output/mcp4461_output.h
• esphome/components/mcp4461/output/mcp4461_output.cpp
