esphome::light::LightTransformer Class Reference

Base class for all light color transformers, such as transitions or flashes. More...

#include <light_transformer.h>

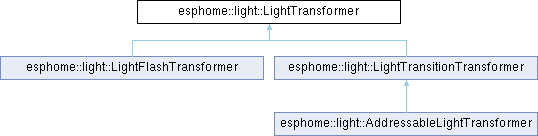

Inheritance diagram for esphome::light::LightTransformer:

Public Member Functions
virtual	~LightTransformer ()=default
void	setup (const LightColorValues &start_values, const LightColorValues &target_values, uint32_t length)
virtual bool	is_finished ()
	Indicates whether this transformation is finished.
virtual void	start ()
	This will be called before the transition is started.
virtual optional< LightColorValues >	apply ()=0
	This will be called while the transformer is active to apply the transition to the light.
virtual void	stop ()
	This will be called after transition is finished.
const LightColorValues &	get_start_values () const
const LightColorValues &	get_target_values () const

Protected Member Functions
float	get_progress_ ()
	The progress of this transition, on a scale of 0 to 1.

Static Protected Member Functions
static float	smoothed_progress (float x)

Protected Attributes
uint32_t	start_time_
uint32_t	length_
LightColorValues	start_values_
LightColorValues	target_values_

Detailed Description

Base class for all light color transformers, such as transitions or flashes.

Definition at line 10 of file light_transformer.h.

Constructor & Destructor Documentation

~LightTransformer()

virtual esphome::light::LightTransformer::~LightTransformer ( )

virtualdefault

Member Function Documentation

apply()

virtual optional< LightColorValues > esphome::light::LightTransformer::apply ( )

pure virtual

This will be called while the transformer is active to apply the transition to the light.

Can either write to the light directly, or return LightColorValues that will be applied.

Implemented in esphome::light::AddressableLightTransformer, esphome::light::LightFlashTransformer, and esphome::light::LightTransitionTransformer.

get_progress_()

float esphome::light::LightTransformer::get_progress_ ( )

inlineprotected

The progress of this transition, on a scale of 0 to 1.

Definition at line 45 of file light_transformer.h.

get_start_values()

const LightColorValues & esphome::light::LightTransformer::get_start_values ( ) const

inline

Definition at line 35 of file light_transformer.h.

get_target_values()

const LightColorValues & esphome::light::LightTransformer::get_target_values ( ) const

inline

Definition at line 37 of file light_transformer.h.

is_finished()

virtual bool esphome::light::LightTransformer::is_finished ( )

inlinevirtual

Indicates whether this transformation is finished.

Reimplemented in esphome::light::LightFlashTransformer.

Definition at line 23 of file light_transformer.h.

setup()

void esphome::light::LightTransformer::setup ( const LightColorValues & start_values, const LightColorValues & target_values, uint32_t length )

inline

Definition at line 14 of file light_transformer.h.

smoothed_progress()

static float esphome::light::LightTransformer::smoothed_progress ( float x )

inlinestaticprotected

Definition at line 42 of file light_transformer.h.

start()

virtual void esphome::light::LightTransformer::start ( )

inlinevirtual

This will be called before the transition is started.

Reimplemented in esphome::light::AddressableLightTransformer, esphome::light::LightFlashTransformer, and esphome::light::LightTransitionTransformer.

Definition at line 26 of file light_transformer.h.

stop()

virtual void esphome::light::LightTransformer::stop ( )

inlinevirtual

This will be called after transition is finished.

Reimplemented in esphome::light::LightFlashTransformer.

Definition at line 33 of file light_transformer.h.

Field Documentation

length_

uint32_t esphome::light::LightTransformer::length_

protected

Definition at line 56 of file light_transformer.h.

start_time_

uint32_t esphome::light::LightTransformer::start_time_

protected

Definition at line 55 of file light_transformer.h.

start_values_

LightColorValues esphome::light::LightTransformer::start_values_

protected

Definition at line 57 of file light_transformer.h.

target_values_

LightColorValues esphome::light::LightTransformer::target_values_

protected

Definition at line 58 of file light_transformer.h.

---

The documentation for this class was generated from the following file:

• esphome/components/light/light_transformer.h
