#include <i2s_audio_speaker.h>

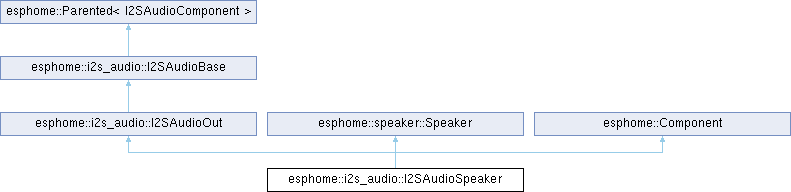

Inheritance diagram for esphome::i2s_audio::I2SAudioSpeaker:

Public Member Functions
float	get_setup_priority () const override

void	setup () override

void	dump_config () override

void	loop () override

void	set_buffer_duration (uint32_t buffer_duration_ms)

void	set_timeout (uint32_t ms)

void	set_internal_dac_mode (i2s_dac_mode_t mode)

void	set_dout_pin (uint8_t pin)

void	set_i2s_comm_fmt (i2s_comm_format_t mode)

void	set_dout_pin (uint8_t pin)

void	set_i2s_comm_fmt (std::string mode)

void	start () override

void	stop () override

void	finish () override

void	set_pause_state (bool pause_state) override

bool	get_pause_state () const override

void	stop_ (bool wait_on_empty)
	Plays the provided audio data.

esp_err_t	start_i2s_driver_ (audio::AudioStreamInfo &audio_stream_info)
	Starts the ESP32 I2S driver.

void	stop_i2s_driver_ ()
	Stops the I2S driver and unlocks the I2S port.

Public Member Functions inherited from esphome::i2s_audio::I2SAudioBase
void	set_i2s_mode (i2s_mode_t mode)

void	set_channel (i2s_channel_fmt_t channel)

void	set_bits_per_sample (i2s_bits_per_sample_t bits_per_sample)

void	set_bits_per_channel (i2s_bits_per_chan_t bits_per_channel)

void	set_i2s_role (i2s_role_t role)

void	set_slot_mode (i2s_slot_mode_t slot_mode)

void	set_std_slot_mask (i2s_std_slot_mask_t std_slot_mask)

void	set_slot_bit_width (i2s_slot_bit_width_t slot_bit_width)

void	set_sample_rate (uint32_t sample_rate)

void	set_use_apll (uint32_t use_apll)

void	set_mclk_multiple (i2s_mclk_multiple_t mclk_multiple)

Public Member Functions inherited from esphome::Parented< I2SAudioComponent >
	Parented ()

	Parented (I2SAudioComponent *parent)

I2SAudioComponent *	get_parent () const
	Get the parent of this object.

void	set_parent (I2SAudioComponent *parent)
	Set the parent of this object.

Public Member Functions inherited from esphome::speaker::Speaker
virtual size_t	play (const uint8_t *data, size_t length)=0
	Plays the provided audio data.

size_t	play (const std::vector< uint8_t > &data)

virtual bool	has_buffered_data () const =0

bool	is_running () const

bool	is_stopped () const

virtual void	set_volume (float volume)

virtual float	get_volume ()

virtual void	set_mute_state (bool mute_state)

virtual bool	get_mute_state ()

void	set_audio_dac (audio_dac::AudioDac *audio_dac)

void	set_audio_stream_info (const audio::AudioStreamInfo &audio_stream_info)

audio::AudioStreamInfo &	get_audio_stream_info ()

void	add_audio_output_callback (std::function< void(uint32_t, int64_t)> &&callback)
	Callback function for sending the duration of the audio written to the speaker since the last callback.

Public Member Functions inherited from esphome::Component
float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message=nullptr)

void	status_set_error (const char *message=nullptr)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Static Public Member Functions
static bool	i2s_on_sent_cb (i2s_chan_handle_t handle, i2s_event_data_t event, void user_ctx)
	Callback function used to send playback timestamps the to the speaker task.

Data Fields
TaskHandle_t	speaker_task_handle_ {nullptr}

EventGroupHandle_t	event_group_ {nullptr}

QueueHandle_t	i2s_event_queue_

std::weak_ptr< RingBuffer >	audio_ring_buffer_

uint32_t	buffer_duration_ms_

optional< uint32_t >	timeout_

bool	pause_state_ {false}

int16_t	q15_volume_factor_ {INT16_MAX}

audio::AudioStreamInfo	current_stream_info_

i2s_dac_mode_t	internal_dac_mode_ {I2S_DAC_CHANNEL_DISABLE}

uint8_t	dout_pin_

i2s_comm_format_t	i2s_comm_fmt_

gpio_num_t	dout_pin_

std::string	i2s_comm_fmt_

i2s_chan_handle_t	tx_handle_

Additional Inherited Members
Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_setup ()

virtual void	call_dump_config ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes inherited from esphome::i2s_audio::I2SAudioBase
i2s_mode_t	i2s_mode_ {}

i2s_channel_fmt_t	channel_

i2s_bits_per_sample_t	bits_per_sample_

i2s_bits_per_chan_t	bits_per_channel_

i2s_role_t	i2s_role_ {}

i2s_slot_mode_t	slot_mode_

i2s_std_slot_mask_t	std_slot_mask_

i2s_slot_bit_width_t	slot_bit_width_

uint32_t	sample_rate_

bool	use_apll_

i2s_mclk_multiple_t	mclk_multiple_

Protected Attributes inherited from esphome::Parented< I2SAudioComponent >
I2SAudioComponent *	parent_

Protected Attributes inherited from esphome::speaker::Speaker
State	state_ {STATE_STOPPED}

audio::AudioStreamInfo	audio_stream_info_

float	volume_ {1.0f}

bool	mute_state_ {false}

audio_dac::AudioDac *	audio_dac_ {nullptr}

CallbackManager< void(uint32_t, int64_t)>	audio_output_callback_ {}

Protected Attributes inherited from esphome::Component
const char *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Detailed Description

Definition at line 22 of file i2s_audio_speaker.h.

Member Function Documentation

◆ dump_config()

void esphome::i2s_audio::I2SAudioSpeaker::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

◆ finish()

void esphome::i2s_audio::I2SAudioSpeaker::finish ( )

overridevirtual

Reimplemented from esphome::speaker::Speaker.

◆ get_pause_state()

bool esphome::i2s_audio::I2SAudioSpeaker::get_pause_state ( ) const

inlineoverridevirtual

Reimplemented from esphome::speaker::Speaker.

Definition at line 48 of file i2s_audio_speaker.h.

◆ get_setup_priority()

float esphome::i2s_audio::I2SAudioSpeaker::get_setup_priority ( ) const

inlineoverridevirtual

Reimplemented from esphome::Component.

Definition at line 24 of file i2s_audio_speaker.h.

◆ i2s_on_sent_cb()

static bool esphome::i2s_audio::I2SAudioSpeaker::i2s_on_sent_cb	(	i2s_chan_handle_t	handle,
		i2s_event_data_t *	event,
		void *	user_ctx )

static

Callback function used to send playback timestamps the to the speaker task.

Parameters

handle	(i2s_chan_handle_t)
event	(i2s_event_data_t)
user_ctx	(void*) User context pointer that the callback accesses

Returns: True if a higher priority task was interrupted

◆ loop()

void esphome::i2s_audio::I2SAudioSpeaker::loop ( )

overridevirtual

Reimplemented from esphome::Component.

◆ set_buffer_duration()

void esphome::i2s_audio::I2SAudioSpeaker::set_buffer_duration ( uint32_t buffer_duration_ms )

inline

Definition at line 30 of file i2s_audio_speaker.h.

◆ set_dout_pin() [1/2]

void esphome::i2s_audio::I2SAudioSpeaker::set_dout_pin ( uint8_t pin )

inline

Definition at line 36 of file i2s_audio_speaker.h.

◆ set_dout_pin() [2/2]

void esphome::i2s_audio::I2SAudioSpeaker::set_dout_pin ( uint8_t pin )

inline

Definition at line 39 of file i2s_audio_speaker.h.

◆ set_i2s_comm_fmt() [1/2]

void esphome::i2s_audio::I2SAudioSpeaker::set_i2s_comm_fmt ( i2s_comm_format_t mode )

inline

Definition at line 37 of file i2s_audio_speaker.h.

◆ set_i2s_comm_fmt() [2/2]

void esphome::i2s_audio::I2SAudioSpeaker::set_i2s_comm_fmt ( std::string mode )

inline

Definition at line 40 of file i2s_audio_speaker.h.

◆ set_internal_dac_mode()

void esphome::i2s_audio::I2SAudioSpeaker::set_internal_dac_mode ( i2s_dac_mode_t mode )

inline

Definition at line 34 of file i2s_audio_speaker.h.

◆ set_pause_state()

void esphome::i2s_audio::I2SAudioSpeaker::set_pause_state ( bool pause_state )

inlineoverridevirtual

Reimplemented from esphome::speaker::Speaker.

Definition at line 47 of file i2s_audio_speaker.h.

◆ set_timeout()

void esphome::i2s_audio::I2SAudioSpeaker::set_timeout ( uint32_t ms )

inline

Definition at line 31 of file i2s_audio_speaker.h.

◆ setup()

void esphome::i2s_audio::I2SAudioSpeaker::setup ( )

overridevirtual

Reimplemented from esphome::Component.

◆ start()

void esphome::i2s_audio::I2SAudioSpeaker::start ( )

overridevirtual

Implements esphome::speaker::Speaker.

◆ start_i2s_driver_()

esp_err_t esphome::i2s_audio::I2SAudioSpeaker::start_i2s_driver_ ( audio::AudioStreamInfo & audio_stream_info )

Starts the ESP32 I2S driver.

Attempts to lock the I2S port, starts the I2S driver using the passed in stream information, and sets the data out pin. If it fails, it will unlock the I2S port and uninstalls the driver, if necessary.

Parameters

audio_stream_info Stream information for the I2S driver.

Returns: ESP_ERR_NOT_ALLOWED if the I2S port can't play the incoming audio stream. ESP_ERR_INVALID_STATE if the I2S port is already locked. ESP_ERR_INVALID_ARG if installing the driver or setting the data outpin fails due to a parameter error. ESP_ERR_NO_MEM if the driver fails to install due to a memory allocation error. ESP_FAIL if setting the data out pin fails due to an IO error ESP_OK if successful

◆ stop()

void esphome::i2s_audio::I2SAudioSpeaker::stop ( )

overridevirtual

Implements esphome::speaker::Speaker.

◆ stop_()

void esphome::i2s_audio::I2SAudioSpeaker::stop_ ( bool wait_on_empty )

Plays the provided audio data.

Starts the speaker task, if necessary. Writes the audio data to the ring buffer.

Parameters

data	Audio data in the format set by the parent speaker classes `set_audio_stream_info` method. /
length	The length of the audio data in bytes. /
ticks_to_wait	The FreeRTOS ticks to wait before writing as much data as possible to the ring buffer. /

Returns: The number of bytes that were actually written to the ring buffer. size_t play(const uint8_t *data, size_t length, TickType_t ticks_to_wait) override; size_t play(const uint8_t *data, size_t length) override { return play(data, length, 0); }

bool has_buffered_data() const override;

/ Sets the volume of the speaker. Uses the speaker's configured audio dac component. If unavailble, it is / implemented as a software volume control. Overrides the default setter to convert the floating point volume to a / Q15 fixed-point factor. /

Parameters

volume between 0.0 and 1.0 void set_volume(float volume) override;

/ Mutes or unmute the speaker. Uses the speaker's configured audio dac component. If unavailble, it is / implemented as a software volume control. Overrides the default setter to convert the floating point volume to a / Q15 fixed-point factor. /

Parameters

mute_state true for muting, false for unmuting void set_mute_state(bool mute_state) override;

protected: / Function for the FreeRTOS task handling audio output. / Allocates space for the buffers, reads audio from the ring buffer and writes audio to the I2S port. Stops / immmiately after receiving the COMMAND_STOP signal and stops only after the ring buffer is empty after receiving / the COMMAND_STOP_GRACEFULLY signal. Stops if the ring buffer hasn't read data for more than timeout_ milliseconds. / When stopping, it deallocates the buffers. It communicates its state and any errors via event_group_. /

Parameters

params I2SAudioSpeaker component static void speaker_task(void *params);

/ Sends a stop command to the speaker task via event_group_.

Parameters

wait_on_empty If false, sends the COMMAND_STOP signal. If true, sends the COMMAND_STOP_GRACEFULLY signal.

◆ stop_i2s_driver_()

void esphome::i2s_audio::I2SAudioSpeaker::stop_i2s_driver_ ( )

Stops the I2S driver and unlocks the I2S port.

Field Documentation

◆ audio_ring_buffer_

std::weak_ptr<RingBuffer> esphome::i2s_audio::I2SAudioSpeaker::audio_ring_buffer_

Definition at line 115 of file i2s_audio_speaker.h.

◆ buffer_duration_ms_

uint32_t esphome::i2s_audio::I2SAudioSpeaker::buffer_duration_ms_

Definition at line 117 of file i2s_audio_speaker.h.

◆ current_stream_info_

audio::AudioStreamInfo esphome::i2s_audio::I2SAudioSpeaker::current_stream_info_

Definition at line 125 of file i2s_audio_speaker.h.

◆ dout_pin_ [1/2]

uint8_t esphome::i2s_audio::I2SAudioSpeaker::dout_pin_

Definition at line 131 of file i2s_audio_speaker.h.

◆ dout_pin_ [2/2]

gpio_num_t esphome::i2s_audio::I2SAudioSpeaker::dout_pin_

Definition at line 134 of file i2s_audio_speaker.h.

◆ event_group_

EventGroupHandle_t esphome::i2s_audio::I2SAudioSpeaker::event_group_ {nullptr}

Definition at line 111 of file i2s_audio_speaker.h.

◆ i2s_comm_fmt_ [1/2]

i2s_comm_format_t esphome::i2s_audio::I2SAudioSpeaker::i2s_comm_fmt_

Definition at line 132 of file i2s_audio_speaker.h.

◆ i2s_comm_fmt_ [2/2]

std::string esphome::i2s_audio::I2SAudioSpeaker::i2s_comm_fmt_

Definition at line 135 of file i2s_audio_speaker.h.

◆ i2s_event_queue_

QueueHandle_t esphome::i2s_audio::I2SAudioSpeaker::i2s_event_queue_

Definition at line 113 of file i2s_audio_speaker.h.

◆ internal_dac_mode_

i2s_dac_mode_t esphome::i2s_audio::I2SAudioSpeaker::internal_dac_mode_ {I2S_DAC_CHANNEL_DISABLE}

Definition at line 129 of file i2s_audio_speaker.h.

◆ pause_state_

bool esphome::i2s_audio::I2SAudioSpeaker::pause_state_ {false}

Definition at line 121 of file i2s_audio_speaker.h.

◆ q15_volume_factor_

int16_t esphome::i2s_audio::I2SAudioSpeaker::q15_volume_factor_ {INT16_MAX}

Definition at line 123 of file i2s_audio_speaker.h.

◆ speaker_task_handle_

TaskHandle_t esphome::i2s_audio::I2SAudioSpeaker::speaker_task_handle_ {nullptr}

Definition at line 110 of file i2s_audio_speaker.h.

◆ timeout_

optional<uint32_t> esphome::i2s_audio::I2SAudioSpeaker::timeout_

Definition at line 119 of file i2s_audio_speaker.h.

◆ tx_handle_

i2s_chan_handle_t esphome::i2s_audio::I2SAudioSpeaker::tx_handle_

Definition at line 136 of file i2s_audio_speaker.h.

The documentation for this class was generated from the following file:

esphome/components/i2s_audio/speaker/i2s_audio_speaker.h

Public Member Functions

Static Public Member Functions

Data Fields

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ dump_config()

◆ finish()

◆ get_pause_state()

◆ get_setup_priority()

◆ i2s_on_sent_cb()

◆ loop()

◆ set_buffer_duration()

◆ set_dout_pin() [1/2]

◆ set_dout_pin() [2/2]

◆ set_i2s_comm_fmt() [1/2]

◆ set_i2s_comm_fmt() [2/2]

◆ set_internal_dac_mode()

◆ set_pause_state()

◆ set_timeout()

◆ setup()

◆ start()

◆ start_i2s_driver_()

◆ stop()

◆ stop_()

◆ stop_i2s_driver_()

Field Documentation

◆ audio_ring_buffer_

◆ buffer_duration_ms_

◆ current_stream_info_

◆ dout_pin_ [1/2]

◆ dout_pin_ [2/2]

◆ event_group_

◆ i2s_comm_fmt_ [1/2]

◆ i2s_comm_fmt_ [2/2]

◆ i2s_event_queue_

◆ internal_dac_mode_

◆ pause_state_

◆ q15_volume_factor_

◆ speaker_task_handle_

◆ timeout_

◆ tx_handle_
