esphome::i2c::InternalI2CBus Class Reference

#include <i2c_bus.h>

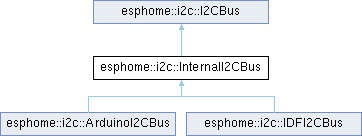

Inheritance diagram for esphome::i2c::InternalI2CBus:

Public Member Functions
virtual int	get_port () const =0
	Returns the I2C port number.
Public Member Functions inherited from esphome::i2c::I2CBus
virtual	~I2CBus ()=default
virtual ErrorCode	write_readv (uint8_t address, const uint8_t *write_buffer, size_t write_count, uint8_t *read_buffer, size_t read_count)=0
	This virtual method writes bytes to an I2CBus from an array, then reads bytes into an array of ReadBuffer.
ErrorCode	read (uint8_t address, uint8_t *buffer, size_t len)
ErrorCode	write (uint8_t address, const uint8_t *buffer, size_t len, bool stop=true)

Additional Inherited Members
Protected Member Functions inherited from esphome::i2c::I2CBus
void	i2c_scan_ ()
	Scans the I2C bus for devices.
Protected Attributes inherited from esphome::i2c::I2CBus
std::vector< std::pair< uint8_t, bool > >	scan_results_
	array containing scan results
bool	scan_ {false}
	Should we scan ? Can be set in the yaml.

Detailed Description

Definition at line 64 of file i2c_bus.h.

Member Function Documentation

get_port()

virtual int esphome::i2c::InternalI2CBus::get_port ( ) const

pure virtual

Returns the I2C port number.

Returns

the port number of the internal I2C bus

Implemented in esphome::i2c::ArduinoI2CBus, esphome::i2c::IDFI2CBus, and esphome::i2c::ZephyrI2CBus.

---

The documentation for this class was generated from the following file:

• esphome/components/i2c/i2c_bus.h
