esphome::esp32_ble_server::BLEDescriptor Class Reference

#include <ble_descriptor.h>

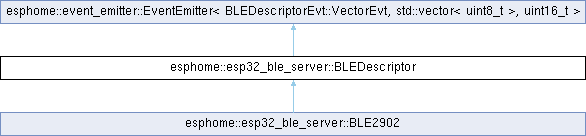

Inheritance diagram for esphome::esp32_ble_server::BLEDescriptor:

Public Member Functions
	BLEDescriptor (ESPBTUUID uuid, uint16_t max_len=100, bool read=true, bool write=true)
virtual	~BLEDescriptor ()
void	do_create (BLECharacteristic *characteristic)
ESPBTUUID	get_uuid () const
void	set_value (std::vector< uint8_t > &&buffer)
void	set_value (std::initializer_list< uint8_t > data)
void	set_value (ByteBuffer buffer)
void	gatts_event_handler (esp_gatts_cb_event_t event, esp_gatt_if_t gatts_if, esp_ble_gatts_cb_param_t *param)
bool	is_created ()
bool	is_failed ()
void	on_write (std::function< void(std::span< const uint8_t >, uint16_t)> &&callback)

Protected Types
enum	State : uint8_t { FAILED = 0x00 , INIT , CREATING , CREATED }

Protected Member Functions
void	set_value_impl_ (const uint8_t *data, size_t length)

Protected Attributes
BLECharacteristic *	characteristic_ {nullptr}
ESPBTUUID	uuid_
uint16_t	handle_ {0xFFFF}
esp_attr_value_t	value_ {}
std::unique_ptr< std::function< void(std::span< const uint8_t >, uint16_t)> >	on_write_callback_
esp_gatt_perm_t	permissions_ {}
enum esphome::esp32_ble_server::BLEDescriptor::State	INIT

Detailed Description

Definition at line 23 of file ble_descriptor.h.

Member Enumeration Documentation

State

enum esphome::esp32_ble_server::BLEDescriptor::State : uint8_t

protected

Enumerator
FAILED
INIT
CREATING
CREATED

Definition at line 58 of file ble_descriptor.h.

Constructor & Destructor Documentation

BLEDescriptor()

esphome::esp32_ble_server::BLEDescriptor::BLEDescriptor	(	ESPBTUUID	uuid,
		uint16_t	max_len = 100,
		bool	read = true,
		bool	write = true )

Definition at line 17 of file ble_descriptor.cpp.

~BLEDescriptor()

esphome::esp32_ble_server::BLEDescriptor::~BLEDescriptor ( )

virtual

Definition at line 30 of file ble_descriptor.cpp.

Member Function Documentation

do_create()

void esphome::esp32_ble_server::BLEDescriptor::do_create

(

BLECharacteristic *

characteristic

)

Definition at line 32 of file ble_descriptor.cpp.

gatts_event_handler()

void esphome::esp32_ble_server::BLEDescriptor::gatts_event_handler	(	esp_gatts_cb_event_t	event,
		esp_gatt_if_t	gatts_if,
		esp_ble_gatts_cb_param_t *	param )

Definition at line 62 of file ble_descriptor.cpp.

get_uuid()

ESPBTUUID esphome::esp32_ble_server::BLEDescriptor::get_uuid ( ) const

inline

Definition at line 28 of file ble_descriptor.h.

is_created()

bool esphome::esp32_ble_server::BLEDescriptor::is_created ( )

inline

Definition at line 36 of file ble_descriptor.h.

is_failed()

bool esphome::esp32_ble_server::BLEDescriptor::is_failed ( )

inline

Definition at line 37 of file ble_descriptor.h.

on_write()

void esphome::esp32_ble_server::BLEDescriptor::on_write ( std::function< void(std::span< const uint8_t >, uint16_t)> && callback )

inline

Definition at line 40 of file ble_descriptor.h.

set_value() [1/3]

void esphome::esp32_ble_server::BLEDescriptor::set_value ( ByteBuffer buffer )

inline

Definition at line 32 of file ble_descriptor.h.

set_value() [2/3]

void esphome::esp32_ble_server::BLEDescriptor::set_value

(

std::initializer_list< uint8_t >

data

)

Definition at line 51 of file ble_descriptor.cpp.

set_value() [3/3]

void esphome::esp32_ble_server::BLEDescriptor::set_value

(

std::vector< uint8_t > &&

buffer

)

Definition at line 49 of file ble_descriptor.cpp.

set_value_impl_()

void esphome::esp32_ble_server::BLEDescriptor::set_value_impl_ ( const uint8_t * data, size_t length )

protected

Definition at line 53 of file ble_descriptor.cpp.

Field Documentation

characteristic_

BLECharacteristic* esphome::esp32_ble_server::BLEDescriptor::characteristic_ {nullptr}

protected

Definition at line 48 of file ble_descriptor.h.

handle_

uint16_t esphome::esp32_ble_server::BLEDescriptor::handle_ {0xFFFF}

protected

Definition at line 50 of file ble_descriptor.h.

INIT

enum esphome::esp32_ble_server::BLEDescriptor::State esphome::esp32_ble_server::BLEDescriptor::INIT

protected

on_write_callback_

std::unique_ptr<std::function<void(std::span<const uint8_t>, uint16_t)> > esphome::esp32_ble_server::BLEDescriptor::on_write_callback_

protected

Definition at line 54 of file ble_descriptor.h.

permissions_

esp_gatt_perm_t esphome::esp32_ble_server::BLEDescriptor::permissions_ {}

protected

Definition at line 56 of file ble_descriptor.h.

uuid_

ESPBTUUID esphome::esp32_ble_server::BLEDescriptor::uuid_

protected

Definition at line 49 of file ble_descriptor.h.

value_

esp_attr_value_t esphome::esp32_ble_server::BLEDescriptor::value_ {}

protected

Definition at line 52 of file ble_descriptor.h.

---

The documentation for this class was generated from the following files:

• esphome/components/esp32_ble_server/ble_descriptor.h
• esphome/components/esp32_ble_server/ble_descriptor.cpp
