esphome::bmp581_i2c::BMP581I2CComponent Class Reference

This class implements support for the BMP581 Temperature+Pressure i2c sensor. More...

#include <bmp581_i2c.h>

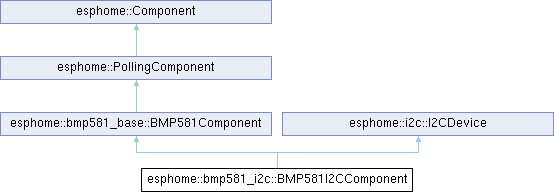

Inheritance diagram for esphome::bmp581_i2c::BMP581I2CComponent:

Public Member Functions
bool	bmp_read_byte (uint8_t a_register, uint8_t *data) override
bool	bmp_write_byte (uint8_t a_register, uint8_t data) override
bool	bmp_read_bytes (uint8_t a_register, uint8_t *data, size_t len) override
bool	bmp_write_bytes (uint8_t a_register, uint8_t *data, size_t len) override
void	dump_config () override
Public Member Functions inherited from esphome::bmp581_base::BMP581Component
void	setup () override
void	update () override
void	set_temperature_sensor (sensor::Sensor *temperature_sensor)
void	set_pressure_sensor (sensor::Sensor *pressure_sensor)
void	set_temperature_oversampling_config (Oversampling temperature_oversampling)
void	set_pressure_oversampling_config (Oversampling pressure_oversampling)
void	set_temperature_iir_filter_config (IIRFilter iir_temperature_level)
void	set_pressure_iir_filter_config (IIRFilter iir_pressure_level)
void	set_conversion_time (uint8_t conversion_time)
Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()
	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.
virtual void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.
void	call_setup () override
virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.
void	start_poller ()
void	stop_poller ()
Public Member Functions inherited from esphome::Component
virtual void	loop ()
	This method will be called repeatedly.
virtual float	get_setup_priority () const
	priority of setup().
float	get_actual_setup_priority () const
void	set_setup_priority (float priority)
virtual float	get_loop_priority () const
	priority of loop().
void	call ()
virtual void	on_shutdown ()
virtual void	on_safe_shutdown ()
virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.
virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.
uint8_t	get_component_state () const
void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.
bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.
bool	is_idle () const
	Check if this component is idle.
virtual void	mark_failed ()
	Mark this component as failed.
	ESPDEPRECATED ("Use mark_failed(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void mark_failed(const char *message)
void	mark_failed (const LogString *message)
void	disable_loop ()
	Disable this component's loop.
void	enable_loop ()
	Enable this component's loop.
void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.
bool	is_failed () const
bool	is_ready () const
virtual bool	can_proceed ()
bool	status_has_warning () const
bool	status_has_error () const
void	status_set_warning (const char *message=nullptr)
void	status_set_warning (const LogString *message)
void	status_set_error ()
	ESPDEPRECATED ("Use status_set_error(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void status_set_error(const char *message)
void	status_set_error (const LogString *message)
void	status_clear_warning ()
void	status_clear_error ()
void	status_momentary_warning (const char *name, uint32_t length=5000)
	Set warning status flag and automatically clear it after a timeout.
void	status_momentary_error (const char *name, uint32_t length=5000)
	Set error status flag and automatically clear it after a timeout.
bool	has_overridden_loop () const
void	set_component_source (const LogString *source)
	Set where this component was loaded from for some debug messages.
const LogString *	get_component_log_str () const
	Get the integration where this component was declared as a LogString for logging.
bool	should_warn_of_blocking (uint32_t blocking_time)
Public Member Functions inherited from esphome::i2c::I2CDevice
	I2CDevice ()=default
	we use the C++ default constructor
void	set_i2c_address (uint8_t address)
	We store the address of the device on the bus.
uint8_t	get_i2c_address () const
	Returns the I2C address of the object.
void	set_i2c_bus (I2CBus *bus)
	we store the pointer to the I2CBus to use
I2CRegister	reg (uint8_t a_register)
	calls the I2CRegister constructor
I2CRegister16	reg16 (uint16_t a_register)
	calls the I2CRegister16 constructor
ErrorCode	read (uint8_t *data, size_t len) const
	reads an array of bytes from the device using an I2CBus
ErrorCode	read_register (uint8_t a_register, uint8_t *data, size_t len)
	reads an array of bytes from a specific register in the I²C device
ErrorCode	read_register16 (uint16_t a_register, uint8_t *data, size_t len)
	reads an array of bytes from a specific register in the I²C device
ErrorCode	write (const uint8_t *data, size_t len) const
	writes an array of bytes to a device using an I2CBus
ErrorCode	write_read (const uint8_t *write_data, size_t write_len, uint8_t *read_data, size_t read_len) const
	writes an array of bytes to a device, then reads an array, as a single transaction
ErrorCode	write_register (uint8_t a_register, const uint8_t *data, size_t len) const
	writes an array of bytes to a specific register in the I²C device
ErrorCode	write_register16 (uint16_t a_register, const uint8_t *data, size_t len) const
	write an array of bytes to a specific register in the I²C device
bool	read_bytes (uint8_t a_register, uint8_t *data, uint8_t len)
	Compat APIs All methods below have been added for compatibility reasons.
bool	read_bytes_raw (uint8_t *data, uint8_t len) const
template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes (uint8_t a_register)
template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes_raw ()
bool	read_bytes_16 (uint8_t a_register, uint16_t *data, uint8_t len)
bool	read_byte (uint8_t a_register, uint8_t *data)
optional< uint8_t >	read_byte (uint8_t a_register)
bool	read_byte_16 (uint8_t a_register, uint16_t *data)
bool	write_bytes (uint8_t a_register, const uint8_t *data, uint8_t len) const
bool	write_bytes (uint8_t a_register, const std::vector< uint8_t > &data) const
template<size_t N>
bool	write_bytes (uint8_t a_register, const std::array< uint8_t, N > &data)
bool	write_bytes_16 (uint8_t a_register, const uint16_t *data, uint8_t len) const
bool	write_byte (uint8_t a_register, uint8_t data) const
bool	write_byte_16 (uint8_t a_register, uint16_t data) const
	ESPDEPRECATED ("The stop argument is no longer used. This will be removed from ESPHome 2026.3.0", "2025.9.0") ErrorCode read_register(uint8_t a_register
	ESPDEPRECATED ("The stop argument is no longer used. This will be removed from ESPHome 2026.3.0", "2025.9.0") ErrorCode read_register16(uint16_t a_register
	ESPDEPRECATED ("The stop argument is no longer used; use write_read() for consecutive write and read. This will be " "removed from ESPHome 2026.3.0", "2025.9.0") ErrorCode write(const uint8_t *data
	ESPDEPRECATED ("The stop argument is no longer used; use write_read() for consecutive write and read. This will be " "removed from ESPHome 2026.3.0", "2025.9.0") ErrorCode write_register(uint8_t a_register
	ESPDEPRECATED ("The stop argument is no longer used; use write_read() for consecutive write and read. This will be " "removed from ESPHome 2026.3.0", "2025.9.0") ErrorCode write_register16(uint16_t a_register

Additional Inherited Members
Data Fields inherited from esphome::bmp581_base::BMP581Component
Data Fields inherited from esphome::i2c::I2CDevice
uint8_t *	data
uint8_t size_t	len
uint8_t size_t bool	stop
size_t	len
size_t bool stop	const { return this->write(data, len)
const uint8_t *	data
const uint8_t size_t	len
const uint8_t size_t bool stop	const
Protected Types inherited from esphome::bmp581_base::BMP581Component
enum	ErrorCode {   NONE = 0 , ERROR_COMMUNICATION_FAILED , ERROR_WRONG_CHIP_ID , ERROR_SENSOR_STATUS ,   ERROR_SENSOR_RESET , ERROR_PRIME_IIR_FAILED }
Protected Member Functions inherited from esphome::bmp581_base::BMP581Component
bool	check_data_readiness_ ()
bool	prime_iir_filter_ ()
bool	read_temperature_ (float &temperature)
bool	read_temperature_and_pressure_ (float &temperature, float &pressure)
bool	reset_ ()
bool	start_measurement_ ()
bool	write_iir_settings_ (IIRFilter temperature_iir, IIRFilter pressure_iir)
bool	write_interrupt_source_settings_ (bool data_ready_enable)
bool	write_oversampling_settings_ (Oversampling temperature_oversampling, Oversampling pressure_oversampling)
bool	write_power_mode_ (OperationMode mode)
Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()
virtual void	call_dump_config ()
void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)
void	set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a numeric ID (zero heap allocation).
void	set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)
void	set_interval (uint32_t interval, std::function< void()> &&f)
bool	cancel_interval (uint32_t id)
bool	cancel_interval (InternalSchedulerID id)
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const char *name
	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t id
	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t initial_wait_time
ESPDEPRECATED("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const std	ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const char *name)
	ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(uint32_t id)
void	set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a numeric ID (zero heap allocation).
void	set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)
void	set_timeout (uint32_t timeout, std::function< void()> &&f)
bool	cancel_timeout (uint32_t id)
bool	cancel_timeout (InternalSchedulerID id)
void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.
void	defer (uint32_t id, std::function< void()> &&f)
	Defer a callback with a numeric ID (zero heap allocation)
bool	cancel_defer (uint32_t id)
Protected Attributes inherited from esphome::bmp581_base::BMP581Component
sensor::Sensor *	temperature_sensor_ {nullptr}
sensor::Sensor *	pressure_sensor_ {nullptr}
Oversampling	temperature_oversampling_
Oversampling	pressure_oversampling_
IIRFilter	iir_temperature_level_
IIRFilter	iir_pressure_level_
uint8_t	conversion_time_
enum esphome::bmp581_base::BMP581Component::ErrorCode	NONE
union {
struct {
uint8_t   drdy_data_reg_en: 1
uint8_t   fifo_full_en: 1
uint8_t   fifo_ths_en: 1
uint8_t   oor_p_en: 1
}   bit
uint8_t   reg
}	int_source_ = {.reg = 0}
union {
struct {
uint8_t   drdy_data_reg: 1
uint8_t   fifo_full: 1
uint8_t   fifo_ths: 1
uint8_t   oor_p: 1
uint8_t   por: 1
}   bit
uint8_t   reg
}	int_status_ = {.reg = 0}
union {
struct {
uint8_t   status_core_rdy: 1
uint8_t   status_nvm_rdy: 1
uint8_t   status_nvm_err: 1
uint8_t   status_nvm_cmd_err: 1
uint8_t   status_boot_err_corrected: 1
uint8_t   : 2
uint8_t   st_crack_pass: 1
}   bit
uint8_t   reg
}	status_ = {.reg = 0}
union {
struct {
uint8_t   comp_pt_en: 2
uint8_t   iir_flush_forced_en: 1
uint8_t   shdw_sel_iir_t: 1
uint8_t   fifo_sel_iir_t: 1
uint8_t   shdw_sel_iir_p: 1
uint8_t   fifo_sel_iir_p: 1
uint8_t   oor_sel_iir_p: 1
}   bit
uint8_t   reg
}	dsp_config_ = {.reg = 0}
union {
struct {
uint8_t   set_iir_t: 3
uint8_t   set_iir_p: 3
}   bit
uint8_t   reg
}	iir_config_ = {.reg = 0}
union {
struct {
uint8_t   osr_t: 3
uint8_t   osr_p: 3
uint8_t   press_en: 1
}   bit
uint8_t   reg
}	osr_config_ = {.reg = 0}
union {
struct {
uint8_t   pwr_mode: 2
uint8_t   odr: 5
uint8_t   deep_dis: 1
}   bit
uint8_t   reg
}	odr_config_ = {.reg = 0}
Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_
Protected Attributes inherited from esphome::Component
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_interval(const std voi	set_interval )(const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_interval(const std boo	cancel_interval )(const char *name)
	Cancel an interval function.
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t	initial_wait_time
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t	max_attempts
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> &&	f
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)
uint32_t	initial_wait_time
uint32_t uint8_t	max_attempts
uint32_t uint8_t std::function< RetryResult(uint8_t)> &&	f
uint32_t uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)
uint8_t	max_attempts
uint8_t std::function< RetryResult(uint8_t)> &&	f
uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_timeout(const std voi	set_timeout )(const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_timeout(const std boo	cancel_timeout )(const char *name)
	Cancel a timeout function.
ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") void defer(const std voi	defer )(const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call.
ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_defer(const std boo	cancel_defer )(const char *name)
	Cancel a defer callback using the specified name, name must not be empty.
const LogString *	component_source_ {nullptr}
uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)
uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.
volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.
Protected Attributes inherited from esphome::i2c::I2CDevice
uint8_t	address_ {0x00}
	store the address of the device on the bus
I2CBus *	bus_ {nullptr}
	pointer to I2CBus instance

Detailed Description

This class implements support for the BMP581 Temperature+Pressure i2c sensor.

Definition at line 11 of file bmp581_i2c.h.

Member Function Documentation

bmp_read_byte()

bool esphome::bmp581_i2c::BMP581I2CComponent::bmp_read_byte ( uint8_t a_register, uint8_t * data )

inlineoverridevirtual

Implements esphome::bmp581_base::BMP581Component.

Definition at line 13 of file bmp581_i2c.h.

bmp_read_bytes()

bool esphome::bmp581_i2c::BMP581I2CComponent::bmp_read_bytes ( uint8_t a_register, uint8_t * data, size_t len )

inlineoverridevirtual

Implements esphome::bmp581_base::BMP581Component.

Definition at line 15 of file bmp581_i2c.h.

bmp_write_byte()

bool esphome::bmp581_i2c::BMP581I2CComponent::bmp_write_byte ( uint8_t a_register, uint8_t data )

inlineoverridevirtual

Implements esphome::bmp581_base::BMP581Component.

Definition at line 14 of file bmp581_i2c.h.

bmp_write_bytes()

bool esphome::bmp581_i2c::BMP581I2CComponent::bmp_write_bytes ( uint8_t a_register, uint8_t * data, size_t len )

inlineoverridevirtual

Implements esphome::bmp581_base::BMP581Component.

Definition at line 18 of file bmp581_i2c.h.

dump_config()

void esphome::bmp581_i2c::BMP581I2CComponent::dump_config ( )

overridevirtual

Reimplemented from esphome::bmp581_base::BMP581Component.

Definition at line 7 of file bmp581_i2c.cpp.

---

The documentation for this class was generated from the following files:

• esphome/components/bmp581_i2c/bmp581_i2c.h
• esphome/components/bmp581_i2c/bmp581_i2c.cpp
