Hub component connecting to the BedJet device over Bluetooth. More...

#include <bedjet_hub.h>

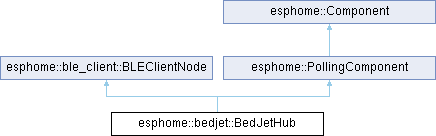

Inheritance diagram for esphome::bedjet::BedJetHub:

Public Member Functions
void	upgrade_firmware ()
	Attempts to check for and apply firmware updates.

bool	button_off ()
	Press the OFF button.

bool	button_heat ()
	Press the HEAT button.

bool	button_ext_heat ()
	Press the EXT HT button.

bool	button_turbo ()
	Press the TURBO button.

bool	button_cool ()
	Press the COOL button.

bool	button_dry ()
	Press the DRY button.

bool	button_memory1 ()
	Press the M1 (memory recall) button.

bool	button_memory2 ()
	Press the M2 (memory recall) button.

bool	button_memory3 ()
	Press the M3 (memory recall) button.

bool	send_button (BedjetButton button)
	Send the `button`.

bool	set_target_temp (float temp_c)
	Set the target temperature to `temp_c` in °C.

bool	set_fan_index (uint8_t fan_speed_index)
	Set the fan speed to a stepped index in the range 0-19.

bool	set_fan_speed (uint8_t fan_speed_pct)
	Set the fan speed to a percent in the range 5% - 100%, at 5% increments.

uint8_t	get_fan_index ()
	Return the fan speed index, in the range 0-19.

uint8_t	get_fan_speed ()
	Return the fan speed as a percent in the range 5%-100%.

bool	set_time_remaining (uint8_t hours, uint8_t mins)
	Set the operational runtime remaining.

uint16_t	get_time_remaining ()
	Return the remaining runtime, in seconds.

bool	is_connected ()

bool	has_status ()

const BedjetStatusPacket *	get_status_packet () const

void	register_child (BedJetClient *obj)
	Register a `BedJetClient` child component.

void	set_status_timeout (uint32_t timeout)
	Set the status timeout.

void	set_time_id (time::RealTimeClock *time_id)
	Set the `time::RealTimeClock` implementation.

void	send_local_time ()
	Attempts to sync the local time (via `time_id`) to the BedJet device.

void	set_clock (uint8_t hour, uint8_t minute)
	Attempt to set the BedJet device's clock to the specified time.

void	loop () override

void	update () override

void	dump_config () override

void	setup () override

float	get_setup_priority () const override

std::string	get_name ()

void	gattc_event_handler (esp_gattc_cb_event_t event, esp_gatt_if_t gattc_if, esp_ble_gattc_cb_param_t *param) override

Public Member Functions inherited from esphome::ble_client::BLEClientNode
virtual void	gap_event_handler (esp_gap_ble_cb_event_t event, esp_ble_gap_cb_param_t *param)

void	set_address (uint64_t address)

BLEClient *	parent ()

void	set_ble_client_parent (BLEClient *parent)

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const LogString *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning ()

void	status_set_warning (const char *message)

void	status_set_warning (const LogString *message)

void	status_set_error ()

void	status_set_error (const LogString *message)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const char *name, uint32_t length=5000)
	Set warning status flag and automatically clear it after a timeout.

void	status_momentary_error (const char *name, uint32_t length=5000)
	Set error status flag and automatically clear it after a timeout.

bool	has_overridden_loop () const

const LogString *	get_component_log_str () const ESPHOME_ALWAYS_INLINE
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out)

Protected Member Functions
void	dispatch_status_ ()

void	dispatch_state_ (bool is_ready)

void	setup_time_ ()
	Initializes time sync callbacks to support syncing current time to the BedJet.

uint8_t	set_notify_ (bool enable)
	Configures the local ESP BLE client to register (`true`) or unregister (`false`) for status notifications.

uint8_t	write_bedjet_packet_ (BedjetPacket *pkt)
	Send the `BedjetPacket` to the device.

void	set_name_ (const std::string &name)

void	status_packet_ready_ ()

bool	discover_characteristics_ ()

uint8_t	write_notify_config_descriptor_ (bool enable)
	Reimplementation of BLEClient.gattc_event_handler() for ESP_GATTC_REG_FOR_NOTIFY_EVT.

Protected Member Functions inherited from esphome::Component
friend	void::setup ()

friend	void::original_setup ()

void	set_component_source_ (uint8_t index)
	Set where this component was loaded from for some debug messages.

void	call_dump_config_ ()

void	enable_loop_slow_path_ ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

bool	set_status_flag_ (uint8_t flag)
	Helper to set a status LED flag on both this component and the app.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a numeric ID (zero heap allocation).

void	set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const char *name)
	Cancel an interval function.

bool	cancel_interval (uint32_t id)

bool	cancel_interval (InternalSchedulerID id)

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a numeric ID (zero heap allocation).

void	set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const char *name)
	Cancel a timeout function.

bool	cancel_timeout (uint32_t id)

bool	cancel_timeout (InternalSchedulerID id)

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (uint32_t id, std::function< void()> &&f)
	Defer a callback with a numeric ID (zero heap allocation)

bool	cancel_defer (const char *name)
	Cancel a defer callback using the specified name, name must not be empty.

bool	cancel_defer (uint32_t id)

void	status_clear_warning_slow_path_ ()

void	status_clear_error_slow_path_ ()

Protected Attributes
std::vector< BedJetClient * >	children_

time::RealTimeClock *	time_id_ {nullptr}

uint32_t	timeout_ {DEFAULT_STATUS_TIMEOUT}

std::string	name_

uint32_t	last_notify_ = 0

bool	force_refresh_ = false

bool	processing_ = false

std::unique_ptr< BedjetCodec >	codec_

uint16_t	char_handle_cmd_ {0}

uint16_t	char_handle_name_ {0}

uint16_t	char_handle_status_ {0}

uint16_t	config_descr_status_ {0}

Protected Attributes inherited from esphome::ble_client::BLEClientNode
BLEClient *	parent_

uint64_t	address_

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
uint8_t	component_source_index_ {0}
	Index into component source PROGMEM lookup table (0 = not set)

uint8_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_CS}
	Warn threshold in centiseconds (max 2550ms)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bit 5: Has overridden loop() (set at registration time) Bits 6-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

ComponentRuntimeStats	runtime_stats_

Static Protected Attributes
static const uint32_t	MIN_NOTIFY_THROTTLE = 15000

static const uint32_t	NOTIFY_WARN_THRESHOLD = 300000

static const uint32_t	DEFAULT_STATUS_TIMEOUT = 900000

Additional Inherited Members
Data Fields inherited from esphome::ble_client::BLEClientNode
espbt::ESPBTClient *	client

espbt::ClientState	node_state

Detailed Description

Hub component connecting to the BedJet device over Bluetooth.

Definition at line 36 of file bedjet_hub.h.

Member Function Documentation

◆ button_cool()

bool esphome::bedjet::BedJetHub::button_cool ( )

Press the COOL button.

Definition at line 50 of file bedjet_hub.cpp.

◆ button_dry()

bool esphome::bedjet::BedJetHub::button_dry ( )

Press the DRY button.

Definition at line 51 of file bedjet_hub.cpp.

◆ button_ext_heat()

bool esphome::bedjet::BedJetHub::button_ext_heat ( )

Press the EXT HT button.

Definition at line 48 of file bedjet_hub.cpp.

◆ button_heat()

bool esphome::bedjet::BedJetHub::button_heat ( )

Press the HEAT button.

Definition at line 47 of file bedjet_hub.cpp.

◆ button_memory1()

bool esphome::bedjet::BedJetHub::button_memory1 ( )

Press the M1 (memory recall) button.

Definition at line 53 of file bedjet_hub.cpp.

◆ button_memory2()

bool esphome::bedjet::BedJetHub::button_memory2 ( )

Press the M2 (memory recall) button.

Definition at line 54 of file bedjet_hub.cpp.

◆ button_memory3()

bool esphome::bedjet::BedJetHub::button_memory3 ( )

Press the M3 (memory recall) button.

Definition at line 55 of file bedjet_hub.cpp.

◆ button_off()

bool esphome::bedjet::BedJetHub::button_off ( )

Press the OFF button.

Definition at line 52 of file bedjet_hub.cpp.

◆ button_turbo()

bool esphome::bedjet::BedJetHub::button_turbo ( )

Press the TURBO button.

Definition at line 49 of file bedjet_hub.cpp.

◆ discover_characteristics_()

bool esphome::bedjet::BedJetHub::discover_characteristics_ ( )

protected

Definition at line 160 of file bedjet_hub.cpp.

◆ dispatch_state_()

void esphome::bedjet::BedJetHub::dispatch_state_ ( bool is_ready )

protected

Definition at line 506 of file bedjet_hub.cpp.

◆ dispatch_status_()

void esphome::bedjet::BedJetHub::dispatch_status_ ( )

protected

Definition at line 512 of file bedjet_hub.cpp.

◆ dump_config()

void esphome::bedjet::BedJetHub::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 493 of file bedjet_hub.cpp.

◆ gattc_event_handler()

void esphome::bedjet::BedJetHub::gattc_event_handler	(	esp_gattc_cb_event_t	event,
		esp_gatt_if_t	gattc_if,
		esp_ble_gattc_cb_param_t *	param )

overridevirtual

Reimplemented from esphome::ble_client::BLEClientNode.

Definition at line 231 of file bedjet_hub.cpp.

◆ get_fan_index()

uint8_t esphome::bedjet::BedJetHub::get_fan_index ( )

Return the fan speed index, in the range 0-19.

Definition at line 72 of file bedjet_hub.cpp.

◆ get_fan_speed()

uint8_t esphome::bedjet::BedJetHub::get_fan_speed ( )

inline

Return the fan speed as a percent in the range 5%-100%.

Definition at line 78 of file bedjet_hub.h.

◆ get_name()

std::string esphome::bedjet::BedJetHub::get_name ( )

inline

Returns: The BedJet's configured name, or the MAC address if not discovered yet.

Definition at line 122 of file bedjet_hub.h.

◆ get_setup_priority()

float esphome::bedjet::BedJetHub::get_setup_priority ( ) const

inlineoverridevirtual

Reimplemented from esphome::Component.

Definition at line 119 of file bedjet_hub.h.

◆ get_status_packet()

const BedjetStatusPacket * esphome::bedjet::BedJetHub::get_status_packet ( ) const

inline

Definition at line 93 of file bedjet_hub.h.

◆ get_time_remaining()

uint16_t esphome::bedjet::BedJetHub::get_time_remaining ( )

Return the remaining runtime, in seconds.

Definition at line 115 of file bedjet_hub.cpp.

◆ has_status()

bool esphome::bedjet::BedJetHub::has_status ( )

inline

Definition at line 92 of file bedjet_hub.h.

◆ is_connected()

bool esphome::bedjet::BedJetHub::is_connected ( )

inline

Returns: true if the BLEClient::node_state is ClientState::ESTABLISHED.

Definition at line 90 of file bedjet_hub.h.

◆ loop()

void esphome::bedjet::BedJetHub::loop ( )

overridevirtual

Reimplemented from esphome::ble_client::BLEClientNode.

Definition at line 486 of file bedjet_hub.cpp.

◆ register_child()

void esphome::bedjet::BedJetHub::register_child ( BedJetClient * obj )

Register a BedJetClient child component.

Definition at line 548 of file bedjet_hub.cpp.

◆ send_button()

bool esphome::bedjet::BedJetHub::send_button ( BedjetButton button )

Send the button.

Definition at line 101 of file bedjet_hub.cpp.

◆ send_local_time()

void esphome::bedjet::BedJetHub::send_local_time ( )

Attempts to sync the local time (via time_id) to the BedJet device.

Definition at line 447 of file bedjet_hub.cpp.

◆ set_clock()

void esphome::bedjet::BedJetHub::set_clock	(	uint8_t	hour,
		uint8_t	minute )

Attempt to set the BedJet device's clock to the specified time.

Definition at line 469 of file bedjet_hub.cpp.

◆ set_fan_index()

bool esphome::bedjet::BedJetHub::set_fan_index ( uint8_t fan_speed_index )

Set the fan speed to a stepped index in the range 0-19.

Definition at line 57 of file bedjet_hub.cpp.

◆ set_fan_speed()

bool esphome::bedjet::BedJetHub::set_fan_speed ( uint8_t fan_speed_pct )

inline

Set the fan speed to a percent in the range 5% - 100%, at 5% increments.

Definition at line 72 of file bedjet_hub.h.

◆ set_name_()

void esphome::bedjet::BedJetHub::set_name_ ( const std::string & name )

inlineprotected

Definition at line 154 of file bedjet_hub.h.

◆ set_notify_()

uint8_t esphome::bedjet::BedJetHub::set_notify_ ( bool enable )

protected

Configures the local ESP BLE client to register (true) or unregister (false) for status notifications.

Definition at line 141 of file bedjet_hub.cpp.

◆ set_status_timeout()

void esphome::bedjet::BedJetHub::set_status_timeout ( uint32_t timeout )

inline

Set the status timeout.

This is the max time to wait for a status update before the connection is presumed unusable.

Definition at line 102 of file bedjet_hub.h.

◆ set_target_temp()

bool esphome::bedjet::BedJetHub::set_target_temp ( float temp_c )

Set the target temperature to temp_c in °C.

Definition at line 80 of file bedjet_hub.cpp.

◆ set_time_id()

void esphome::bedjet::BedJetHub::set_time_id ( time::RealTimeClock * time_id )

inline

Set the time::RealTimeClock implementation.

Definition at line 106 of file bedjet_hub.h.

◆ set_time_remaining()

bool esphome::bedjet::BedJetHub::set_time_remaining	(	uint8_t	hours,
		uint8_t	mins )

Set the operational runtime remaining.

The unit establishes and enforces runtime limits for some modes, so this call is not guaranteed to succeed.

Definition at line 90 of file bedjet_hub.cpp.

◆ setup()

void esphome::bedjet::BedJetHub::setup ( )

inlineoverridevirtual

Reimplemented from esphome::Component.

Definition at line 118 of file bedjet_hub.h.

◆ setup_time_()

void esphome::bedjet::BedJetHub::setup_time_ ( )

protected

Initializes time sync callbacks to support syncing current time to the BedJet.

Definition at line 459 of file bedjet_hub.cpp.

◆ status_packet_ready_()

void esphome::bedjet::BedJetHub::status_packet_ready_ ( )

inlineprotected

Definition at line 405 of file bedjet_hub.cpp.

◆ update()

void esphome::bedjet::BedJetHub::update ( )

overridevirtual

Implements esphome::PollingComponent.

Definition at line 491 of file bedjet_hub.cpp.

◆ upgrade_firmware()

void esphome::bedjet::BedJetHub::upgrade_firmware ( )

Attempts to check for and apply firmware updates.

Definition at line 38 of file bedjet_hub.cpp.

◆ write_bedjet_packet_()

uint8_t esphome::bedjet::BedJetHub::write_bedjet_packet_ ( BedjetPacket * pkt )

protected

Send the BedjetPacket to the device.

Definition at line 125 of file bedjet_hub.cpp.

◆ write_notify_config_descriptor_()

uint8_t esphome::bedjet::BedJetHub::write_notify_config_descriptor_ ( bool enable )

protected

Reimplementation of BLEClient.gattc_event_handler() for ESP_GATTC_REG_FOR_NOTIFY_EVT.

This is a copy of ble_client's automatic handling of ESP_GATTC_REG_FOR_NOTIFY_EVT, in order to undo the same on unregister. It also allows us to maintain the config descriptor separately, since the parent BLEClient is going to purge all descriptors once we set our connection status to Established.

Definition at line 423 of file bedjet_hub.cpp.

Field Documentation

◆ char_handle_cmd_

uint16_t esphome::bedjet::BedJetHub::char_handle_cmd_ {0}

protected

Definition at line 166 of file bedjet_hub.h.

◆ char_handle_name_

uint16_t esphome::bedjet::BedJetHub::char_handle_name_ {0}

protected

Definition at line 167 of file bedjet_hub.h.

◆ char_handle_status_

uint16_t esphome::bedjet::BedJetHub::char_handle_status_ {0}

protected

Definition at line 168 of file bedjet_hub.h.

◆ children_

std::vector<BedJetClient *> esphome::bedjet::BedJetHub::children_

protected

Definition at line 136 of file bedjet_hub.h.

◆ codec_

std::unique_ptr<BedjetCodec> esphome::bedjet::BedJetHub::codec_

protected

Definition at line 163 of file bedjet_hub.h.

◆ config_descr_status_

uint16_t esphome::bedjet::BedJetHub::config_descr_status_ {0}

protected

Definition at line 169 of file bedjet_hub.h.

◆ DEFAULT_STATUS_TIMEOUT

const uint32_t esphome::bedjet::BedJetHub::DEFAULT_STATUS_TIMEOUT = 900000

staticprotected

Definition at line 149 of file bedjet_hub.h.

◆ force_refresh_

bool esphome::bedjet::BedJetHub::force_refresh_ = false

protected

Definition at line 160 of file bedjet_hub.h.

◆ last_notify_

uint32_t esphome::bedjet::BedJetHub::last_notify_ = 0

protected

Definition at line 158 of file bedjet_hub.h.

◆ MIN_NOTIFY_THROTTLE

const uint32_t esphome::bedjet::BedJetHub::MIN_NOTIFY_THROTTLE = 15000

staticprotected

Definition at line 147 of file bedjet_hub.h.

◆ name_

std::string esphome::bedjet::BedJetHub::name_

protected

Definition at line 156 of file bedjet_hub.h.

◆ NOTIFY_WARN_THRESHOLD

const uint32_t esphome::bedjet::BedJetHub::NOTIFY_WARN_THRESHOLD = 300000

staticprotected

Definition at line 148 of file bedjet_hub.h.

◆ processing_

bool esphome::bedjet::BedJetHub::processing_ = false

protected

Definition at line 161 of file bedjet_hub.h.

◆ time_id_

time::RealTimeClock* esphome::bedjet::BedJetHub::time_id_ {nullptr}

protected

Definition at line 143 of file bedjet_hub.h.

◆ timeout_

uint32_t esphome::bedjet::BedJetHub::timeout_ {DEFAULT_STATUS_TIMEOUT}

protected

Definition at line 146 of file bedjet_hub.h.

The documentation for this class was generated from the following files:

esphome/components/bedjet/bedjet_hub.h
esphome/components/bedjet/bedjet_hub.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ button_cool()

◆ button_dry()

◆ button_ext_heat()

◆ button_heat()

◆ button_memory1()

◆ button_memory2()

◆ button_memory3()

◆ button_off()

◆ button_turbo()

◆ discover_characteristics_()

◆ dispatch_state_()

◆ dispatch_status_()

◆ dump_config()

◆ gattc_event_handler()

◆ get_fan_index()

◆ get_fan_speed()

◆ get_name()

◆ get_setup_priority()

◆ get_status_packet()

◆ get_time_remaining()

◆ has_status()

◆ is_connected()

◆ loop()

◆ register_child()

◆ send_button()

◆ send_local_time()

◆ set_clock()

◆ set_fan_index()

◆ set_fan_speed()

◆ set_name_()

◆ set_notify_()

◆ set_status_timeout()

◆ set_target_temp()

◆ set_time_id()

◆ set_time_remaining()

◆ setup()

◆ setup_time_()

◆ status_packet_ready_()

◆ update()

◆ upgrade_firmware()

◆ write_bedjet_packet_()

◆ write_notify_config_descriptor_()

Field Documentation

◆ char_handle_cmd_

◆ char_handle_name_

◆ char_handle_status_

◆ children_

◆ codec_

◆ config_descr_status_

◆ DEFAULT_STATUS_TIMEOUT

◆ force_refresh_

◆ last_notify_

◆ MIN_NOTIFY_THROTTLE

◆ name_

◆ NOTIFY_WARN_THRESHOLD

◆ processing_

◆ time_id_

◆ timeout_
